Pipe Camera Revolver 80, viZaar

Pipe Camera Revolver 80, viZaar – the leading inspection system for visual inspection of orbital welds in large diameter pipelines.

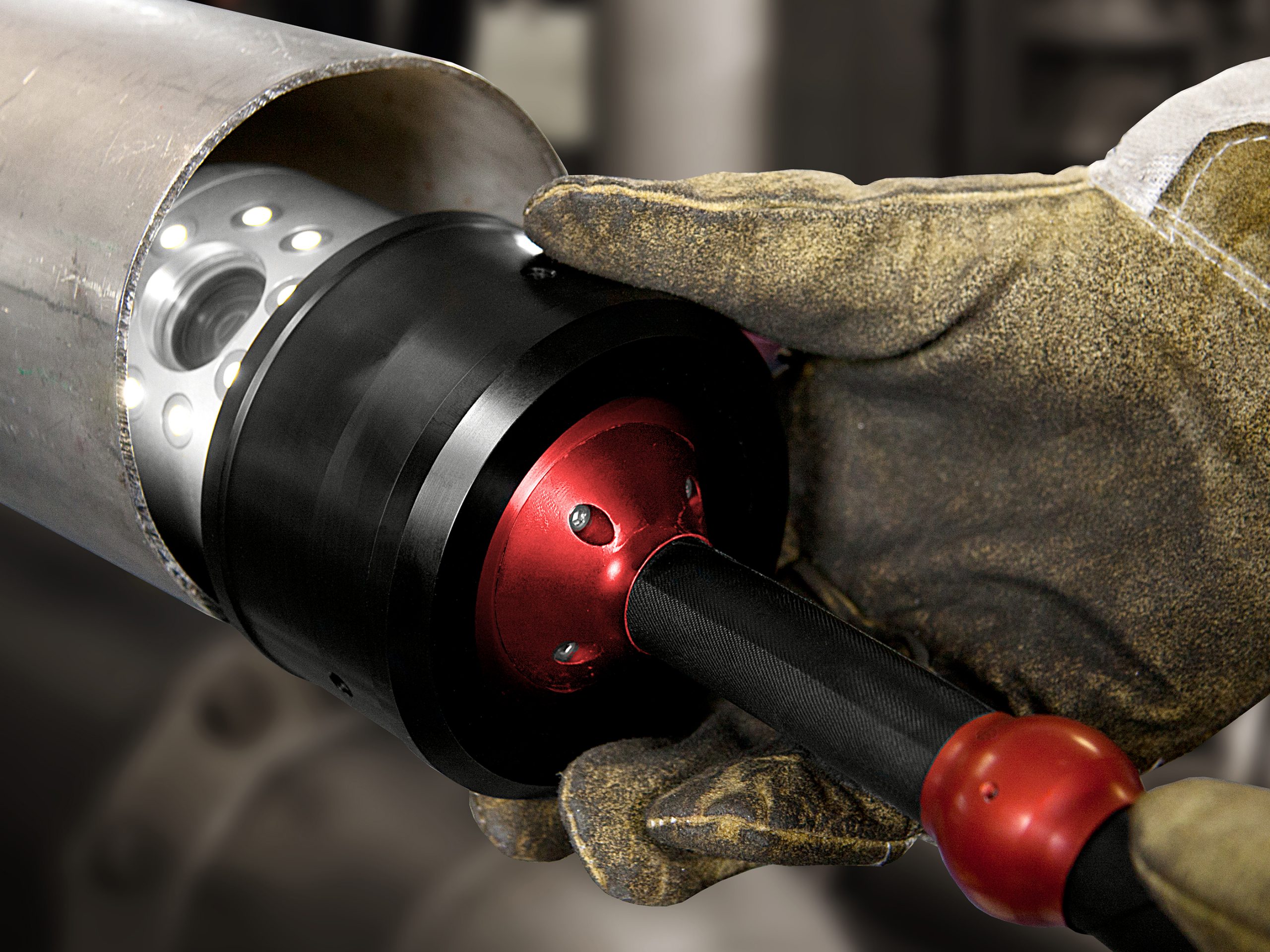

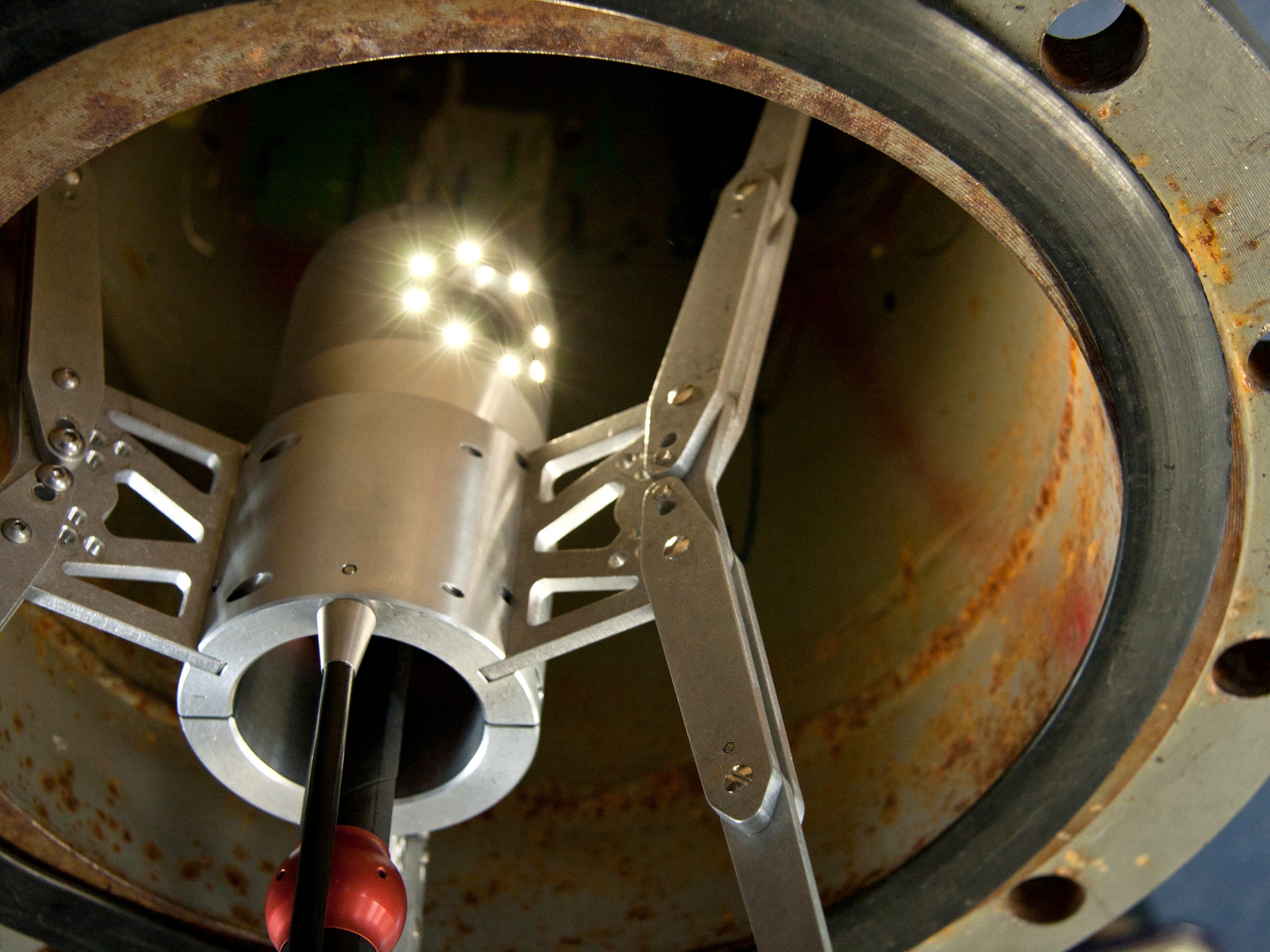

The perfect inspection camera for pipe wall and weld seam inspections. The Revolver 80 is a dual view inner pipe inspection camera for remote visual inspection of pipelines from 80 mm inner pipe diameter. The Revolver 80 pipe inspection camera has a dual camera head with DOV 0° (straight view) and DOV 90° (side view) with endless 360° rotation for the inspection of orbital welds.

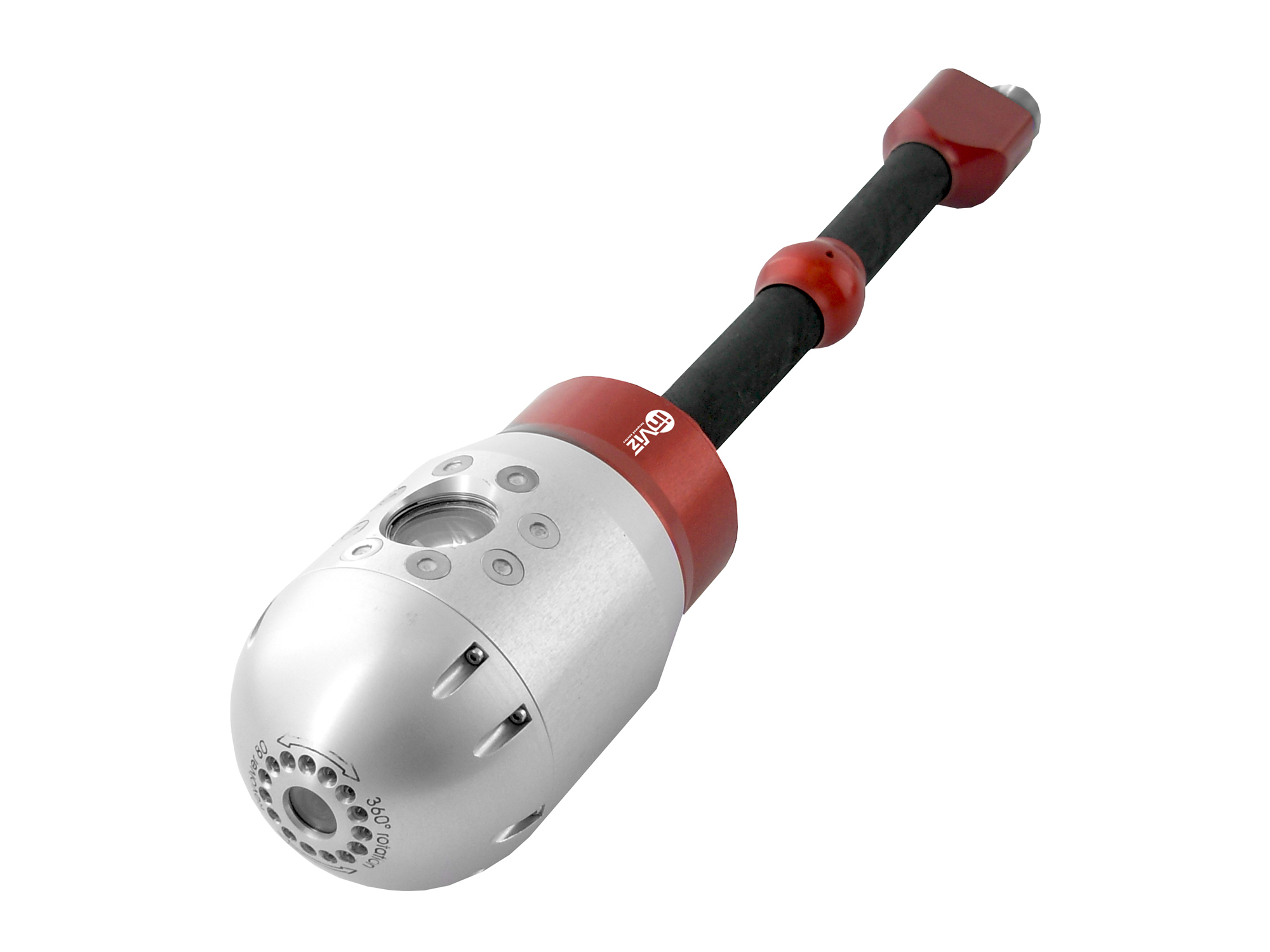

The Revolver 80 pipe camera has a dual camera head with continuous 360° rotation. The front camera with DOV 0° is particularly suitable for orientation when driving through the pipe. In addition, it offers a foresighted overview of the inner pipe. With the DOV 90° side view camera you can inspect the inner wall of the pipe precisely piece by piece and carry out weld seam or orbital weld seam inspections. Both cameras of the Revolver 80 are equipped with high performance LED illumination. The side view camera also has a 10x optical zoom for optimum defect contrast, even on coated, electro polished and highly reflective surfaces.

Features:

• Optional work lengths up to 150 m
• Exact recording of details with up to 10x zoom
• High performance LEDs for optimum illumination of the pipe
• Best orientation due to the additional straight view camera
• Position memory and auto return

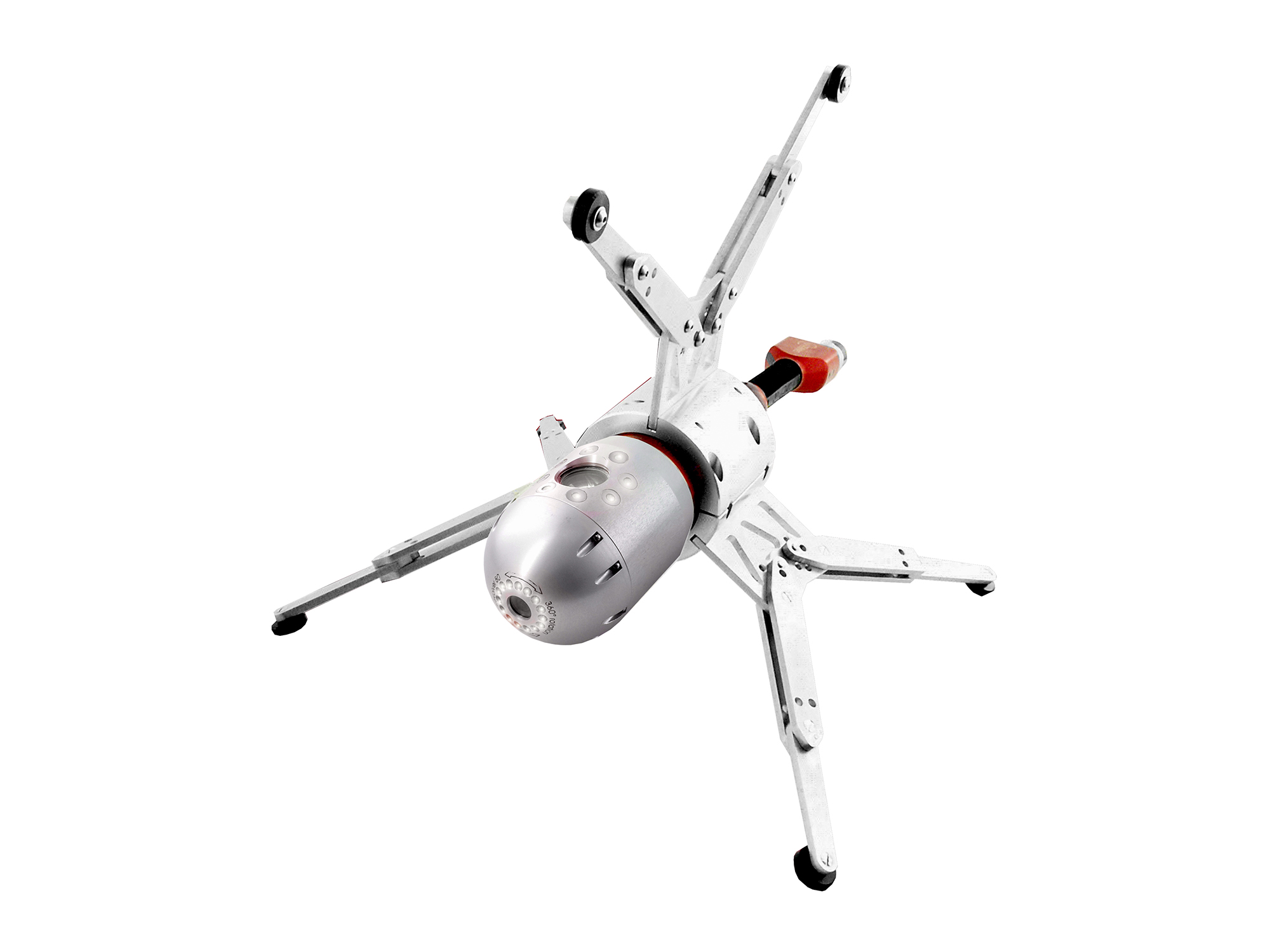

• Auto levelling for constant position inside the pipe
• Precise control via joystick or software
• Best control and documentation through connecting to our MATRIX E3
• Extensive accessories
