Magnetic Field Meter MP-4000

Magnetic Field Meter MP-4000 – with unique measuring technology for professional measurement of magnetic direct and alternating fields as well as pulsed fields.

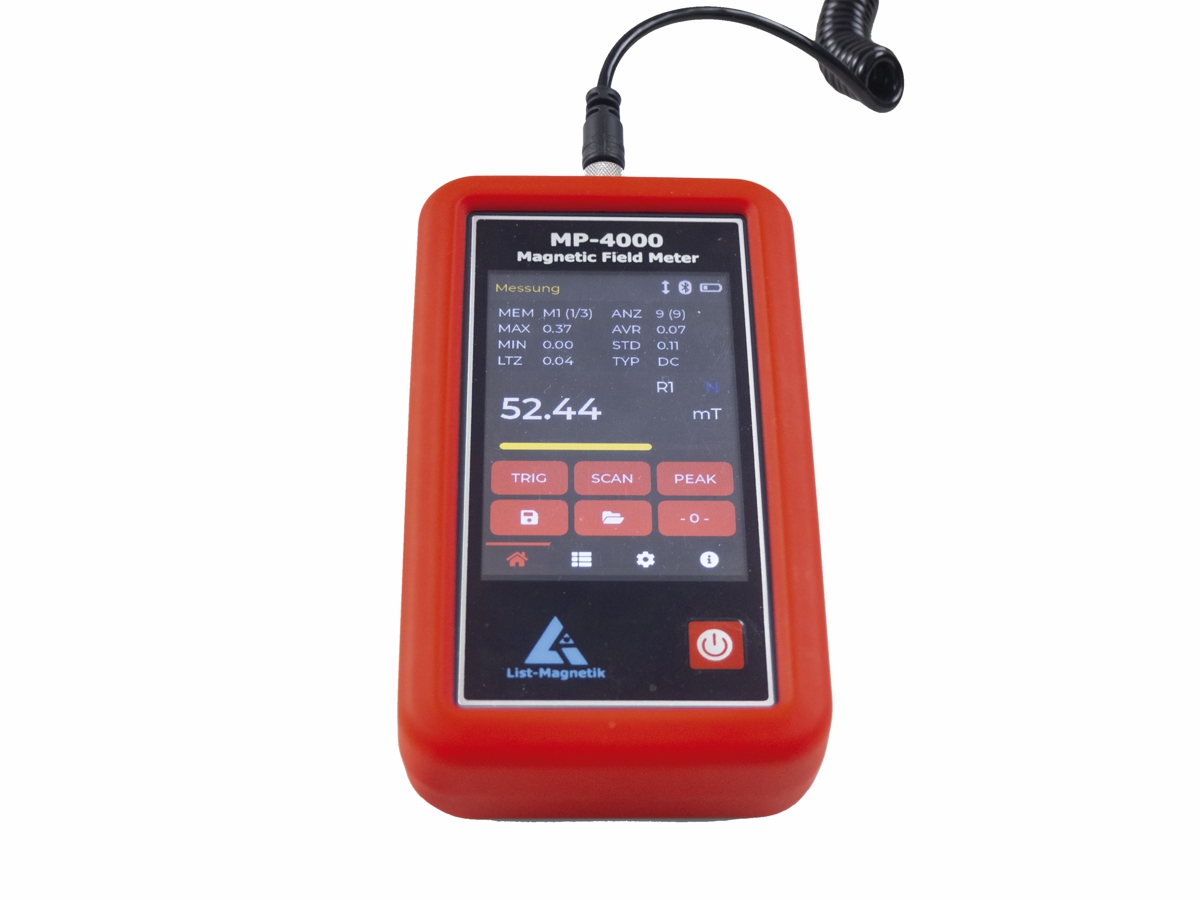

The MP-4000 gaussmeter features a graphic LCD touch panel with an innovative user interface and a resolution of 320×480 pixels. An outstanding feature of the new probe electronics is the fast digitization of the measured values with a frequency of up to 200 kHz. This makes it possible to display waveforms with a duration of only 0.1 milliseconds. This gives you a precise picture of the course of a magnetic field pulse. Peak values and pulse durations are accurately displayed. In addition, alternating field waveforms can be recorded and stored at frequencies up to 20 kHz.

Interference-free magnetic field measurements

Especially at very low magnetic field strengths, absolutely interference-free and precise measurement is crucial. The measurement electronics work directly in the probe and digitize the signals from the Hall sensor.

Scan and pulse field
In the area of stable DC fields, the scan function makes it possible to detect a magnetic field over a large area, which can then be statistically evaluated. Pulse fields can be perfectly displayed graphically in the MP-4000, providing an accurate picture of the course of a magnetic field pulse.

Memory and interfaces
The device supports a variety of magnetic field measurement applications with flexible data storage, a combined digital and analog display, and peak value measurement. The Bluetooth interface allows data transfer to a Windows PC and apps for Android and iOS. The USB-C interface allows permanent connection to an external power source.

An SCPI interface is implemented on the device, which allows the device to perform remote measurements in line operation and provide measured values. The connection is made via USB, which also ensures power supply and continuous operation.
Measurements in A/cm, kA/m, Gauss, Tesla
With a magnetic field meter / magnetometer / Gaussmeter / Teslameter (all names describe the same) you can see small differences in the strength of the magnetic field during the magnetic field measuring. From low field values just above the Earth’s magnetic field, via residual magnetism / remanence with low A / cm or Gauss / Oersted residual magnetic field values up to peak fields, the magnetic field meters from List-Magnetik are durable and you get reproducible field strength values during the magnetic field test. In addition, we offer a calibration standard (reference magnet), with which you can always check your magnetic field tester for accuracy.
