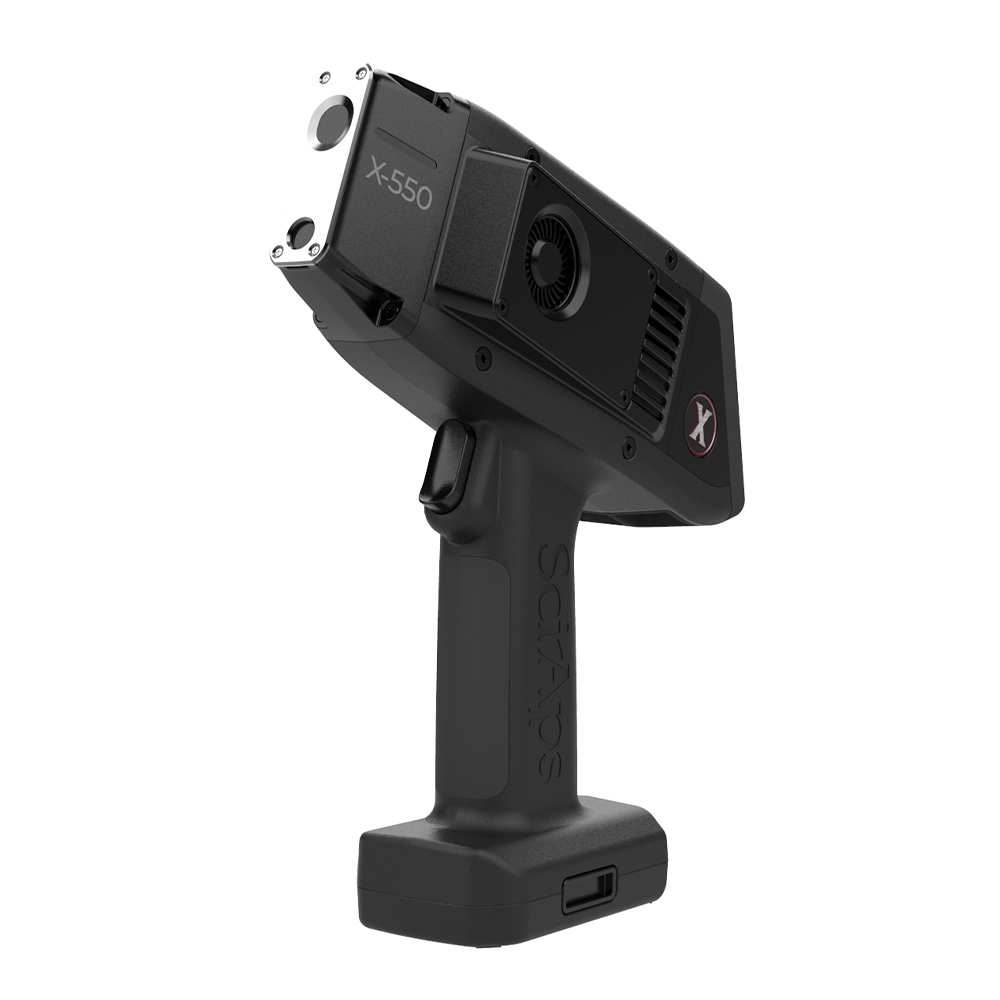

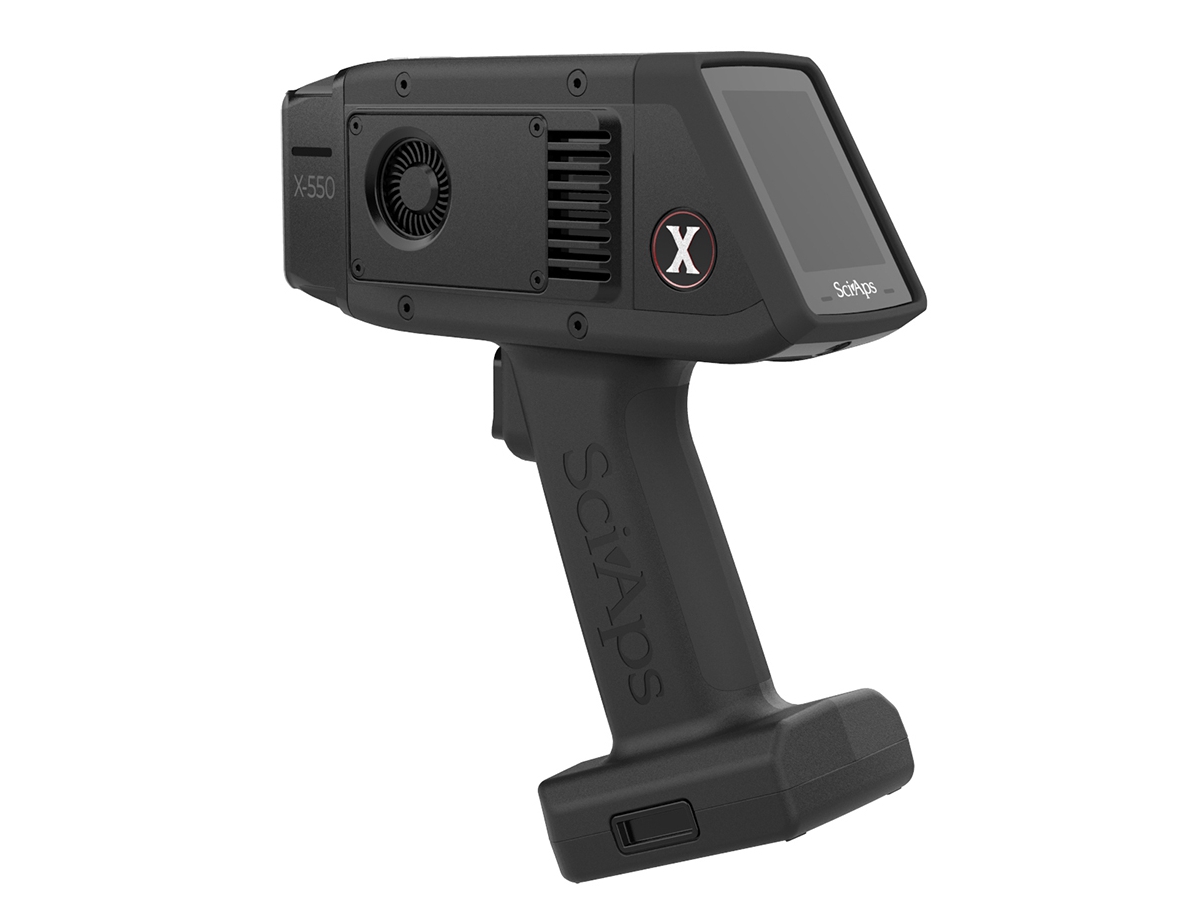

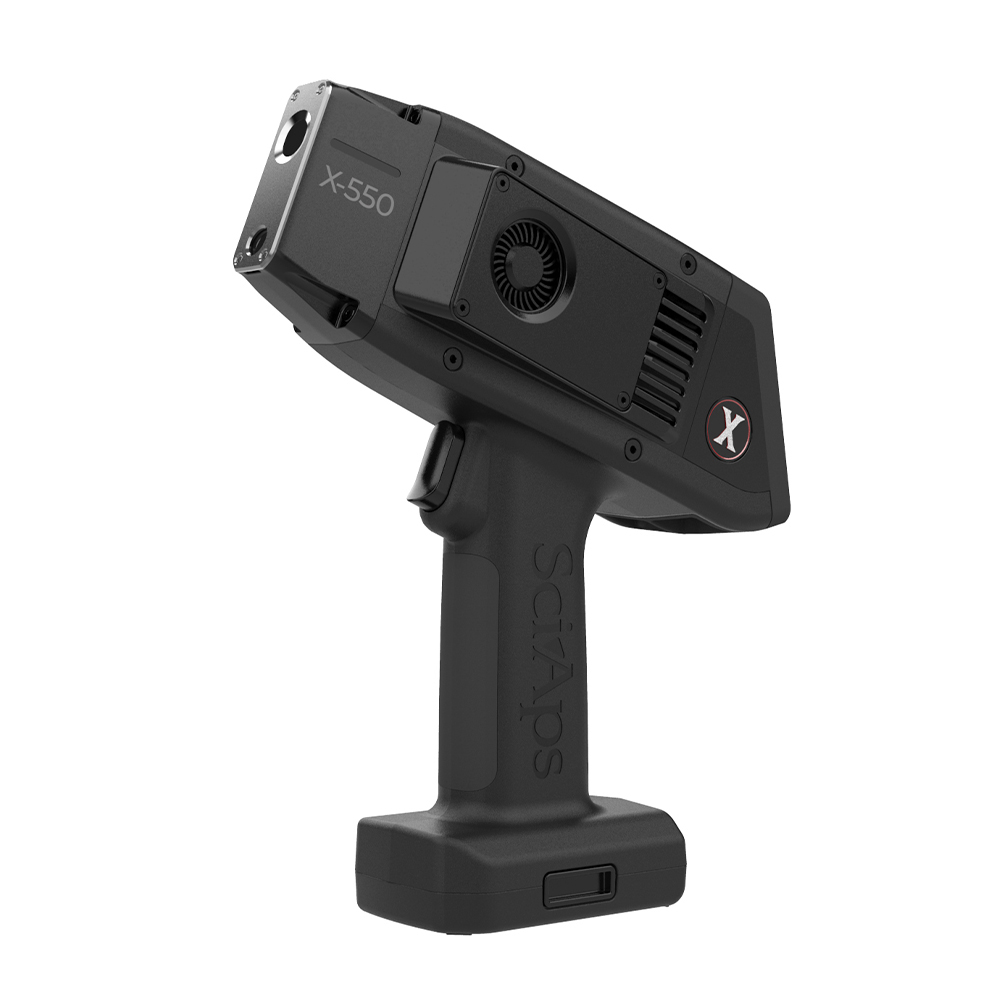

SciAps X-550 Geochem Analyser
Ask for a priceSpecification
- Weight: Approximately 2.98 lbs (≈1.35 kg) including battery — one of the lightest handheld XRF analyzers for all-day field use.
- Powerful X-Ray Tube: 5 W X-ray tube capable of 40 kV, 200 µA excitation; together with optional 50 kV settings for improved performance on heavier pathfinder elements.
- Detector: High-resolution silicon drift detector (SDD) for precise elemental quantification across a broad range of elements.
- Elemental Analytical Range: Standard coverage of ~32–40 elements (varies by application and calibration), including light elements and heavier pathfinders; additional elements can be added by request.
- Optimal Light Element Sensitivity: Hardware and calibration optimized for light elements such as Mg, Al, Si, P, S — crucial for geochemical soil and ore analysis.
- Heavy Pathfinder Performance: Optional 50 kV Mining/Geochem calibration enhances limits of detection (LODs) for heavier elements such as Ag and Sb important in exploration work.
- Android-Based Interface: Intuitive color touchscreen with Google Android platform for easy navigation, result viewing and operation in varied field conditions.
- Connectivity: Built-in Wi-Fi, Bluetooth, GPS and USB for real-time data exporting, report generation and integration with information management systems.
- Calibration Methods: Fundamental Parameters + Compton Normalization techniques support accurate soil and geochemical analyses under different sample conditions.
- Field Durability & Design: Rugged, ergonomic handheld design suitable for extended field campaigns, minimizing operator fatigue and maximizing sample throughput.
Downloads
Description

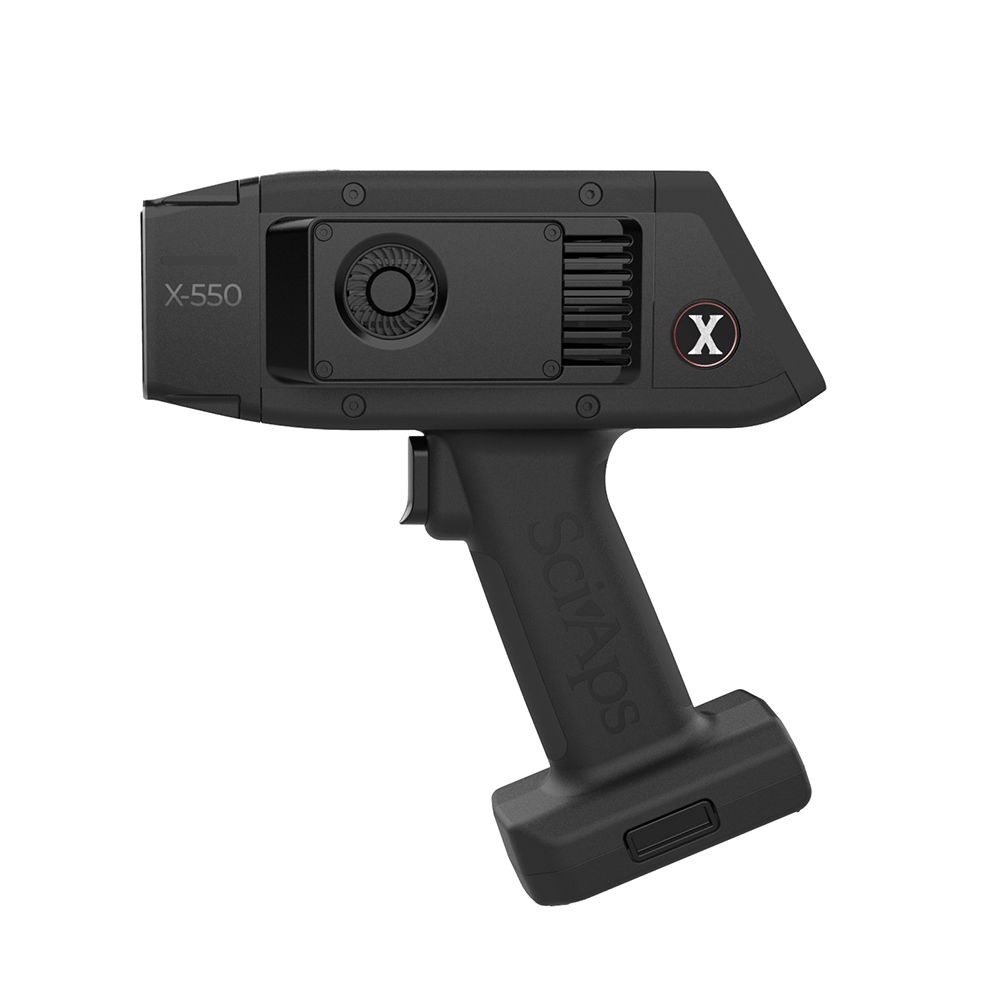

SciAps X-550 Geochem Analyser — Handheld XRF Analyzer for Geochemistry & Elemental Mapping
The SciAps X-550 Geochem is a premium handheld X-ray fluorescence (XRF) analyzer designed for fast, accurate elemental analysis in geochemistry, mineral exploration, soil screening and mining applications. Building on the high-performance SciAps X-Series platform, this rugged and portable instrument combines lightweight ergonomics with advanced analytical power — enabling geologists, field scientists and mining professionals to obtain reliable multi-element data quickly, even in remote locations.
Optimized for Geochemical Element Analysis
The X-550 Geochem features a powerful miniaturized X-ray tube and optimized internal geometry that deliver precise results across a wide elemental spectrum — from light elements like Mg, Al, Si, P and S to heavier pathfinder elements such as Ag and Sb when used with appropriate mining calibrations. Its design ensures fast, precise elemental detection on even the most challenging materials encountered in geochemical work.
High Performance & Advanced Features
- Industry-Leading Speed & Lightweight Design: The X-550 Geochem sets a new performance standard for handheld XRF — weighing only about 2.98 lbs (1.35 kg) including battery, so you can analyze more samples in less time with minimal fatigue.
- Powerful X-Ray Tube: Delivers strong excitation for low and mid-atomic number elements essential in geochemical surveys.
- Broad Element Coverage: Provides comprehensive multi-element analysis that supports exploration and environmental applications.
- Android-Based Touchscreen Interface: Intuitive interface with a vibrant display makes operation fast and easy, just like using a smartphone.
- Built-In Connectivity: Wi-Fi, Bluetooth and USB enable real-time data transfer, reporting and integration with information management systems.
- GPS Capability: Optional GPS tagging allows location-based data mapping, ideal for field campaigns and geochemical mapping.
- Versatile Calibration & Apps: Supported by geochemistry and mining calibration libraries that help tailor the analyzer to specific project needs.
- Fast Field Results: Rapid analysis cycles deliver on-the-spot elemental feedback — significantly speeding up decision-making.
- Robust & Portable: Designed for demanding field conditions with ergonomic balance and durable construction.
- Documentation & Reporting: Photo documentation and data export make it easy to build reports and records for project teams or regulatory filings.
Applications

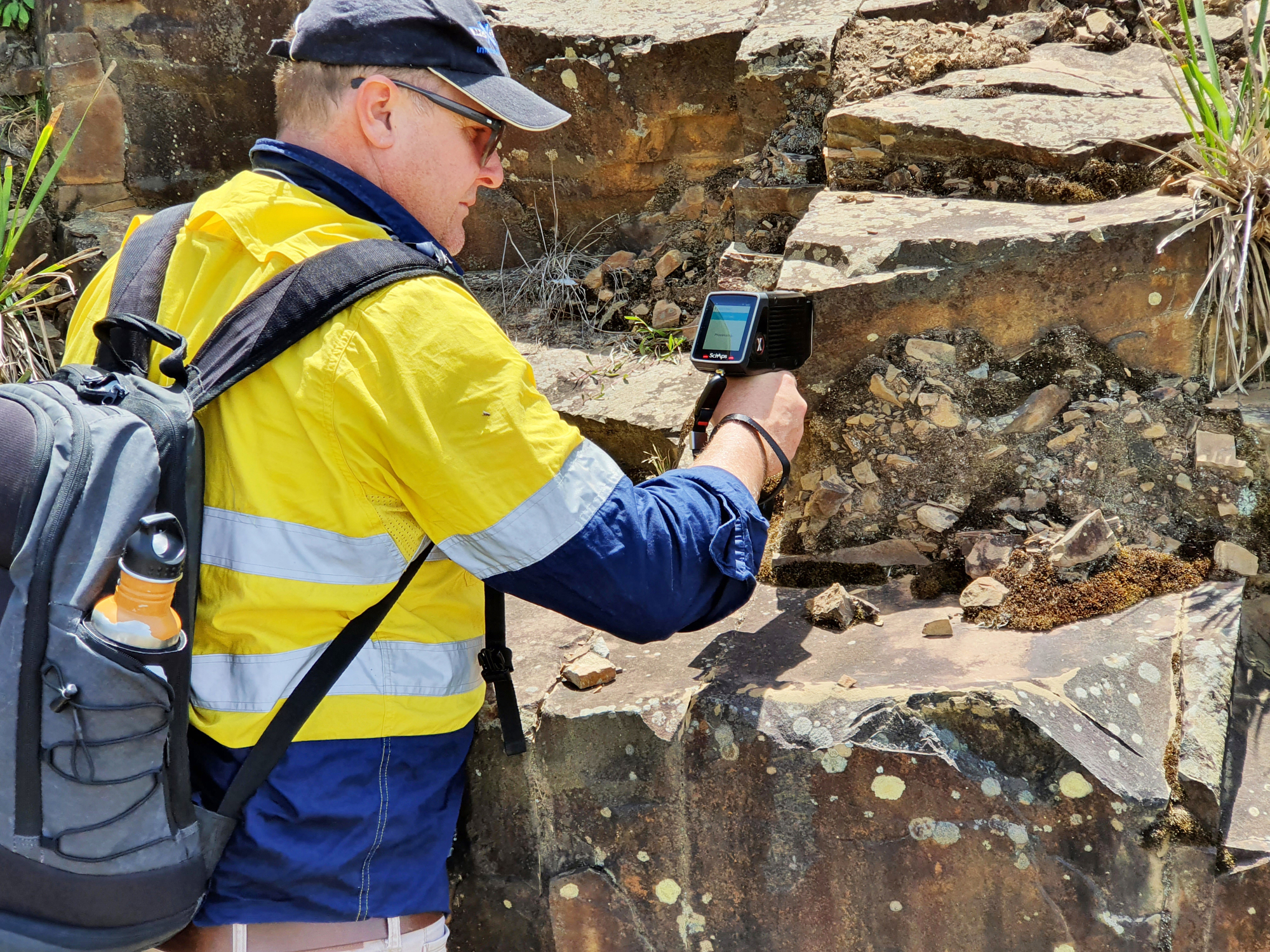

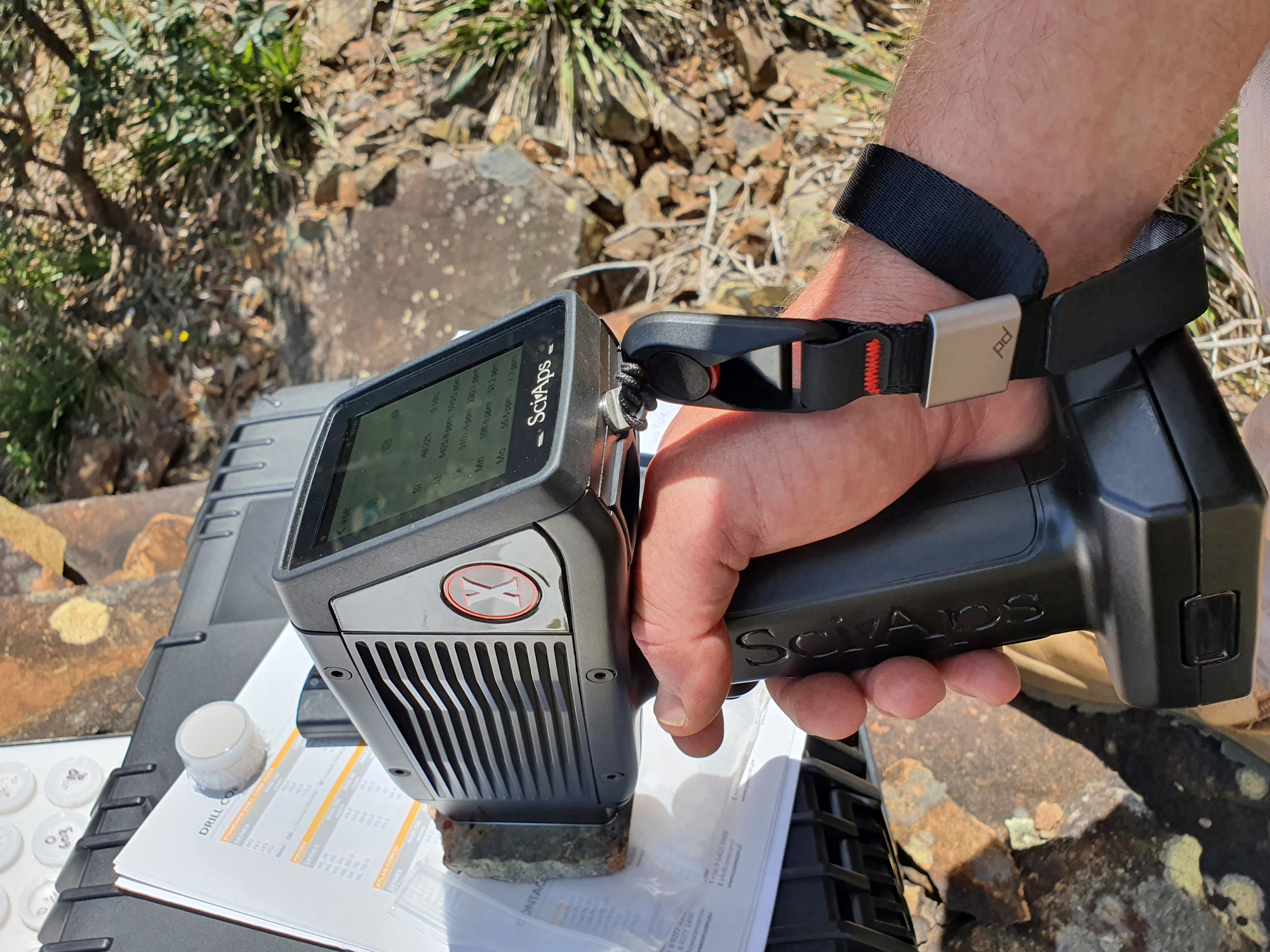

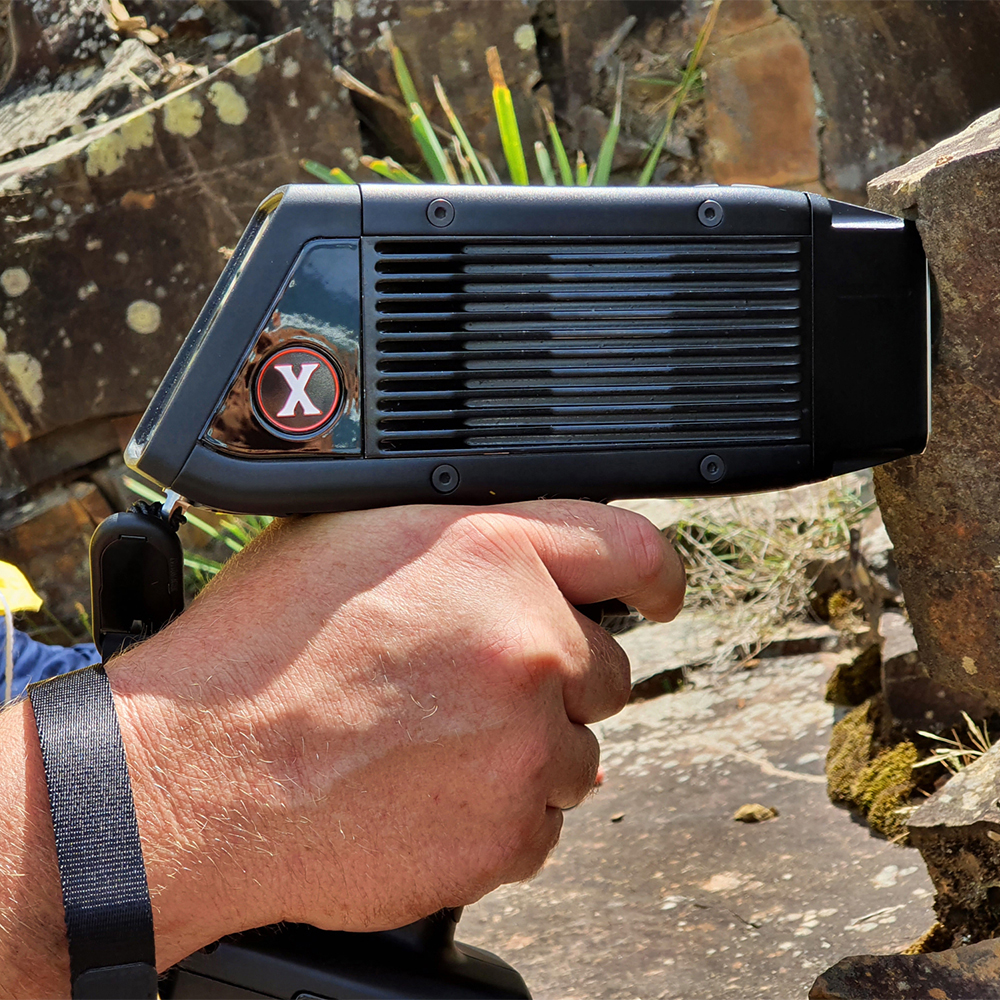

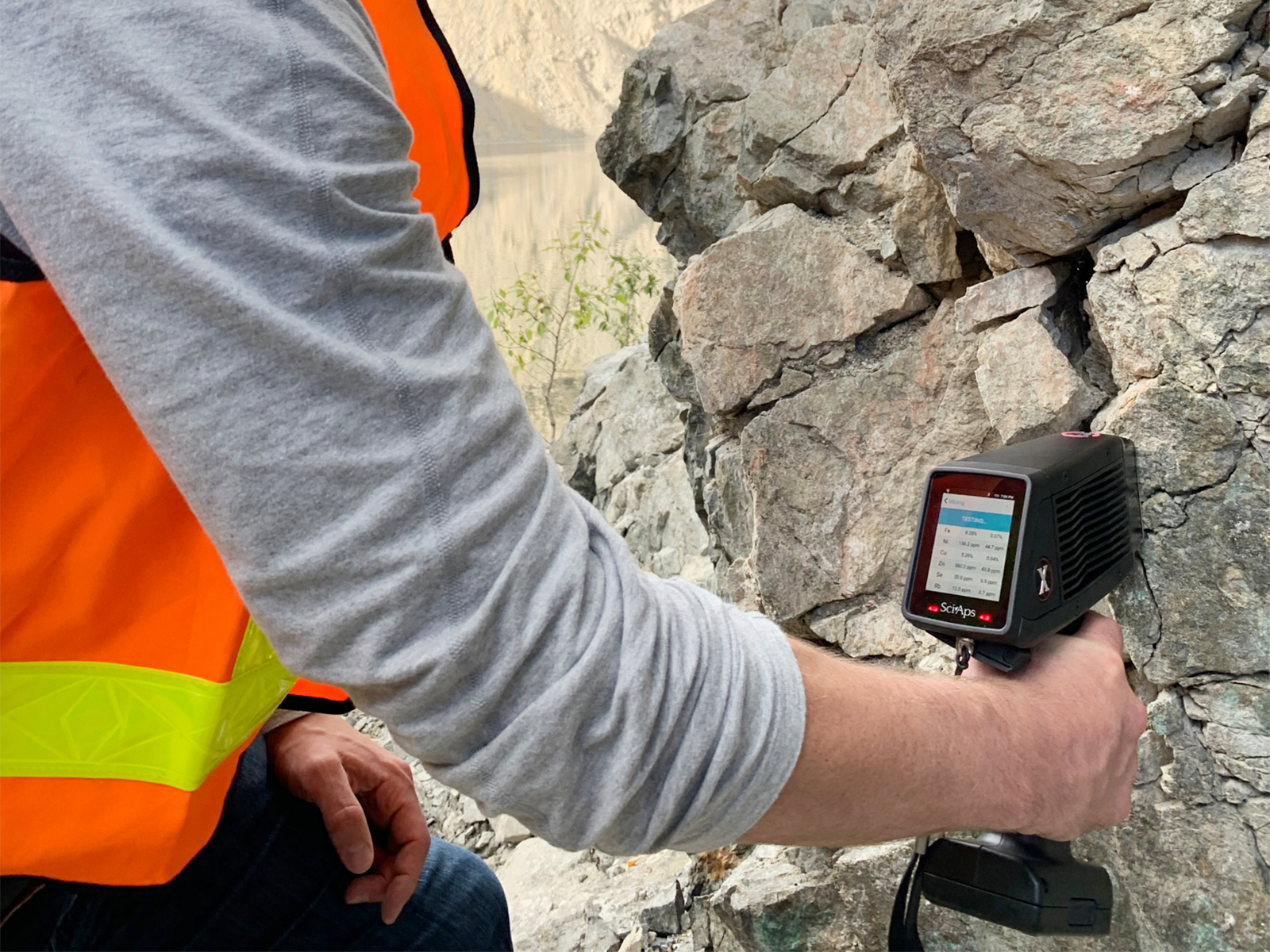

- Mineral Exploration & Soil Geochemistry: Rapid profiling of rocks, soils and sediments to guide exploration targets.

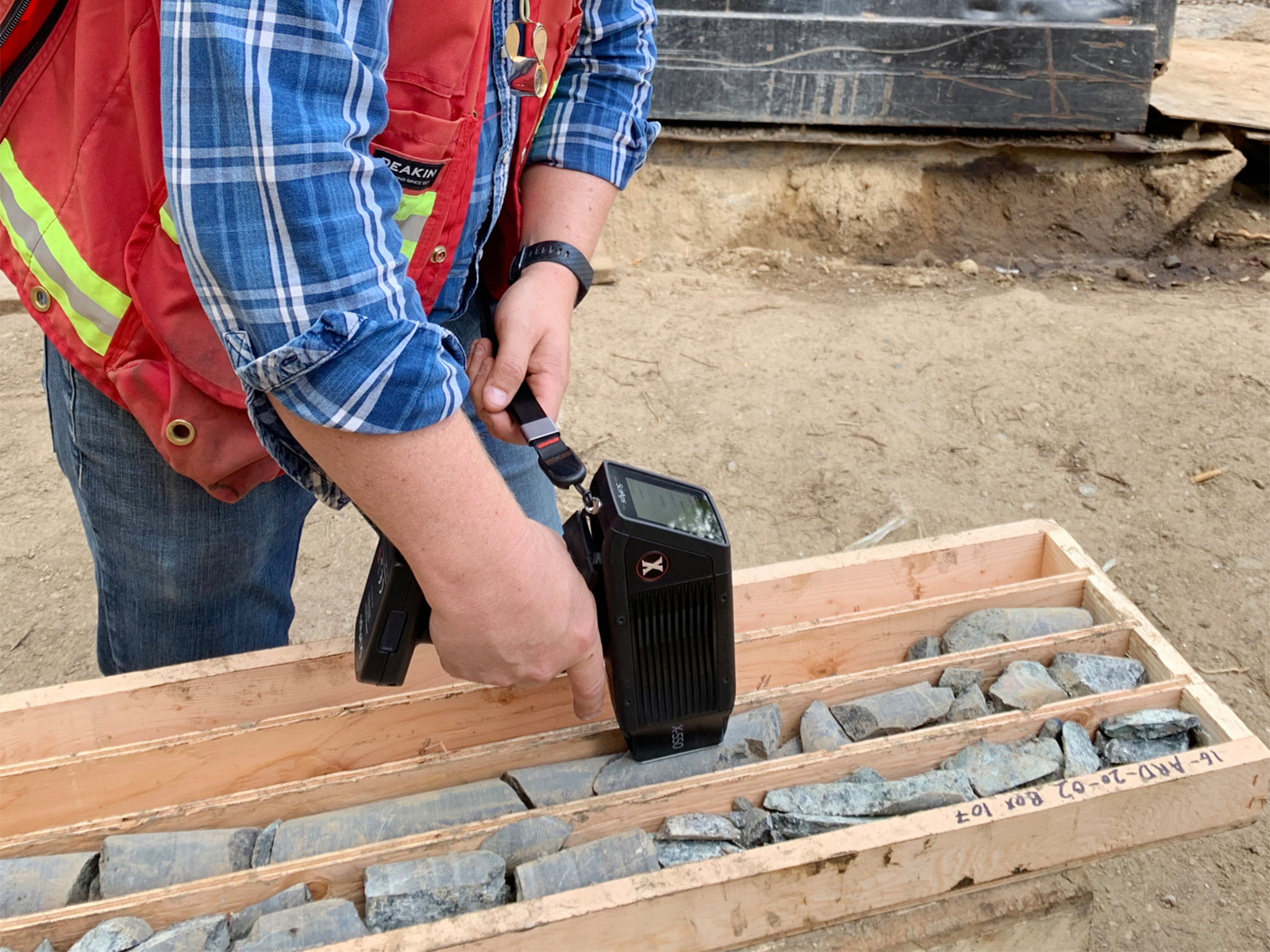

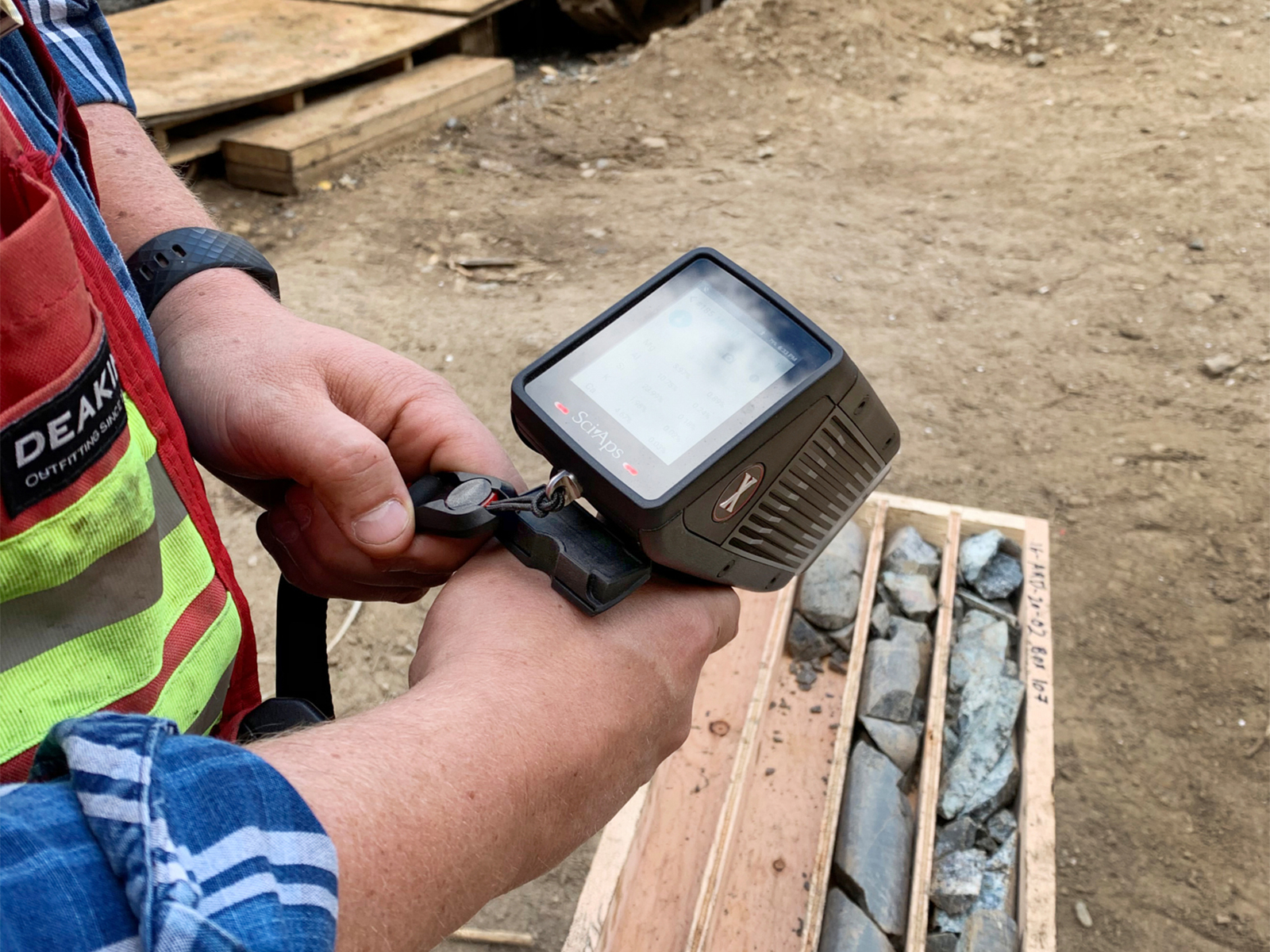

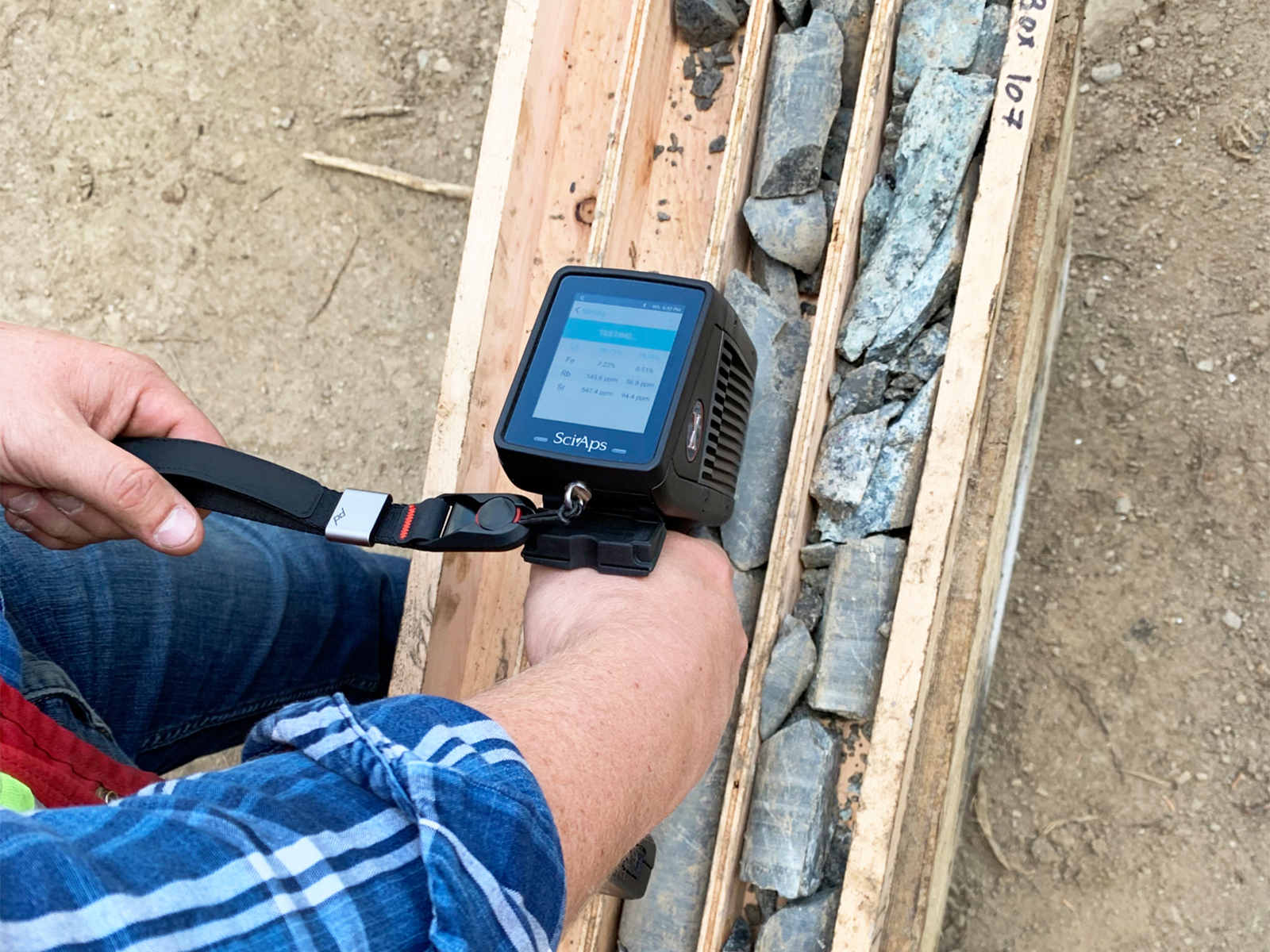

- Mining & Resource Evaluation: Elemental screening and ore grade control directly in the field.
- Environmental & Regulatory Screening: Multi-element detection for environmental and contaminant studies.
Why Choose SciAps X-550 Geochem
The SciAps X-550 Geochem blends industry-leading handheld XRF performance with the adaptability required for geochemical and field analysis. Its combination of lightweight design, powerful detection capabilities, Android-based usability and broad element coverage makes it an essential tool for geologists, environmental scientists and mining professionals who need accurate, immediate results anywhere on site.
