SciAps PowerHouse X Analyser

Ask for a price

Ask for a price SciAps PowerHouse X Analyser

Specification

X-Ray Tube Voltage: 80 kV miniature X-ray tube, the highest available in a field-portable XRF instrument, for efficient excitation of heavy elements including rare earths (REEs).
Element Detection Capability: Measures a wide suite of elements including light, transition, pathfinder and both light and heavy rare earth elements (e.g., La, Ce, Nd, Tb, Dy, Ho, Er, Yb).
Detector: High-resolution XRF detector optimized for sensitive detection and low limits of detection across a broad elemental range.
Analysis Range: Capable of analyzing ~49 elements with specialized calibration sets (mining/geochemistry/strategic minerals).
Portable Power: Battery-powered operation with extended run time (typically >6 hours with dual lithium-ion batteries) for fieldwork without AC dependency.
Safety & Shielding: Fully shielded and safety-interlocked design for safe use in field or benchtop environments without external radiation shielding.
User Interface: Large intuitive touchscreen display with familiar SciAps interface for easy test setup, viewing and navigation.
Connectivity: Built-in Wi-Fi, Bluetooth and USB for seamless data transfer, reporting and integration with external systems and cloud services.
Dual Cameras: Integrated internal sample chamber camera and external photo documentation camera for visual sample tracking and records.
Portable & Robust: Designed to be field portable with rugged construction, enabling high-quality elemental analysis in remote sites, mines, laboratories or exploration camps.

Downloads

SciAps PowerHouse X Analyser - Brochure

Description

SciAps PowerHouse X Analyser — Portable High-Energy XRF Analyzer for Rare Earths & Multi-Element Analysis

The SciAps PowerHouse X is a groundbreaking portable X-ray fluorescence (XRF) analyzer designed to deliver premium field and benchtop elemental analysis with capabilities previously only available in large laboratory systems. As the first truly portable XRF system with an 80 kV X-ray tube, the PowerHouse X gives operators the power to measure a wide suite of elements — including both light and heavy rare earth elements (REEs) — with industry-leading limits of detection and analytical performance.

Next-Level XRF Technology Optimized for Field Use

Using a miniature 80 kV X-ray tube, the PowerHouse X efficiently excites K-shell emission lines for critical elements such as heavy REEs (e.g., Tb, Dy, Ho) and other pathfinder elements like Ag, Cd, Sb and Ba — a capability that conventional portable XRF systems (typically limited to 50 kV) cannot match in practical field conditions.

Superior Performance & Smart Design

80 kV High-Energy X-ray Tube: Delivers deep excitation and enhanced sensitivity across a broad elemental range, including rare earths and transition metals.
Wide Element Coverage: Measures both light and heavy REEs along with ~25 additional elements relevant to mining, geochemistry and environmental analysis.
Battery-Powered Portability: Capable of 6+ hours of operation on twin rechargeable Li-ion batteries or AC power — truly portable for field work.
Fully Shielded & Safe: Closed-beam design with safety interlocks enables secure operation without external shielding requirements.

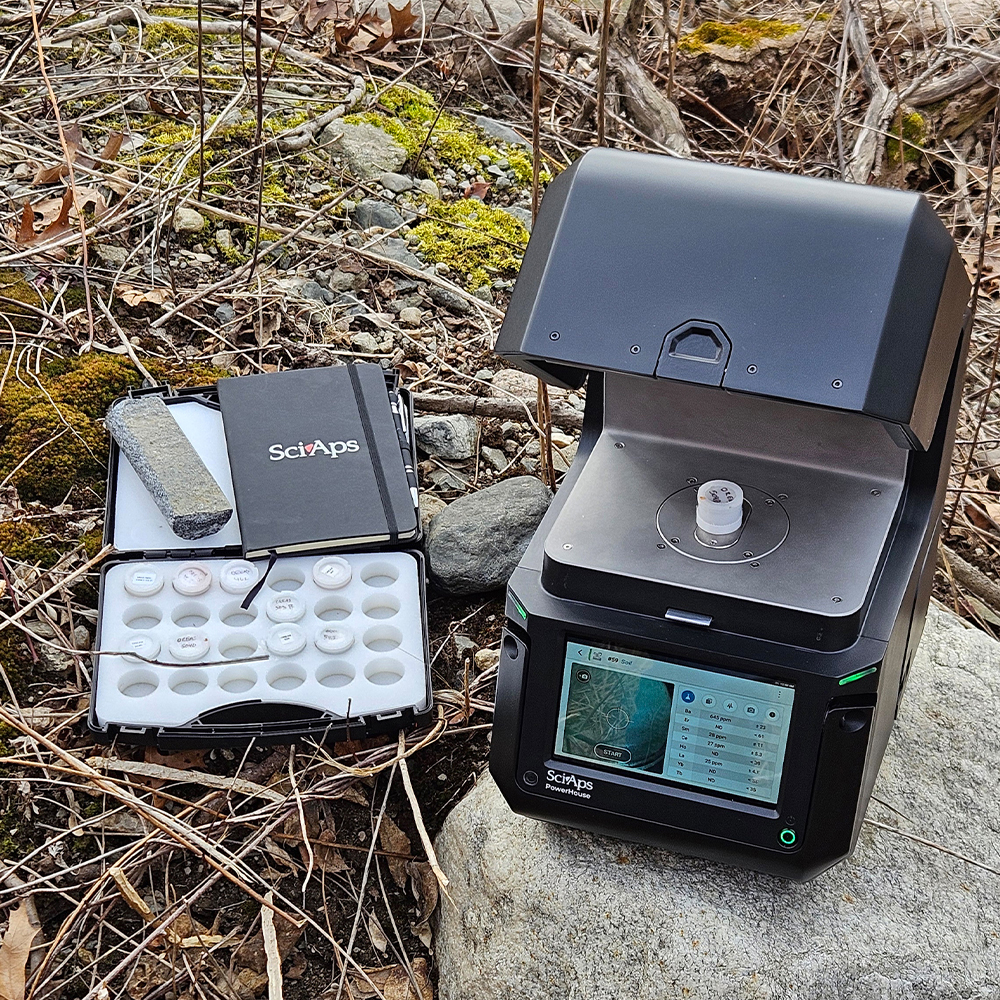

Two Integrated Cameras: One camera views the testing chamber while the second captures external photo documentation for sample tracking and reports.
Android-Based User Interface: Intuitive smartphone-style touchscreen interface makes setup and analysis fast and easy.
Connectivity: Built-in Wi-Fi, Bluetooth, USB and optional GPS supports real-time data transfer, cloud sync and system integration.
Cloud-Enabled Data Management: Store, organize and share results with cloud services for streamlined reporting.
Precise REE Detection: Enhanced capability to quantify heavy rare earth elements such as Tb, Dy, Ho, Er and Yb on-site — ideal for mineral exploration and geochemical surveys.
Fast Analytical Results: High-performance detection delivers reliable elemental analyses in seconds to minutes, reducing time to insights.

Applications

Geochemistry & Mineral Exploration: Rapid profiling of rare earth elements and pathfinder elements in field and drill samples.
Mining & Resource Evaluation: On-site elemental screening to support grade control and deposit characterization.
Environmental & Soil Analysis: Multi-element detection for soil, sediment and contaminant studies.
Industrial Materials Testing: Elemental identification in alloys, industrial feeds and process streams.

Why Choose SciAps PowerHouse X

The SciAps PowerHouse X redefines portability and analytical capability in XRF instrumentation. With unprecedented energy reach, broad elemental coverage and durable field operation, it delivers laboratory-grade performance wherever you need it — from exploration camps and mines to environmental sites and quality control labs.
