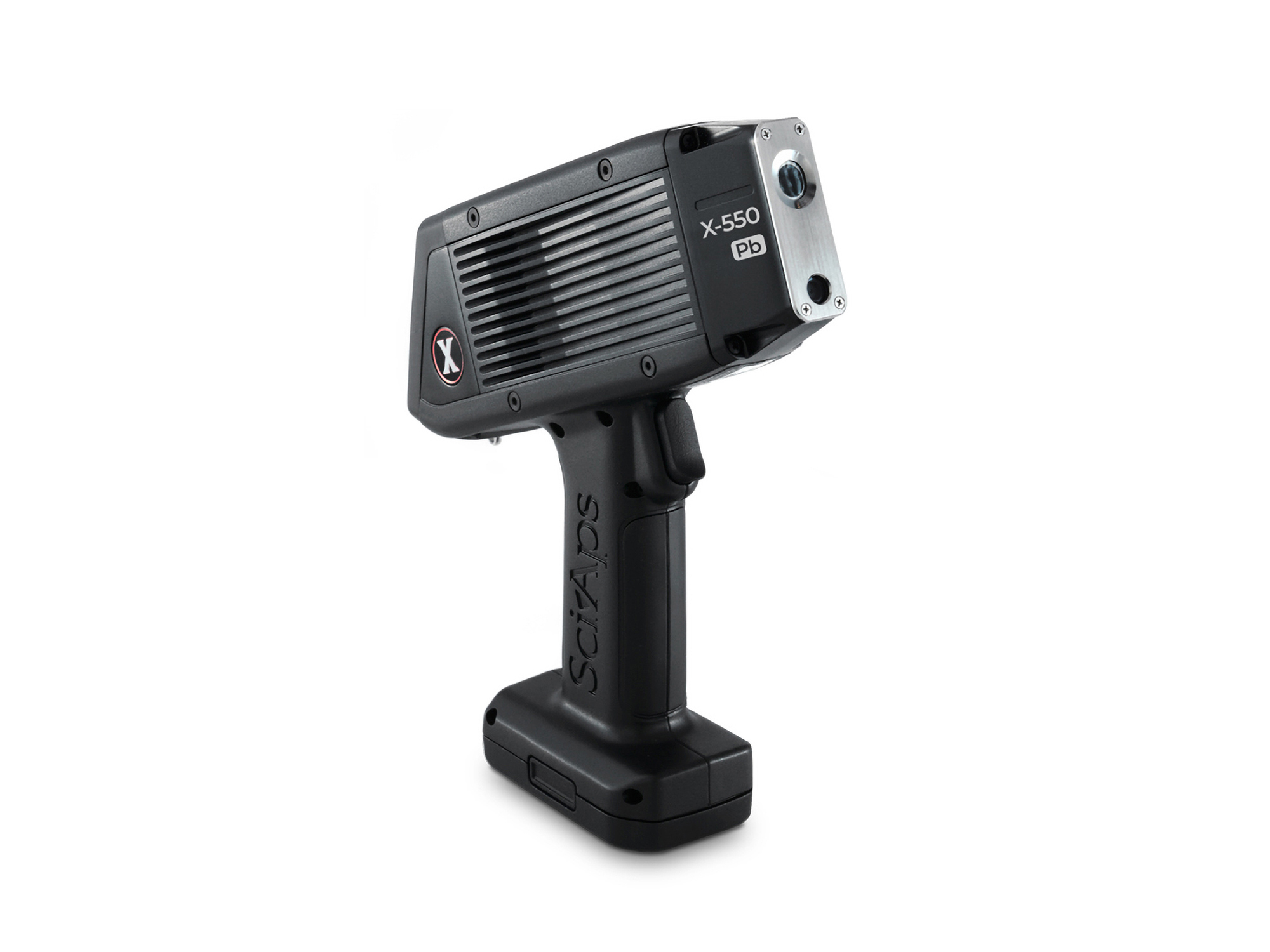

SciAps X-550 Pb Analyser

SciAps X-550 Pb Analyser — Handheld XRF Analyzer for Lead Paint & Elemental Testing

The SciAps X-550 Pb is a high-performance handheld X-ray fluorescence (XRF) analyzer specifically optimized for lead-based paint detection and multi-purpose elemental analysis. Combining fast, accurate results, rugged portability, and advanced connectivity, this model is ideal for environmental testing, compliance inspections, soil and RCRA analysis, alloy verification, and regulatory fieldwork. It sets a new standard among handheld XRF instruments by eliminating the need for radioactive sources and delivering rapid measurements in seconds.

Designed for Lead Paint Compliance & More

The X-550 Pb is the only handheld XRF lead paint analyzer accepted by HUD and EPA that does not use radioactive isotopes, reducing regulatory burden and long-term costs associated with licensing, transportation, and disposal. Its powerful X-ray tube and advanced detector deliver precise, repeatable results for lead in paint and other applications without the need for substrate corrections or inconclusive ranges.

Performance & Features

• EPA / HUD Lead Paint Analyzer: Meets federal testing standards without radioactive materials.
• Fast Results: Typical tests complete in 2–6 seconds, with automated Quick Mode and Timed Mode settings.
• Lightweight & Portable: Weighs ≈2.98 lbs (≈1.35 kg) with battery, making it comfortable for extended field use.
• Advanced X-Ray Source: Powerful 5 W X-ray tube with Rh and Au anode options for versatile analytical performance.
• High-Resolution Detector: 20 mm² silicon drift detector (SDD) with ~140 eV resolution for accurate elemental analysis.
• Intuitive Android Interface: 2.7″ color capacitive touchscreen with smartphone-style user experience.
• Connectivity: Built-in Wi-Fi, Bluetooth, GPS and USB for real-time data transfer, reporting, and integration.
• Pre-Configured Apps: Includes dedicated apps for lead paint, soil/RCRA, alloy, geochem/mining and more — expandable with new apps over time.
• Comprehensive Element Support: Standard analytical range covers multiple elements (varies by app) with custom elements available on request.
• Rugged Design: Portable and robust for environmental fieldwork, site inspections, construction audits and compliance testing.

Applications

• Lead-Based Paint Inspection: Rapid compliance testing in residential, commercial, schools and day-care environments.
• Environmental & Soil Testing: Trace metal analysis for environmental screening using soil and RCRA applications.
• Alloy & Material Analysis: Fast alloy verification and PMI capability for metals and industry applications.
• Geochem & Mining: Elemental screening in exploration and mining workflows.

Why Choose SciAps X-550 Pb

The SciAps X-550 Pb blends rugged portability, cutting-edge XRF technology, and certified compliance capabilities into a single, easy-to-use device. It eliminates the need for hazardous radioactive sources, lowers long-term costs, and delivers confidence-inspiring results quickly and reliably for professionals in environmental testing, construction, regulatory compliance, and materials analysis.
