SciAps X-505 Geochem Analyser
Ask for a priceSpecification
- Weight: Approximately 2.98 lbs (≈1.35 kg) with battery, one of the lightest handheld XRF analyzers for all-day field use.
- Dimensions: Compact form factor (approx. 8.5″ × 9.5″ × 2.4″) for portability and easy maneuverability in the field.
- X-Ray Tube: 5 W miniaturized X-ray tube with dual excitation — typical 40 kV, 200 µA Rh anode for general applications and 50 kV, 200 µA Au anode for geochemistry/mining performance.
- Detector: 20 mm² Silicon Drift Detector (SDD) with high resolution (~135-140 eV FWHM at the Mn K-alpha line) for accurate elemental quantification.
- Analytical Range: Capable of analyzing a wide suite of elements, including major and trace elements relevant for geochemical, soil, exploration, mining and environmental applications (element set varies by app).
- Display: 2.7″ color capacitive touchscreen with Android-based interface for intuitive operation and real-time result display in varied lighting conditions.
- Battery & Power: Rechargeable Li-ion battery with internal and external charging options and hot-swap capability to minimize downtime.
- Connectivity: Built-in Wi-Fi, Bluetooth and USB for fast data transfer, reporting, integration with PCs or LIMS systems, and real-time exporting.
- Software & Calibration: Android platform with support for Geochem (Mining), Environmental, Alloy, Empirical and other dedicated apps; calibration via fundamental parameters with options for empirical or Compton normalization methods.
- Environmental Operating Range: Designed for rugged field conditions with operational support over typical industrial temperature ranges and reliable performance for extended geochemical sampling campaigns.
Description

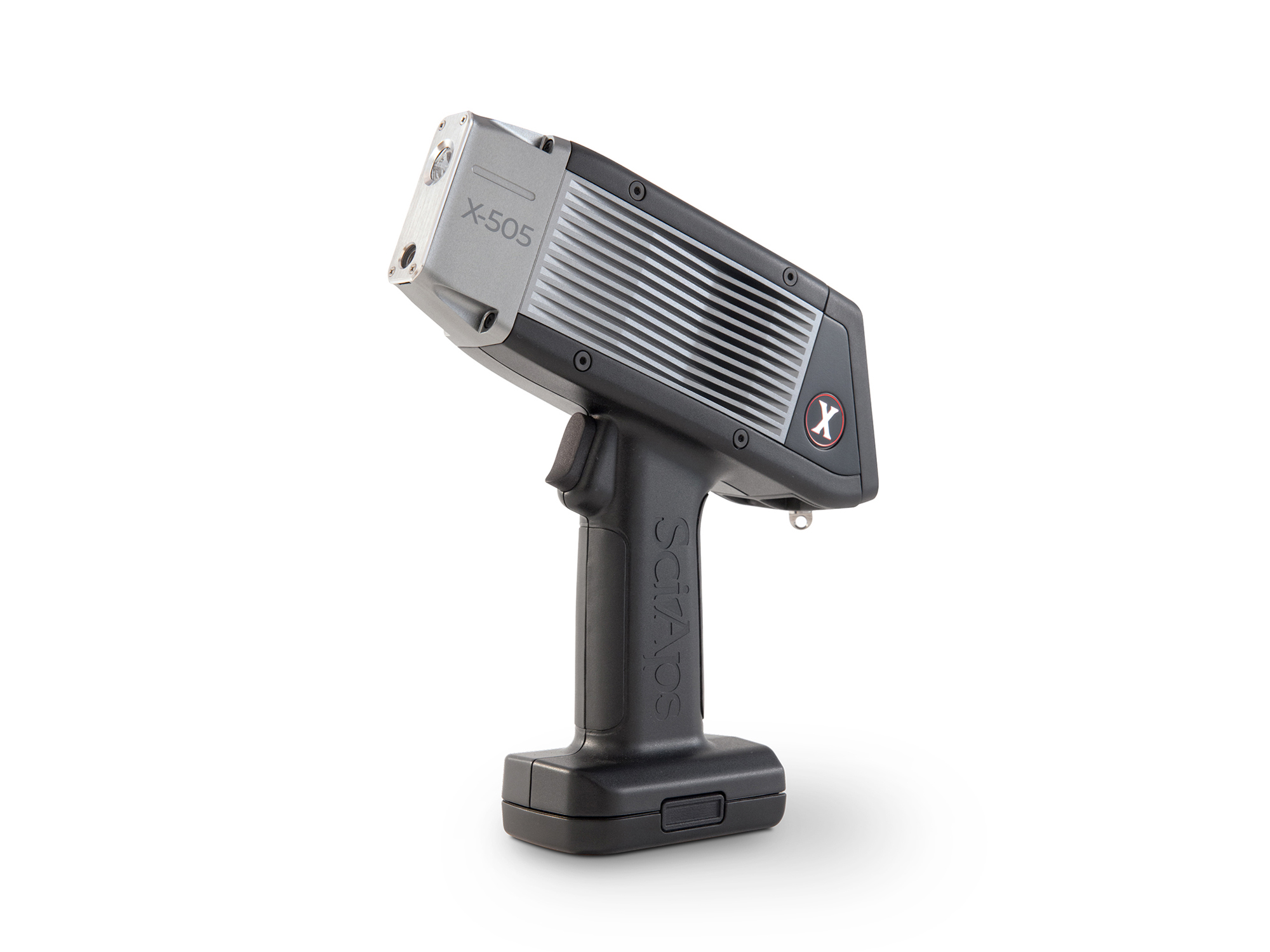

SciAps X-505 Geochem Analyser — High-Performance Handheld XRF for Geological & Mining Analysis
The SciAps X-505 Geochem is an advanced handheld X-ray fluorescence (XRF) analyzer tailored for geochemical, mining, soil, and environmental applications. Part of the premium SciAps X-Series family, the X-505 Geochem delivers rapid, precise elemental analysis in the field, enabling geologists, mining professionals, and environmental scientists to make informed decisions on site with confidence. It combines a lightweight ergonomic design with powerful XRF performance optimized for both light and heavy elements critical to geochemical workflows.
Lightweight & Efficient Field Performance

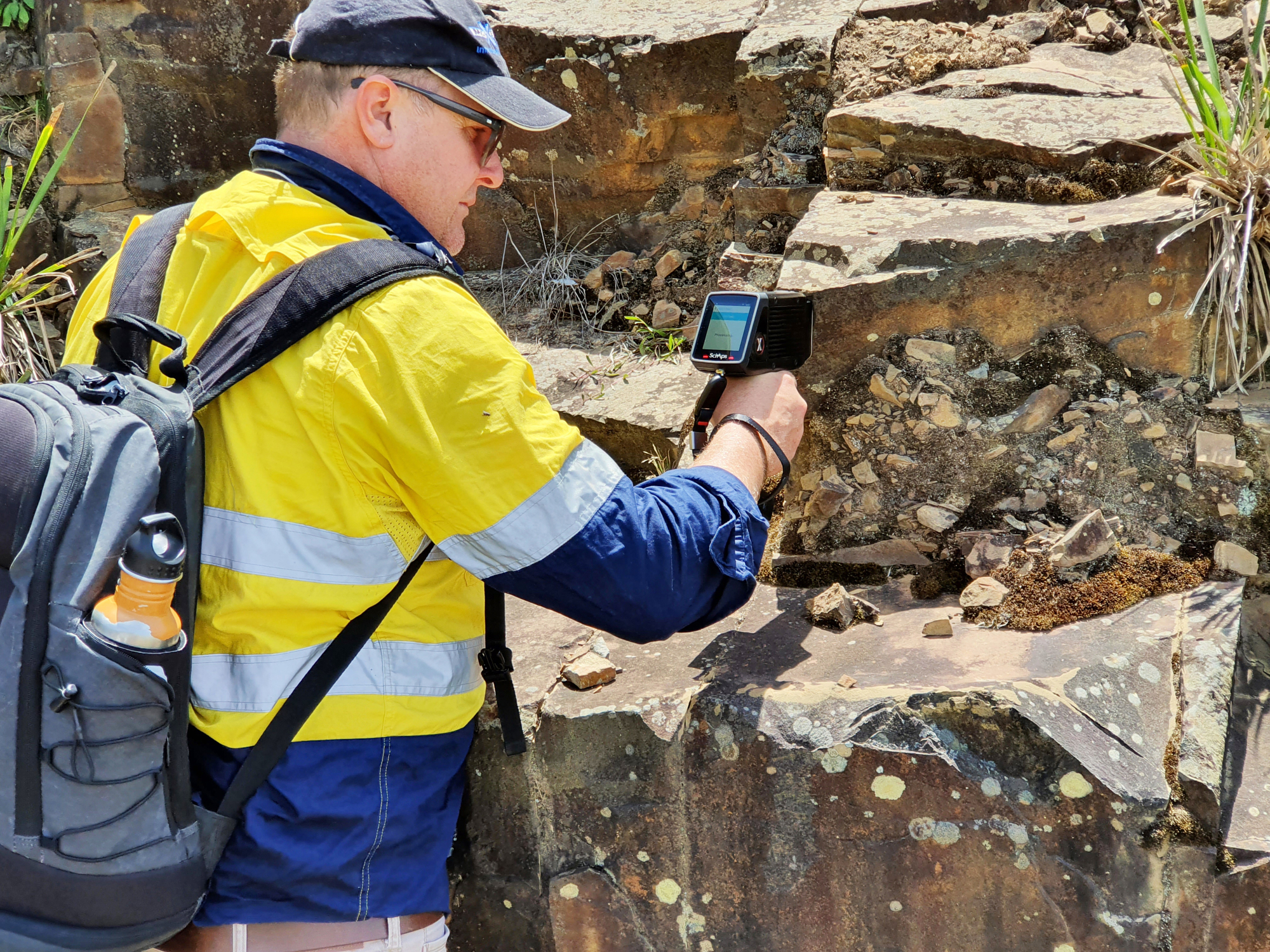

Despite its robust capabilities, the X-505 Geochem is one of the lightest handheld XRF analyzers available — weighing just ≈2.98 lbs (≈1.35 kg) including battery, making it comfortable for all-day field use. Its balanced, compact form factor ensures easy maneuverability across uneven terrain and tight sample sites, reducing operator fatigue.
InQuality
Advanced XRF Technology for Geochemical Insight

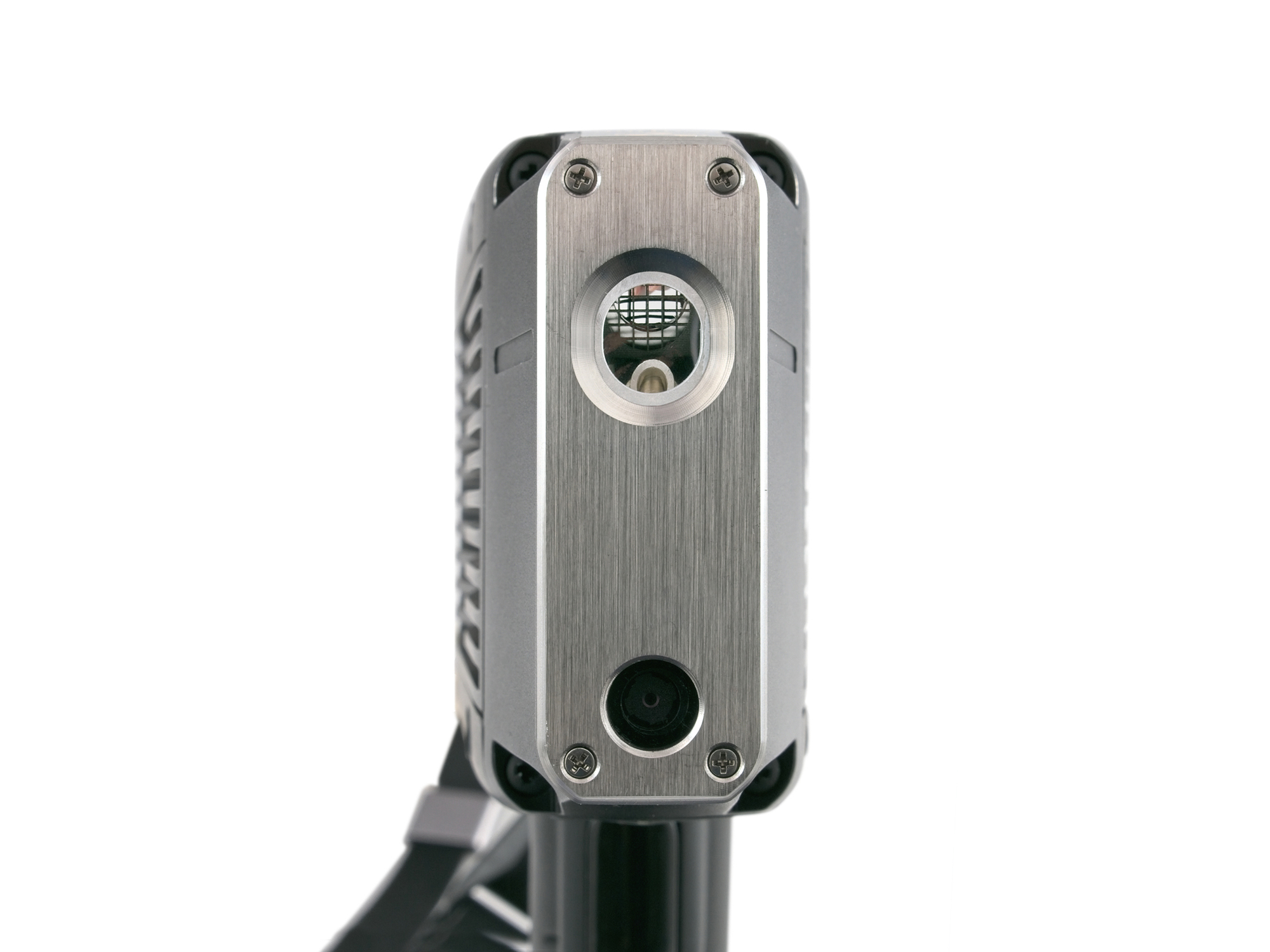

- Premium X-Ray Tube & Optics: Designed to excel on both light elements (such as Mg, Al, Si, P, S) and heavier gold pathfinder elements (like Ag, Sb), the X-505 Geochem’s powerful miniaturized X-ray tube and optimized geometry deliver fast, precise results even on challenging samples.
- Wide Element Coverage: The analyzer supports extensive geochemical element suites — making it suitable for tasks such as soil profiling, mineral exploration, and ore grade estimation.

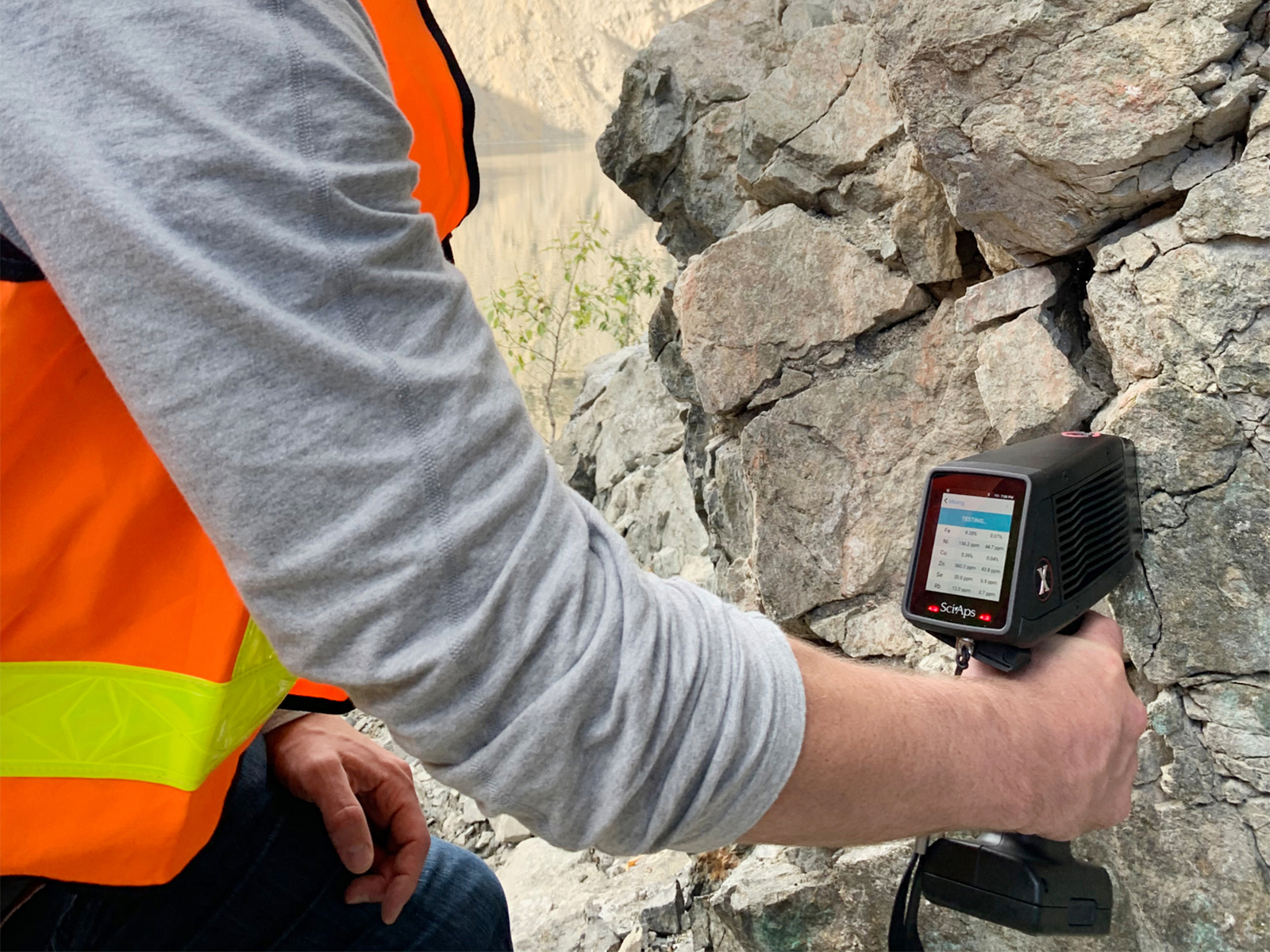

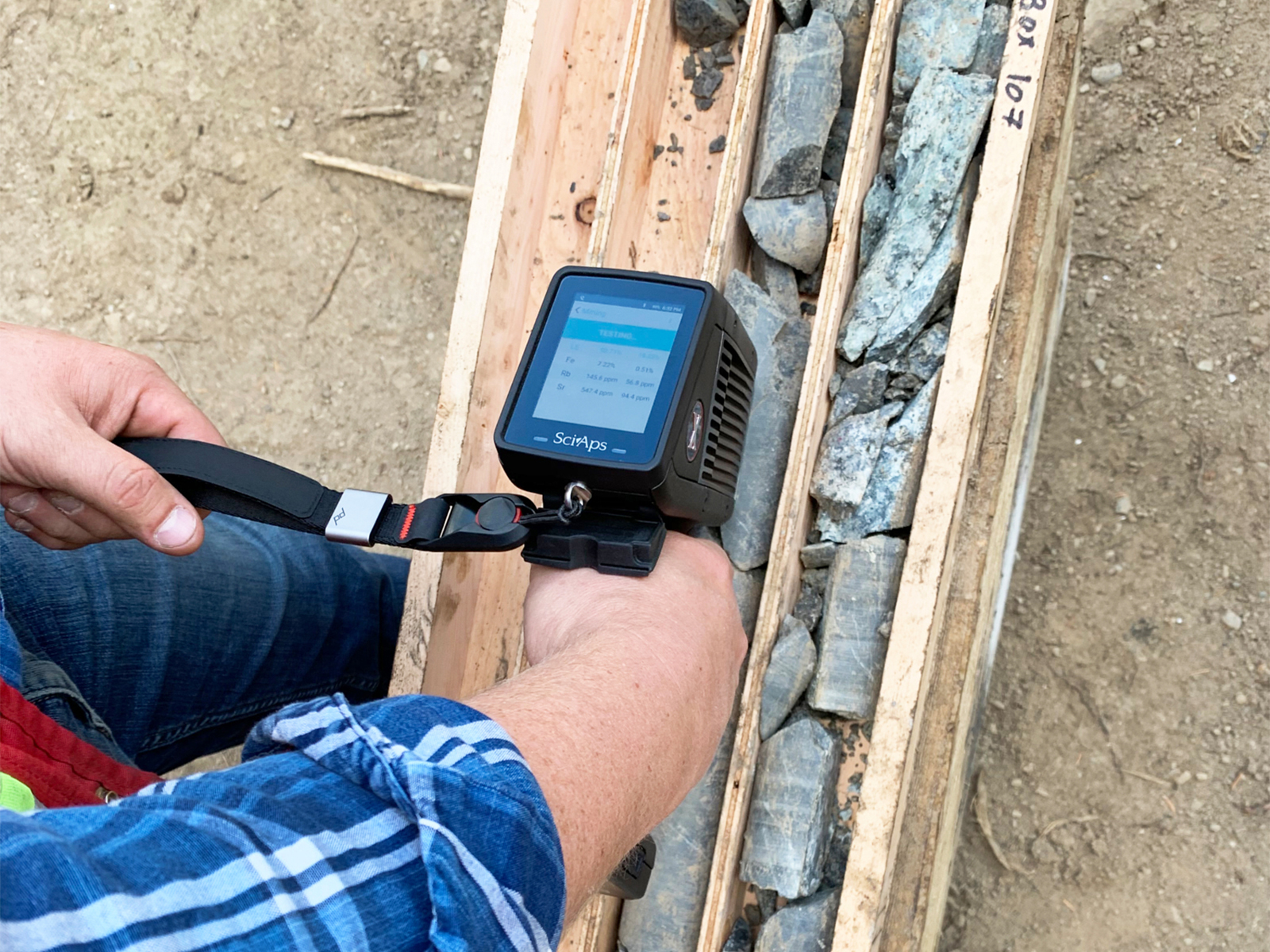

- Android-Based Touchscreen: An intuitive color touchscreen interface runs on Android, providing a familiar, smartphone-style experience with clear real-time results.

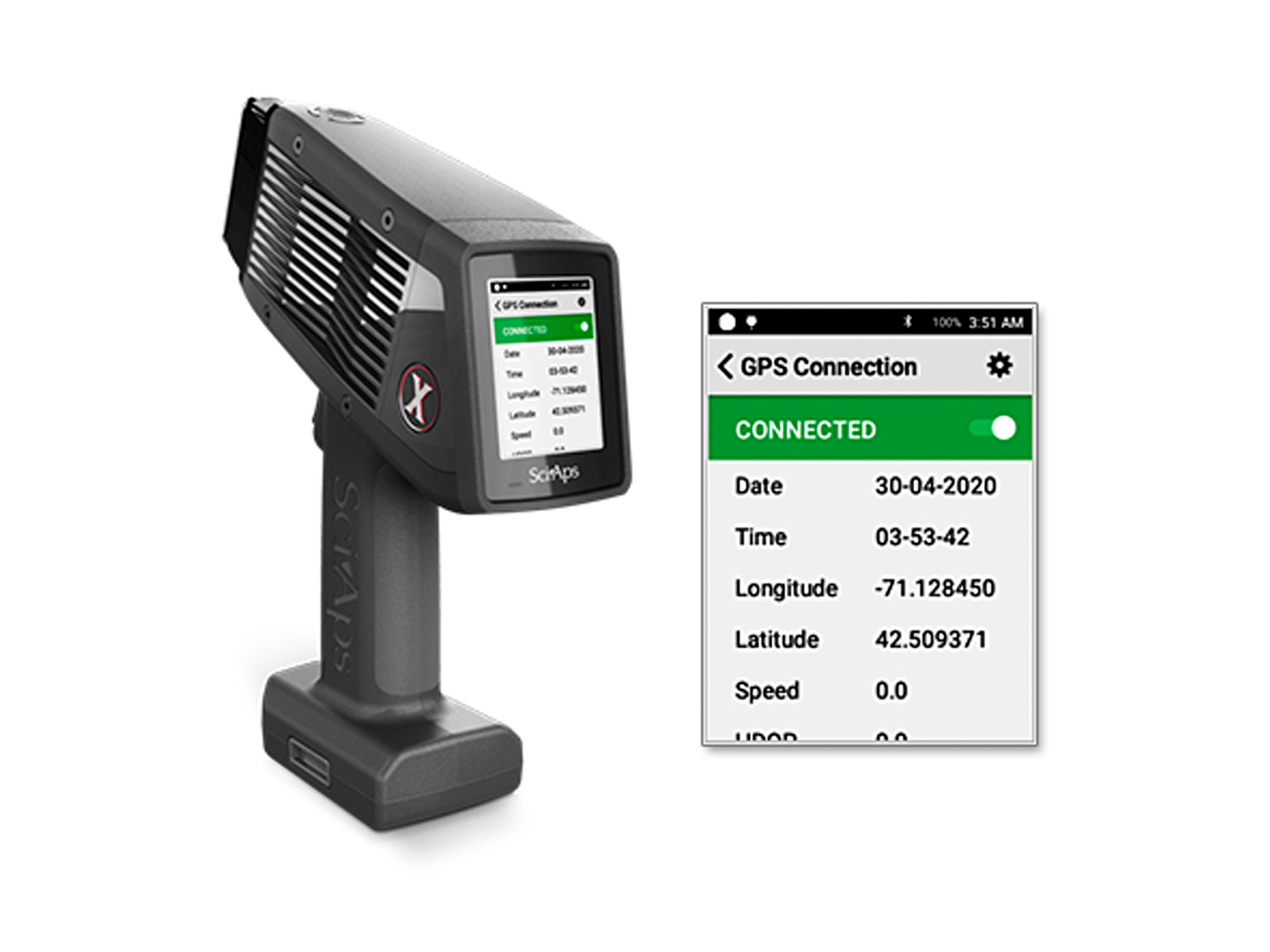

- Built-In Connectivity: With Wi-Fi, Bluetooth, and GPS capability, the X-505 Geochem enables real-time data export, reporting, and system integration, simplifying workflow and reducing manual data handling.
- Fast Testing: The X-Series platform achieves rapid analysis times, helping you process more samples in less time — a key advantage for large-scale field campaigns.
Geochem-Focused Software & Apps
Pre-configured geochemical libraries and analysis modes guide operators through common geochemistry tasks, including elemental profiling for mineral exploration, environmental screening, and stratigraphic studies. The X-505 Geochem can also be expanded with custom apps to suit project-specific requirements.
Applications

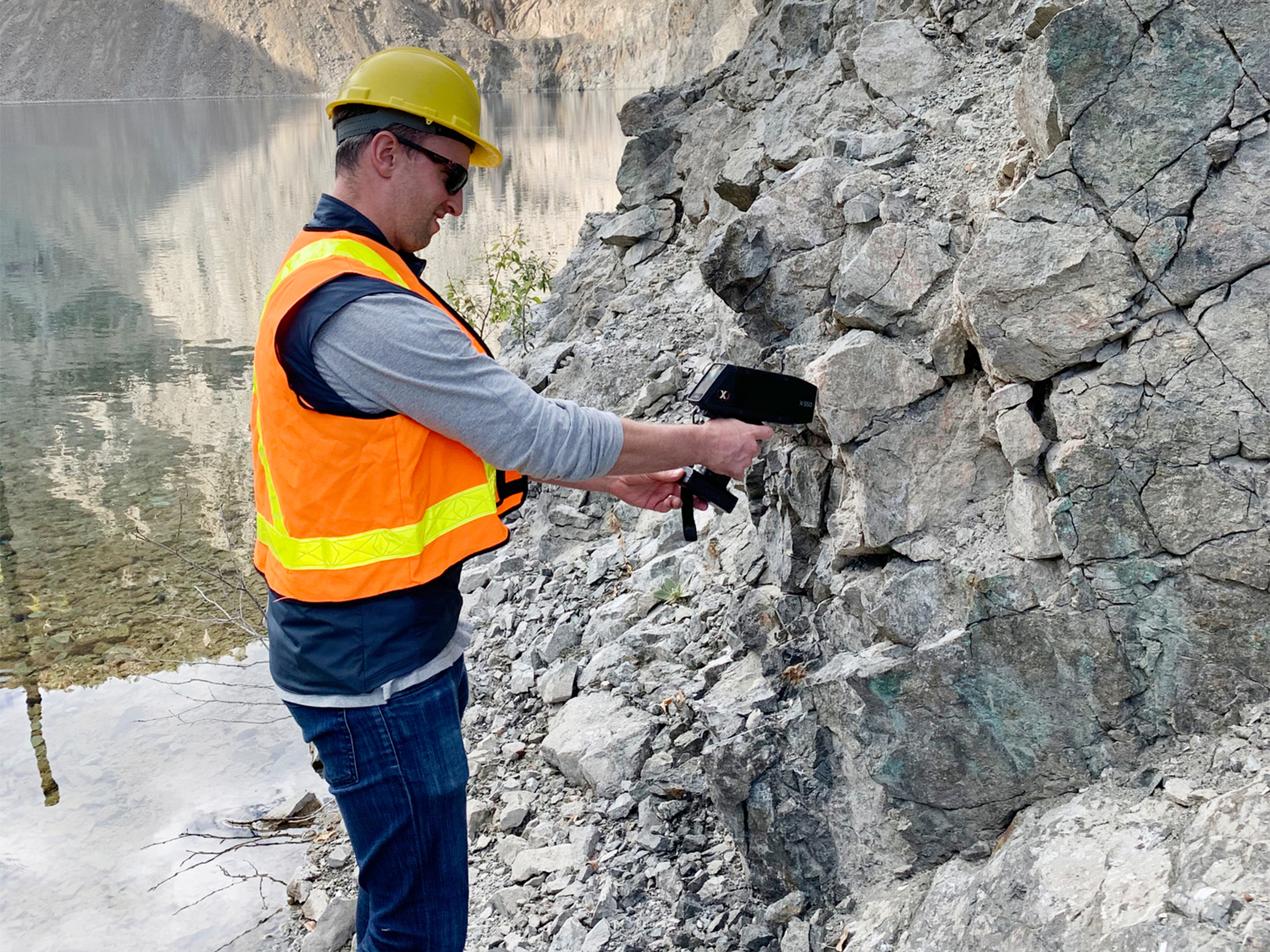

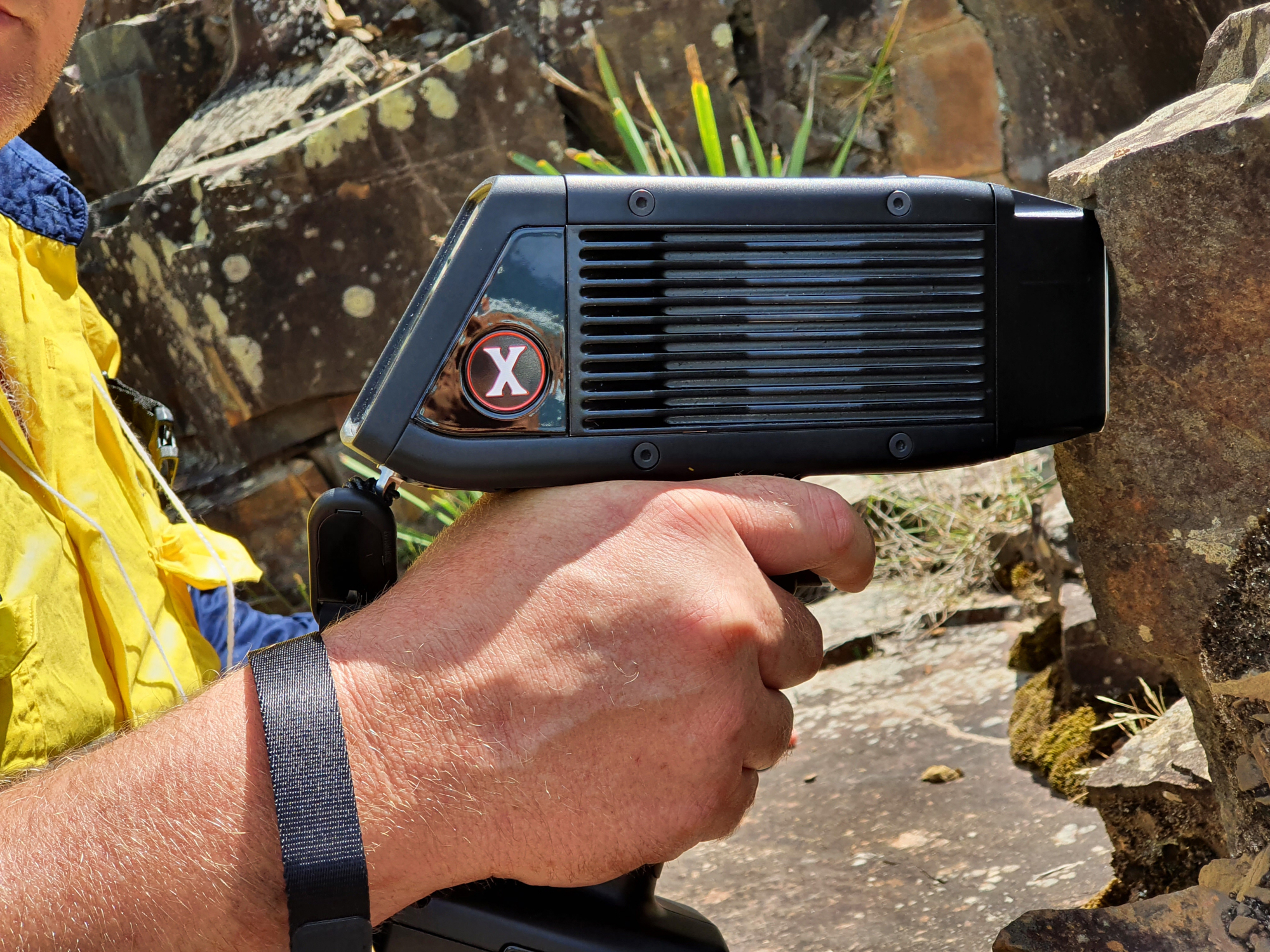

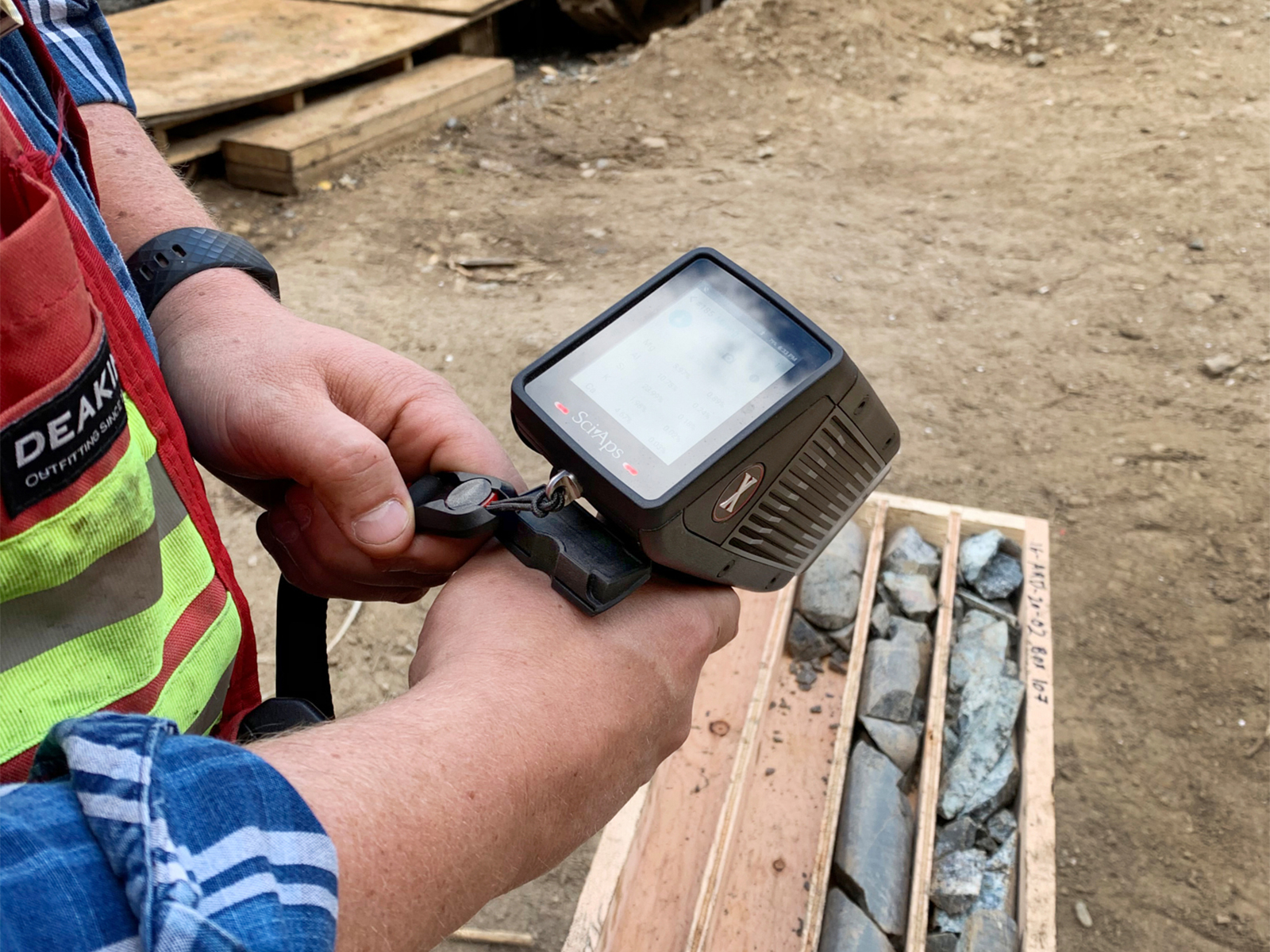

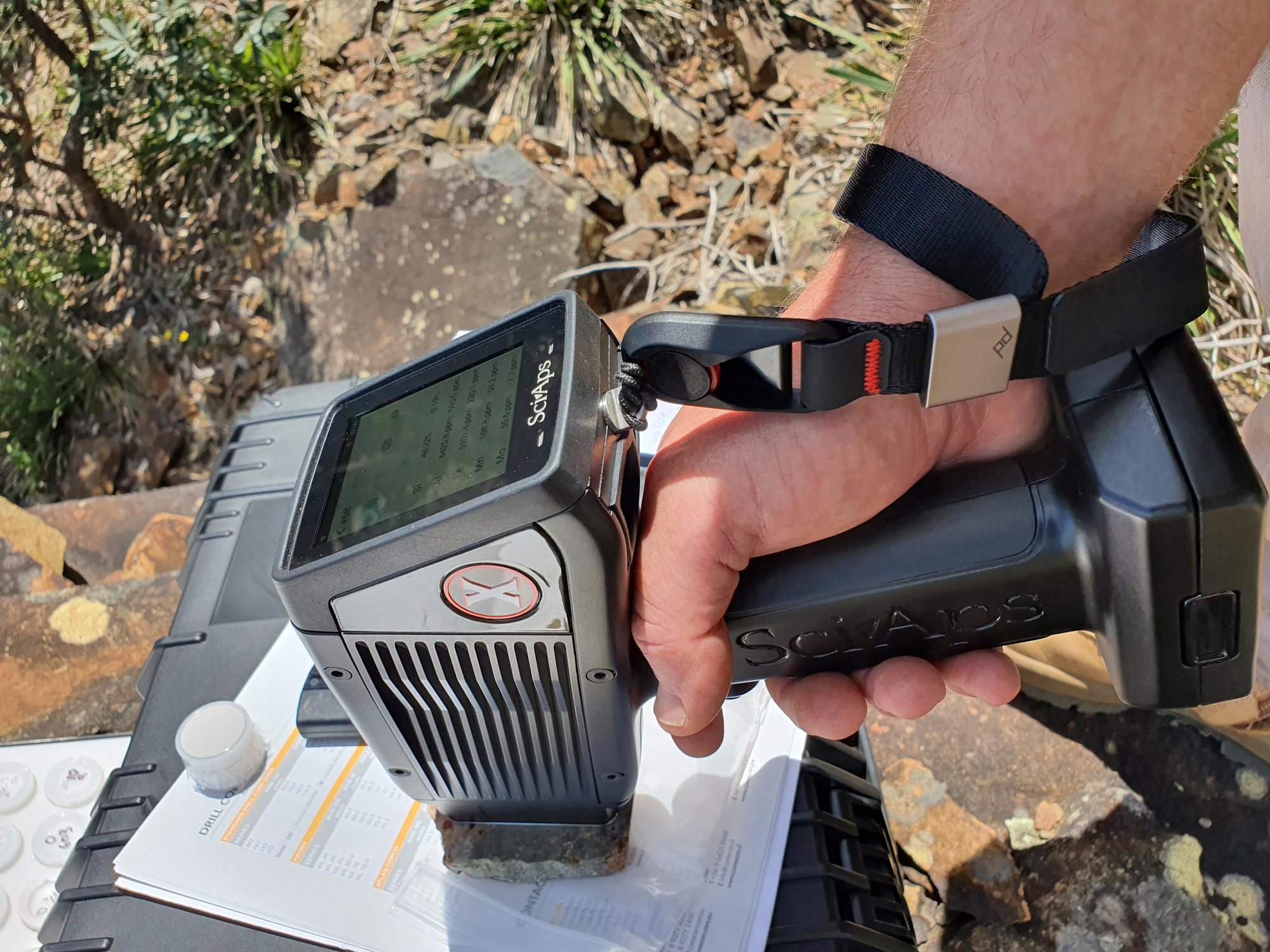

- Mineral Exploration & Soil Geochemistry: Field-ready profiling of rocks, soils, and sediments to support exploration programs.

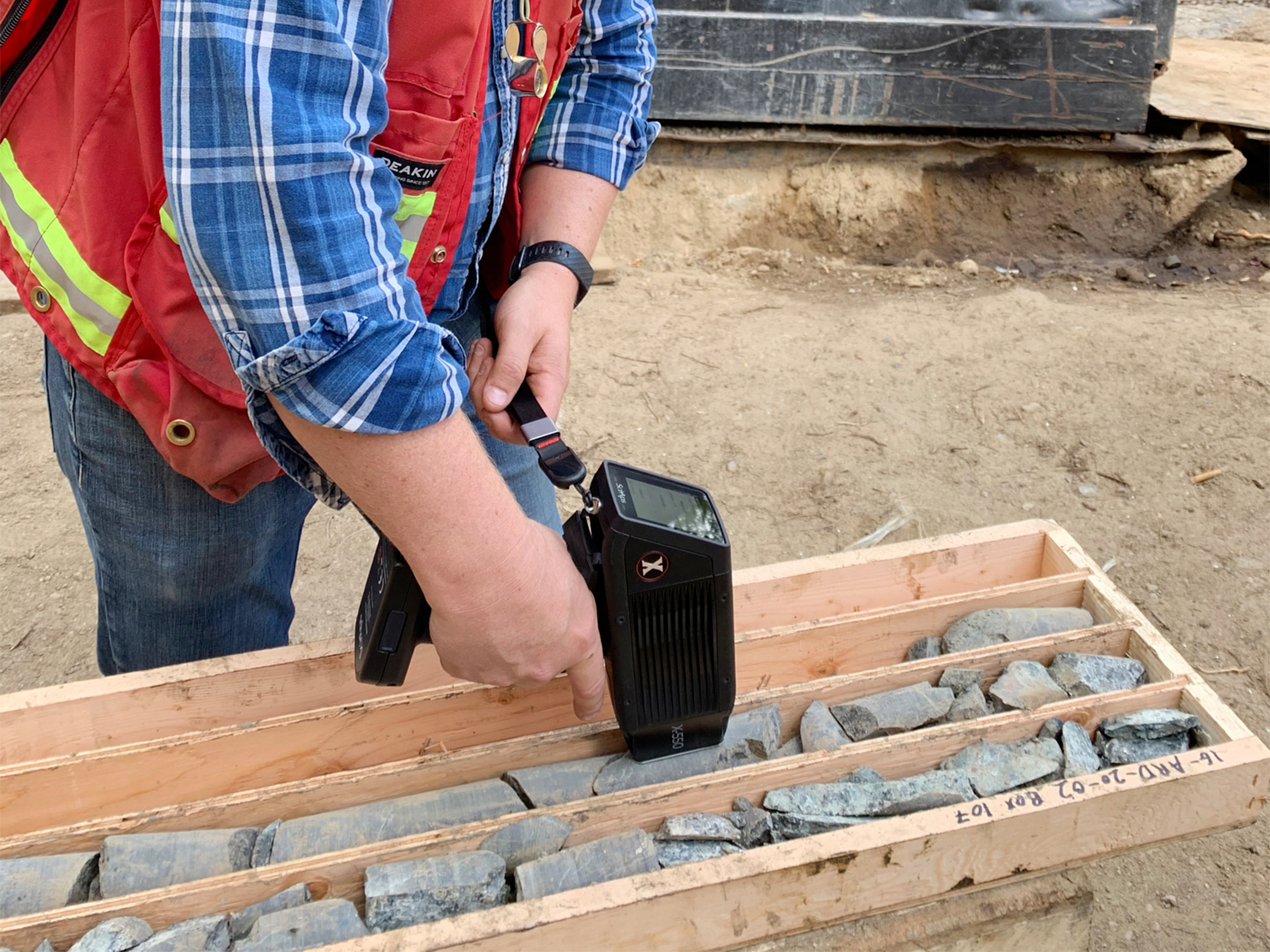

- Mining & Ore Characterization: On-site elemental analysis to support grade control and resource evaluation.
- Environmental & Regulatory Monitoring: Rapid screening of soils and sediments for environmental assessment and compliance.
Why Choose SciAps X-505 Geochem
The SciAps X-505 Geochem blends high-precision XRF performance, field ergonomics, and targeted geochemistry tools into a single portable instrument. Its combination of lightweight design, fast analysis, advanced connectivity, and extensive elemental coverage makes it a powerful solution for professionals who demand reliable, on-site elemental insights regardless of location.
