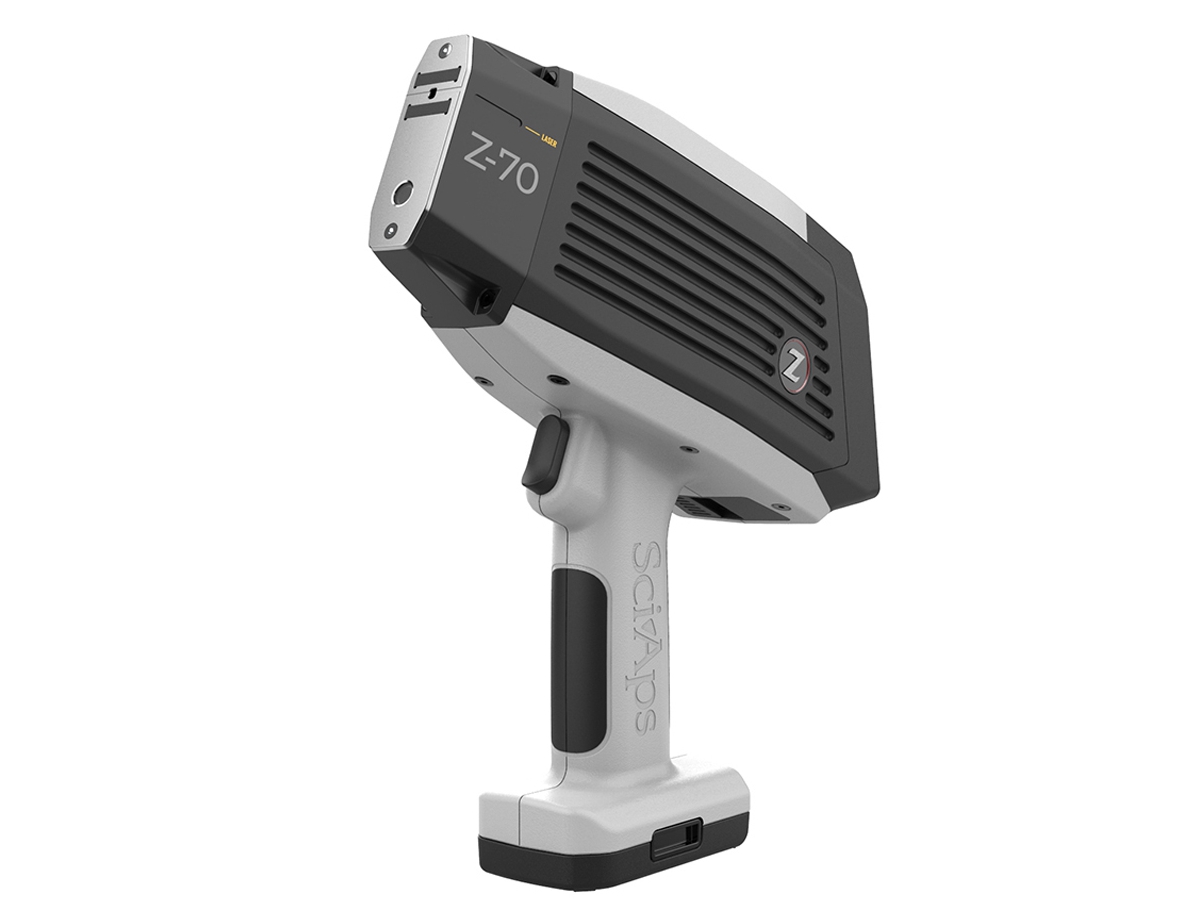

SciAps Z-70 LIBS Analyser
Ask for a priceSpecification
- Laser Energy: High-power 6 mJ/pulse LIBS laser, the most powerful in handheld LIBS sorting instruments, for burning through surface contamination (paint, oil, oxidation) without grinding.
- Analysis Method: Air-burn LIBS (Laser Induced Breakdown Spectroscopy) for rapid material identification and alloy sorting.
- Spectral Range: Typical LIBS wavelength coverage suitable for alloy sorting applications (e.g., ~200–420 nm).
- Display: 3.5″ high-brightness color touchscreen for easy viewing of results in varied lighting conditions.
- Cameras: Integrated internal camera for precise targeting and a macro camera for documentation and barcode/QR code reading.
- Processor & Memory: ARM-based processor with internal memory (e.g., ARM Quad Cortex-A53 and 2 GB RAM, 16 GB eMMC).
- Connectivity: Built-in Wi-Fi, Bluetooth, GPS, and USB-C for real-time data transfer and integration with information management systems.
- Power: On-board rechargeable Li-ion battery, with internal or external charging options.
- Dimensions & Weight: Approximately 270 × 260 × 85 mm and ~1.9 kg with battery, optimized for handheld operation.
- Air Pump / Window Cleanliness System: Unique internal air pump and filter to keep the analysis window clean and improve result accuracy in dirty or dusty environments.
Downloads
Description
SciAps Z-70 LIBS Analyser – Fast, Precise Alloy Identification
The SciAps Z-70 is a cutting-edge handheld LIBS (Laser Induced Breakdown Spectroscopy) analyzer designed for rapid, accurate material identification and alloy sorting in scrap yards, metal fabrication shops, and quality control operations. Engineered for real-world testing without extensive sample preparation, the Z-70 combines powerful laser performance with rugged portability for reliable on-site analysis.
High-Performance Laser Technology
At the heart of the Z-70 is a 6 mJ/pulse laser, significantly more powerful than traditional LIBS systems found on the market. This high-energy laser burns through surface contamination — including oil, grease, paint, and anodized coatings — allowing accurate elemental analysis without grinding or pre-cleaning.
Designed for Real-World Use
The Z-70 is built with durability and ease-of-use in mind:
- Rugged Handheld Design – Lightweight yet durable housing for use in harsh environments.
- Integrated Air Pump System – Keeps the analysis window clean, reducing maintenance and improving result quality.
- Internal and Macro Cameras – Ensure precise targeting and allow photo documentation and barcode/QR code reading.
- Android OS & Intuitive UI – Simple point-and-shoot operation with app-based controls and a high-resolution display.
- Narrow Probe Snout – Access analysis points in tight or awkward spaces.
Fast and Customizable Material ID
The Z-70 delivers rapid elemental identification and sorting for hundreds of alloy grades. Users can customize grade libraries and set up single or multi-base calibrations to match specific testing requirements. Even un-calibrated bases are recognized accurately based on spectral data.
Connectivity & Data Handling
Equipped with Wi-Fi, Bluetooth, GPS, and USB-C, the Z-70 facilitates real-time data transfer, reporting, and integration with laboratory and enterprise systems.
Applications
Ideal for:
- Scrap metal sorting and recycling
- Positive Material Identification (PMI)
- Fabrication quality control
- Alloy verification in manufacturing
- On-site material screening
Why Choose SciAps Z-70
The SciAps Z-70 blends powerful analysis, rugged reliability, and ease of use into a portable instrument that accelerates workflows and improves decision-making on the ground. Its advanced laser and air-burn LIBS technology deliver accurate results with minimal preparation — saving time and cost in demanding industrial settings.
