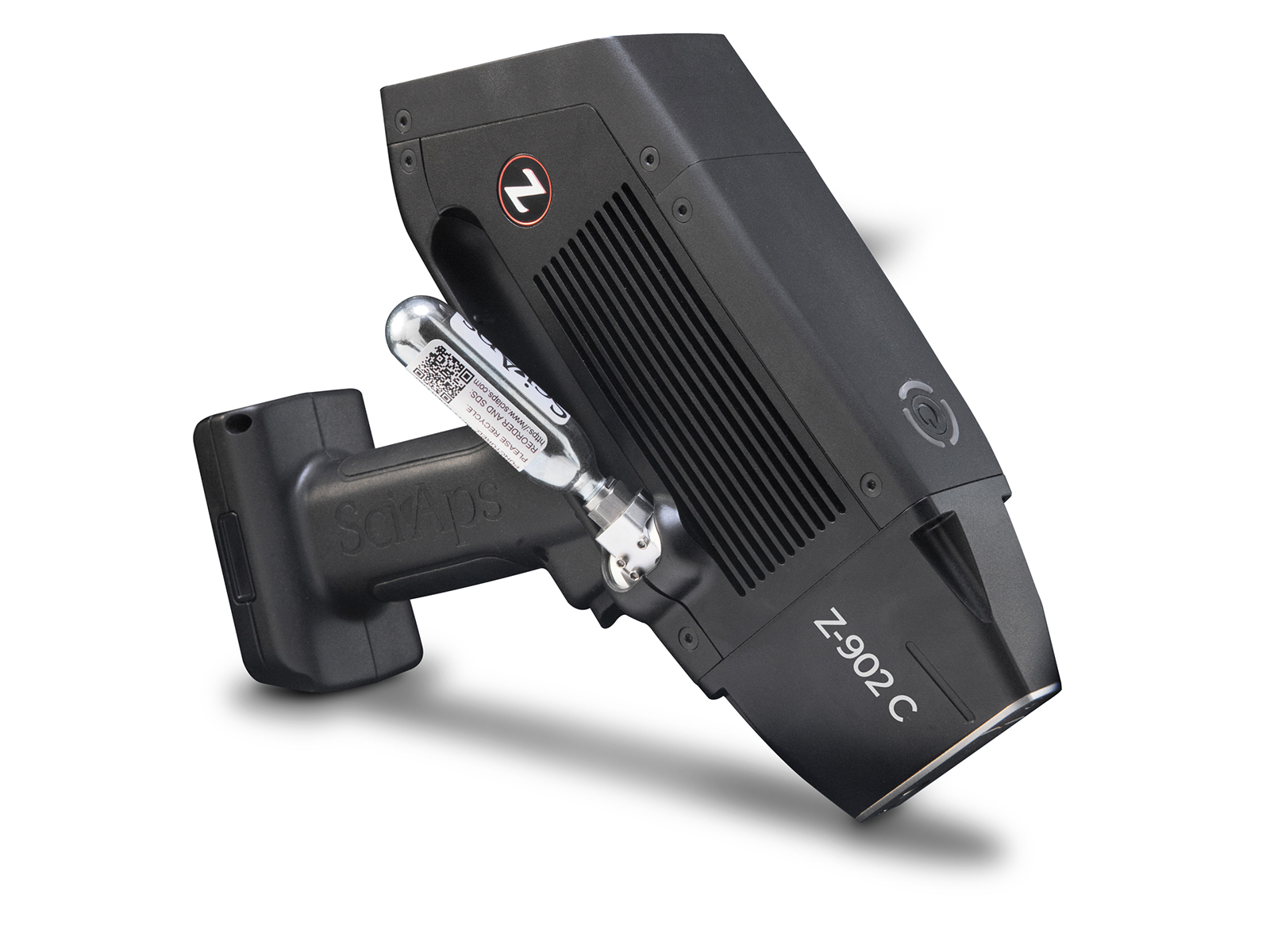

SciAps Z-902 LIBS Analyzer

SciAps Z-902 LIBS Analyzer – High-Resolution Elemental Analysis

The SciAps Z-902 Portable LIBS Analyzer is a rugged, high-performance handheld spectrometer designed for comprehensive elemental analysis across a wide range of materials — from metals and alloys to industrial compounds. With advanced Laser-Induced Breakdown Spectroscopy (LIBS) technology, built-in argon purge, dual spectrometers, and intuitive Android operation, the Z-902 delivers fast, accurate, and versatile elemental measurement wherever you need it.

This powerful analyzer is ideal for field and laboratory use, offering both material screening and precise quantitative elemental analysis. It excels in identifying alloys, detecting light elements that XRF cannot measure, and enabling critical applications in PMI/NDT, quality control, manufacturing, and exploration workflows.

Key Features & Benefits

Advanced LIBS Technology – uses laser-induced plasma to excite atoms within the sample, enabling rapid, direct detection of a broad range of elements — including light elements that are difficult or impossible to measure with XRF.

Dual Spectrometer Design – Two spectrometers extend the wavelength range up to 190–625 nm (depending on configuration), providing exceptional resolution and analysis of up to ~20 elements across multiple alloy bases.

Argon Purge & QuickSort Modes –  Integrated argon purge delivers high-precision quantitative analysis with improved detection limits, while air-burn (QuickSort) mode enables rapid material sorting and grade identification.

Lightweight, Ergonomic Handheld Design – Weighing approximately 1.97 kg (4.35 lbs) with battery, the Z-902 is balanced for comfortable extended operation. Its narrow snout design allows analysis in confined or hard-to-reach areas.

Dual Camera System – Integrated cameras provide real-time sample alignment and targeting, while a macro camera supports photo documentation, barcode/QR scanning, and easier data management.

Intuitive Android Interface – A high-resolution 2.7″ color touchscreen and Android-based software make operation straightforward and fast, with flexible data visualization and reporting.

Full Connectivity – Built-in Wi-Fi, Bluetooth, GPS, and USB-C support seamless data transfer, cloud integration, and connectivity to nearly any information management system.

Durable & Reliable – Rugged construction ensures robust performance in industrial environments, with safety features including password protection and multi-user access controls.

Typical Applications

• PMI & NDT (Positive Material Identification) — Verify alloy grades, including carbon and other key elements not accessible via XRF.
• Quality Assurance & Manufacturing Control — Monitor elemental composition during production for compliance and specification control.
• Material Screening & Sorting — Rapid sorting of metals in scrap recycling, alloy identification, and material verification.
• Research & Field Analysis** — Portable solution for geochemical, environmental, or industrial sampling campaigns.

Technical Specifications

Technology: Laser-Induced Breakdown Spectroscopy (LIBS)
Purge: Integrated Argon purge and QuickSort air mode
Spectral Range: ~190 – 625 nm (dual spectrometers)
Weight: ~1.97 kg (4.35 lbs)
Operating System: Android
Display: 2.7″ high-resolution color touchscreen
Cameras: Integrated targeting & macro camera
Memory & Storage: 2 GB RAM, 16 GB eMMC; result storage via SD (32 GB)
Connectivity: Wi-Fi, Bluetooth, GPS, USB-C
Software: SciAps Profile Builder for PC/tablet
Grade Library: 500+ preloaded standards with expandable libraries

Why Choose the Z-902

• Expanded Element Coverage: Measures elements that handheld XRF cannot, including many light elements critical for alloy analysis and PMI.
• Argon-Enhanced Precision: Built-in Opti-Purge argon system improves signal-to-noise and detection accuracy compared to air-only devices.
• Versatile Analysis Modes: Suitable for both rapid sorting and precise quantitative analysis across industries.
• Field & Lab-Ready: Portable design paired with advanced software makes the Z-902 ideal for diverse testing environments.
