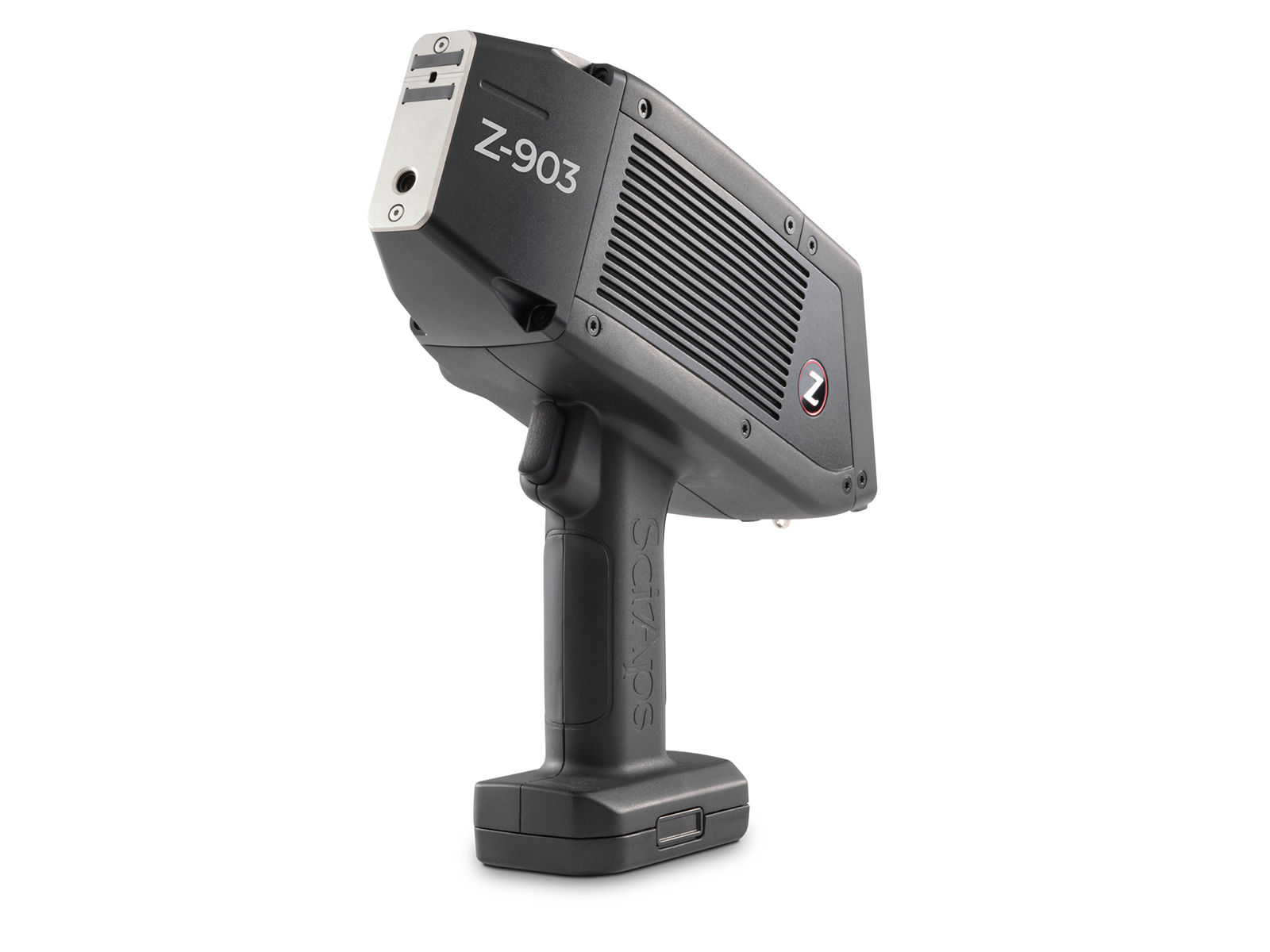

SciAps Z-903 Carbon LIBS Analyzer

SciAps Z-903 Carbon LIBS Analyzer – Dedicated Carbon Analysis

The SciAps Z-903 Carbon is a high-performance handheld LIBS analyzer optimized for precise carbon measurement in alloys, including stainless steels and low-alloy steels. Built on the powerful Z-903 platform, this model features a dedicated high-resolution spectrometer tuned for carbon analysis, capable of reliable in-field carbon detection down to ~70 ppm and instant carbon equivalent (CE) calculations — making it an exceptional tool for PMI (Positive Material Identification), NDT (Non-Destructive Testing), welding assessments, quality control, pipeline integrity, and steel production workflows.

Designed for field and plant environments, the Z-903 Carbon combines advanced LIBS technology with argon purge precision, intuitive Android operation, and rugged portability to deliver fast, accurate elemental results where XRF and traditional methods fall short.

Key Features & Benefits

Specialized Carbon & Alloy Detection – accurate measurement of carbon content in stainless and low-alloy steels, with detection limits down to approximately **70 ppm** and built-in **CE (Carbon Equivalent) calculations** for welding and metallurgical assessments.

High-Resolution Triple Spectrometer – includes a third dedicated spectrometer covering 190–625 nm for enhanced resolution and superior carbon analysis performance.

Powerful LIBS Laser with Argon Purge –  high-energy laser and proprietary Opti-Purge argon environment ensure clean, precise spectral signals and reliable quantitative results.

Ergonomic & Portable Design – lightweight (~1.97 kg) handheld design with a narrow snout allows testing in tight spaces and on complex geometries, ideal for shop floors or on-site inspections.

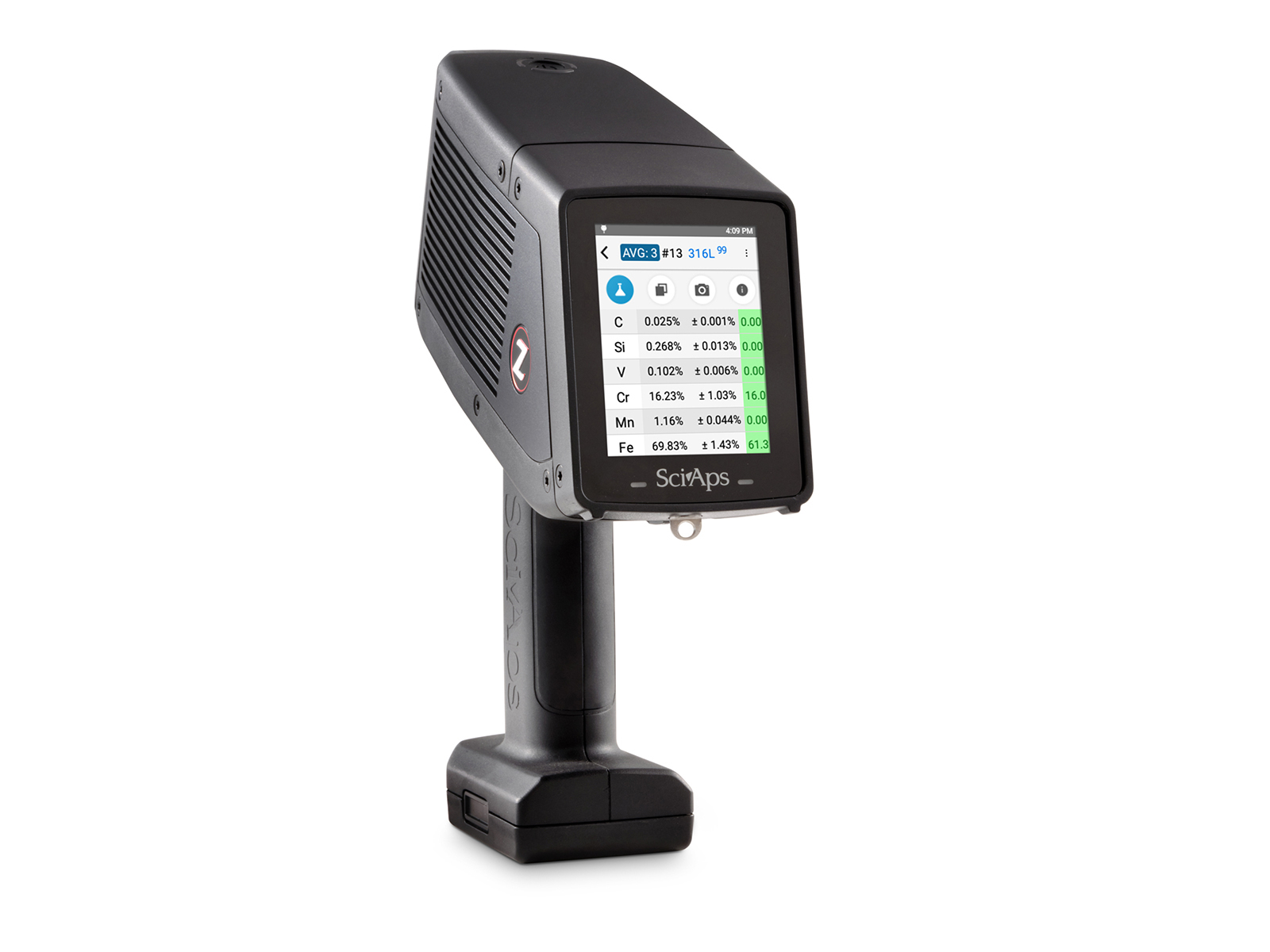

Intuitive Android Interface – a 3.5″ high-resolution color touchscreen and Android-based software provide efficient operation, visual results, and easy navigation.

Dual Camera System – integrated cameras support sample alignment, photo documentation, and barcode/QR code reading for streamlined workflows.

Full Connectivity & Software Support – built-in Wi-Fi, Bluetooth, GPS, and USB-C connectivity with SciAps Profile Builder software enables seamless data export, reporting, and integration with cloud systems.

Typical Applications

• PMI & NDT (Positive Material Identification) – Confirm alloy grades and carbon levels in stainless steels and low-alloy steels.
• Weldability & CE Assessment – Instant calculation of carbon equivalents to support safe and compliant welding procedures.
• Pipeline Integrity Management – Verify material properties and check carbon content for pipeline inspections.

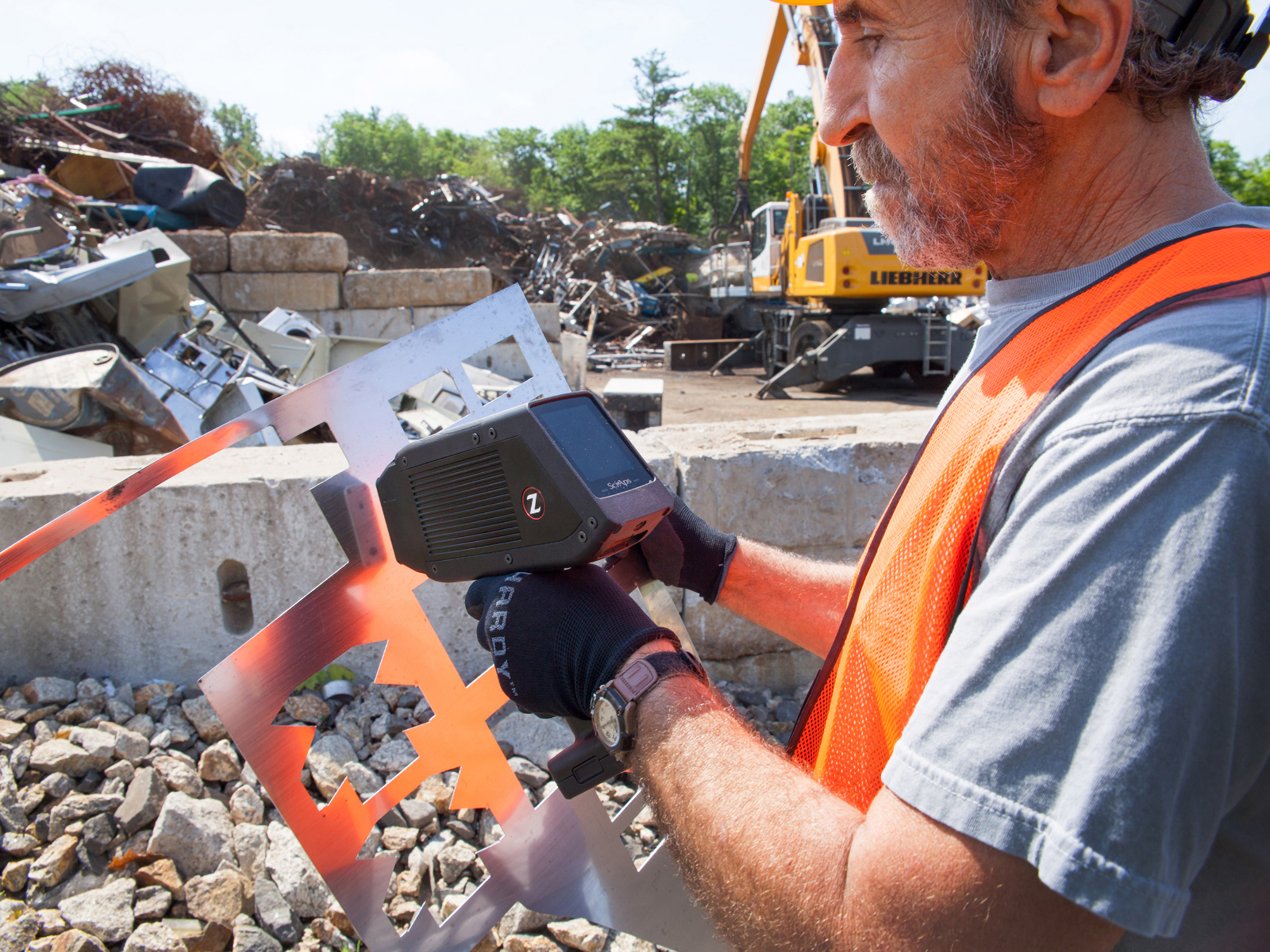

• Steel Production & Quality Control – Rapid screening of incoming scrap, in-process materials, or finished products for accurate carbon measurements.

Technical Specifications

Technology: Laser-Induced Breakdown Spectroscopy (LIBS)
Purge Gas: High-purity Argon with Opti-Purge system
Spectrometer Range: ~190 – 625 nm (dedicated high-resolution carbon spectrometer)
Carbon Detection: Down to ~70 ppm (approximate)
Weight: ~1.97 kg (~4.35 lbs)
Display: 3.5″ high-resolution color touchscreen
Operating System: Android
Cameras: Integrated targeting & macro camera
Connectivity: Wi-Fi, Bluetooth, GPS, USB-C
Battery: Rechargeable Li-ion, onboard charging
Software: SciAps Profile Builder & Android app suite

—

Why Choose the Z-903 Carbon

• Enhanced Carbon Precision: Specialized configuration optimized for carbon measurements in alloys, with improved detection limits and reliable CE results.
• Field-Ready Performance: Rugged, ergonomic design with powerful LIBS capabilities and argon purge ensures consistent results in challenging environments.
• Workflow Efficiency: Android OS, intuitive UI, and full connectivity support efficient data capture, reporting, and traceability.
