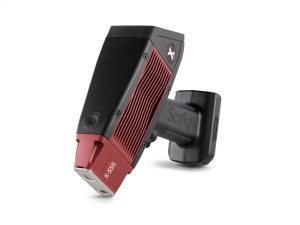

SciAps X-555 REE XRF Analyzer

SciAps X-555 REE XRF Analyzer – High-Performance, Ultra-Portable XRF Instrument

SciAps X-555 REE XRF Analyzer is one of the most powerful and versatile handheld XRF systems ever developed. Designed for professionals who demand laboratory-level performance in a lightweight and rugged portable device, the X-555 delivers exceptional analytical capability across a wide range of elements—from magnesium (Mg) to uranium (U).

At the core of the instrument is an advanced 55 kV / 200 µA X-ray tube, which provides significantly greater excitation energy than traditional 50 kV systems. This improvement allows the X-555 to achieve lower detection limits, faster measurement times, and superior sensitivity, especially for elements such as Ag, Cd, Sn, Sb, Ba, and both light and heavy rare earth elements. Whether in geochemistry, mining, environmental testing, metals analysis, recycling, or regulatory compliance, the X-555 provides highly accurate, repeatable results that meet the needs of modern industry and research.

Despite its power, the X-555 is exceptionally lightweight at only 2.98 lbs (1.35 kg), making it easy to operate for long periods in the field. The housing is built from aerospace-grade aluminum and engineered to withstand impact, vibration, extreme temperatures, and continuous field use. Combined with SciAps’ advanced internal heat-management system, the analyzer delivers stable performance even under harsh duty cycles or challenging environmental conditions.

The device runs on a fully integrated Android operating system, offering a modern, intuitive interface with fast navigation, customizable testing modes, smart calibration workflows, and automatic data backup options. Built-in Wi-Fi, Bluetooth, and USB ensure seamless connectivity for data transfer, cloud integration, and remote tech support. The X-555 also includes a 6-position filter wheel, enabling automatic beam optimization for every material type—from soils and ores to alloys, precious metals, and regulated consumer goods.

Compact, rugged, and engineered with high-end analytical components, the SciAps X-555 REE XRF Analyzer is the ideal solution for experts who require precision, speed, and durability in a single portable instrument.

Key Features

• 55 kV X-ray Tube (Gold Anode)
  Provides higher excitation for mid- and high-Z elements, delivering better limits of detection and faster results than 50 kV systems.
• High-Resolution 50 mm² SDD Detector
  Offers <140 eV FWHM at Mn K-alpha for superior precision and spectral clarity.
• Ultra-Lightweight Design (2.98 lbs / 1.35 kg)
  Among the lightest high-performance XRF analyzers on the market.
• Rugged Field-Ready Construction
  Aerospace-grade aluminum housing, impact-resistant design, and advanced heat dissipation.
• Android Operating System
  Intuitive interface, customizable profiles, fast workflow, seamless navigation.
• 6-Position Automatic Filter System
  Optimizes beam conditions for each sample, maximizing analytical performance.
• Advanced Connectivity
  Wi-Fi, Bluetooth, USB, cloud upload, data management software (Profile Builder).
• Wide Operating Temperature Range
  Suitable for extreme field environments.

Technical Specifications

• Tube Voltage / Current: 55 kV, up to 200 µA
• Detector: 50 mm² Silicon Drift Detector (SDD), <140 eV resolution
• Weight: 2.98 lbs (1.35 kg) with battery
• Filters: 6-position automatic filter wheel
• Operating Temperature: Approx. –12 °C to +54 °C
• Display: High-brightness touchscreen
• Connectivity: Wi-Fi, Bluetooth, USB
• Data Management: SciAps Profile Builder software, cloud storage
• Power: Smart Li-ion battery pack, field-swappable

Applications
Geochemistry & Mining:

• REE exploration (light and heavy elements)
• Ore grade control
• Soil and rock analysis
• Drill core evaluation

Environmental & Soil Testing:

• Detection of hazardous metals: Cd, Pb, As, Sb, Ba
• Site investigation & remediation
• Regulatory compliance

Metals & Alloy Verification

• PMI (Positive Material Identification)
• Scrap sorting and recycling
• Precious metals and plating analysis

Manufacturing & Quality Control

• Raw material verification
• Process control
• Failure analysis

Consumer Safety & Compliance

• RoHS, CPSIA, lead in paint, cadmium in plastics
• Screening for restricted substances

Why Choose the SciAps X-555 REE XRF Analyzer?

• Superior analytical performance thanks to the 55 kV X-ray tube
• Fast, accurate results across the full elemental range
• Lowest limits of detection for many critical metals
• Designed for professionals who demand reliability in tough field conditions
• Modern user experience with Android OS and advanced connectivity
• Extremely portable with unmatched ergonomics and low weight
• Backed by SciAps, the global leader in handheld analytical instruments
