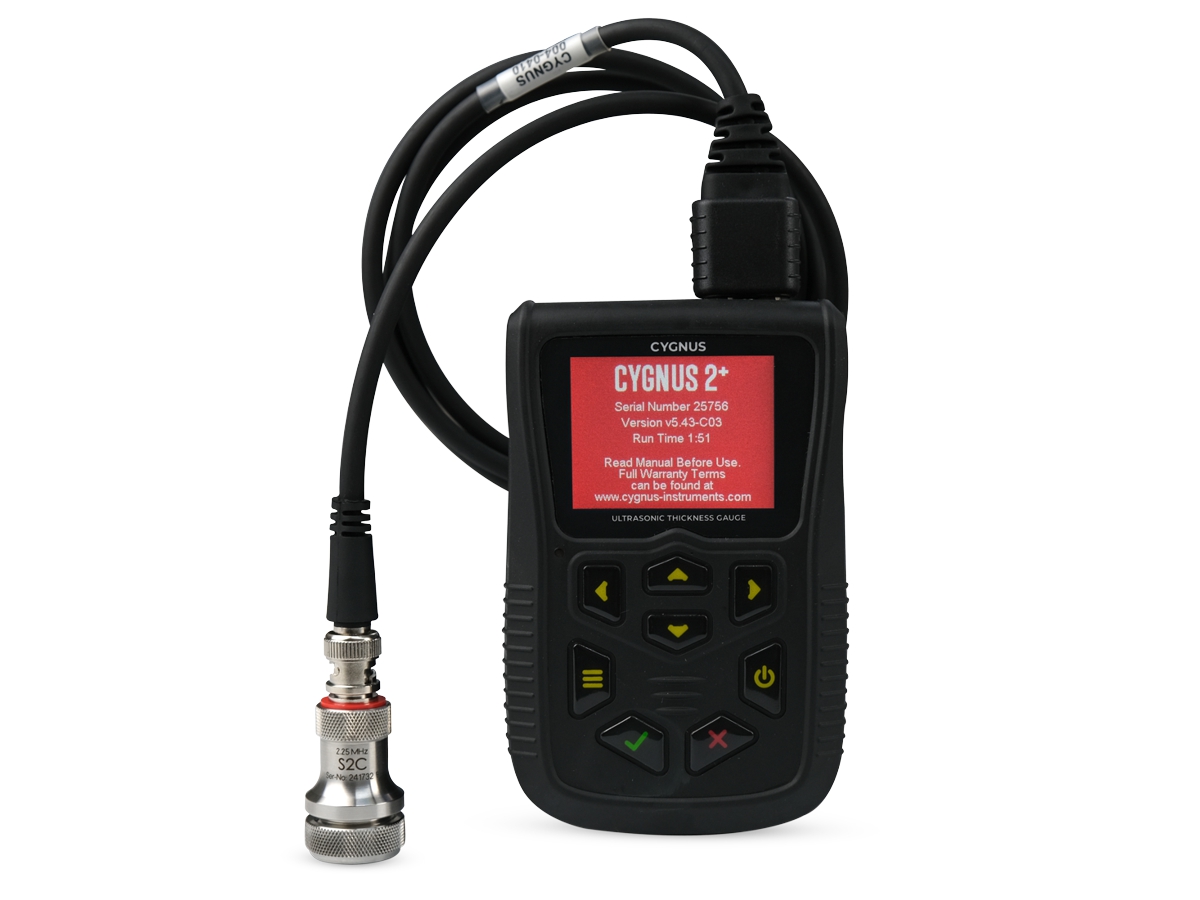

Ultrasonic Thickness Gauge Cygnus 2+ Hands Free
Specification
- Measuring Modes: Multiple-Echo, Echo-Echo and Single-Echo ultrasonic thickness measurement modes for a wide range of applications.
- Coating Compensation (Deep Coat): Measures through protective coatings up to 20 mm (0.8 in) without surface preparation.
- Measurement Range (Steel): Approx. 0.8 – 250 mm (0.031 – 10 in) depending on selected transducer and configuration.
- Accuracy: ±0.05 mm (±0.002 in) in Multiple-Echo mode; ±0.1 mm (±0.004 in) or 0.1 % (whichever greater) in Echo-Echo/Single-Echo, when calibrated on the same material.
- Resolution: Multiple-Echo: 0.1 mm or 0.05 mm; Echo-Echo/Single-Echo: 0.01 mm (or 0.005-0.001 in) selectable.
- Display: End-mounted rotatable LCD (25.6 × 6.4 mm) for measurement readout plus 2.4″ QVGA LCD for menu/setup.
- Power & Battery Life: Powered by 3 × AA/R6 batteries with approx. 10 hours continuous measurement life.
- Environmental Rating: IP67 water/dust protection; ruggedized housing tested to MIL-STD-810G shock, vibration, temperature and immersion standards.
- Connector Type: Twin Lemo 00 probe connectors support both single and twin crystal transducers.
- Size & Weight: Compact form factor approx. 84 × 130 × 35 mm (3.3 × 5.1 × 1.4 in) and ~300 g (10.5 oz) including batteries.
Description
Ultrasonic Thickness Gauge Cygnus 2+ Hands Free is a rugged, versatile, and easy-to-use instrument designed for hands-free measurement of material wall thickness in demanding industrial environments. Ideal for rope access, marine, civil engineering, and structural integrity inspections, this portable gauge delivers reliable results on metals, plastics, and coated surfaces — even in areas with heavy corrosion or pitting.
Key Features
- Hands-free operation — wrist, waist belt, or harness mountable for efficient inspection in confined or elevated spaces.
- End-mounted display — clearly shows thickness measurements while performing inspections, perfect for rope access and climbing applications.
- Three measuring modes — Multiple-Echo, Echo-Echo, and Single-Echo provide accurate thickness data across a wide range of coatings and corrosion conditions.
- Deep Coat function — ignores coatings up to 20 mm thick, allowing true material thickness to be measured without removing paint or protective layers.
- Measurement Stability Indicator (MSI™) — helps verify stable and reliable readings.
- Rugged construction — shock and impact resistant to MIL-STD-810G, with environmental sealing to IP67 for water and dust resistance.
- Intuitive menu and setup — simple, user-friendly interface for fast field calibration and use.
- Supports single and twin crystal probes — versatile probe options for different inspection needs.
Applications
This hands-free ultrasonic thickness gauge is ideal for:
- Rope access and elevated structure inspection

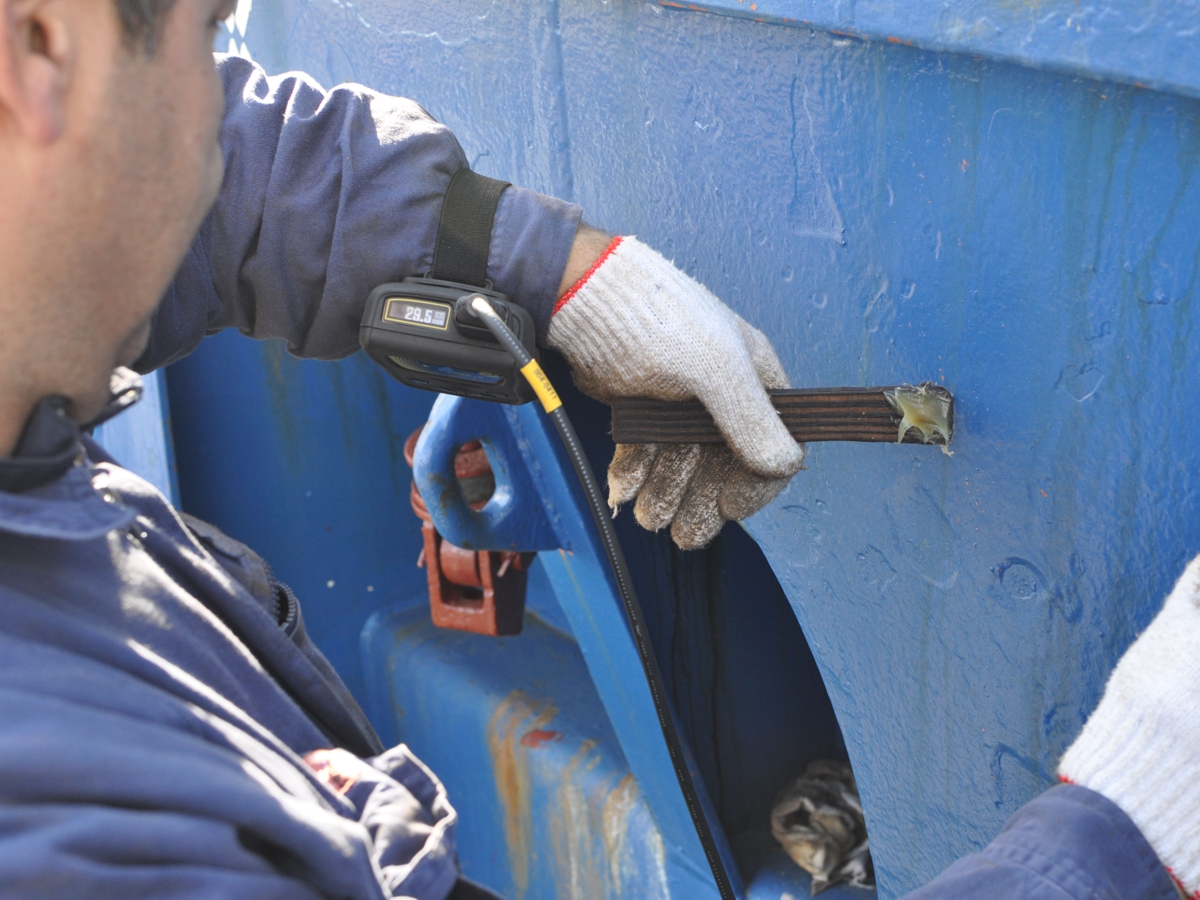

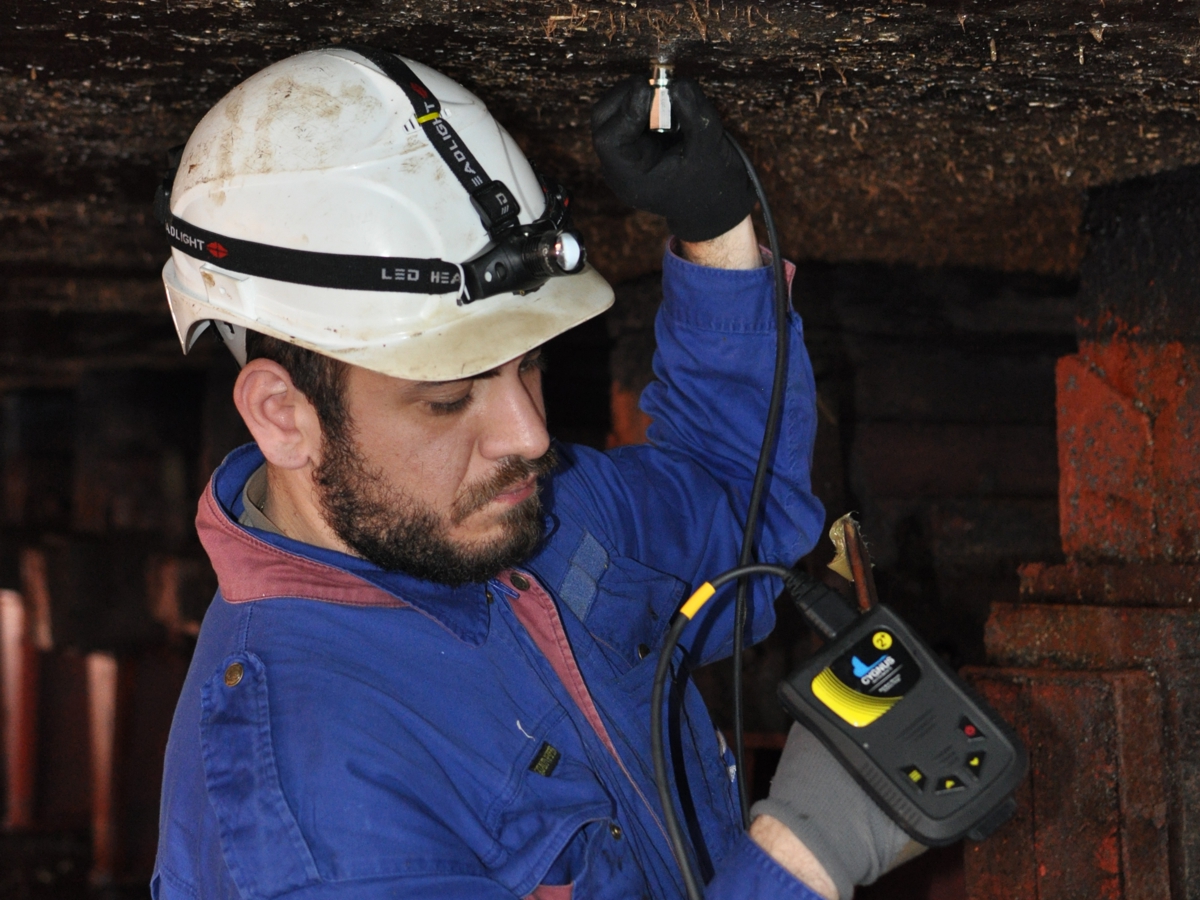

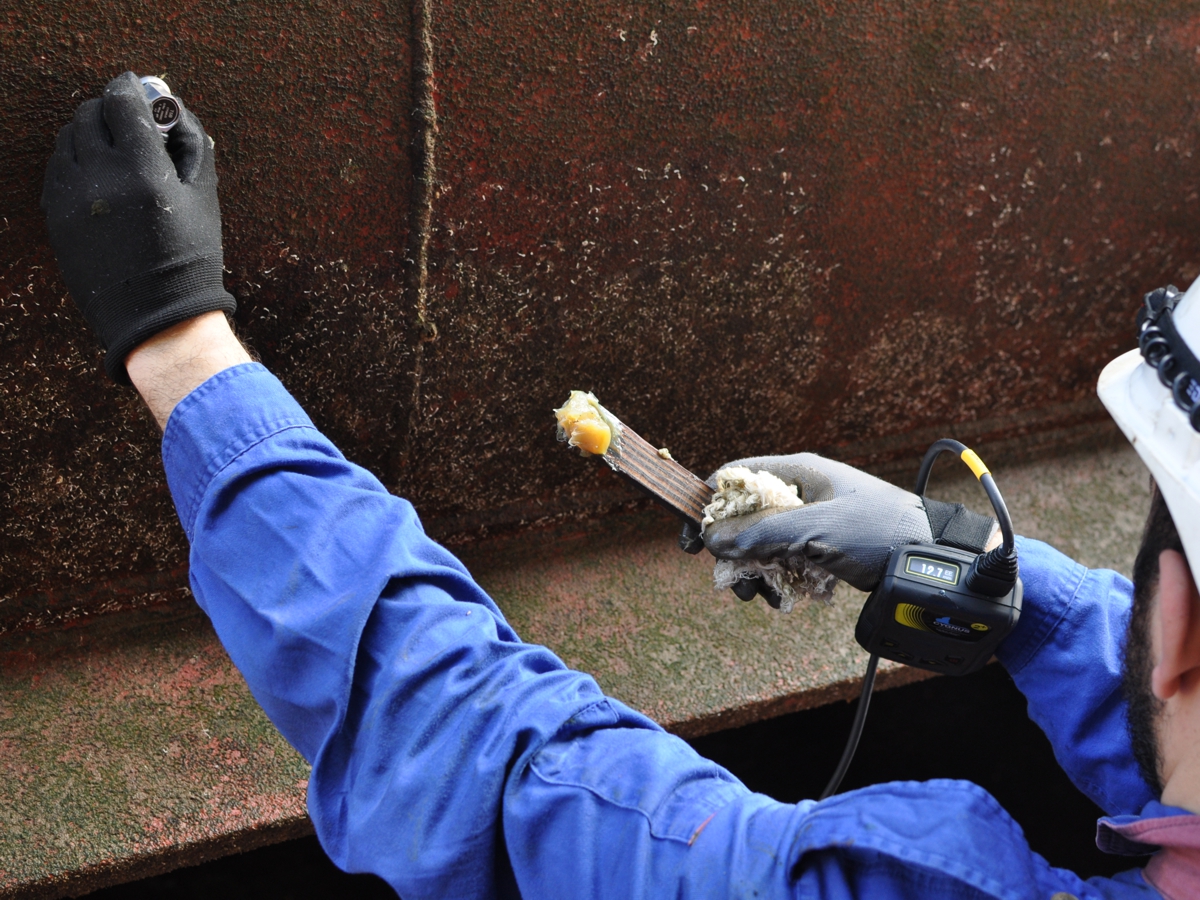

- Marine hull surveys and ship maintenance
- Civil engineering inspections

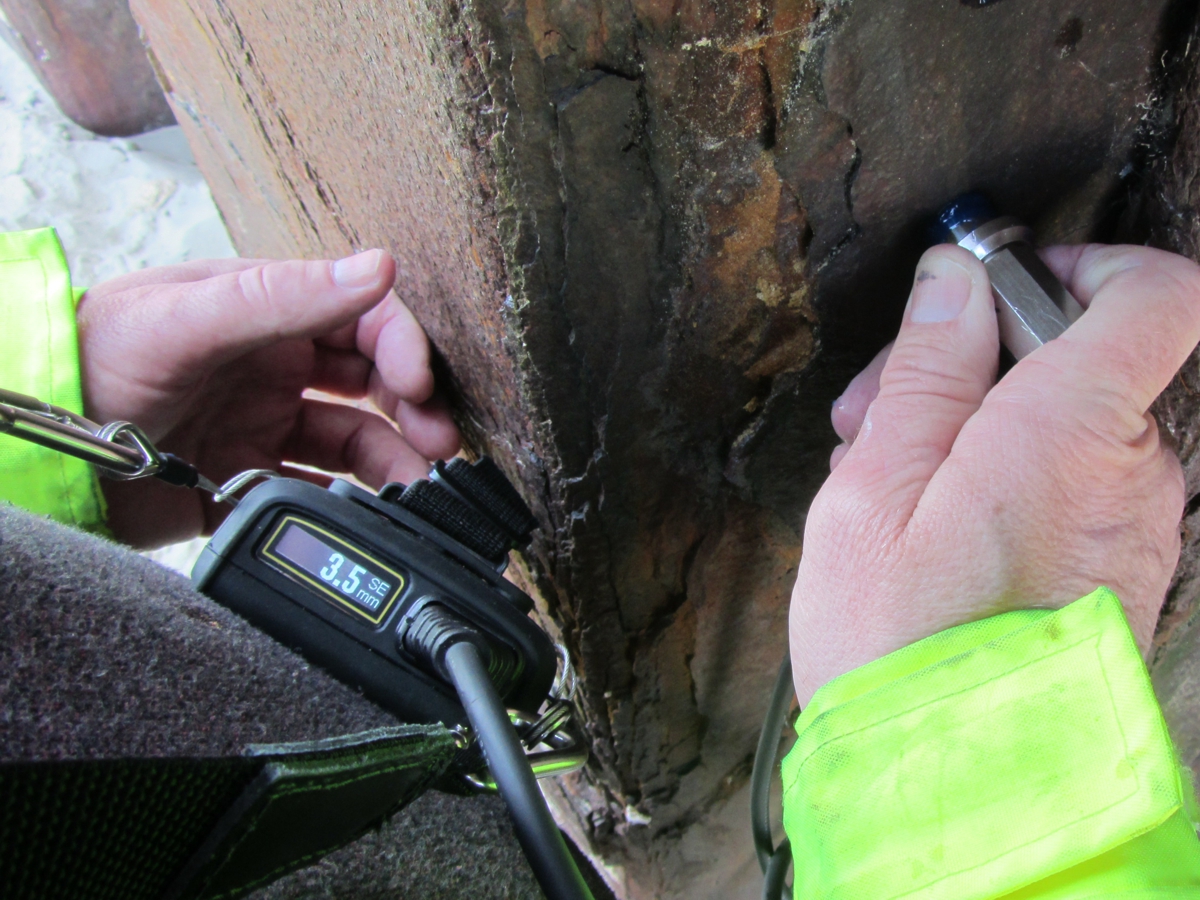

- Corrosion mapping on heavily pitted metals
- Pipe and vessel wall thickness testing
- Coated surface inspection without coating removal
