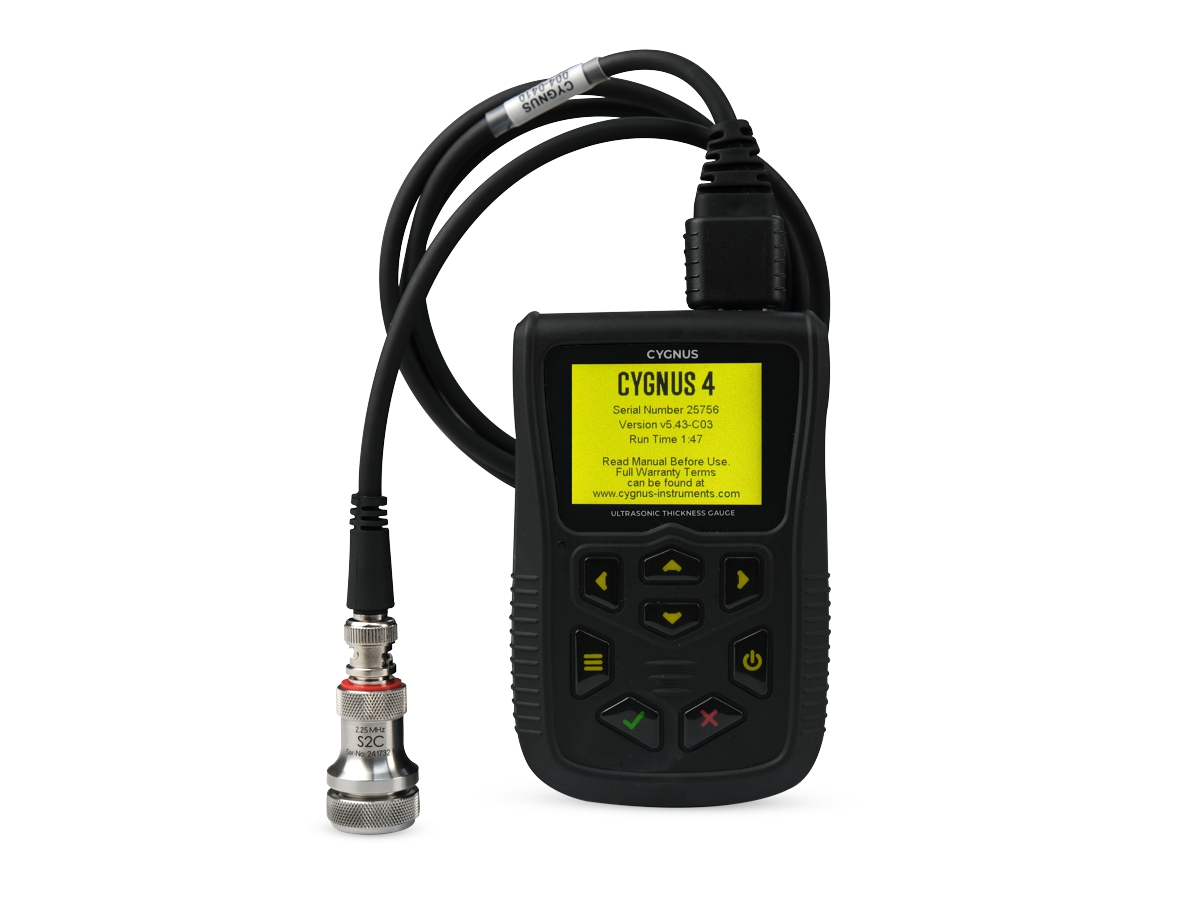

Ultrasonic Thickness Gauge Cygnus 4
Specification
- Measurement Technique: Multiple-Echo ultrasonic measurement for accurate readings through coatings.
- Coating Compensation (Deep Coat): Measures through protective coatings up to 20 mm (0.8 in) thick without stripping surface.
- Measurement Range (Steel): Approx. 1 mm to 250 mm (0.04 – 10 in) depending on probe and configuration.
- Display: 2.4″ QVGA colour LCD (approx. 47 × 37 mm) with bright front display for clear readings.
- Accuracy: ±0.05 mm (±0.002 in) in Multiple-Echo mode when calibrated on the same material.
- Resolution: Selectable 0.1 mm (0.005 in) or 0.05 mm (0.002 in).
- Power: 3 × AA (R6) batteries with approx. 10 hours continuous measurement life.
- Environmental Rating: IP67 rated for water and dust resistance and designed to MIL-STD-810G standards (shock, vibration, temperature & immersion).
- Operating Temperature: -10 °C to +50 °C (14 °F – 122 °F).
- Physical Size & Weight: Compact handheld unit approx. 84 × 130 × 35 mm and ~300 g (including batteries).
Description
Ultrasonic Thickness Gauge Cygnus 4 – is a rugged, compact, and easy-to-operate instrument designed for reliable wall thickness measurement of metals across a wide range of industrial applications. Built to perform in harsh conditions, this handheld gauge delivers accurate results even through protective coatings — eliminating the need for grinding or stripping surfaces.
Key Features
- Multiple-Echo measurement — uses three return echoes to provide highly accurate thickness readings and error-checked results.
- Through-coat measurement — Deep Coat function ignores protective coatings up to 20 mm (0.8 in) thick, so no coating removal is needed.
- Intuitive operation — simple one-point calibration and easy menu navigation ensure fast setup and measurement in the field.
- Visual & vibrate alerts — configurable min/max limits with both visual and tactile alerts enhance measurement consistency.
- Large, bright color display — clearly visible in various lighting conditions for effortless reading.
- Rugged construction — shock and impact-proof design to MIL-STD-810G, sealed to IP67 for water and dust resistance.
- Light and portable — compact handheld form factor makes it ideal for on-site inspections.
- Probe compatibility — works with a variety of single crystal probes for versatile measurement capabilities.
Applications
Designed for general industrial inspection, the Cygnus 4 thickness gauge is well suited for:

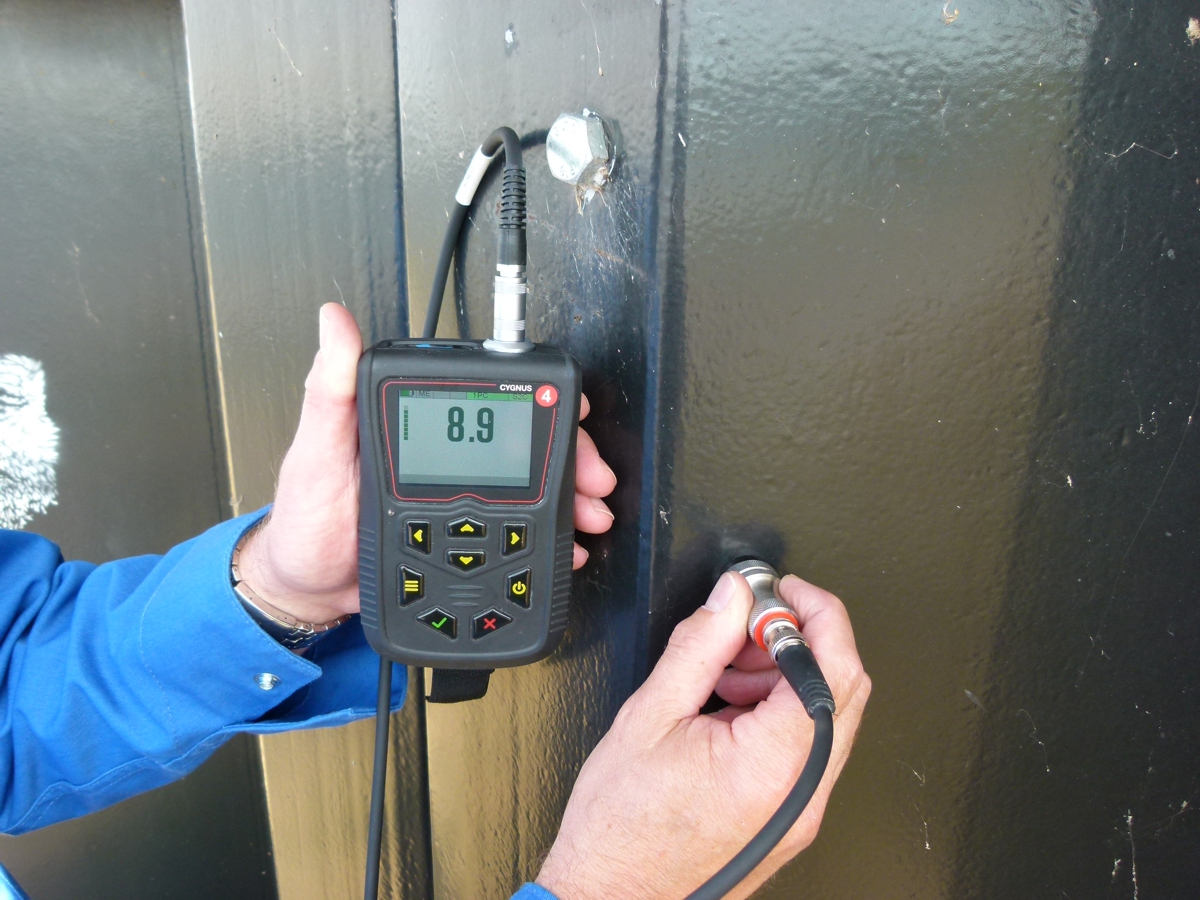

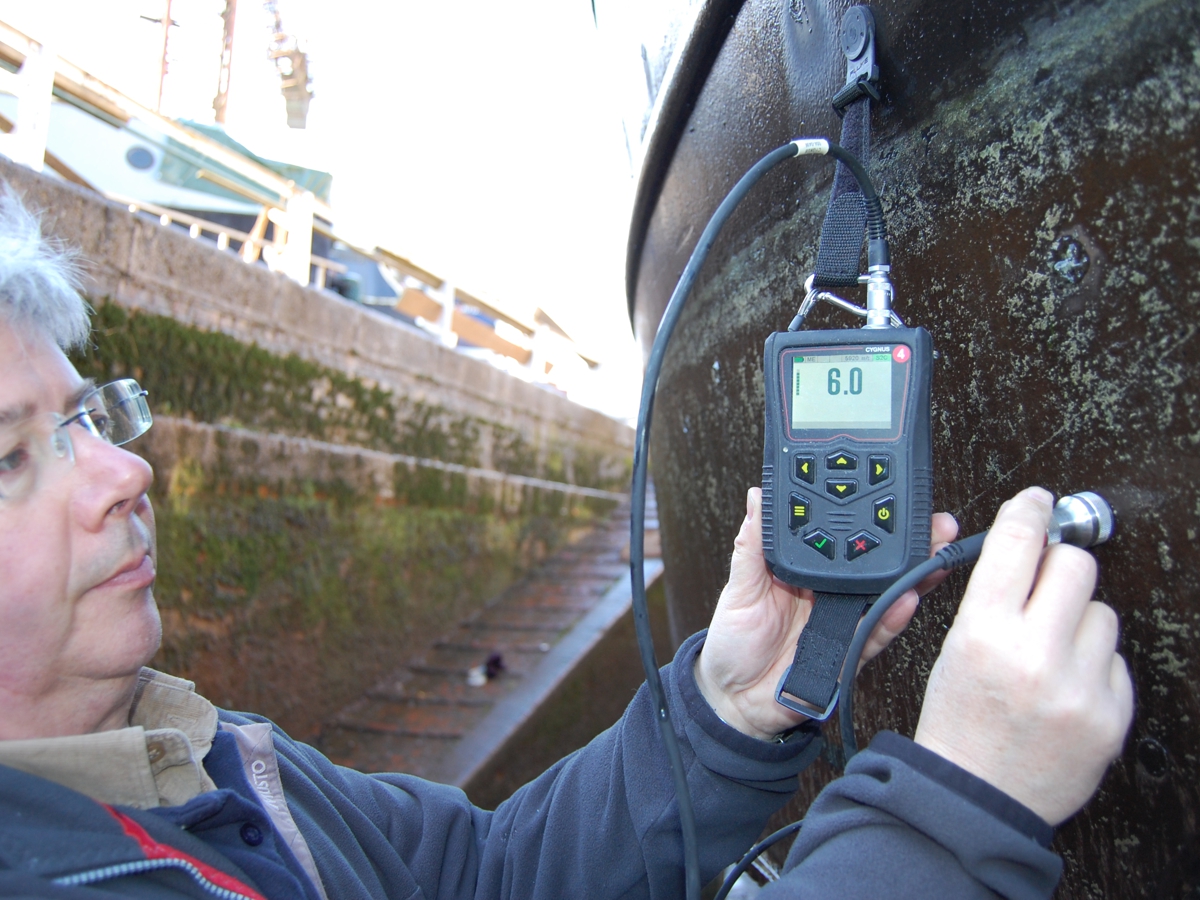

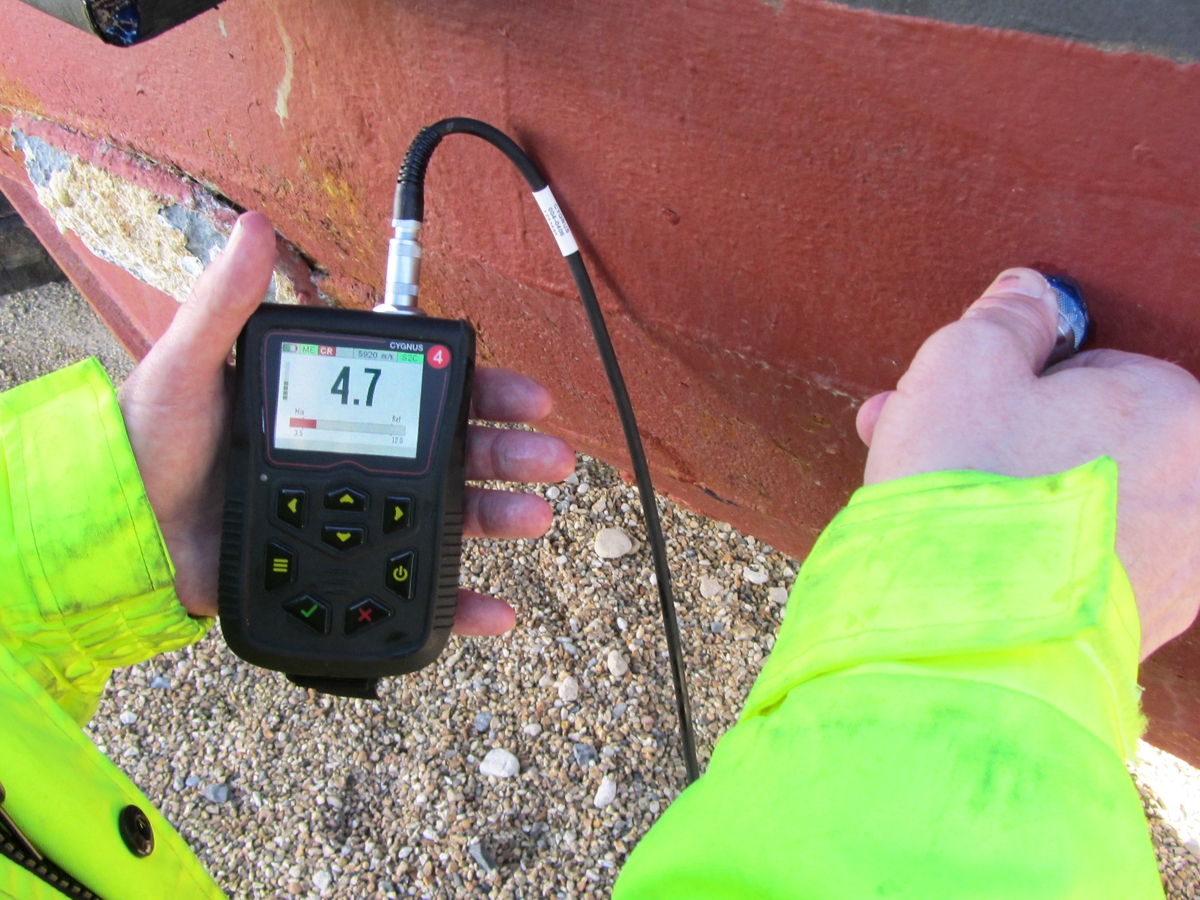

- Shipping and marine surveys
- Plant and facility maintenance
- Oil & gas and petrochemical structures

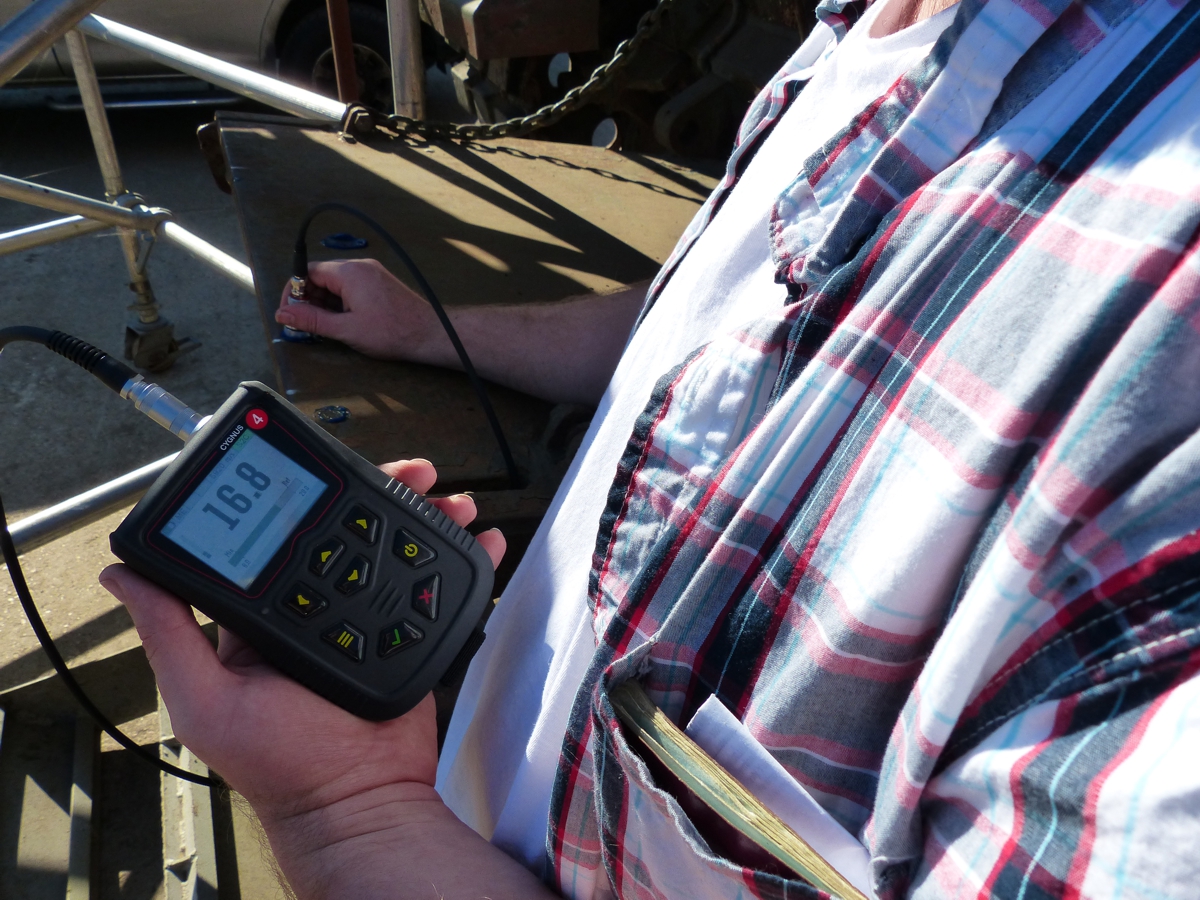

- Storage tanks and pressure vessels
- Civil engineering and infrastructure inspection

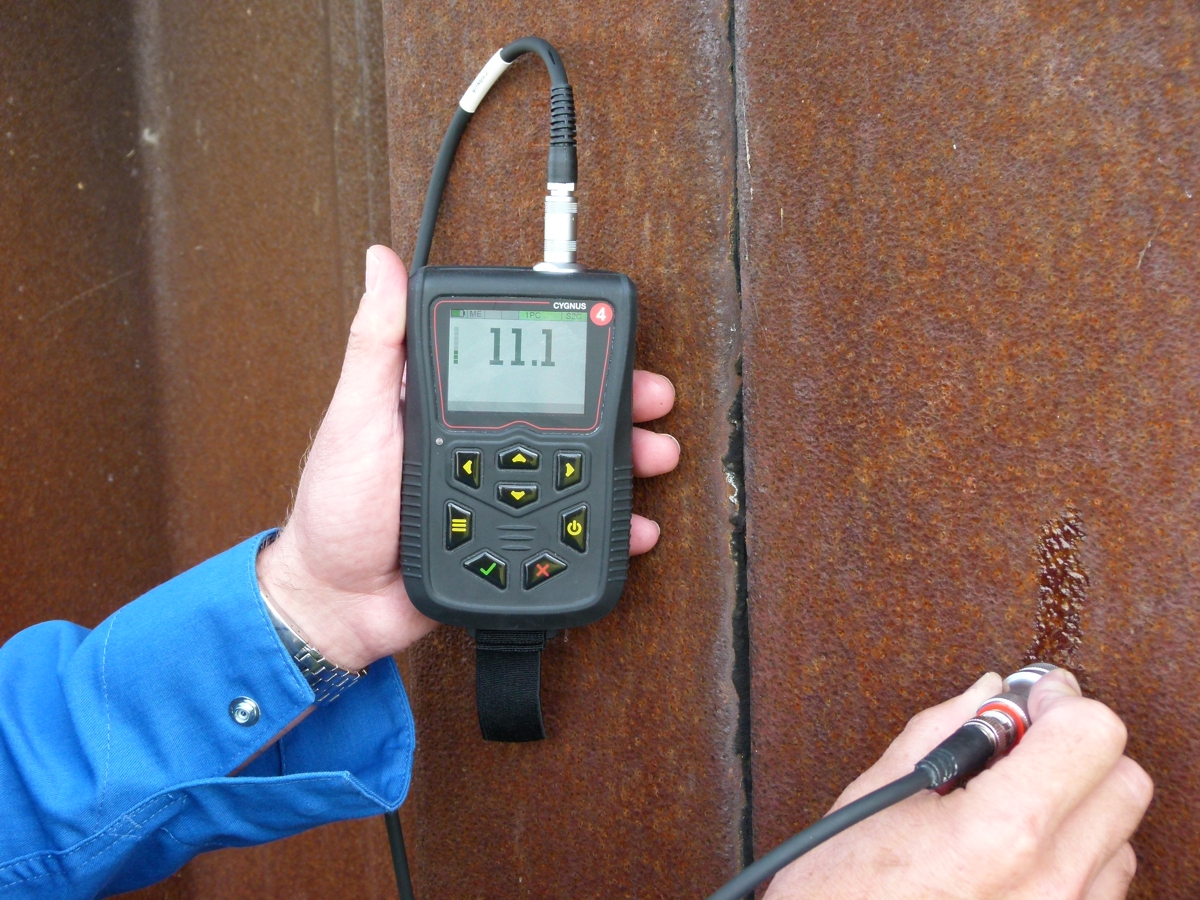

- Corrosion and wall thinning assessment
