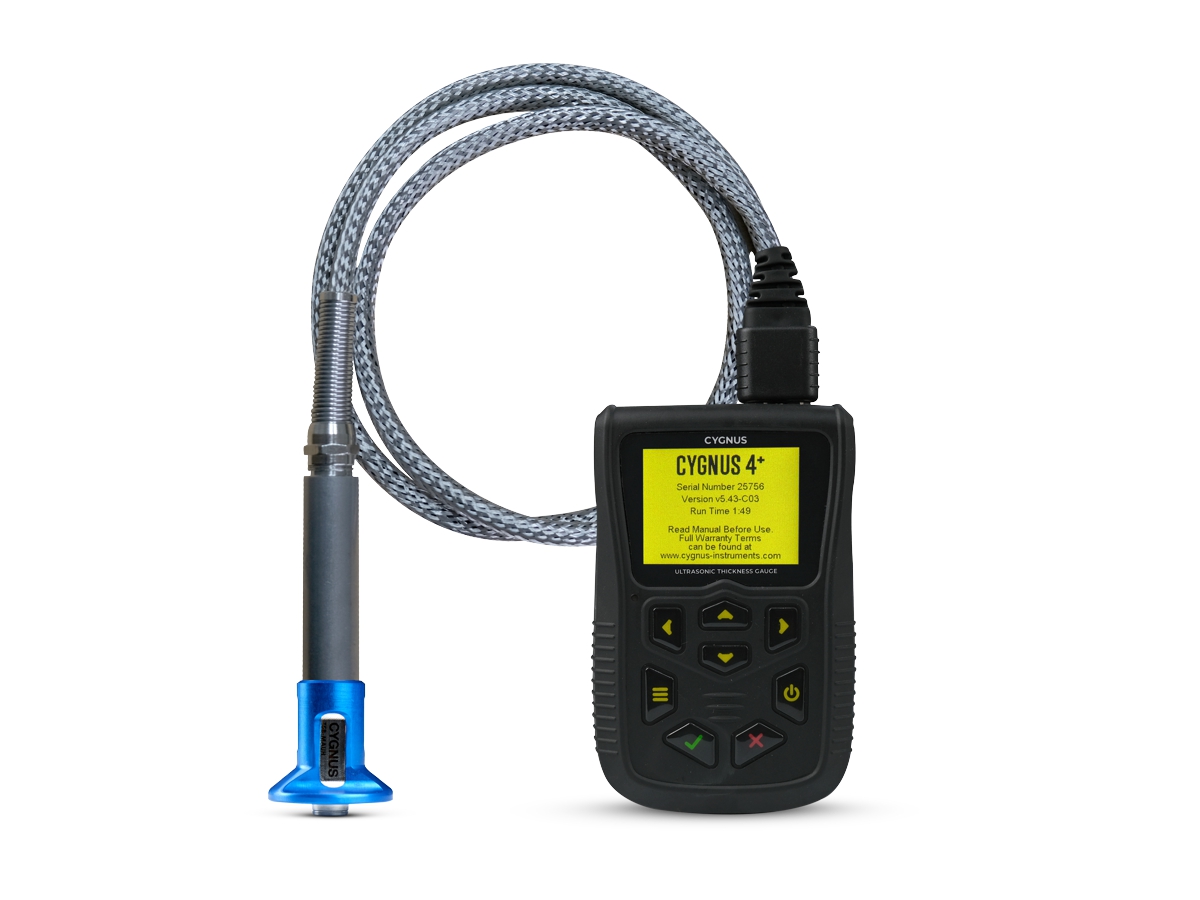

Ultrasonic Thickness Gauge Cygnus 4+
Ask for a price
Ask for a price
Ultrasonic Thickness Gauge Cygnus 4+
Specification
- Multi-Mode Measuring Techniques: Includes Multiple-Echo, Echo-Echo, and Single-Echo measurement modes for accurate thickness readings across a range of material conditions.

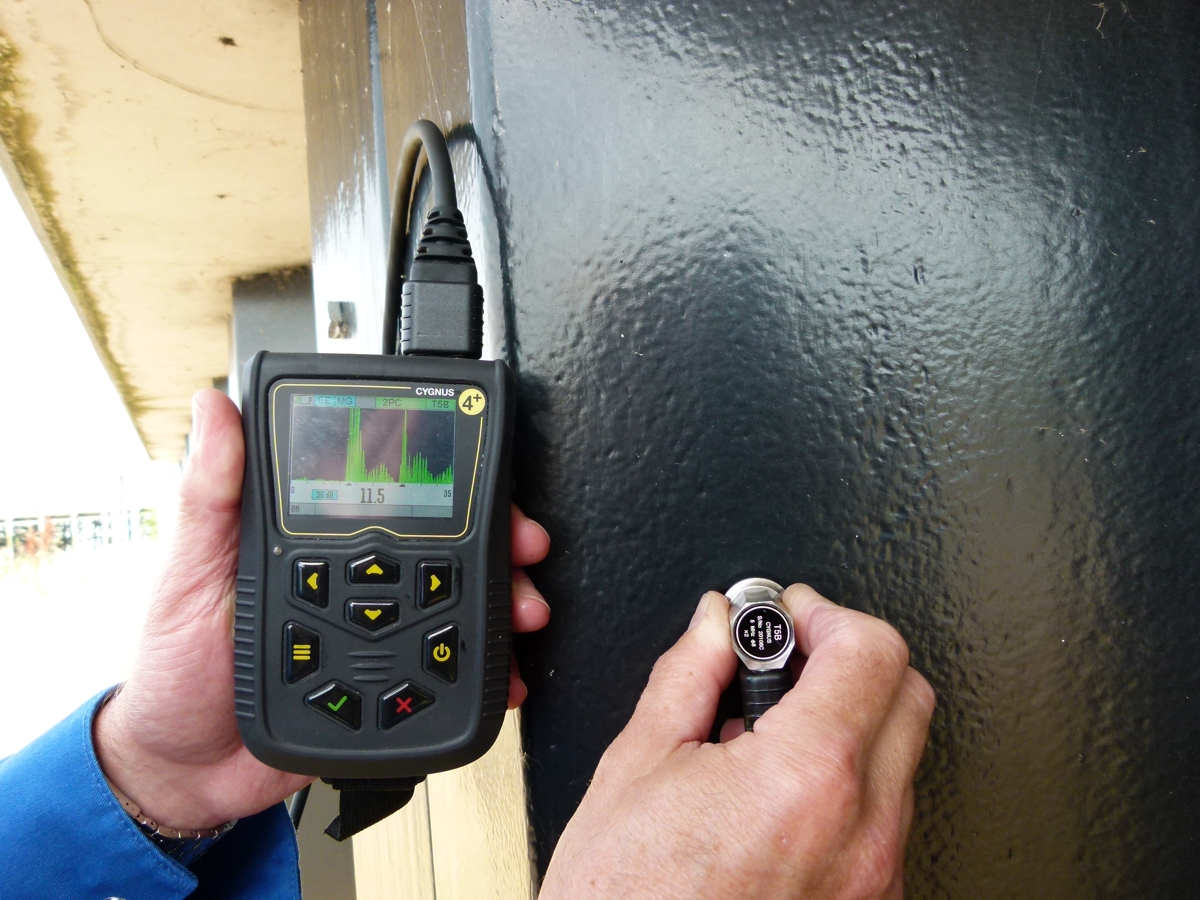

- Live A-Scan Display: Real-time ultrasonic waveform visualization helps verify the quality and consistency of each measurement.
- Sequential Data Logging: Built-in logging of thickness readings, with measurement and A-scan storage for reporting and post-analysis.
- Deep Coat Function: Can ignore protective coatings up to 20 mm (0.8 in) thick, allowing measurement without coating removal.
- High-Temperature Measurement Support: Compatible with a high-temperature transducer, enabling thickness measurement on hot surfaces up to ~300 °C (572 °F).
- Manual & Automatic Gain Control: Offers both manual and automatic gain adjustment to improve measurement confidence in varied material conditions.
- Limit Alerts: Configurable min/max measurement limit functions with visual and vibrate alerts for out-of-tolerance conditions.
- Sunlight-Readable LCD: Large front colour LCD display optimized for visibility in bright environments with backlight.
- Rugged Construction: Water and dust-tight IP67 housing and shock/impact resistance to MIL-STD-810G ensure durability in harsh field conditions.
- One & Two-Point Calibration: Supports single and two-point calibration for enhanced measurement accuracy and repeatability.
Description
Ultrasonic Thickness Gauge Cygnus 4+ – is a versatile, rugged and highly capable handheld instrument designed for accurate and reliable measurement of remaining material wall thickness in a wide range of industrial applications. Combining multiple measurement techniques with live A-scan visualization, data logging, and optional high-temperature capability, this gauge provides professionals with powerful inspection tools for corrosion surveys, asset maintenance, ship inspections, and high-temperature in-service thickness testing.
Key Features
- Multi-Mode Measuring Capability — Includes Multiple-Echo, Echo-Echo, and Single-Echo modes to handle coated surfaces, heavy corrosion, and a broad variety of materials.
- Live A-Scan Display — Provides real-time waveform visualization to aid visual verification of thickness readings and quality assurance.
- Deep Coat Function — Ability to ignore protective coatings up to 20 mm (0.8 in) thick, reducing inspection preparation time.
- Sequential Data Logging — Built-in data logging with A-scan capture and Auto-Log feature for efficient recording of inspection results.
- High-Temperature Measurement Support — When paired with a high-temperature transducer, the gauge can take thickness readings on surfaces up to ~300 °C (572 °F) without shutdown.
- Min/Max Limit Alerts — Configurable visual and vibration alerts help ensure measurements remain within defined tolerances.
- Large Sunlight-Readable Display — Bright, colour LCD for clear readings even in bright environments.
- Rugged & Reliable Construction — Certified IP67 for water and dust resistance and MIL-STD-810G for shock, impact, and vibration protection.
- Intuitive Menu & Controls — Easy-to-use interface with simple keypad navigation for fast setup and operation.
- Optional High-Temperature Probe Compatibility — Capable of measuring remaining wall thickness on high-temperature industry assets under full load.
Applications
The Cygnus 4+ is ideal for a variety of professional inspection scenarios, including:

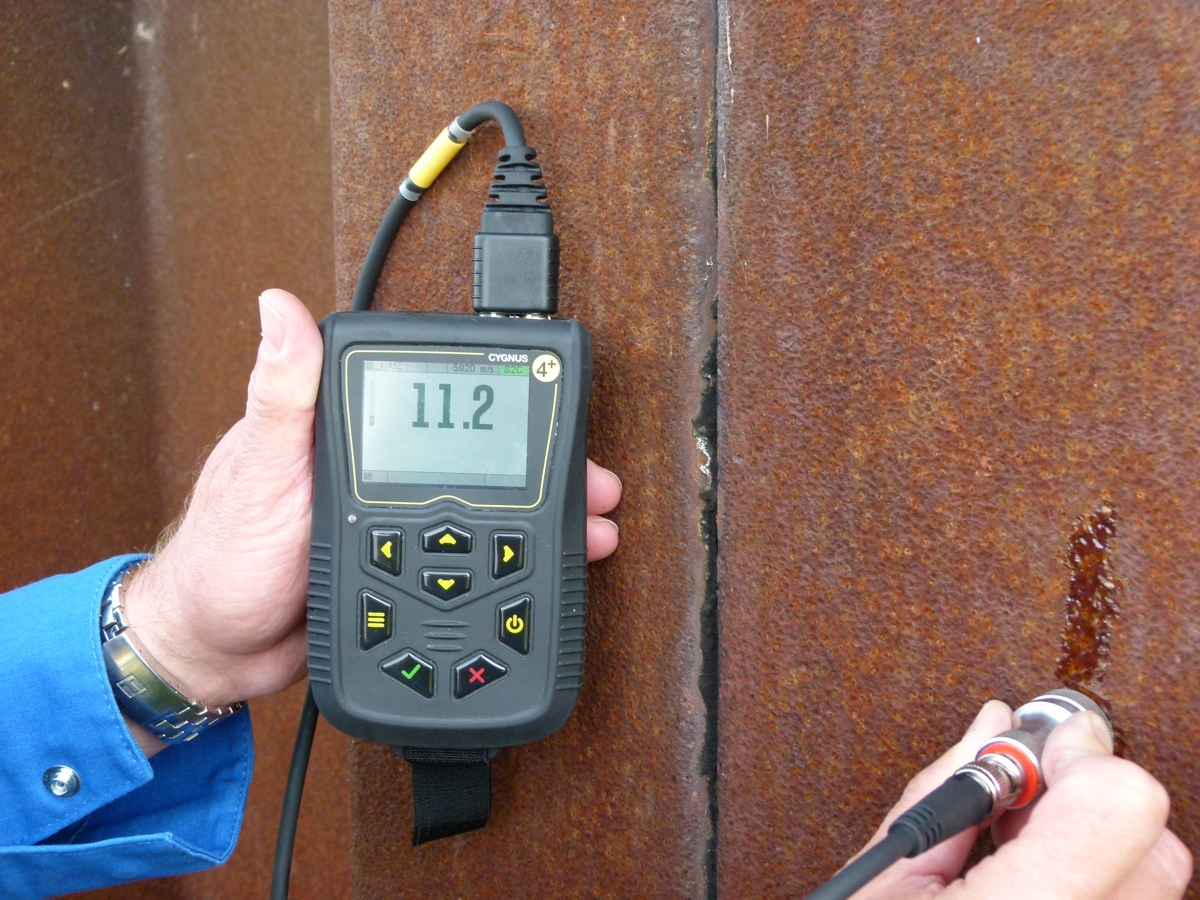

- Corrosion surveys and remaining wall thickness measurement

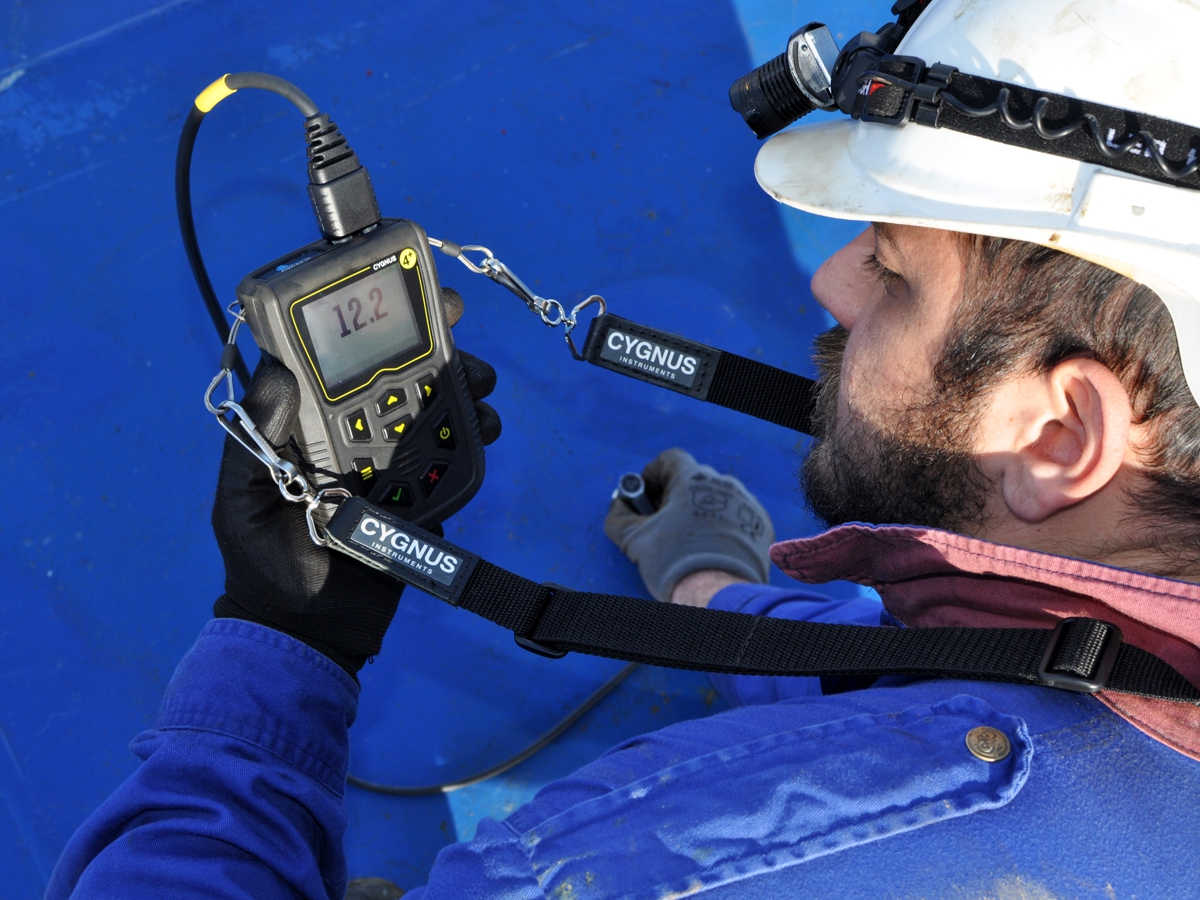

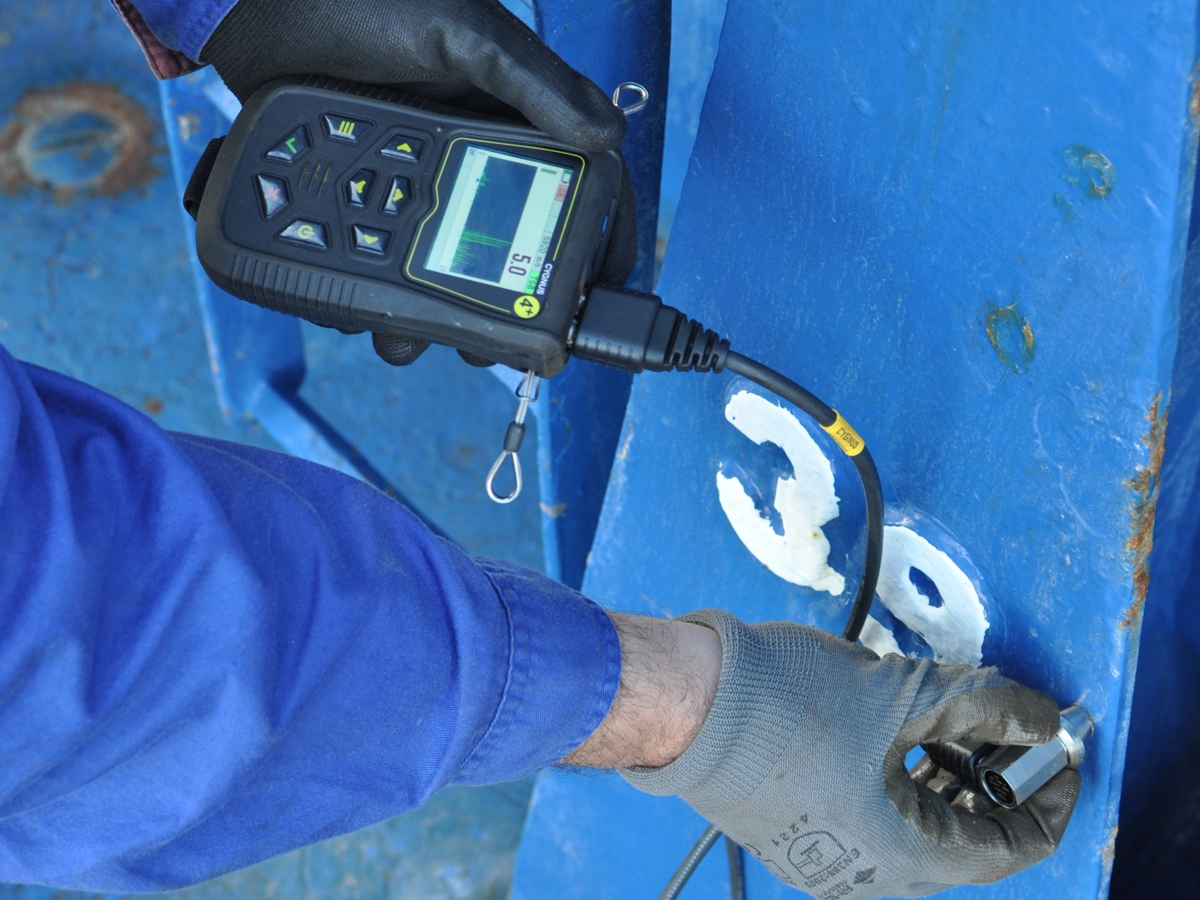

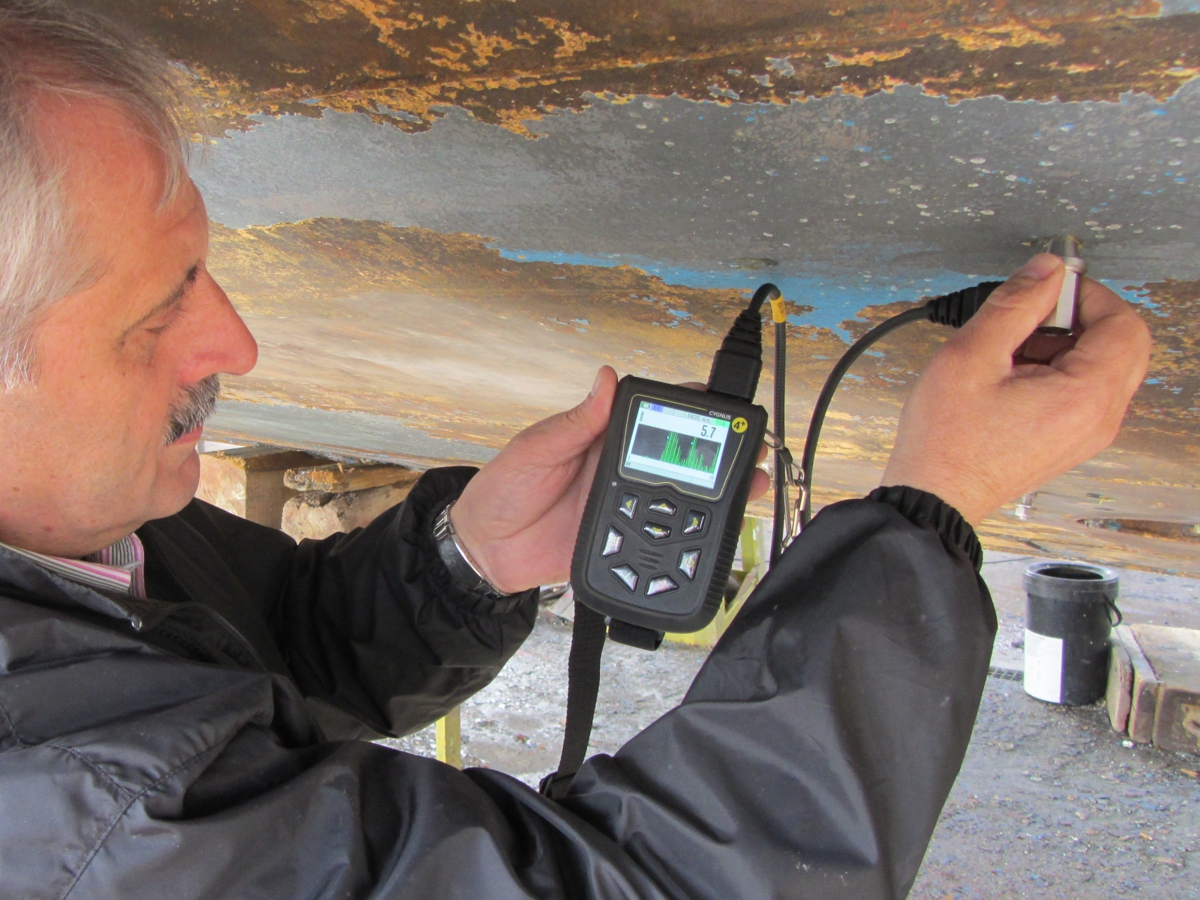

- Ship and marine hull inspections
- Oil & gas and petrochemical plant maintenance
- High-temperature in-service asset evaluation

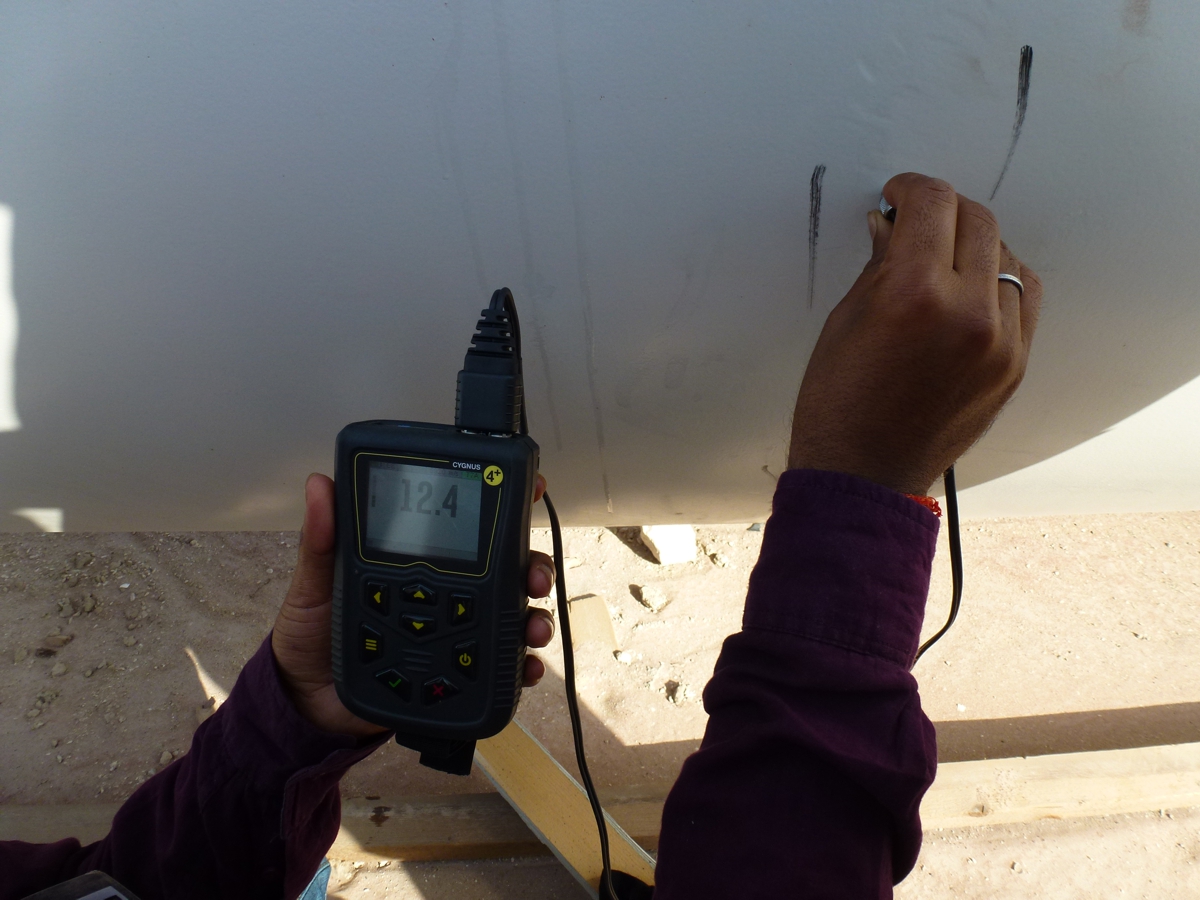

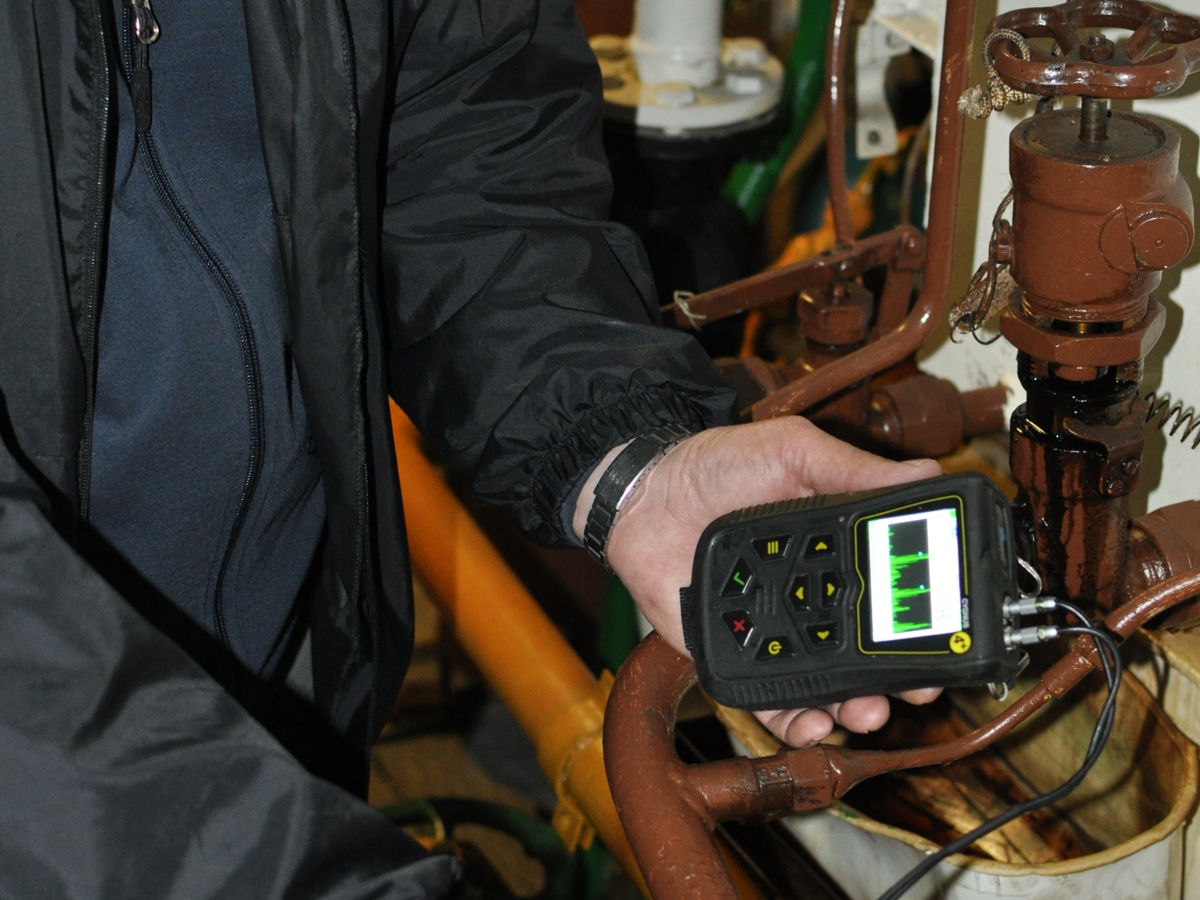

- Storage tanks, pipelines and structural integrity testing
- Civil engineering and industrial facilities inspections
