Ultrasonic Thickness Gauge Cygnus 6+ PRO
Specification

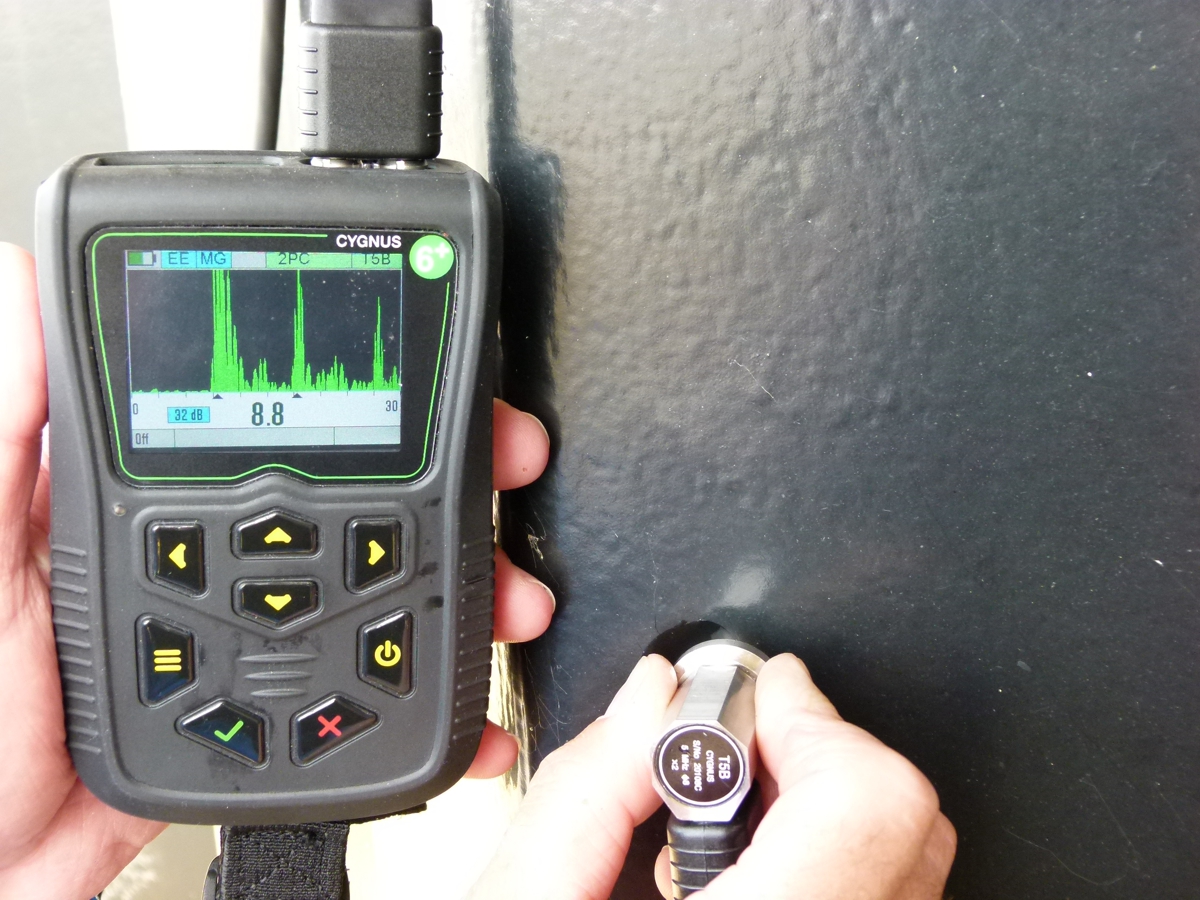

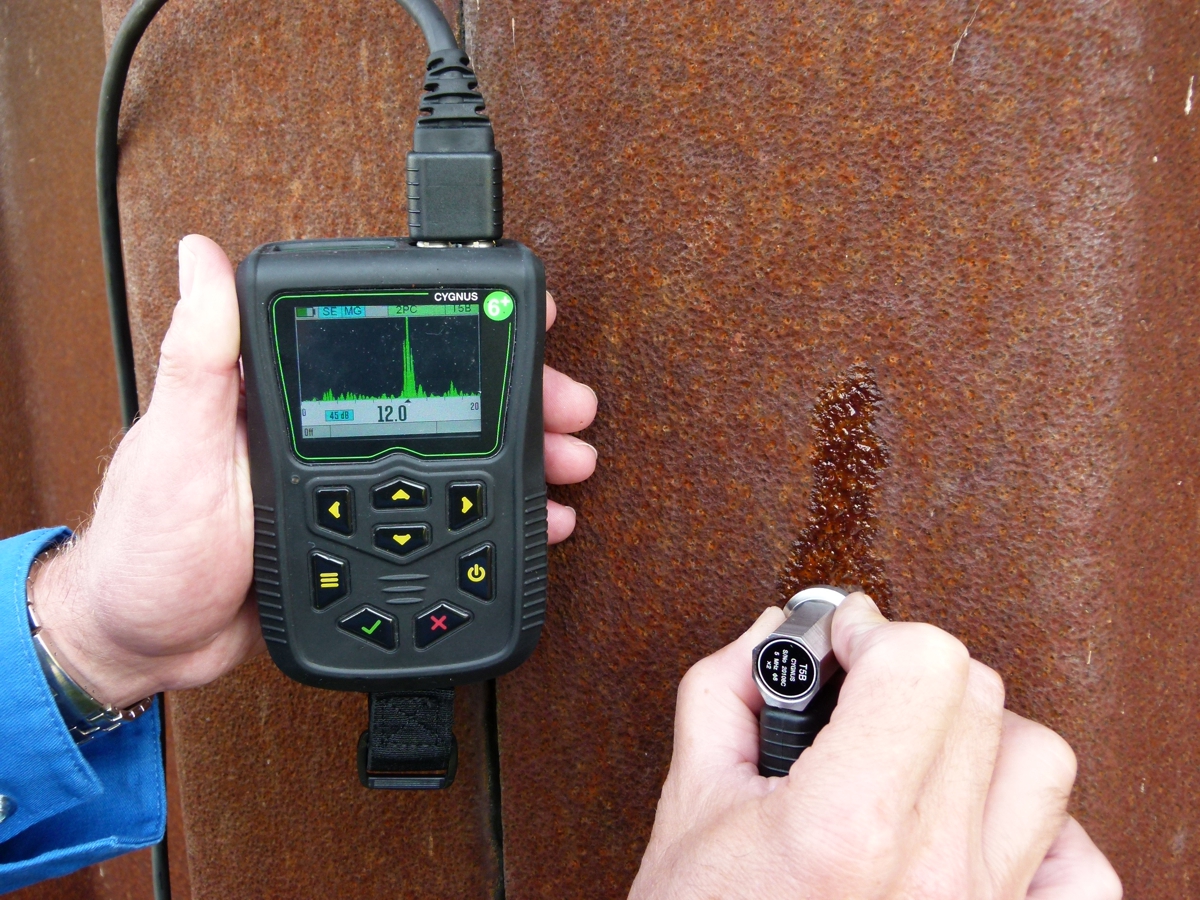

- Measuring Modes: Multiple-Echo, Echo-Echo and Single-Echo ultrasonic measurement modes for accurate readings across coated and corroded surfaces.
- Live A-Scan Display: Real-time ultrasonic waveform (A-Scan) visualization to aid visual verification of thickness measurements.
- Real-Time B-Scan: Cross-sectional B-Scan display for monitoring thickness changes along a scan path.
- Deep Coat Function: Through-coating measurement capability that ignores protective layers up to 20 mm (0.8 in) thick.
- Advanced Data Logging: Built-in logging with multiple formats (linear, grid, template) and A-scan capture, with capacity for ~5,000 measurements and A-scans per record.
- High-Temperature Measurement Support: Compatible with high-temperature probes and temperature compensation for inspecting hot in-service surfaces (up to ~300 °C).
- Dual Displays: Large front 2.4″ QVGA colour LCD plus an end-mounted rotatable display for excellent readability in various lighting conditions.
- Compatibility: Works with single crystal, twin crystal, and high-temperature probes for different material and condition requirements.
- Environmental Protection: Rugged IP67 water and dust-tight housing, with shock and impact resistance to MIL-STD-810G standards.
- Wireless Connectivity & Software: Bluetooth connectivity and CygLink software support for remote data transfer, A-scan review, PDF report generation, and detailed data analysis.
Description

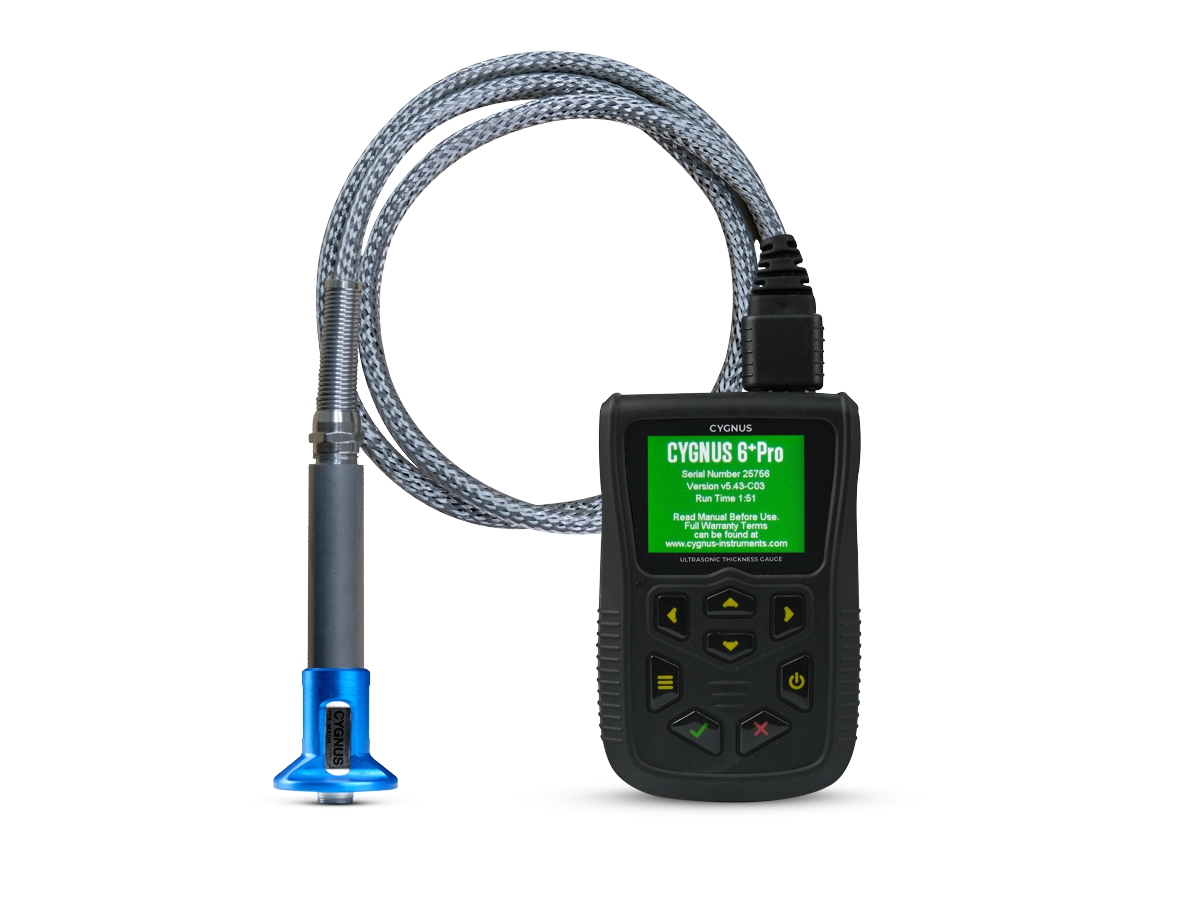

Ultrasonic Thickness Gauge Cygnus 6+ PRO – is a professional-grade, feature-rich ultrasonic thickness measurement instrument designed for demanding industrial inspection, corrosion mapping, plant maintenance, ship surveys, and high-temperature applications. Combining advanced measurement techniques, real-time waveform visualization, and extensive data handling features, this gauge delivers superior accuracy, flexibility, and reporting capabilities for complex inspection tasks.
Key Features
- Advanced Multi-Mode Measurement: Provides Multiple-Echo, Echo-Echo, and Single-Echo modes for accurate thickness readings through coatings and on corroded or uncoated surfaces.
- Live A-Scan & B-Scan Displays: Real-time waveform (A-Scan) and cross-section (B-Scan) visualizations help operators verify measurement quality and detect changes in material thickness.
- Comprehensive Data Logging: Built-in data logging supports sequential, grid, and template formats, storing thickness readings along with A-scan/B-scan information for detailed inspection records.
- High-Temperature Measurement Support: When used with a high-temperature probe, the gauge can measure wall thickness on hot in-service assets (up to around 300 °C) without the need for shutdown or cooling.
- Deep Coat Function: Enables accurate thickness measurement through protective coatings up to 20 mm (0.8 in) thick, reducing the need for surface preparation.
- Measurement Stability Indicator (MSI™): Enhances confidence in readings by indicating when measurements are stable and reliable during Echo-Echo and Single-Echo modes.
- Dual Display System: Combines a large front colour LCD with an end-mounted rotatable display for easy viewing in various lighting conditions and inspection positions.
- Bluetooth & Connectivity: Facilitates wireless data transfer to PCs or mobile devices and integration with reporting software.
- Rugged & Field-Ready: IP67 water and dust resistance, a shock-proof enclosure to MIL-STD-810G, and ergonomic design ensure durability in harsh environments.
- User-Friendly Interface: Intuitive menus, manual and automatic gain control, and configurable min/max limit alerts with visual and vibration feedback help streamline field inspection work.
Applications
The Cygnus 6+ PRO is ideal for professional inspection scenarios, including:

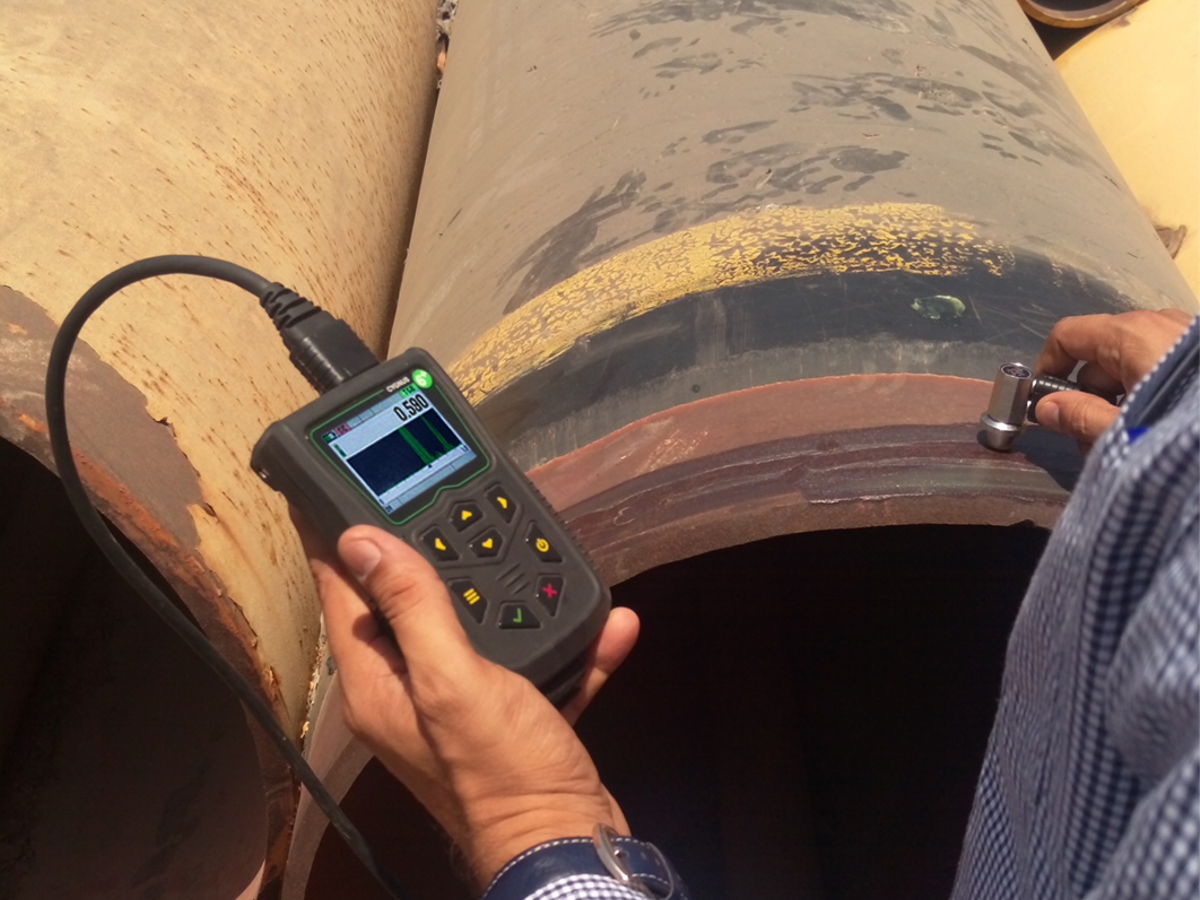

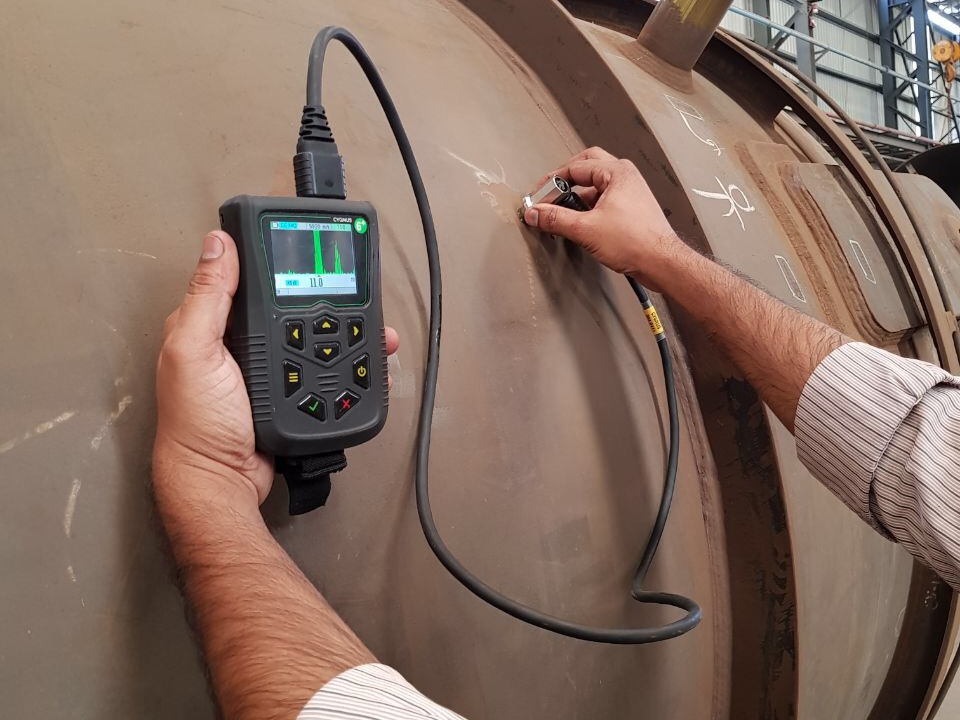

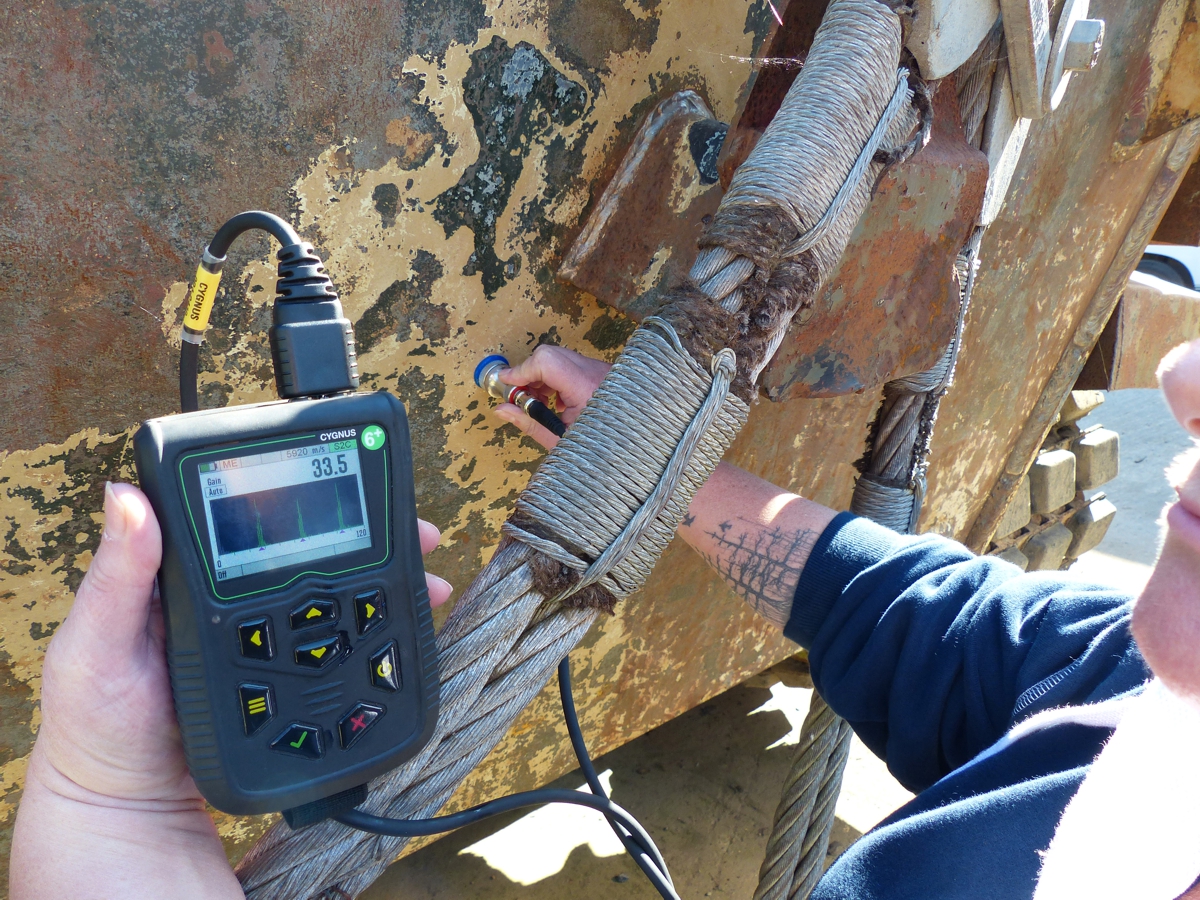

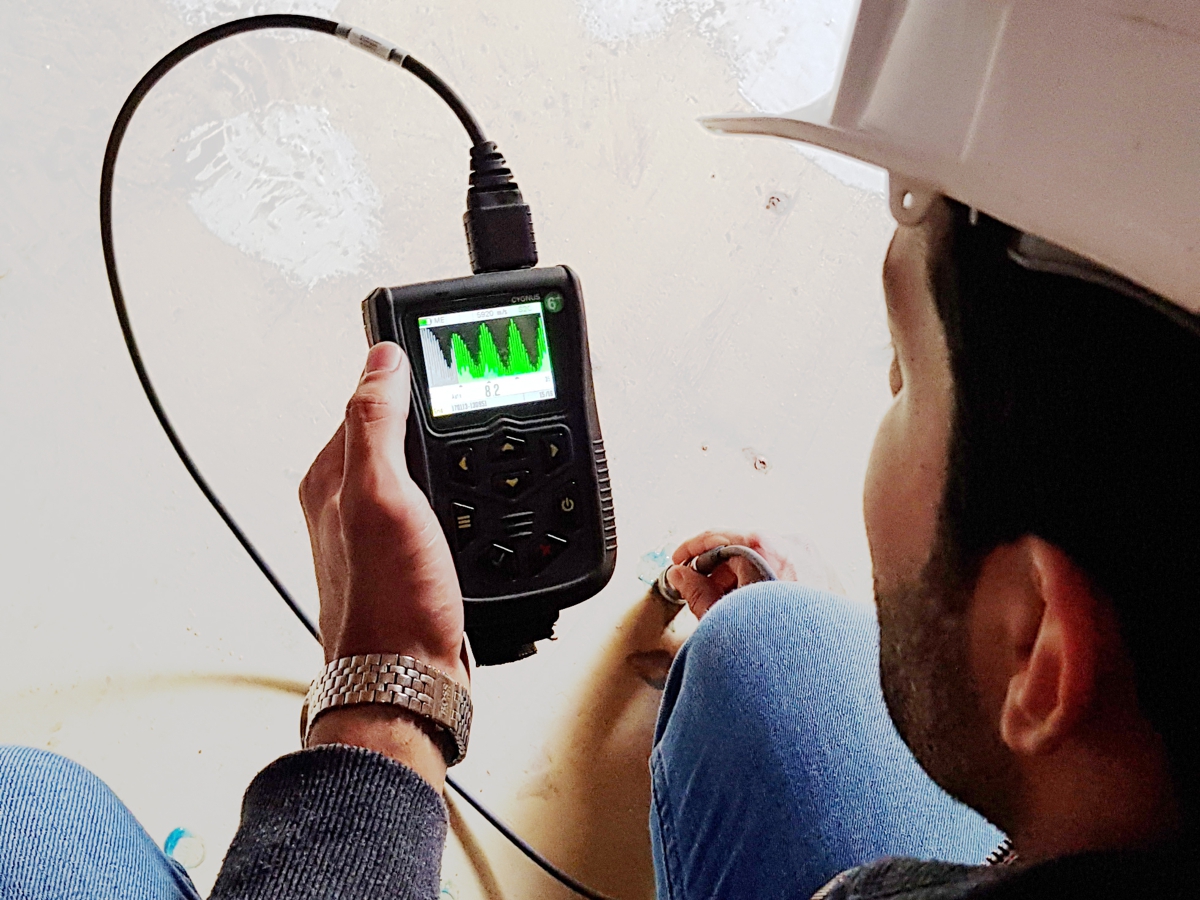

- Corrosion and wall thickness surveys on pipelines, tanks, and vessels
- Ship and marine structure inspections
- Plant maintenance in oil & gas, petrochemical, and process plants
- High-temperature in-service asset evaluation
- Structural integrity verification in aerospace, infrastructure, and heavy industry
