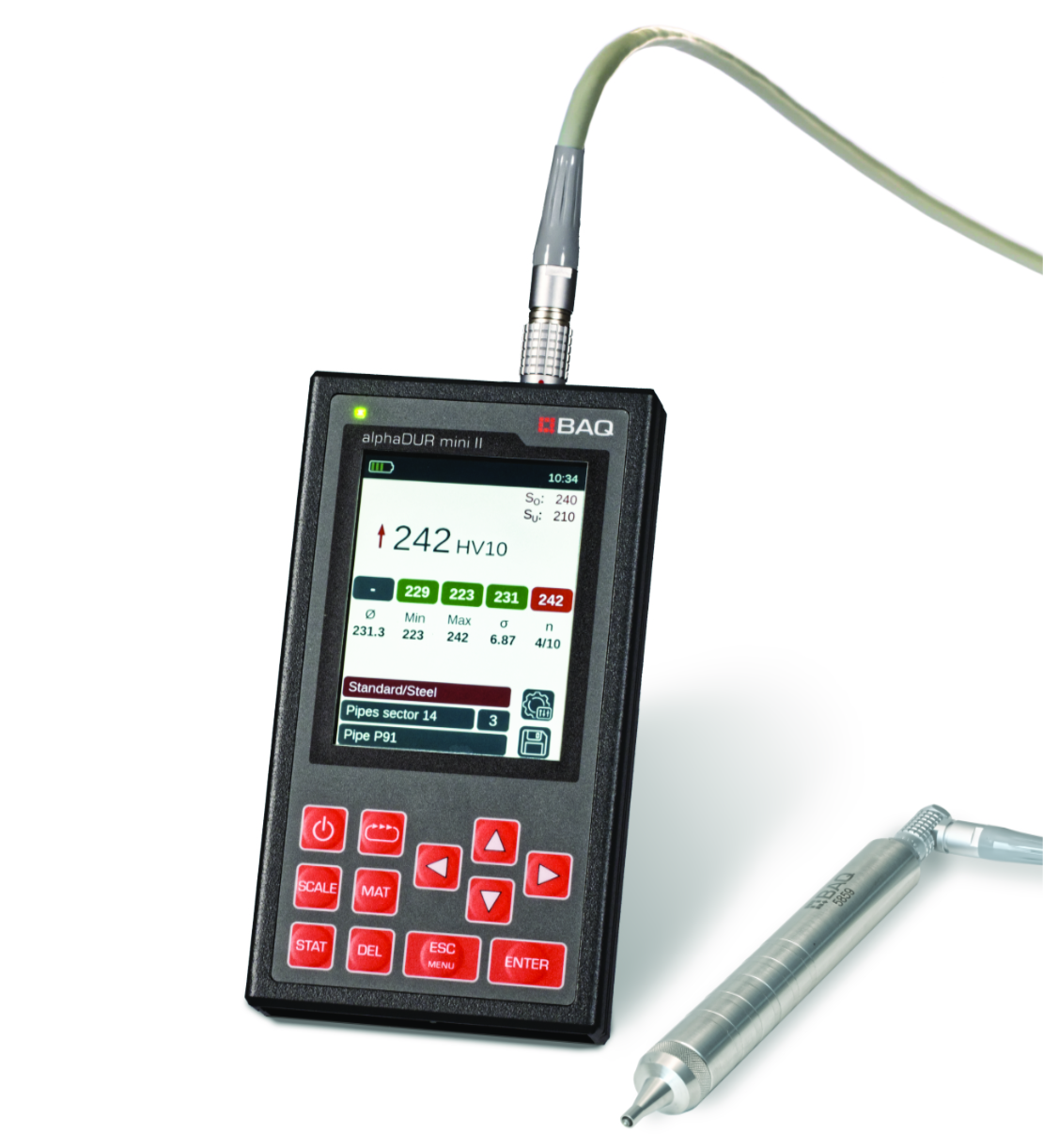

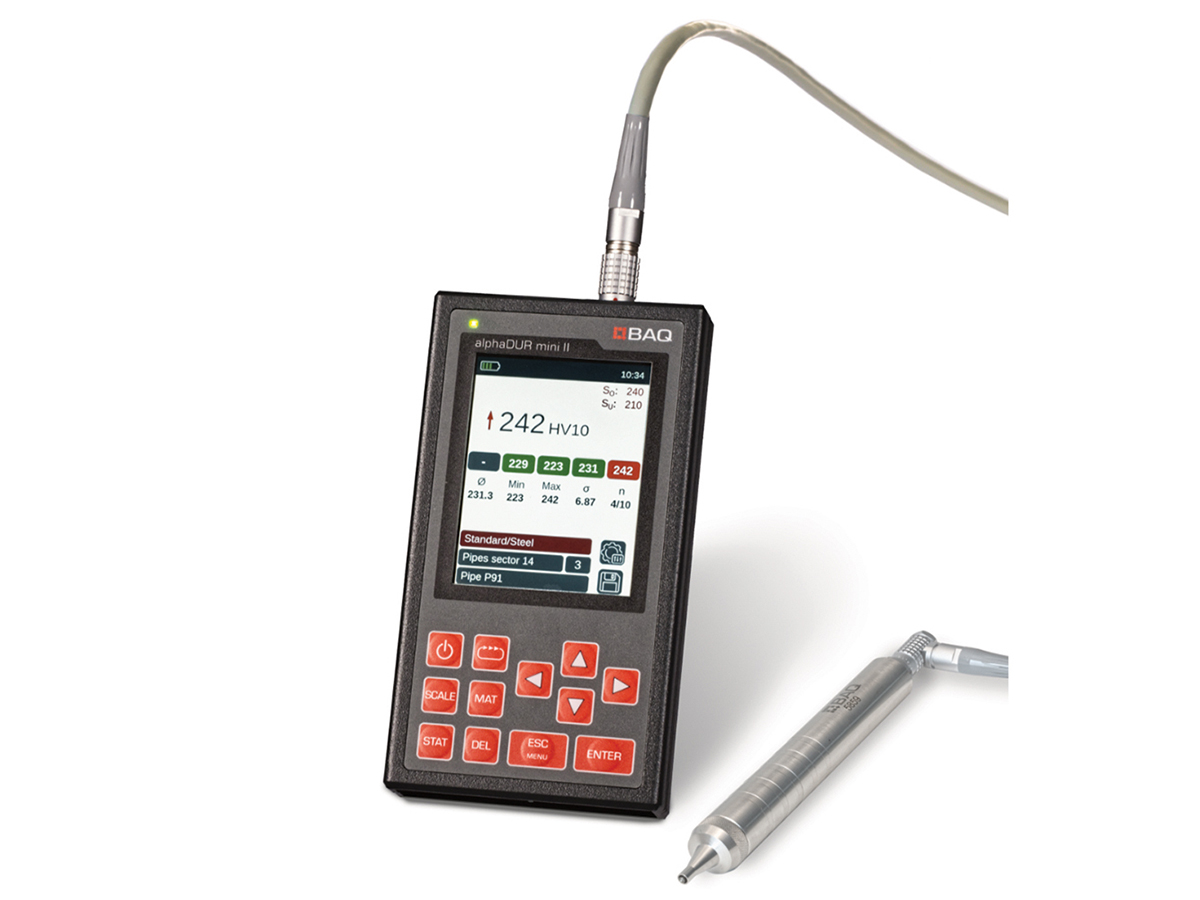

UCI Hardness Tester alphaDUR mini II
Ask for a priceSpecification
- Hardness scale: Vickers (HV), Brinell (HB), Rockwell (HRC, HRB, HRA, HRD, HRE,HRF), Super Rockwell (HR45N), Knoop (HK), tensile strength (N/mm²)
- Display: 3.5“-TFT-LCD colour display, 640 x 480 pixel
- Power supply: Built-in Lithium-Ion battery, 6800 mAh, approx. 10 h operating time
- Dimensions: 154 x 84 x 23 mm (H x W x D)
- Weight: 430 g
Description

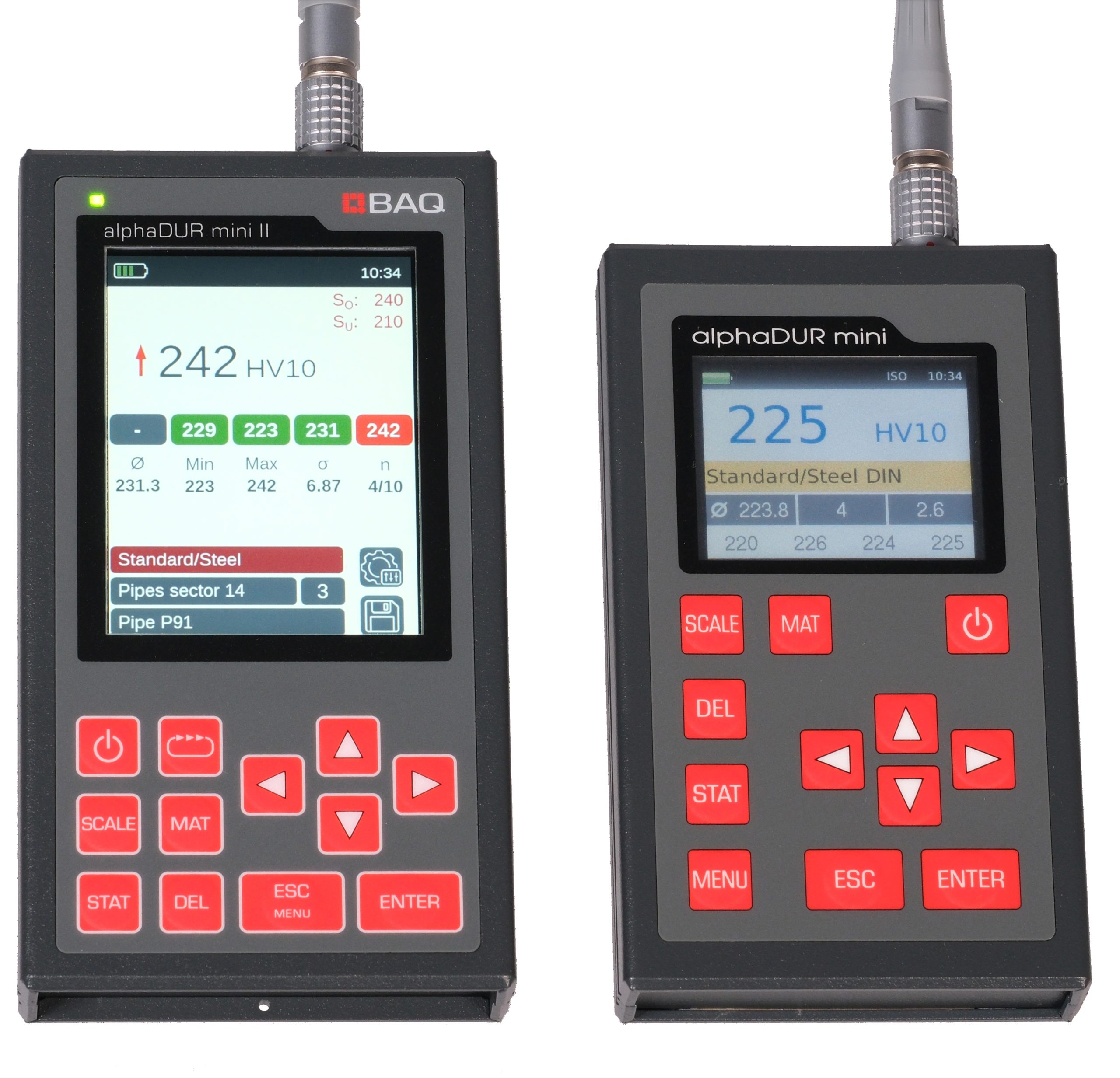

UCI Hardness Tester alphaDUR mini II – is the fourth generation of the alphaDUR series, which has been successful for many years. The operation of the alphaDUR II mini is very easy because all information is shown on the large LCD display. Hardness scale and material can quickly be changed by special keys. Measurements can be done fast and accurate. The measured value is displayed directly after the test load has been applied. A test load between 0.3 and 10 kg can be chosen depending on the application and the sample surface.
Application range:

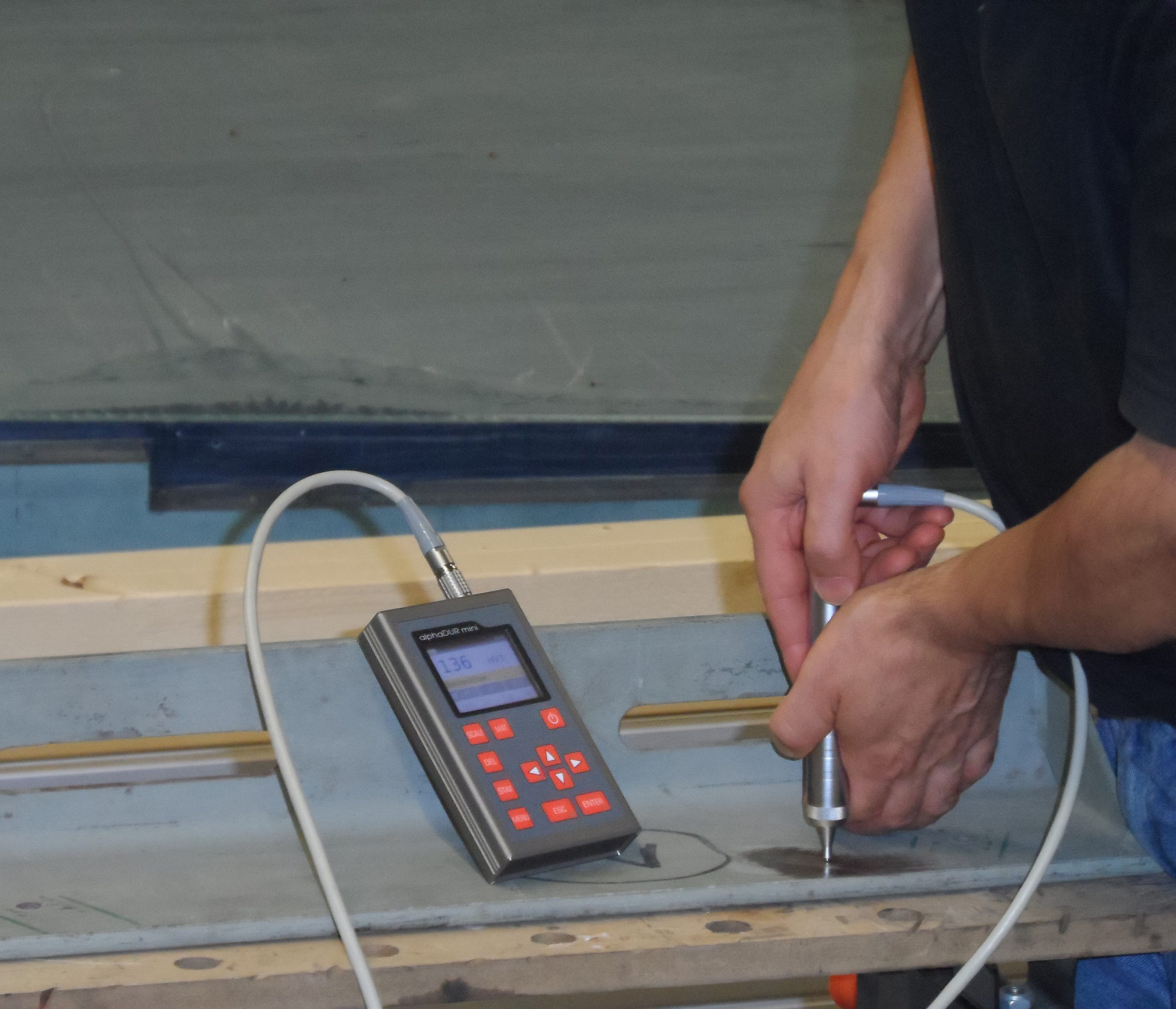

Incoming goods inspection. Hardness testing of metals in production. Testing of machine parts, weld seams, coatings and hardened parts even at difficult to access locations and at any angle. The minimum sample thickness starts at approx. 5 mm, depending on the dimension and the shape of the sample.
