Constant Potential Portable X-Ray Generator CP200DS
Specification
- Output voltage range: 10 - 200 kV
- Beam: Directional
- Constant power mode: Yes
- Steel penetration: 40 mm
- Focal spot: 1 mm
- Weight: 15.9 kg
Description

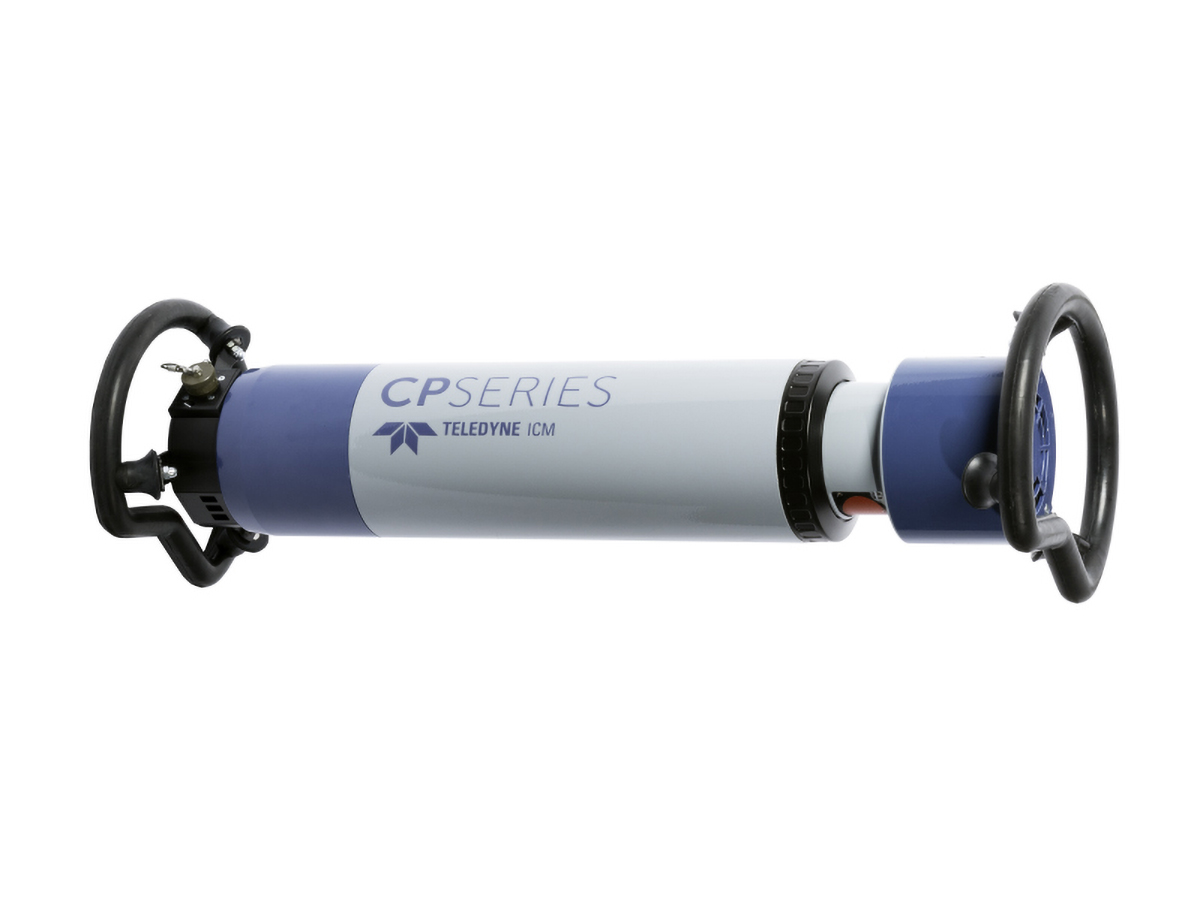

Constant Potential Portable X-Ray Generator CP200DS
The small focal spot (1 mm) of the CP200DS generator minimizes un-sharpness and gives clearer images, which makes it ideal for digital radiography (DR) when close X-ray shots are possible.
Our CP200DS is a light and powerful generator (200 kV) with a metal-ceramic tube which turns it to be the best power-to-weight ratio in the world.

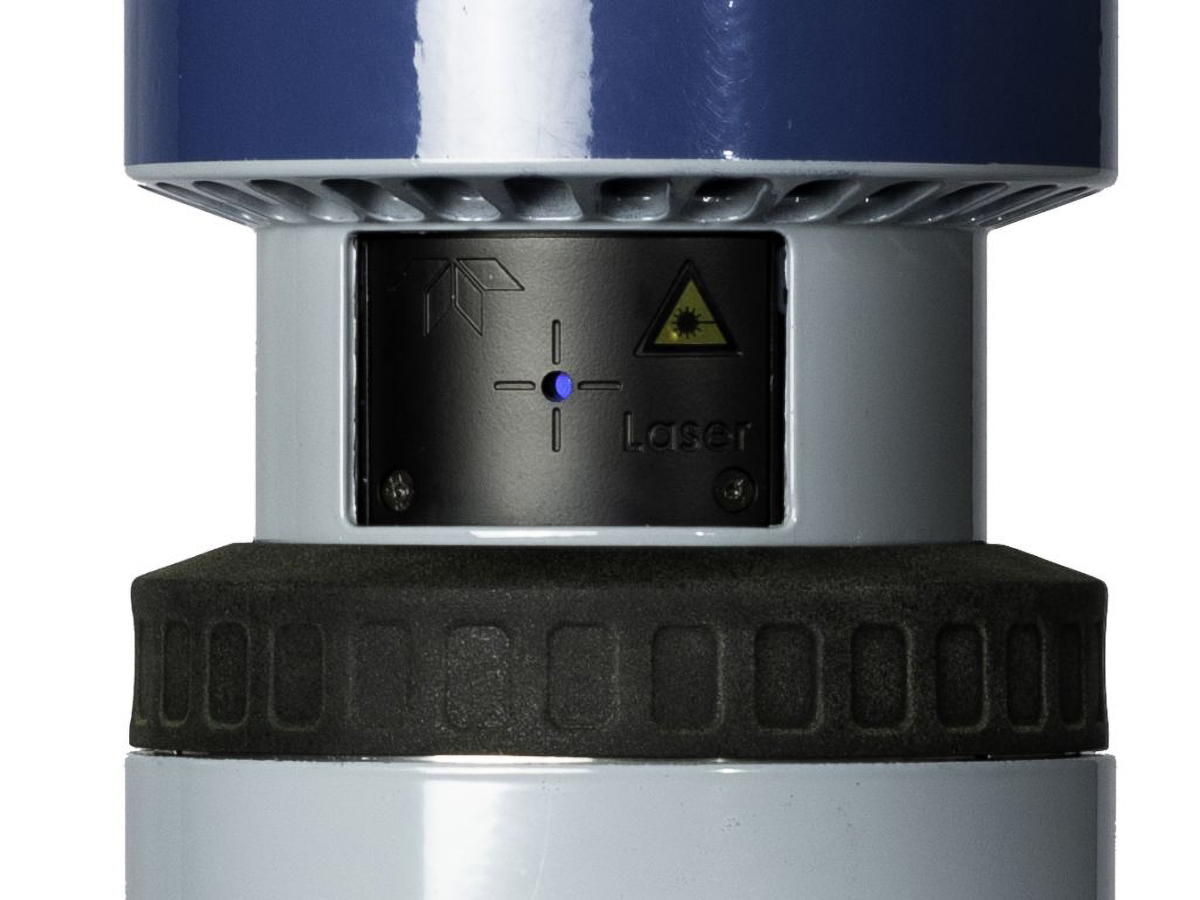

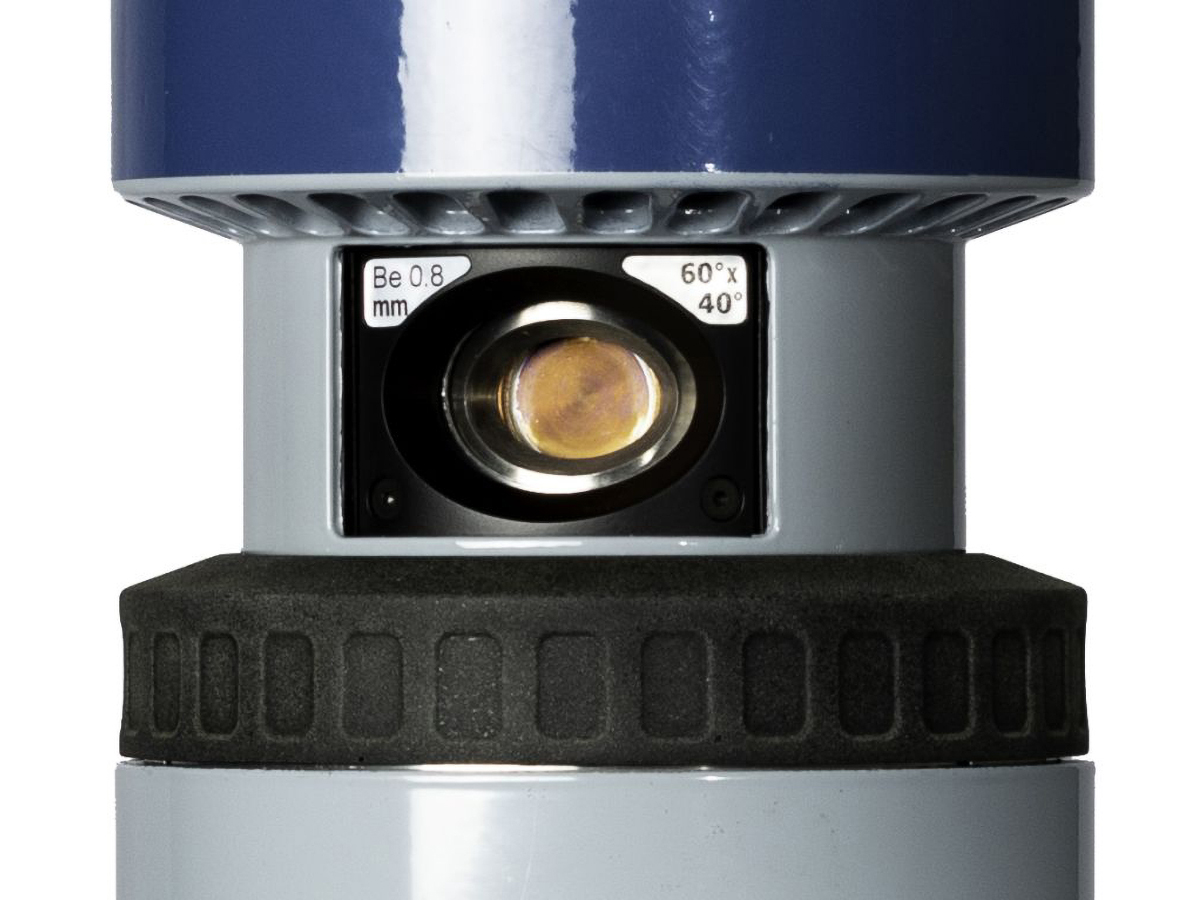

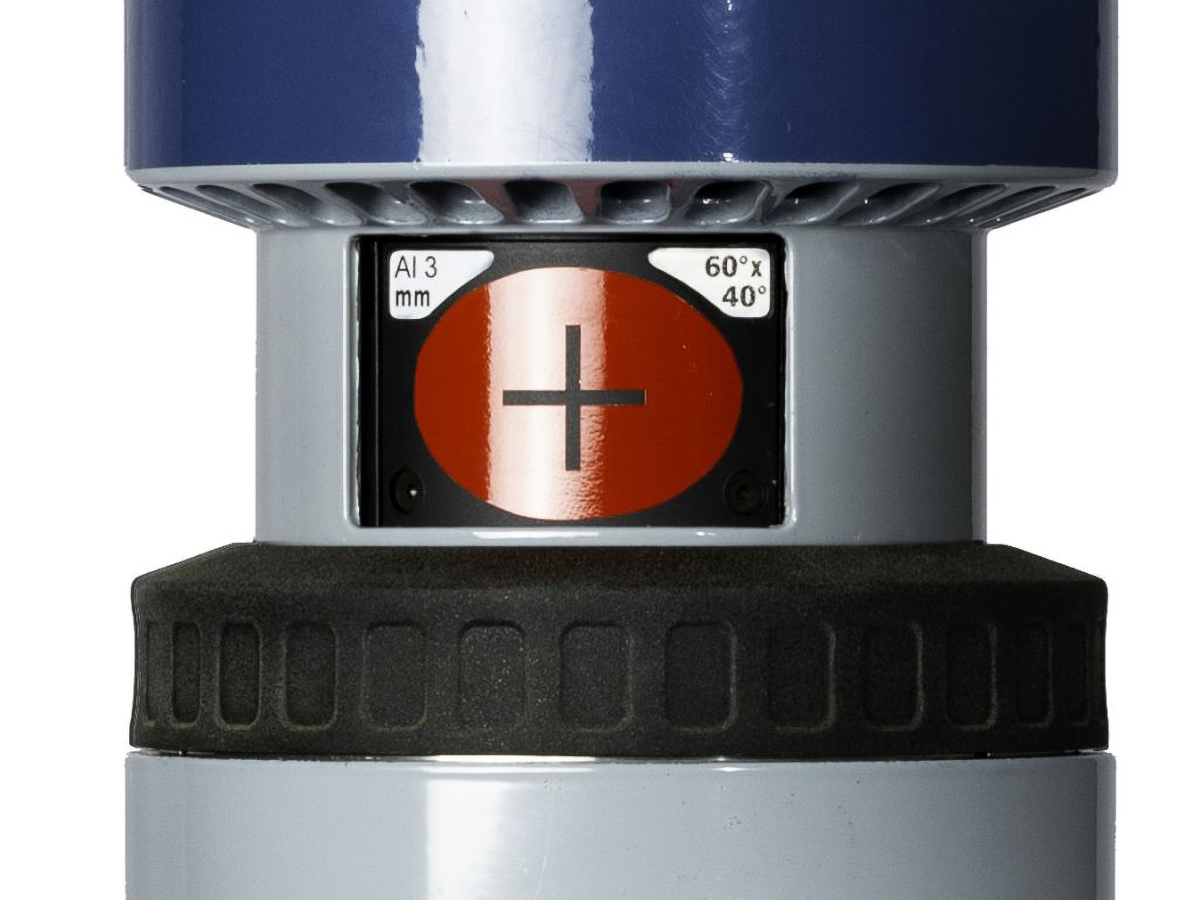

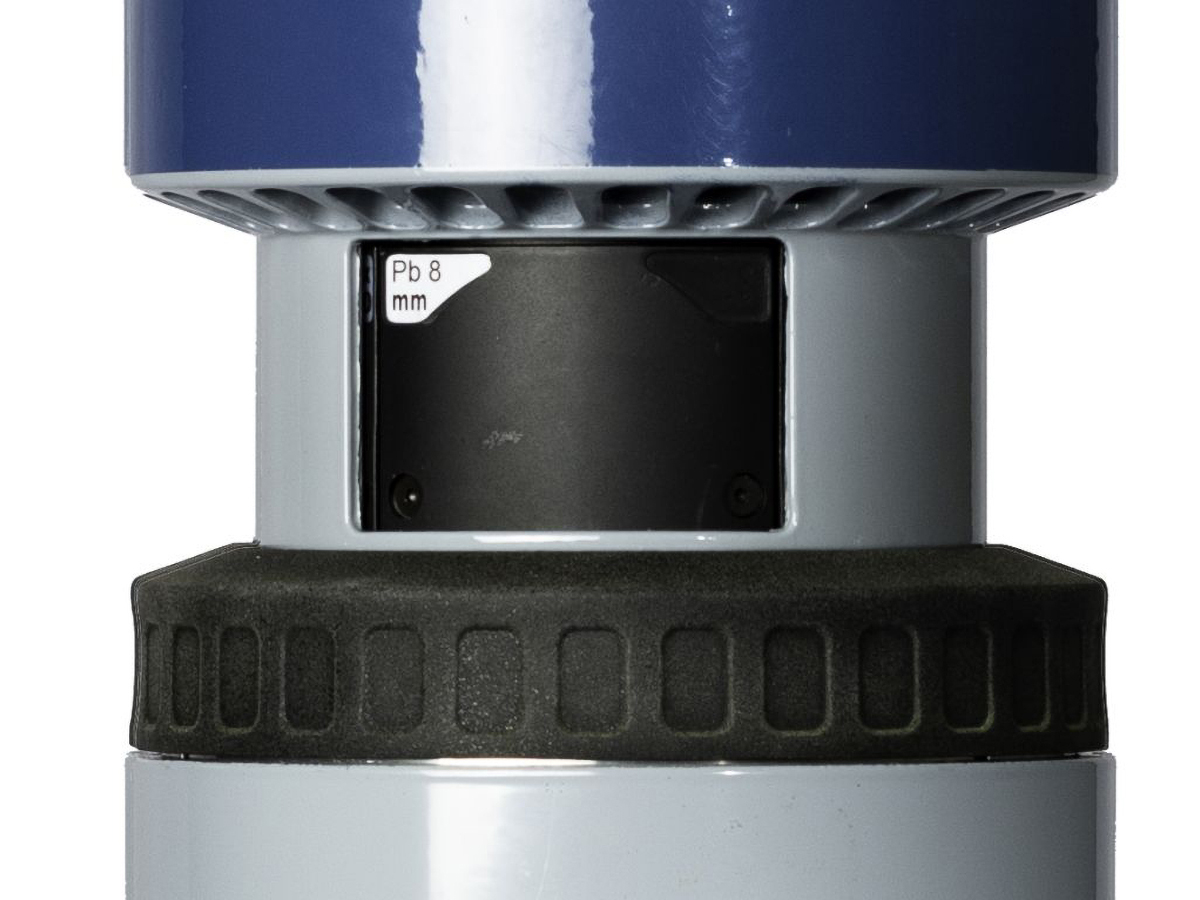

Its 100% duty cycle combined to its built-in multiple X-Ray outputs carousel make the CP200DS one of the most versatile generators on the market that will adapt to a very wide variety of NDT applications.
The CP200DS, like the rest of the CPSeries product range, operates with the plug-and-play POWERBOX control unit.
