3D Coordonate Measuring Machine 315x315x160 – SOL 341
Ask for a price
Ask for a price
3D Coordonate Measuring Machine 315x315x160 – SOL 341
Specification
- Measuring Volume: 315 x 315 x 160 mm
- Test piece max. weight: 11 kg
- Resolution: 1 µm
- Automated optical zoom: 6.5X
- Input Voltage: 100-240 VAC
- Software: InSpec for Windows, Micro-Vu
Description
3D Coordonate Measuring Machine 315x315x160 – SOL 341

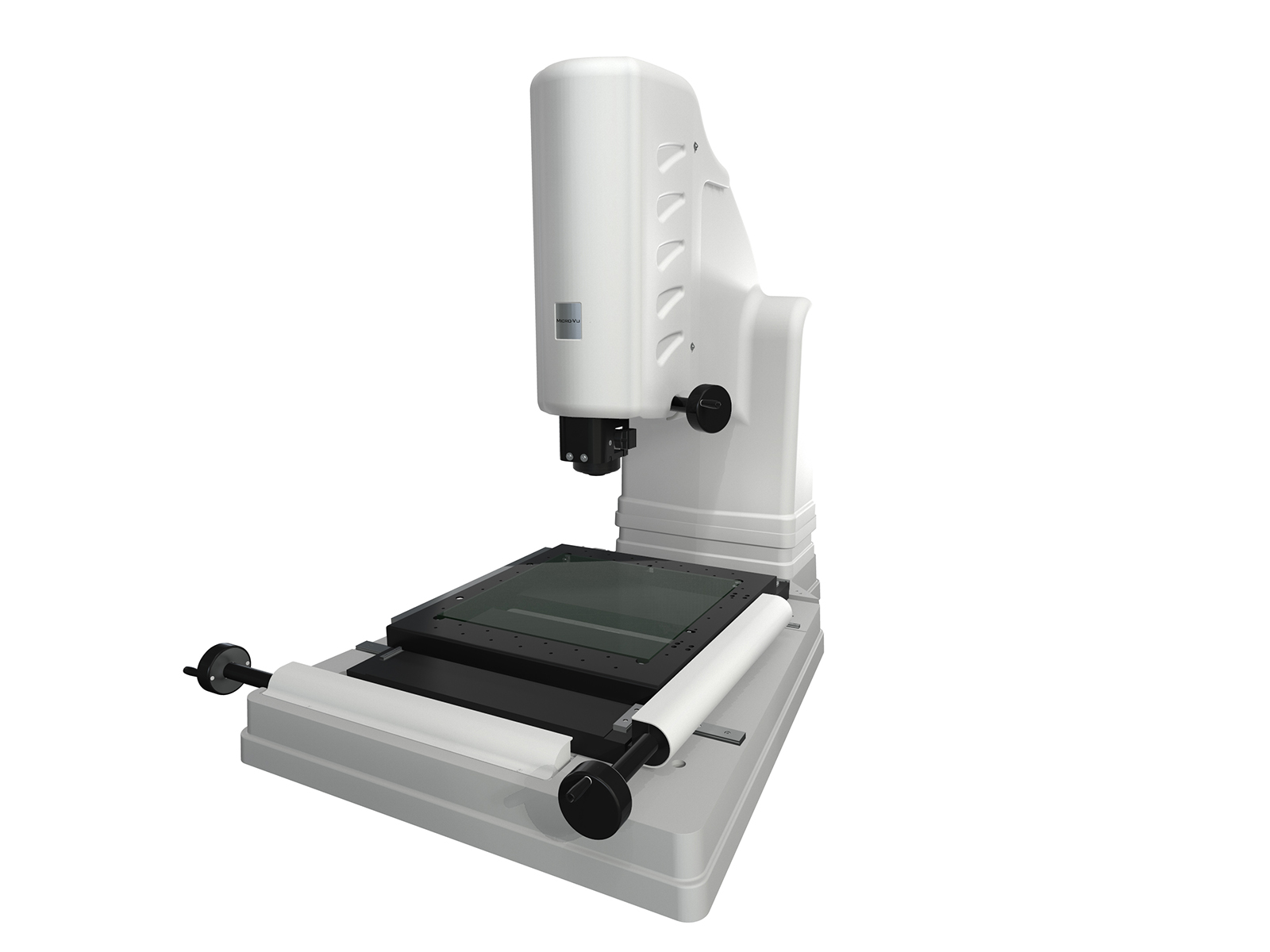

Sol Vision System implements new technologies to provide speed and accuracy on a reliable and affordable measuring machine. Sol bridges the gap between manual and automated measurement systems.
A programmable 19.5x zoom (6.5x optical and 3x digital), non-linear optics and stage compensation, advanced lighting, and part program compatability make Sol the most advanced machine in its class.
Micro-Vu’s InSpec Metrology Software drives Sol in addition to manual, vision, and multisensor systems. InSpec’s point-and-click measuring and proprietary edge detection simplify demanding measurement applications.
