Specification
- Instrument Type: Single-channel, single-frequency eddy current flaw detector capable of surface and subsurface defect detection.
-
Weight:
Approximately 321 g (11.3 oz) — designed for true pocket-sized portability.
- Frequency Range: Operates from 1 kHz to 6 MHz (pseudo-logarithmic steps).
- Display: 3.5″ (89 mm) high-resolution colour TFT-LCD with anti-glare and configurable colour schemes.
- Battery: Internal rechargeable 3.7 V Lithium-Ion battery (approx. 3.5 Ah / 12.7 Wh).
- Battery Life: Over 12 hours of runtime at 50% screen brightness.
- Charging Time: Approx. 6 hours for full recharge; simultaneous charge and operation supported.
- Probe Support: Compatible with Absolute, Bridge, and Reflection probes via Lemo connectors.
- Operating Temperature: −20 °C to +60 °C (suitable for industrial field environments).
- PC Connectivity: Micro-USB port for charging and communication with PC software for data transfer and configuration.
Downloads
Description

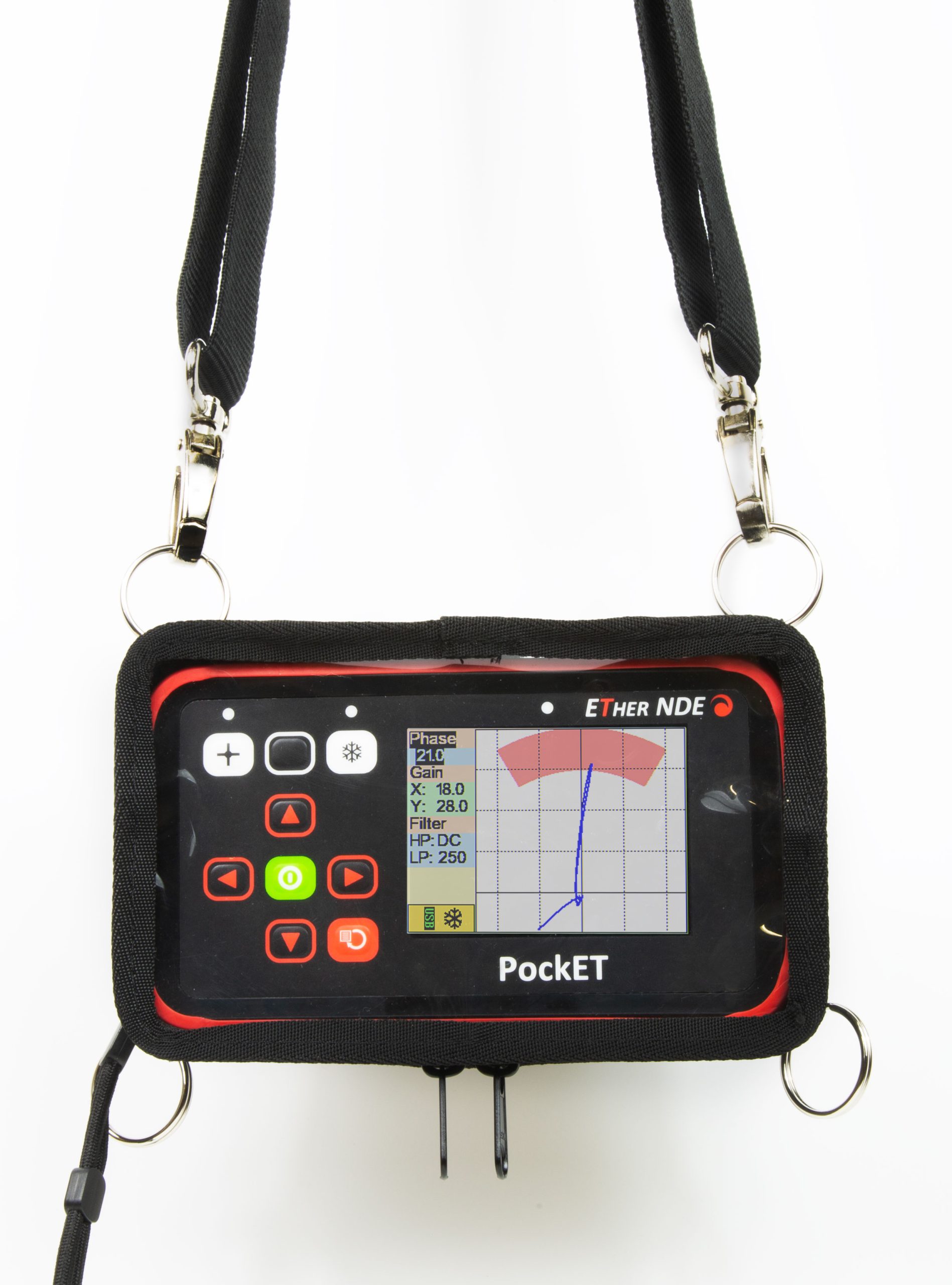

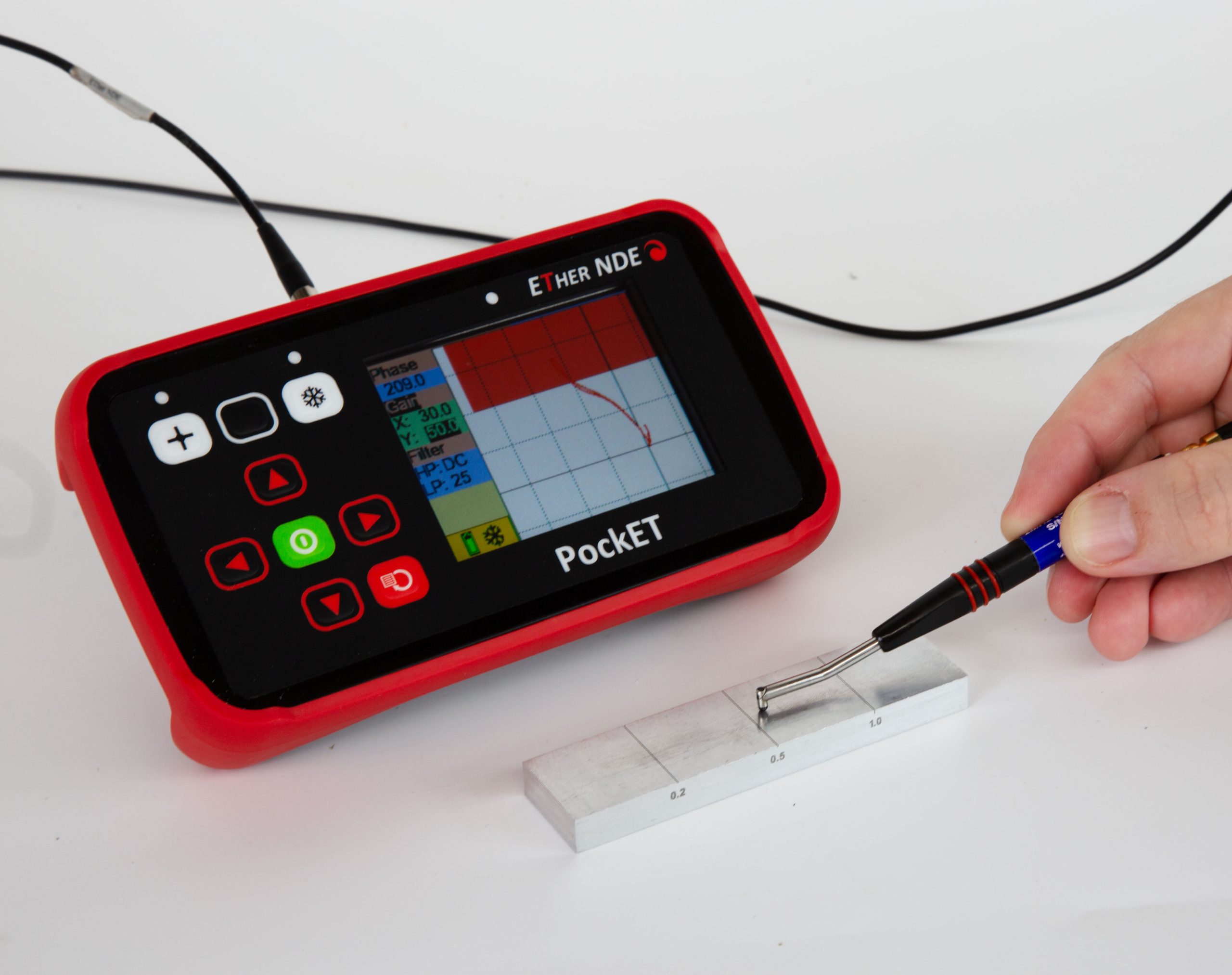

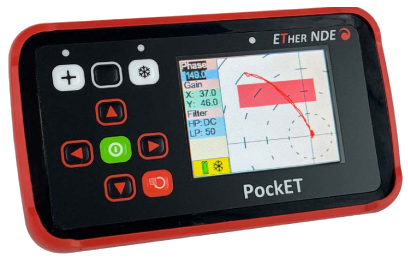

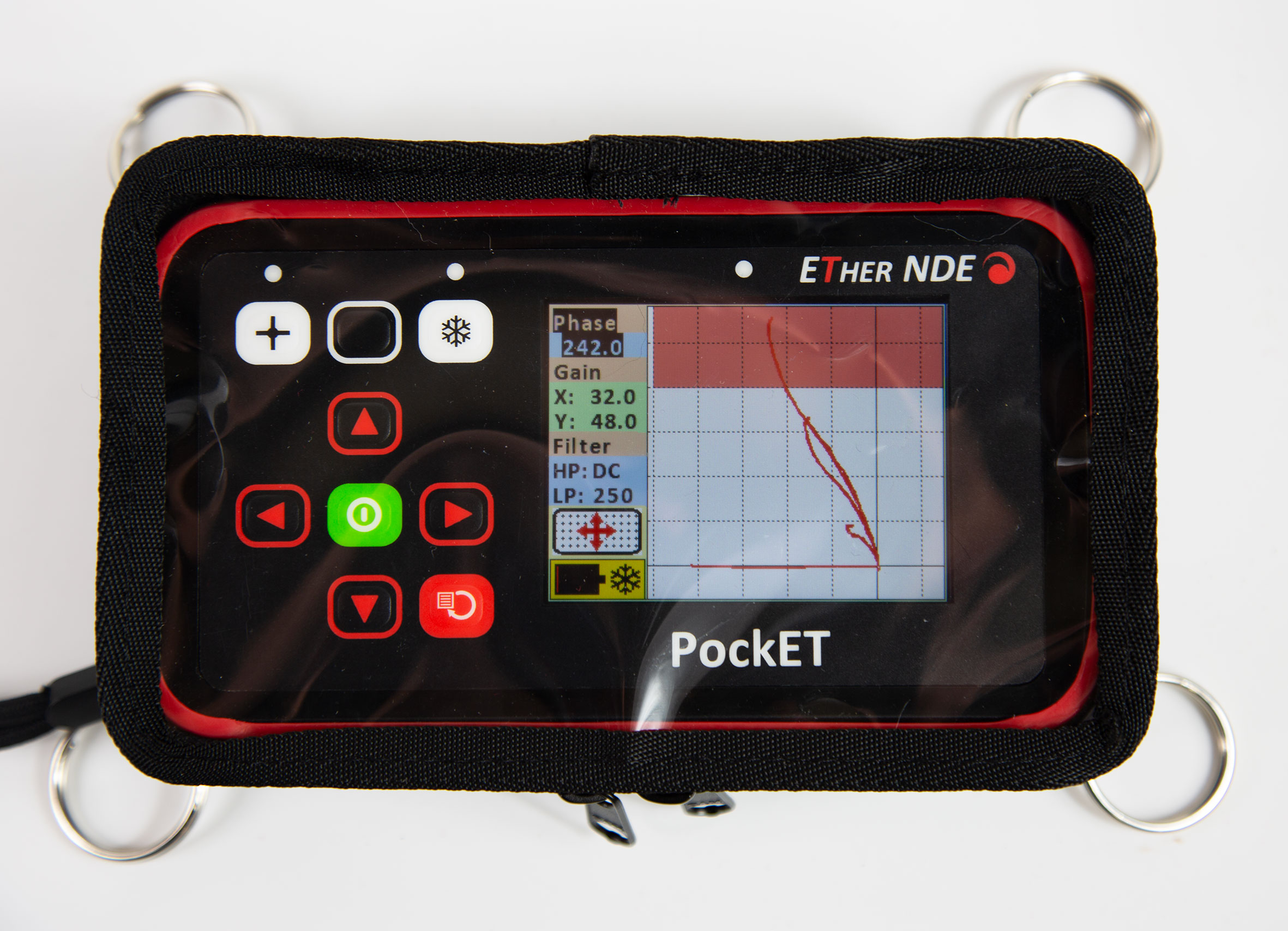

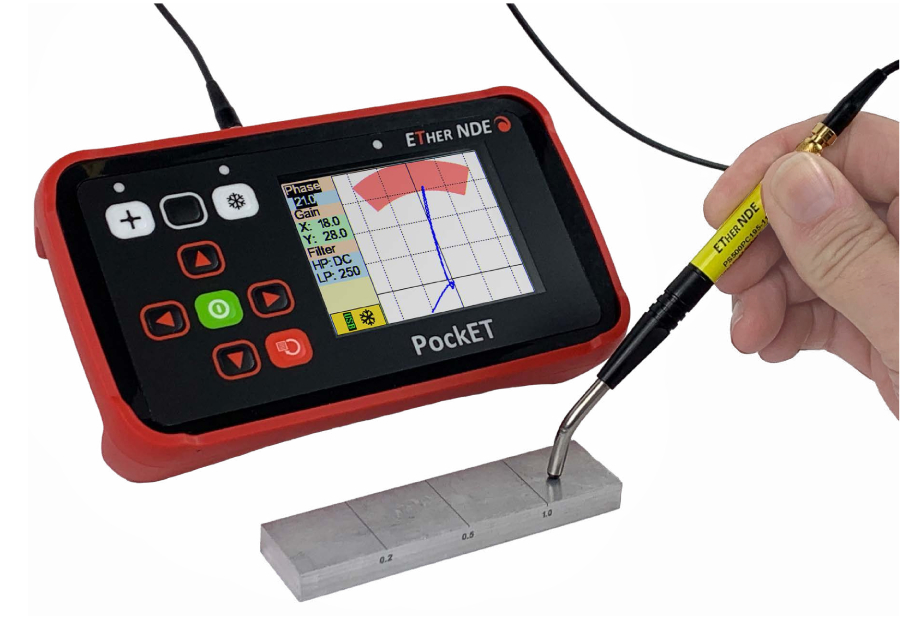

PockET – Ultra-Portable Eddy Current Flaw Detector for Professional NDT
The PockET from ETher NDE redefines portable non-destructive testing by delivering precision eddy current inspection in a truly pocket-sized instrument. Designed for inspectors and field technicians who demand reliable performance without the bulk of traditional flaw detectors, PockET combines compact portability with robust capability for surface and subsurface defect detection across a wide range of applications.
Precision Eddy Current Inspection Anywhere
The PockET is a single-channel, single-frequency eddy current flaw detector engineered to provide clear, accurate indications of cracks, defects, and material discontinuities. Its high-resolution display and advanced signal processing make interpretation intuitive, helping you make confident inspection decisions in both controlled and challenging environments.
Designed for Portability and Performance
Weighing just 321 g (11.3 oz), PockET is one of the lightest eddy current instruments available — small enough to fit in your pocket yet powerful enough for demanding inspection tasks in **aerospace, power generation, oil & gas, transport, metals processing, and weld inspection** workflows. Its robust construction is built for everyday field use, from confined spaces to extended inspection shifts.
Exceptional Runtime, Intuitive Operation
Featuring over 12 hours of battery life at moderate brightness and a fast 6-hour recharge, PockET is ready to support a full day of inspections without interruption. The user-friendly interface simplifies setup and operation, minimizing learning time and maximizing productivity — whether performing quick spot checks or in-depth examinations.
Seamless Workflow Integration

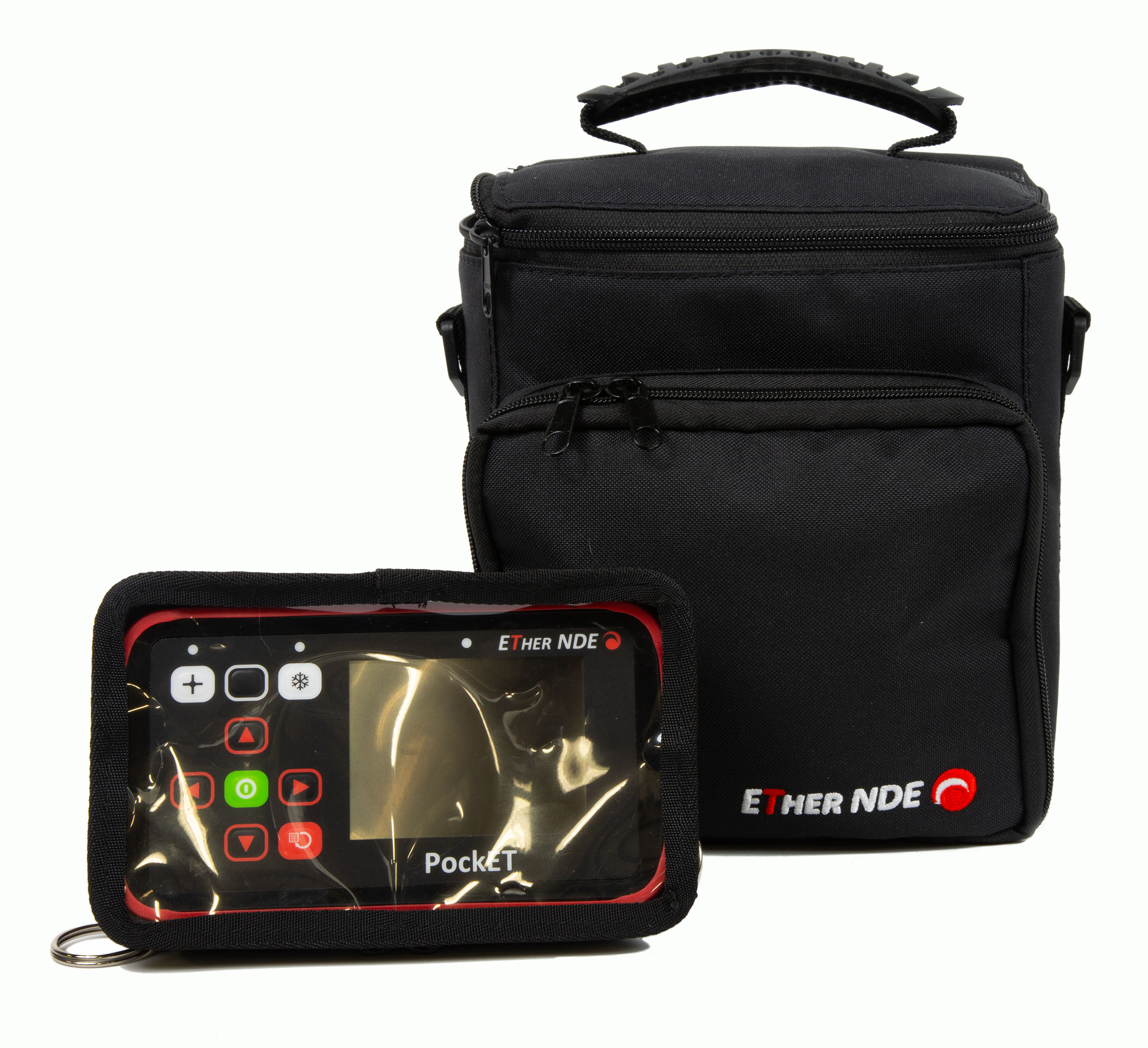

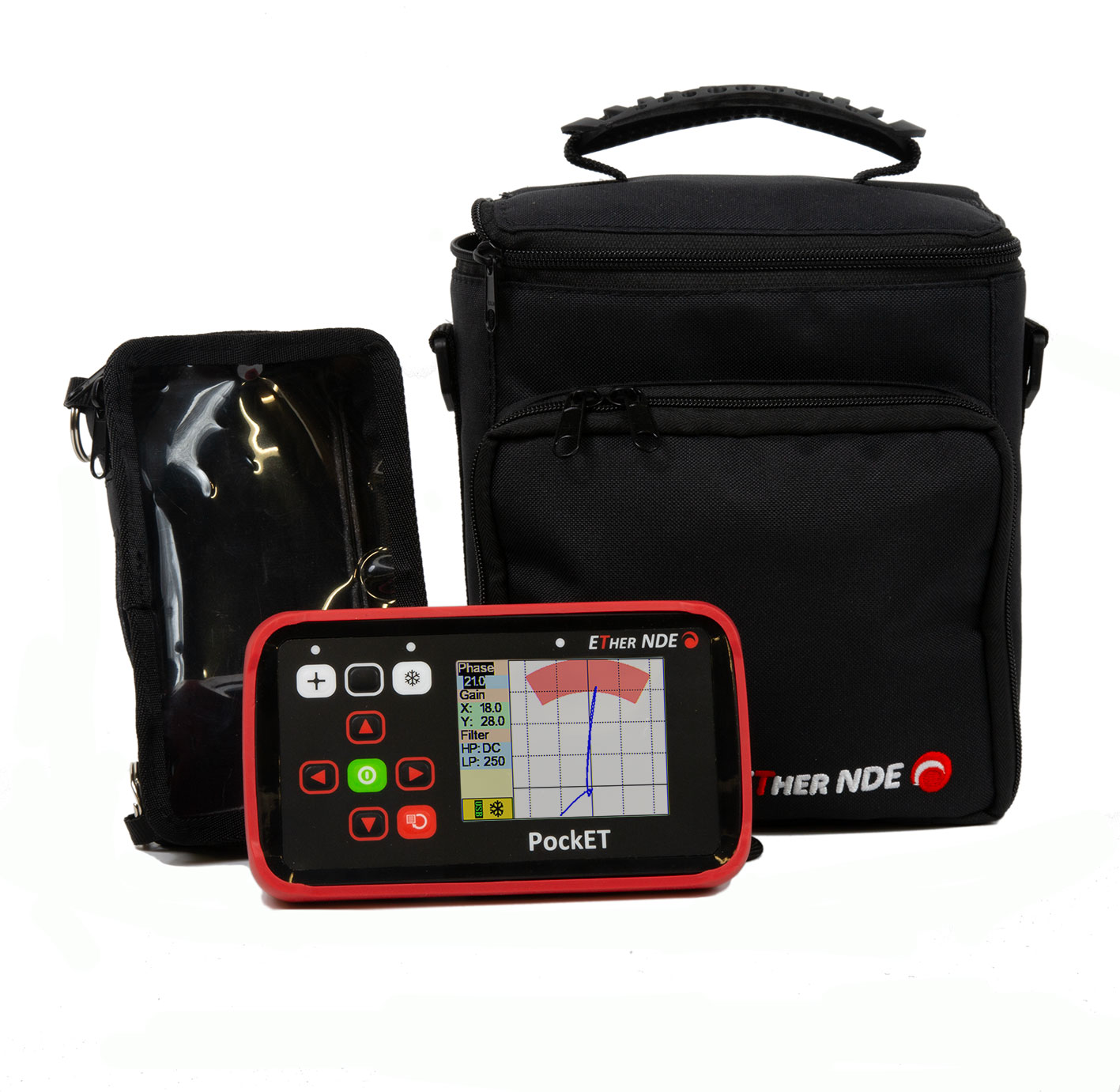

PockET supports a wide range of absolute, bridge, and reflection probes and offers PC connectivity for data transfer and analysis integration, making it flexible within any existing inspection workflow. A comprehensive standard kit includes essential accessories for immediate use in the field.
Built-In Value and Support
Every PockET comes with a 2-year warranty, with an optional ETherCover extended plan that extends support up to 5 years and includes annual calibration — offering confidence and long-term reliability throughout the life of the instrument.
