Eddy Current Test System ELOTEST B300

Eddy Current Test System ELOTEST B300

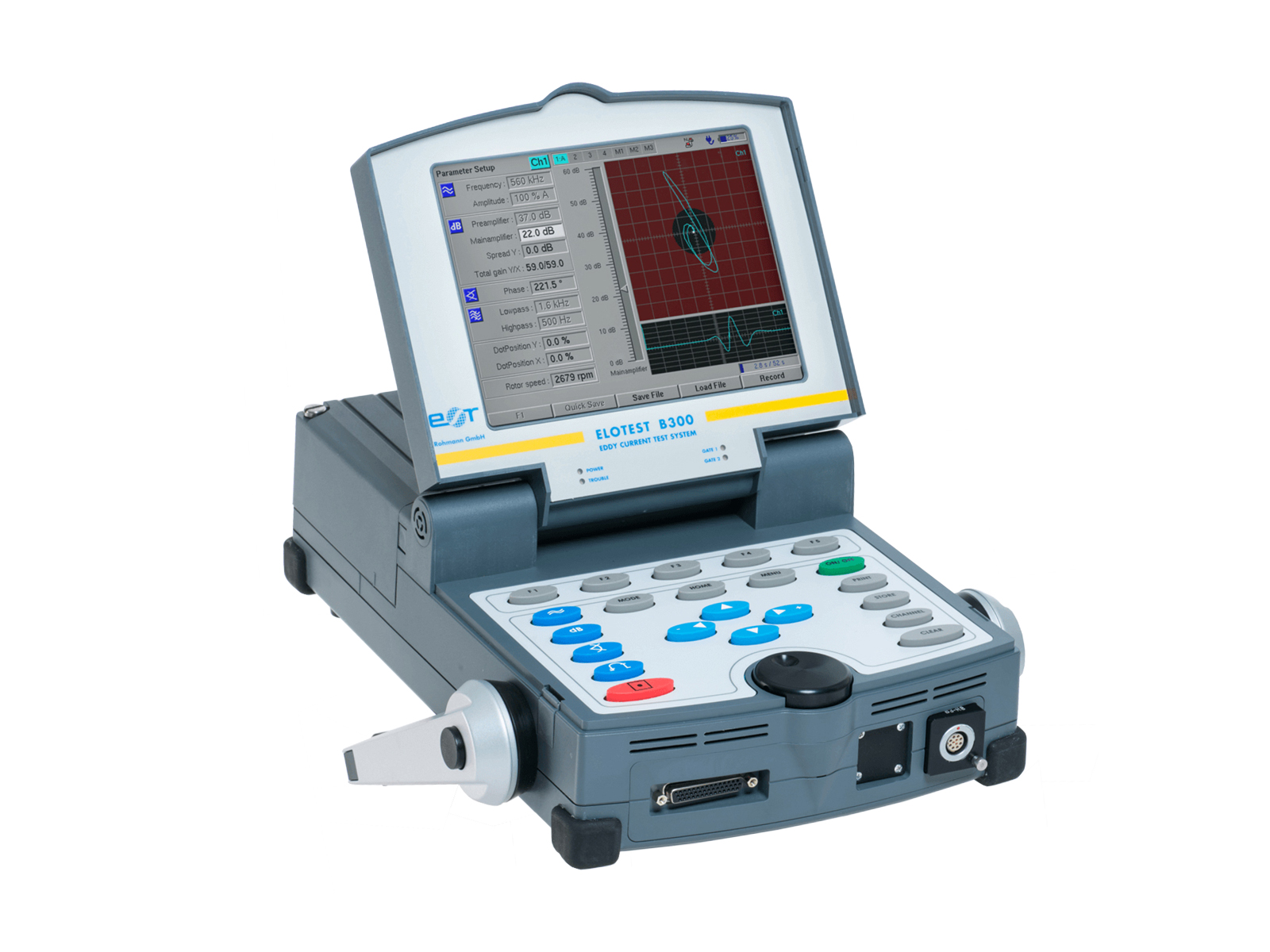

The multi-purpose eddy current test instrument Elotest B300 is suitable for various needs: for stationary applications in the laboratory or in the production line as well as for mobile use in the field. Based on its high variablity (equipped with 1, 2, 3 or 4 test channels), numerous interfaces and a wide range of functionalities not only simple tests, but also complex inspections can be done.

Features:

• Intuitively operable inspection device for hand-held eddy current sensors, inspection rotors and scanner systems
• Portable test system for demanding applications, equally suitable for use in the laboratory and test field
• 24 Volt power supply
• Standard with C-Scan for bore-hole inspection
• Multifunctional signal processing, display, mix, analysis, storage and documentation
• Fast, high-performance interface for bidirectional, digital communication
• ELOTEST B300 in combination with our ScanAlyzer software, processing and evaluation of surface scans.
• Complete remote operation via included Win-Client software
• Optional connection for video camera, e.g. endoscope inspection
• Conductivity and layer thickness measurement, separately switchable bargraph display, sorting threshold setting: positive or negative
• Compatible with ScanAlyzer software running on an external PC (Windows 7)
