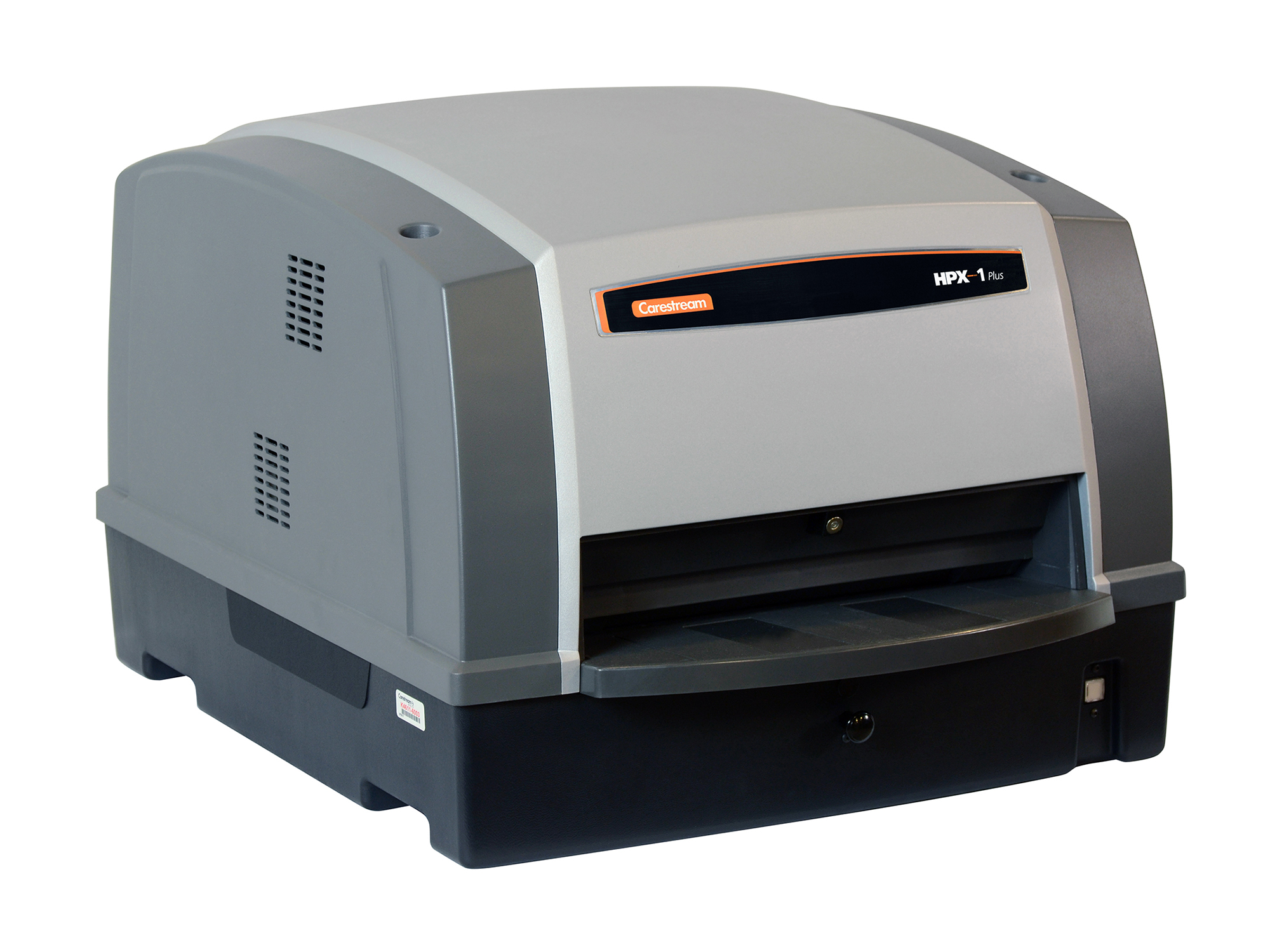

The HPX-1 Plus is a full width CR reader capable of running the longest plates in the industry – up to 85 inches (216 cm) – with an imaging plate transport system specifically designed to protect imaging plates for longer life. It offers faster throughput on long saturated plates (very high exposure) and has a wide dynamic range with high sensitivity, making it ideal for almost any type of imaging application.
Whether you’re using a gamma or X-ray source, the HPX-1 Plus high sensitivity can help reduce shot time. It shows exceptional performance in weld applications, delivering quality images consistently and dependably.

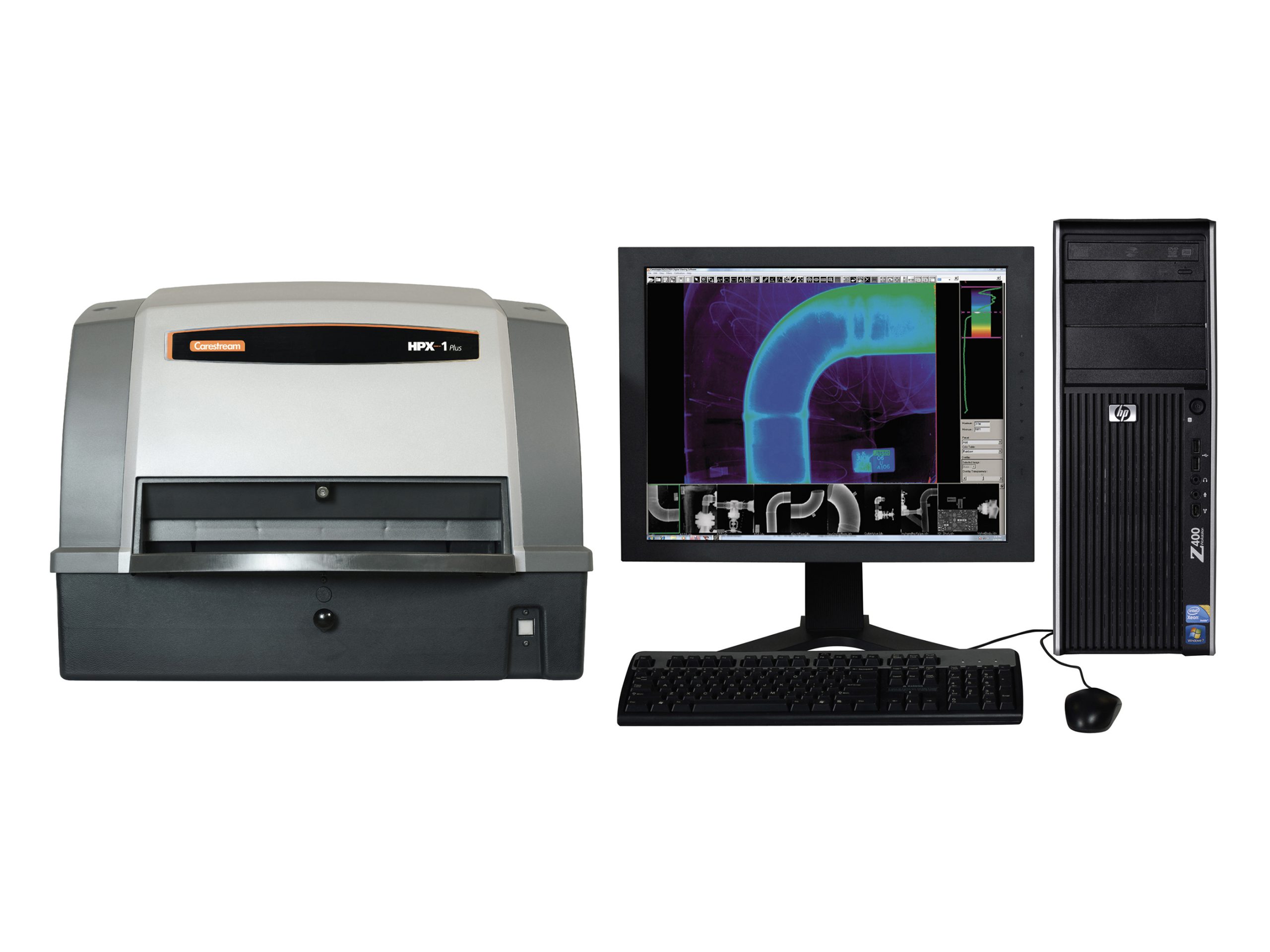

The system comes fully pre-configured and ready to operate after only a few simple connections. The powerful, easy-to-learn software and intuitive interface minimizes training time; CR operators will be up and running fast. A simplified work flow improves productivity with enhanced annotation capabilities, automatic file naming and a double file save capability (both Industrex and DICONDE formats). The HPX-1 is also transportable, durable, and designed to perform in the harshest of NDT environments.

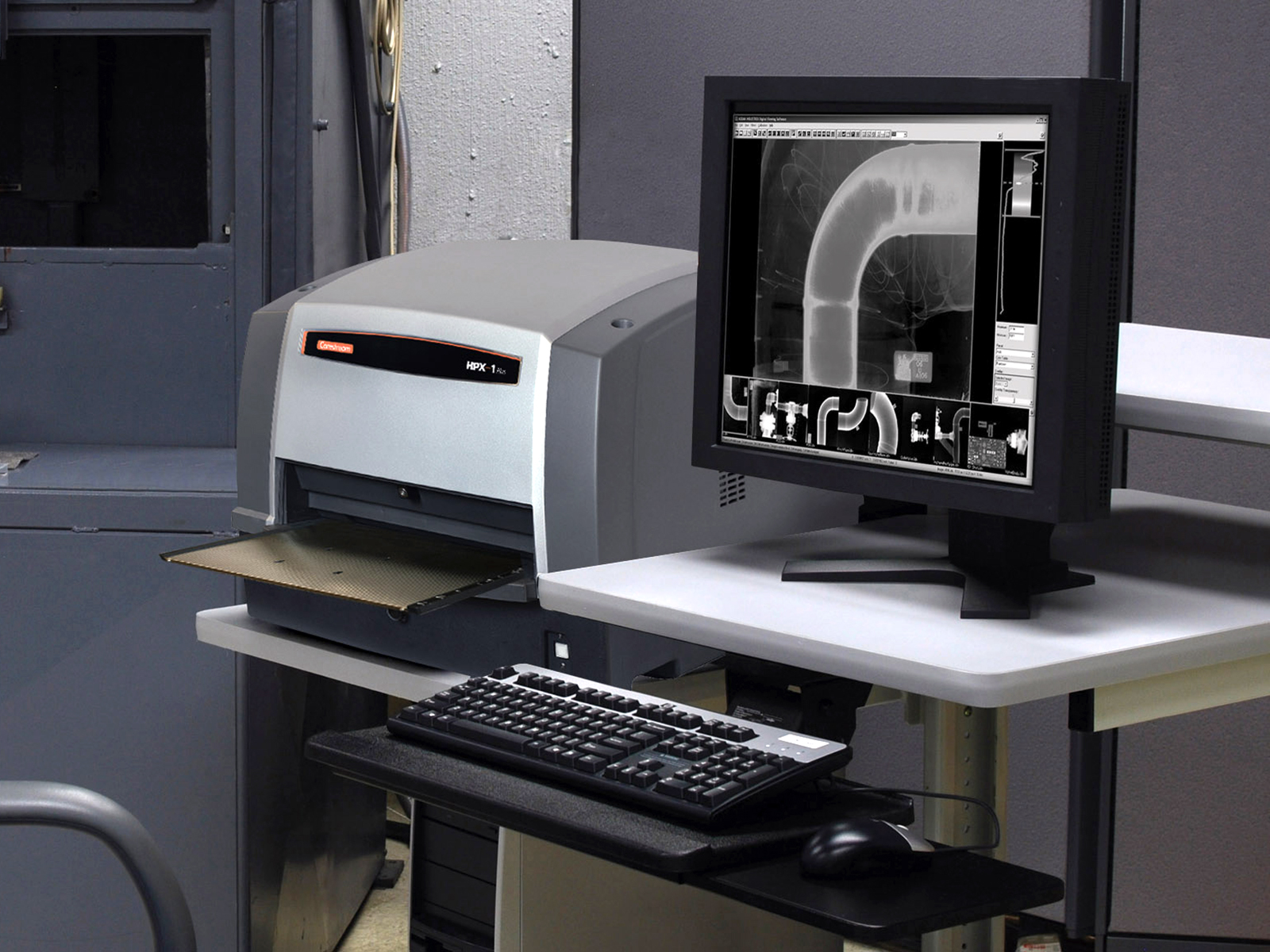

The Industrex HPX-1 has single-handedly upgraded the reliability of digital capabilities in the non-destructive testing marketplace. Multi-plate handling boosts output productivity. A positive pressure filtered air system ensures clean images in the laboratory and remote operations. The shock and vibration resistant design for imaging in harsh environments brings new confidence in using digital imaging in the field. Every aspect of the  INDUSTREX HPX-1 Computed Radiography system has been designed with industrial applications in mind, from the ergonomically engineered handles, to the flat straight feed path for the plates.

This reliable system is built for maximum uptime, but when it does need simple maintenance, there are many tasks you can now handle yourself without waiting for a technician or sending the system in for service.

Designed for NDT Environments

• Positive pressure in cabinet: Multiple fans and filters maintain internal air pressure to keep dust, debris and unfiltered air out of the system
• Integrated brushes and seals: Keeps environmental light and dirt out
• Exceptional durability: Withstood rigorous drop testing (100 g impact force) – Withstood variable amplitude and frequency vibration test
• Vibration absorbent rubber feet: Absorbs ambient vibrations in the field
• Handles: Ergonomically designed for easy transport
• Dust cover – Extra protection for storage in industrial environments
• Optional rugged travel cases : Reinforced locking wheels; base tie downs to secure the load; system can be used right in the case; removable accessory plate and cassettes storage box
• User serviceability: Routine service can be performed by user.
