SciAps Z-200 Carbon+ LIBS Analyser – Dedicated Carbon Analysis for Alloys

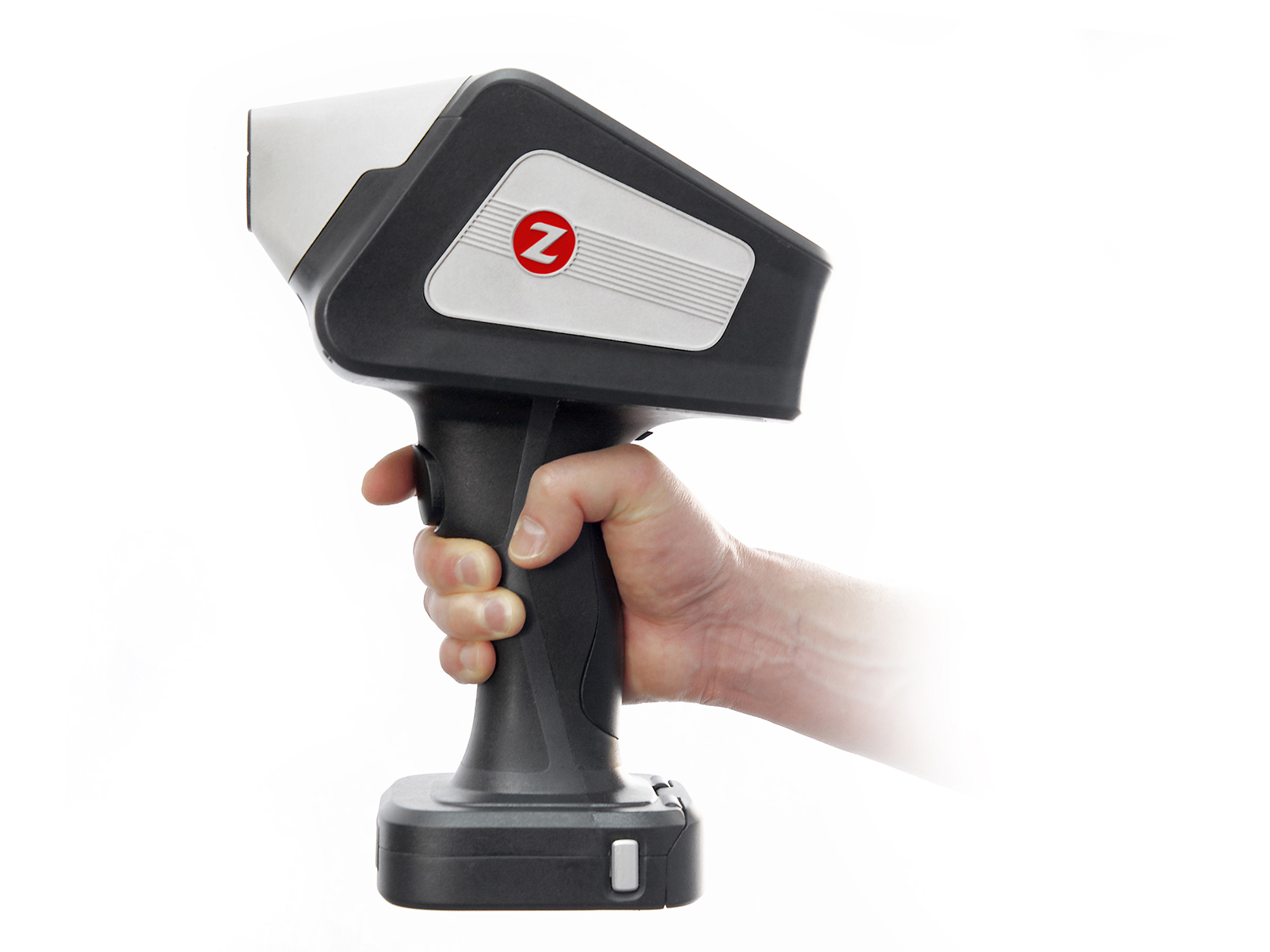

The SciAps Z-200 Carbon is a high-performance, handheld LIBS (Laser-Induced Breakdown Spectroscopy) analyzer designed specifically for precise carbon measurement in steel and alloy materials. As part of the advanced Z-200 series, this model incorporates a dedicated high-resolution spectrometer tuned for carbon detection, delivering fast, accurate results that are critical for Positive Material Identification (PMI), weldability assessment, non-destructive testing (NDT), and quality control applications.

Powered by a pulsed laser and an onboard argon purge system, the Z-200 Carbon offers high sensitivity and repeatable performance even in field environments, enabling users to measure carbon content — including differentiation between low (L) and high (H) carbon grades — with confidence.

Key Features & Benefits

Dedicated Carbon Analysis – specifically optimized for carbon measurement in stainless steels and carbon steels, the Z-200 Carbon delivers accurate carbon content results and supports carbon equivalent (CE) calculations important for weldability decisions.

Handheld LIBS Technology – utilizes laser-induced breakdown spectroscopy (LIBS) to generate plasma from the sample surface, enabling direct elemental analysis with minimal sample preparation.

High-Resolution Spectrometer with Argon Purge – equipped with a dedicated third spectrometer designed to resolve carbon emission lines clearly amid nearby iron lines, and an integrated argon purge for improved signal quality and lower detection limits.

Fast, Reliable Field Results – the combination of high laser pulse energy and raster scanning ensures multiple measurement points per test, improving analytical confidence and repeatability.

Ergonomic & Lightweight – Compact and lightweight design makes the analyzer ideal for on-site inspections, plant environments, and quality control applications where mobility matters.

Intuitive Operation & Connectivity –  Android-based interface with a color touchscreen and built-in connectivity (Wi-Fi, Bluetooth, USB) makes it easy to collect, review, and transfer data to external systems or software.

Typical Applications

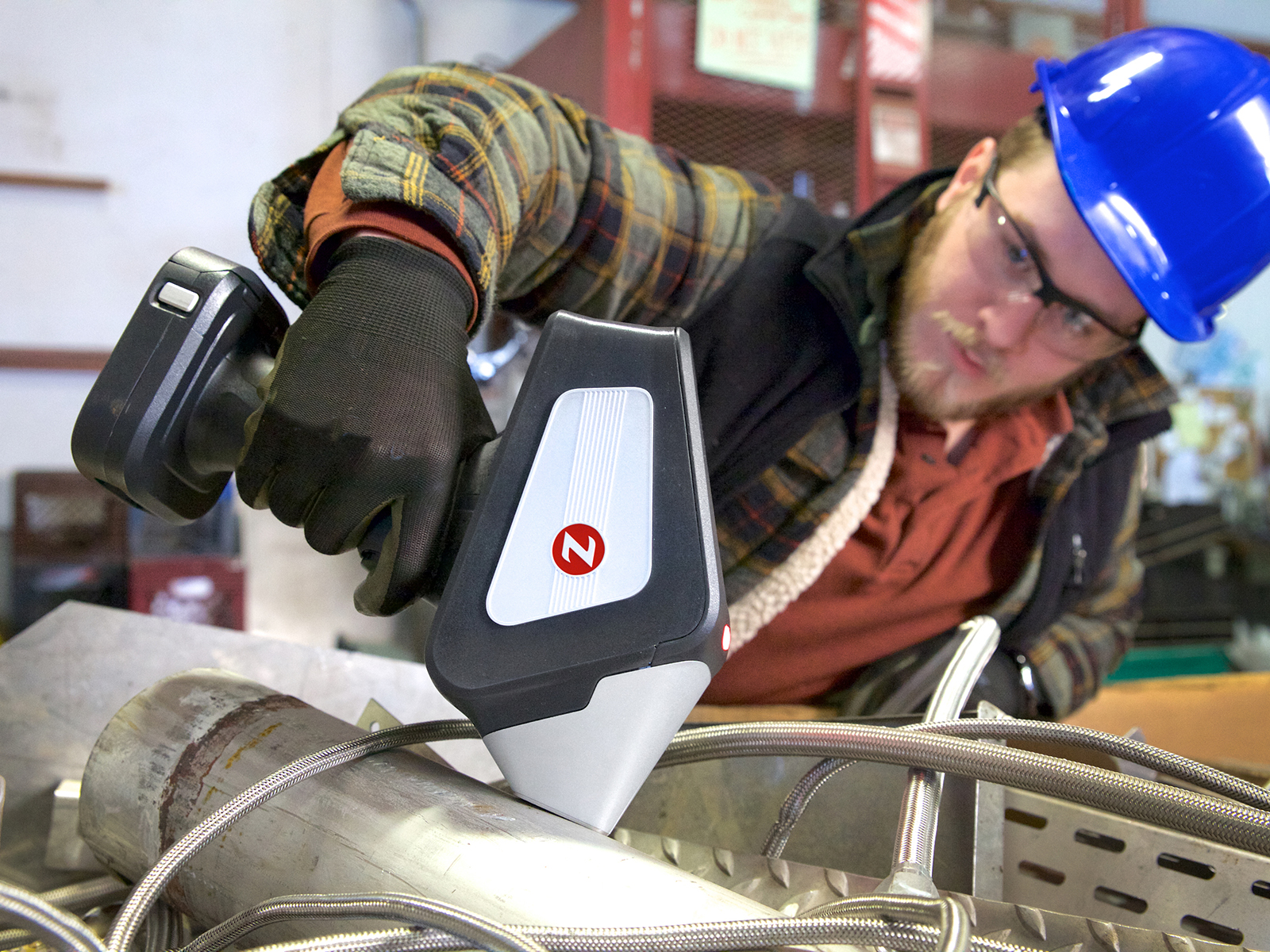

• Positive Material Identification (PMI) — Confirm carbon content in steels and stainless steels for compliance and traceability.
• Quality Control & Manufacturing — Evaluate carbon levels in production lines, ensuring parts meet specifications.
• Weldability Assessment — Carbon Equivalency (CE) calculation supports safe and efficient welding procedures.
• Non-Destructive Testing (NDT) — Rapid carbon measurement without damaging components.

Technical Specifications

Technology: Laser-Induced Breakdown Spectroscopy (LIBS)
Spectral Range: ~190 – 625 nm with dedicated carbon range sensitivity
Purge Gas: Integrated argon purge for improved carbon detection
Carbon Sensitivity: High-resolution detection designed to separate carbon from nearby iron emissions
Laser Source: Pulsed 1064 nm laser, ~5–6 mJ per pulse at ~50 Hz
Weight: Lightweight handheld design (~1.8–1.97 kg range)
Operating System: Android with color touchscreen display
Connectivity: Wi-Fi, Bluetooth, USB for data transfer
Cameras: Integrated targeting and macro cameras

—

Why Choose the Z-200 Carbon

• Specialized Carbon Performance: Designed specifically for carbon detection in steels and alloys, with high resolution and repeatability.

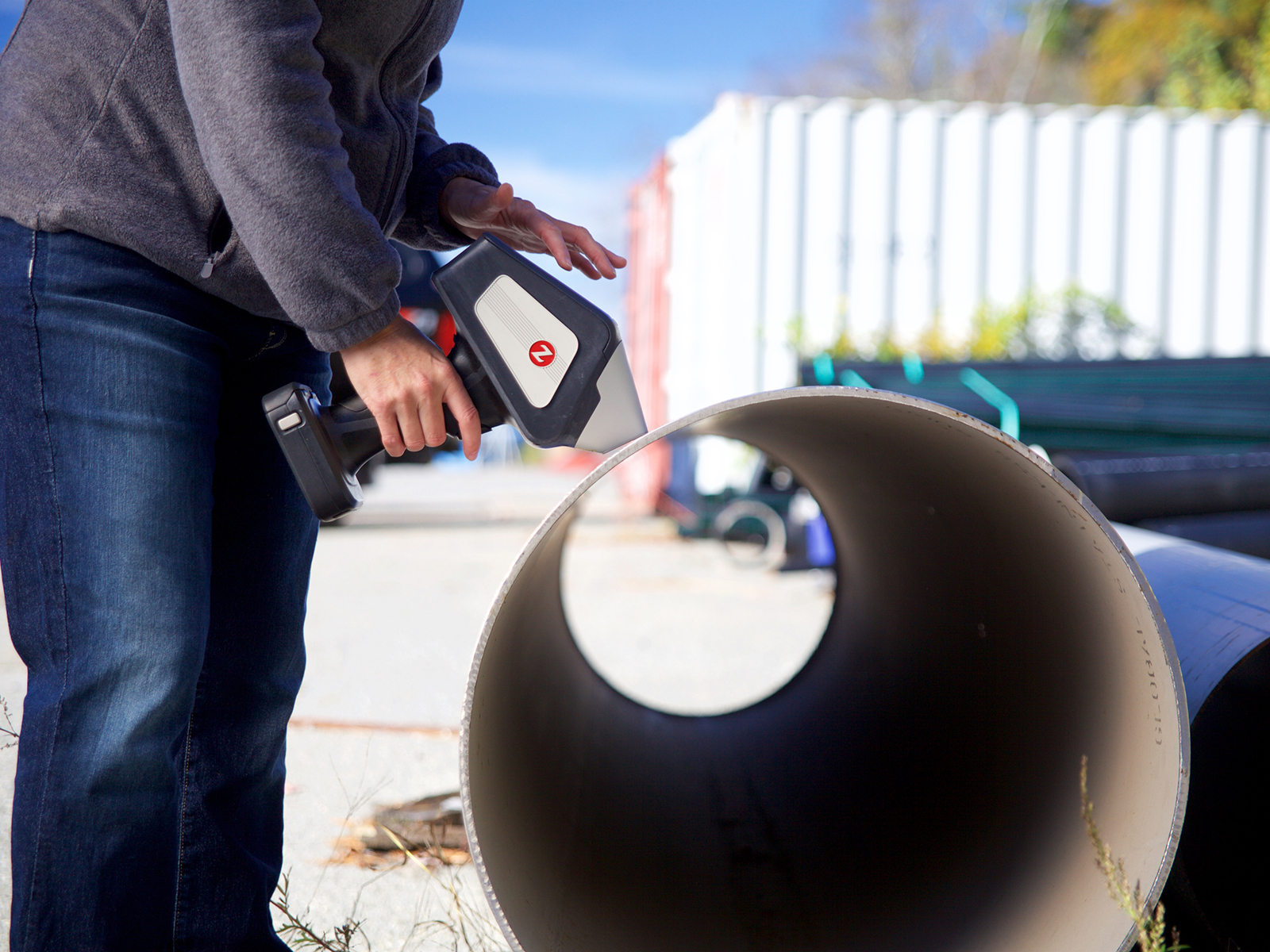

• Field-Ready Operation: Portable, rugged, and intuitive — ideal for use in industrial and manufacturing settings.
• Enhanced Accuracy: Argon purge and high-resolution spectrometer provide improved precision and lower detection limits than air-only LIBS systems.
