Surface Wettability Tester – Sita SurfaSpector
Specification
- Contact angle range: 5°…175°

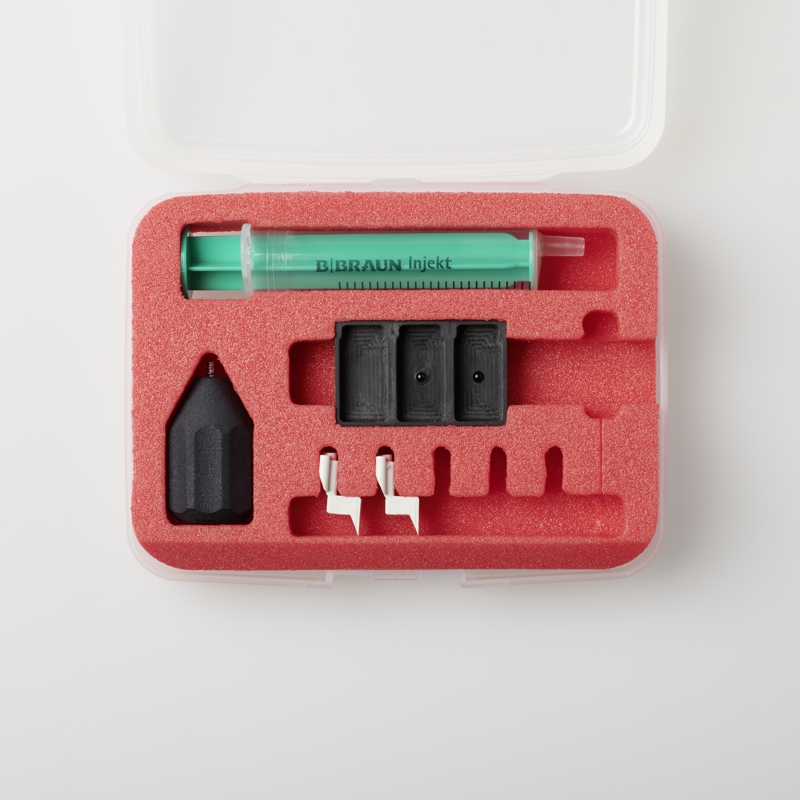

- Liquid: pure water, refillable, 5 ml for 5,000 measurements
- Drop volume: 1 μl
- Min. sample surface: 5x5 mm
- Power supply: Li-Ion battery; 2x 6,400 mAh, min. measurement time 6 hours
-
Dimoensions (HxWxD) / Weight
Main unit: 80 x 210 x 130 mm / 1,100 g
Sensor: 117 x 50 x 82 mm /330 g
Description

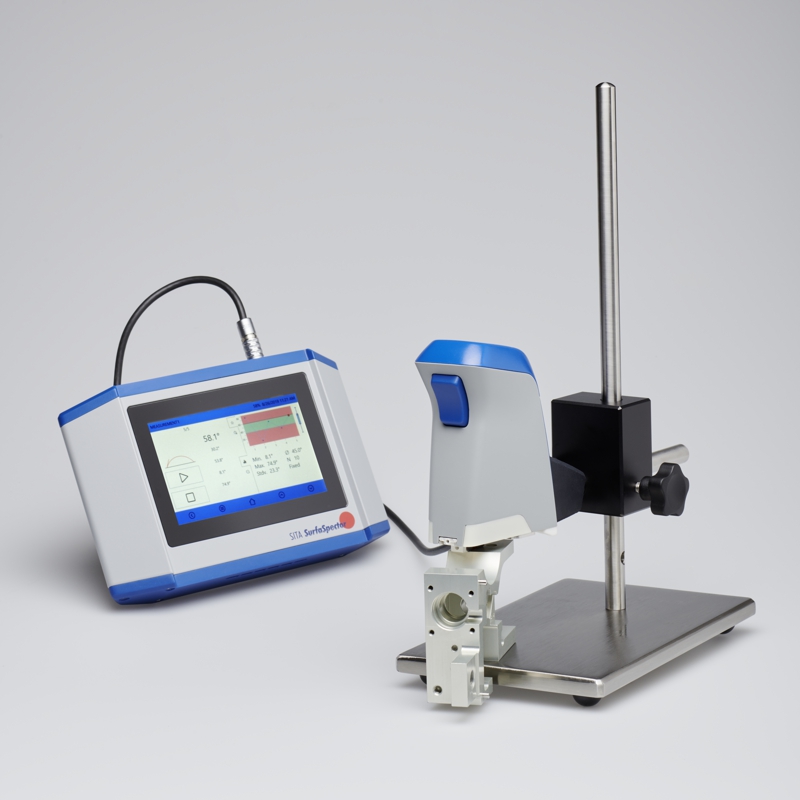

Surface Wettability Tester – Sita SurfaSpector – easy contact angle measurement in manufacturing processes
The SITA SurfaSpector is used for quick and easy testing of the wettability of metal, glass and plastic surfaces, e.g. after surface pretreatment or cleaning.
The device combines an objective contact angle measurement with simple handling and allows a reliable assessment of the surface.

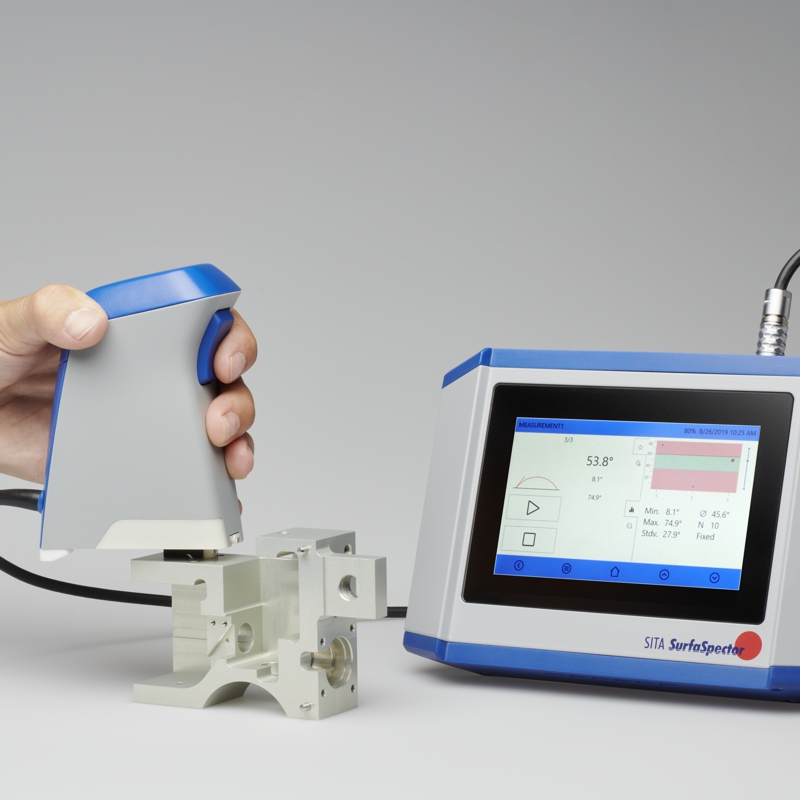

– for mobile and flexible use without PC directly at the plant or in the process

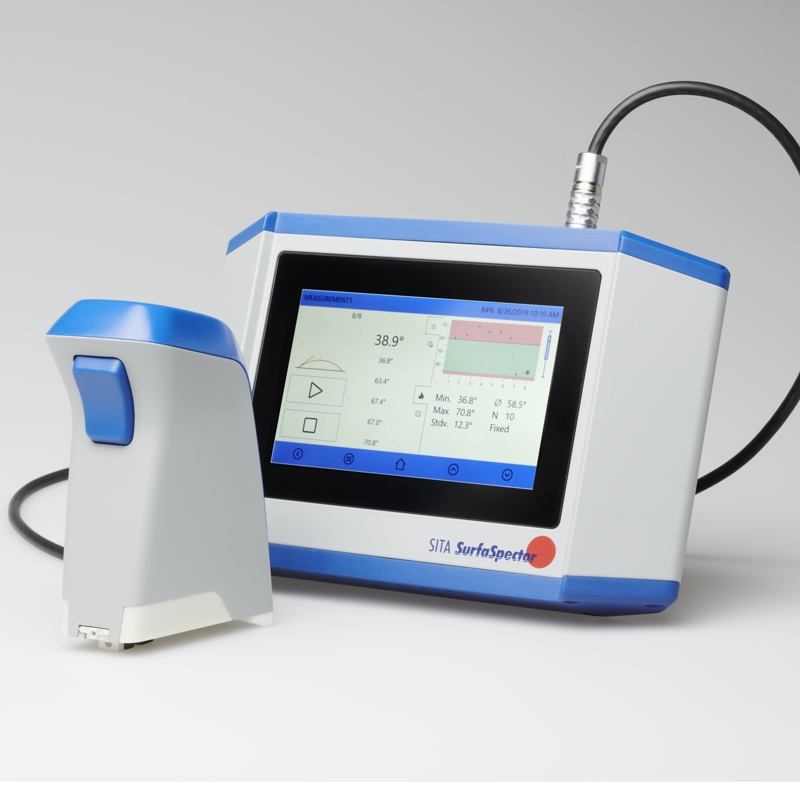

– Easy and intuitive operation viar touchscreen

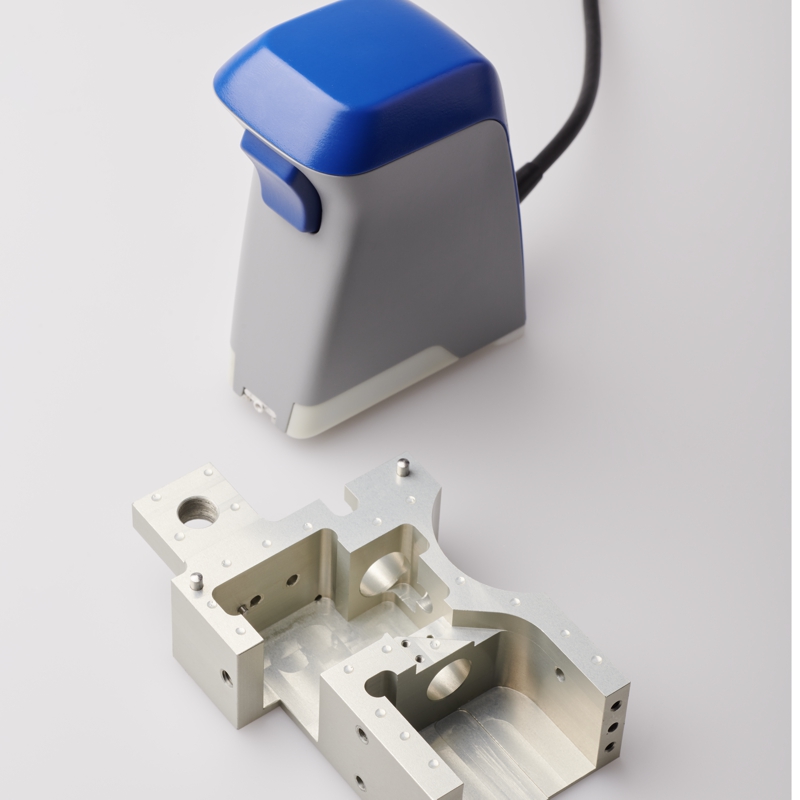

– Handy sensor head for measuring on various surfaces

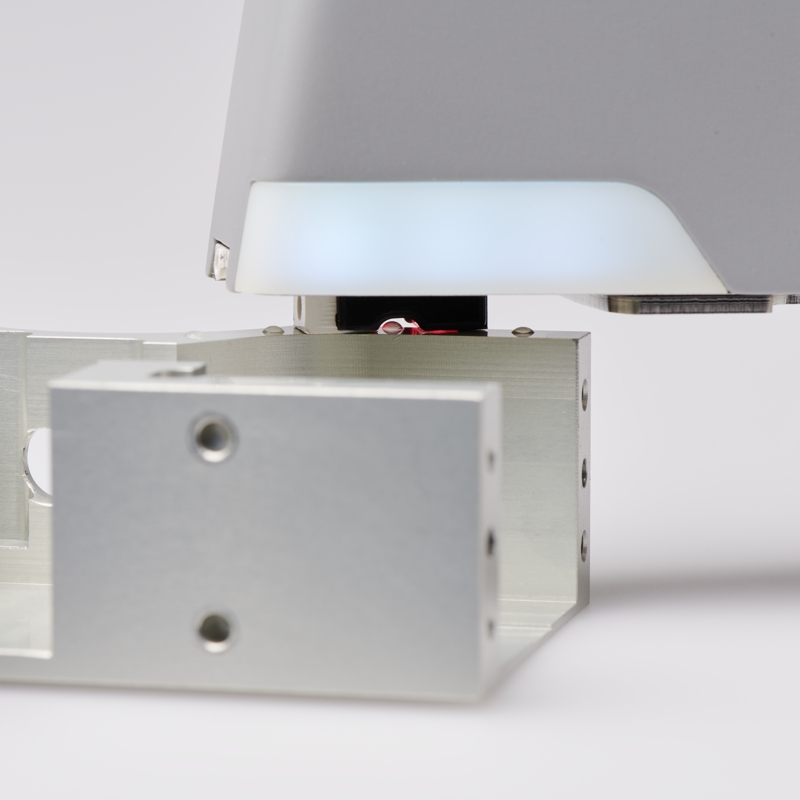

– Automated measuring sequence with drop placement, drop detection and contact angle determination
