Inductive UV and White Light LED Sources for Hand Yokes

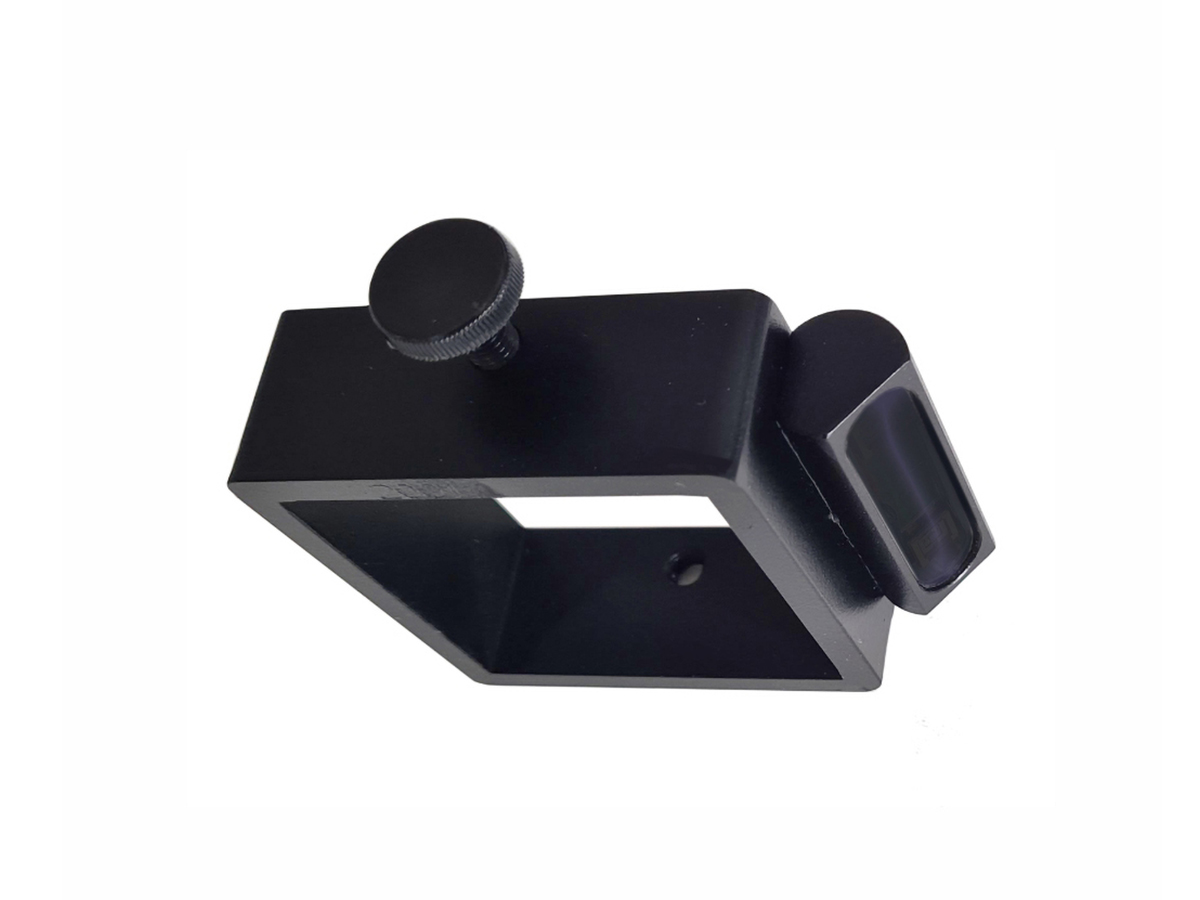

Inductive UV and White Light LED Sources for Hand Yokes – are used while working with hand yoke or cross yoke electromagnets. The light sources have been designed for simultaneous irradiation (illumination) of the working area during testing with fluorescent or colour magnetic particle powder by single handed operation. The adjustable swivel head ensures the correct irradiation angle depending on distance between poles and length of the yoke legs in order to achieve a homogeneous irradiation field right in the center of the working area. The splash-protected (IP 65) light source fits on all hand yokes with a pole cross section up to 50×50 mm.

The light sources can be fixed quickly and easily to the yoke leg and fastened with two plastic screws. When switching on the yoke – viz. during magnetizing, post-magnetizing and the examination cycles – the unit is fed by inductive current and illuminates/ irradiates the working area. Therefore no additional power source is needed. The light sources have proved of value, especially during testing under restricted space conditions, on construction sites and improvised test places where only limited space for using auxiliary instrument is available.
