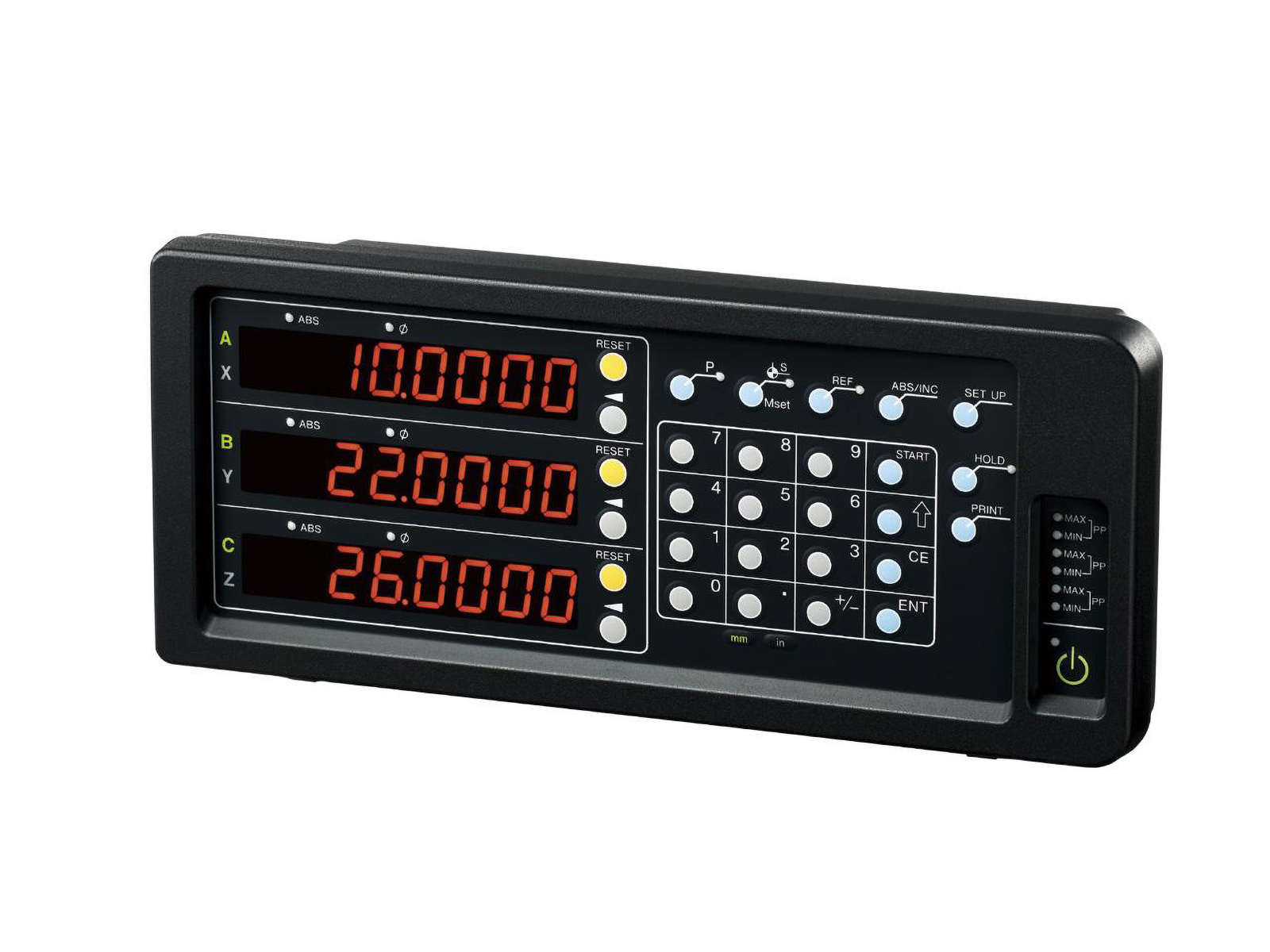

Display LY71

Display LY71

Ask for a price
Ask for a price Display LY71





    Specification

    • Interface: RS-232C
    • Number of input axes: 1 / 2
    • Output signal: Open collector
    • Compatible units: DK, GB-ER, SJ700A and PL20 series
    • Functions: Reset / Preset / Restart
    • Resolution: Lengths: 0.1, 0.5, 1, 5, 10 µm
      Angles: 1 s, 10 s, 1 min, 10 min

    Description

    Display LY71 for measurements and control in diverse field uses. The required output board can be extended.

    • Various outputs are enabled by mounting extension boards
    • BCD Output (Option)
    • Comparator Function: Relay / Open-collector (Option)
    • Peak Hold Function Convenient for Statistical Measurement
    • Convenient External Input Functions for Automatic Measurement
    • Display Resolution Switching
    • Data Storage
    • Reset/Preset/Restart
    • Detecting Reference Point of Measurement Unit
    • Scaling
    • Flicker Control
