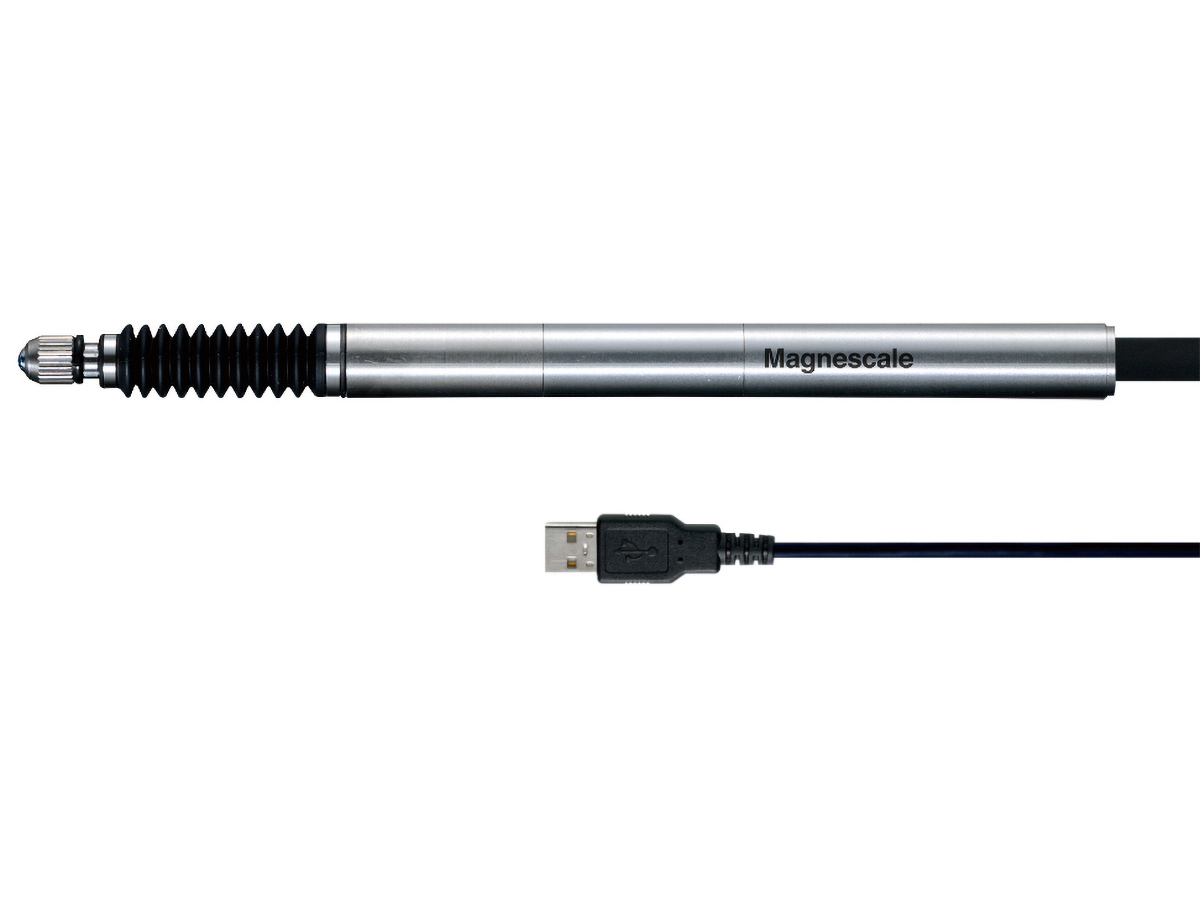

Digital Gauge DS800S
Ask for a price
Ask for a price
Digital Gauge DS800S
Specification
- Stroke lengths: 5, 12 mm
- Resolution: 0.1 µm
- Accuracy: 1 µm
- Max. response speed: 40 m/min
- Lifespan: min. 320.000.000 measuring cycles
- Cable length: 2 m
Downloads
Description
Digital Gauge DS800S – legendary reliability, quality and Magnescale technology are all part of the Digital Gauge products.
The Magnescale Digital Gauge products use a high-grade magnetic recording and detecting principle which has been developed over 50 years. The Digital Gauge products embody the reliability and quality that Magnescale is known for. Magnescale Digital Gauges feature high resolution and high accuracy, along with environmental, shock and vibration resistance that are a unique feature to our magnetic detecting principle. Sub-micron repeatability and improved torsion resistance comes from an innovative spindle design that enables environmental protection up IP67, allowing for a wide range of applications.
