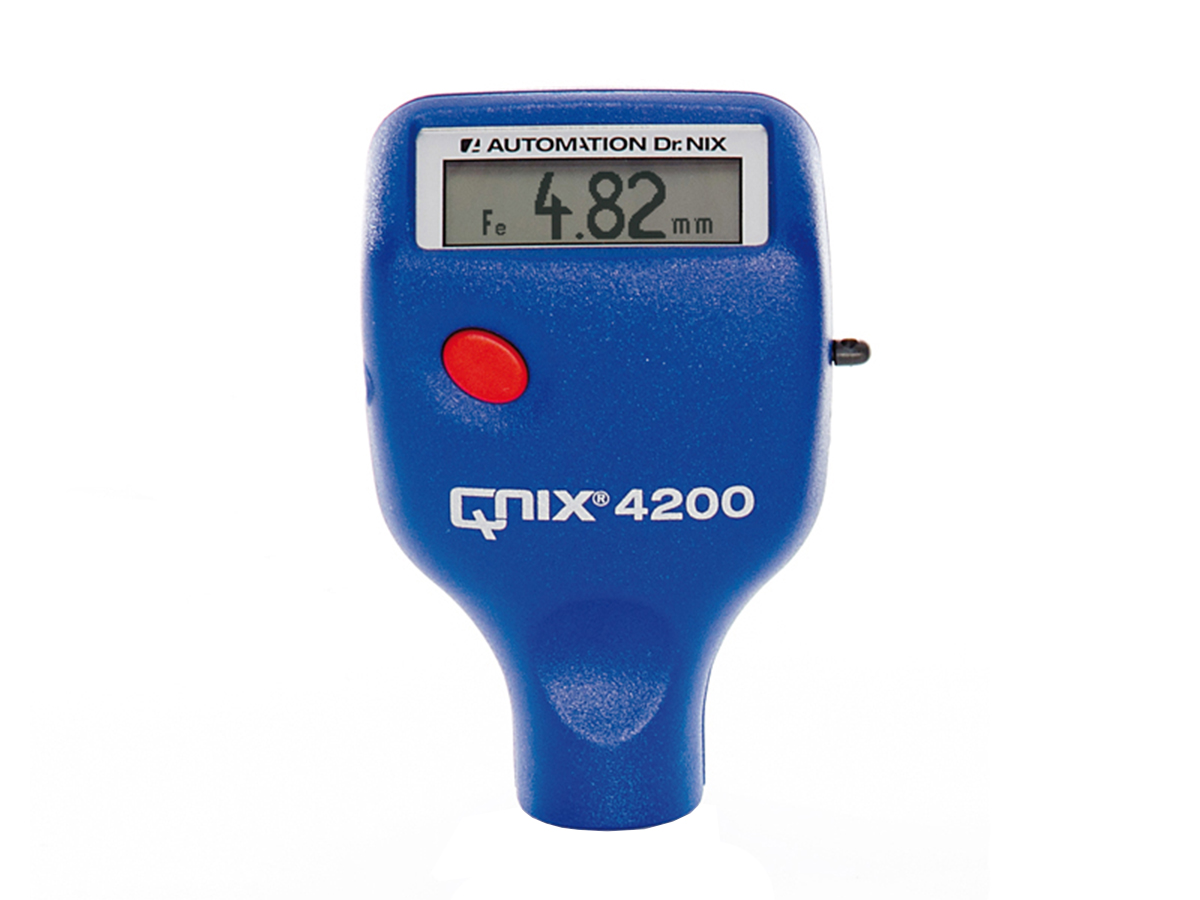

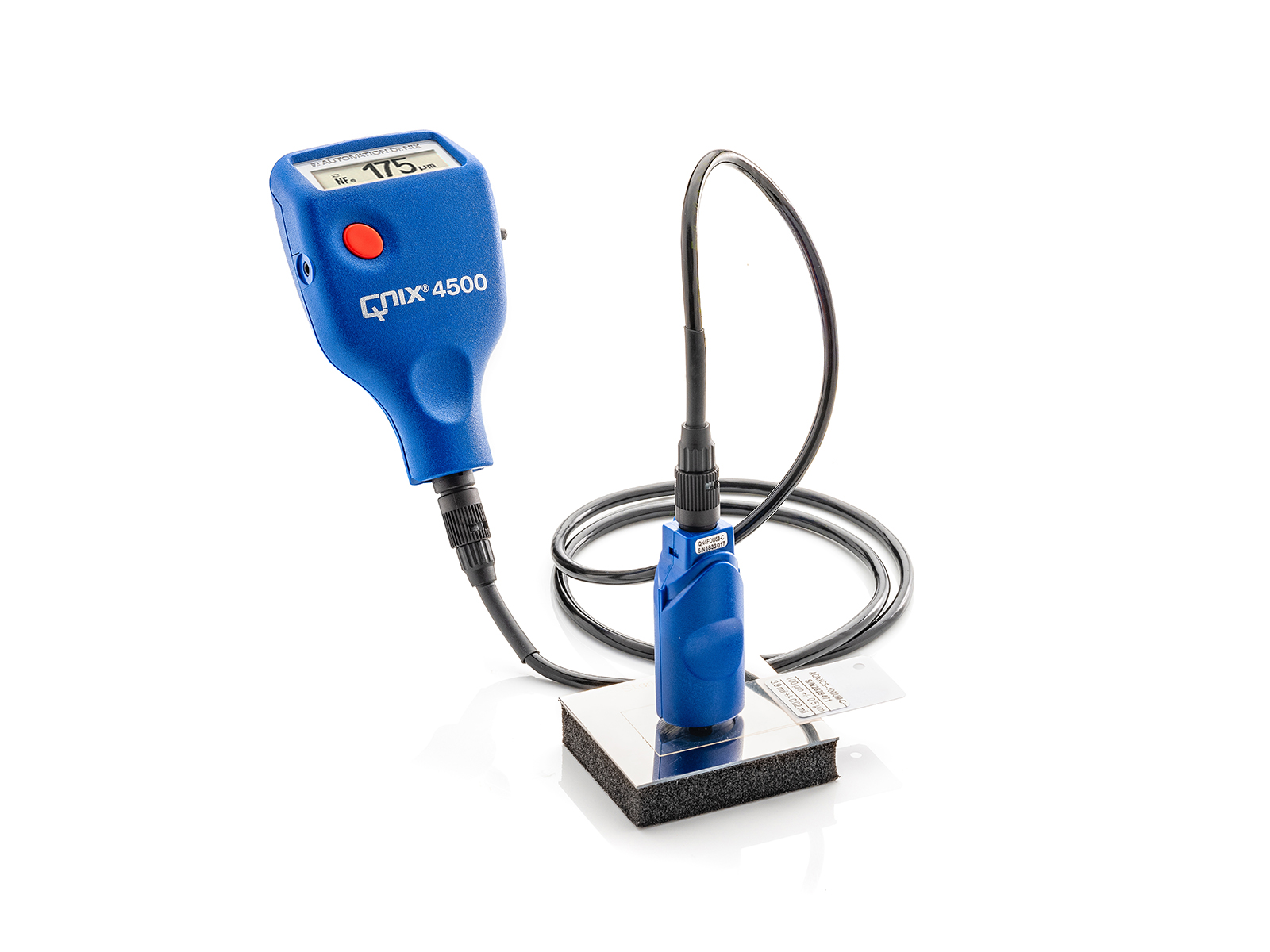

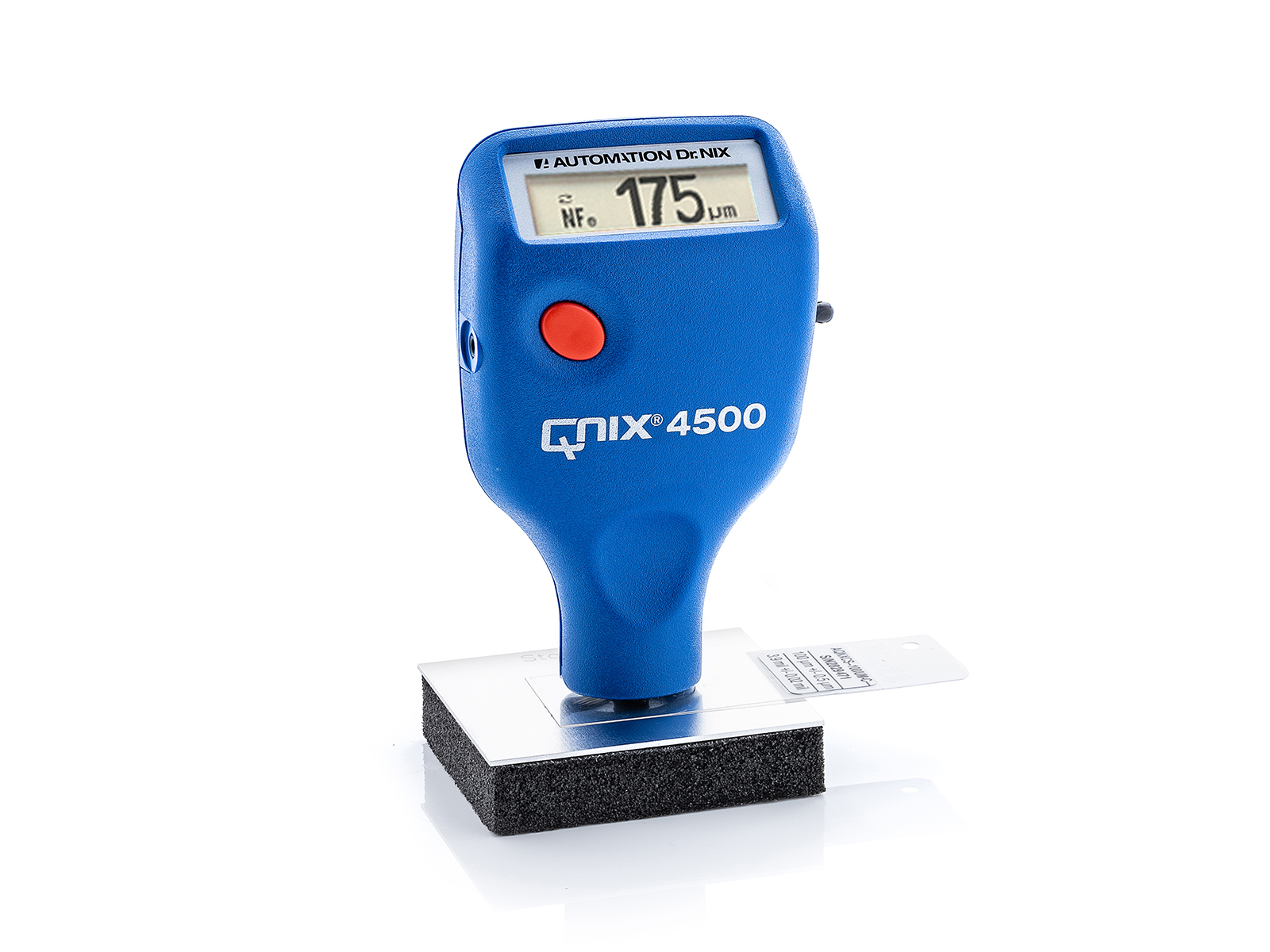

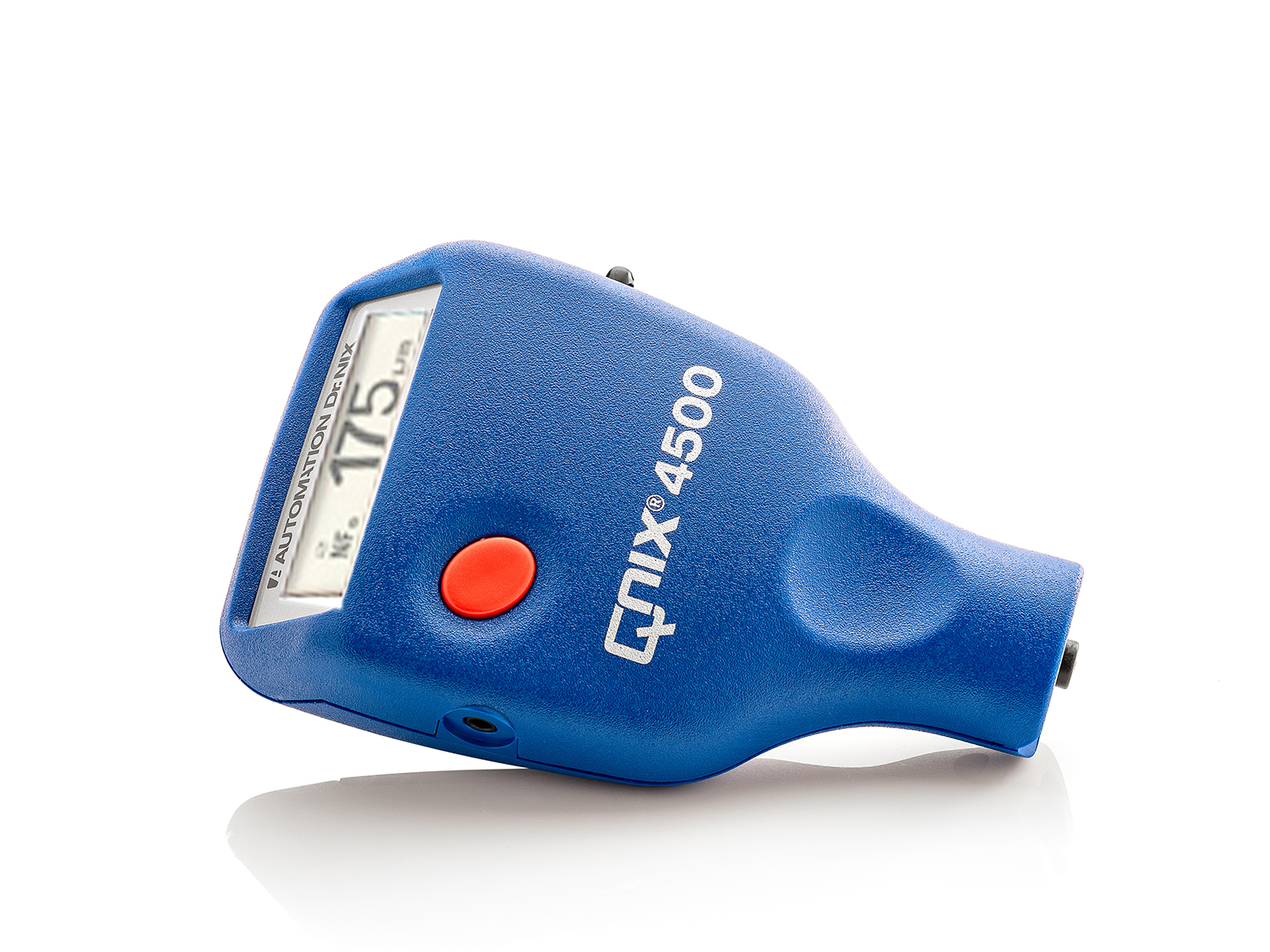

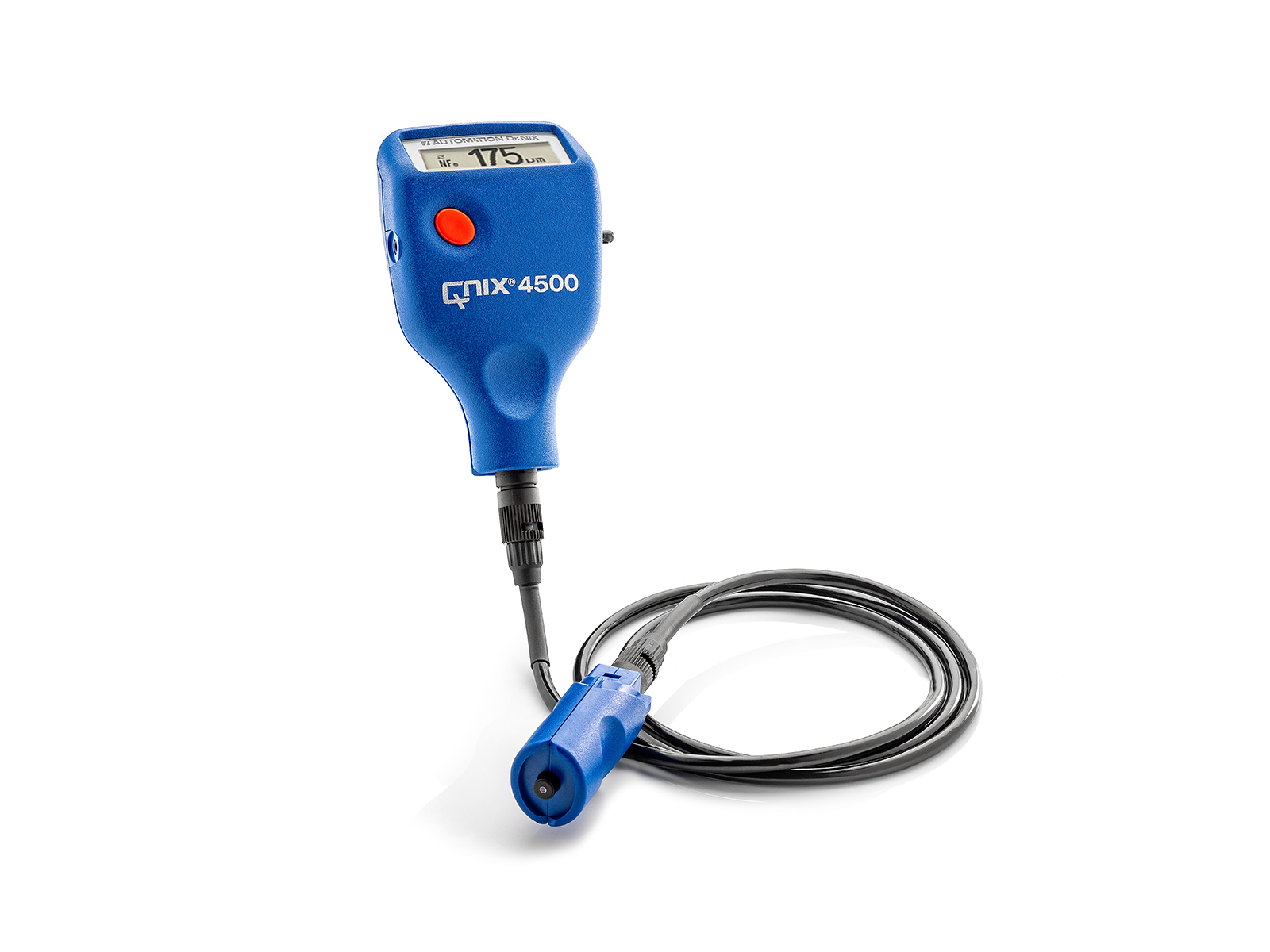

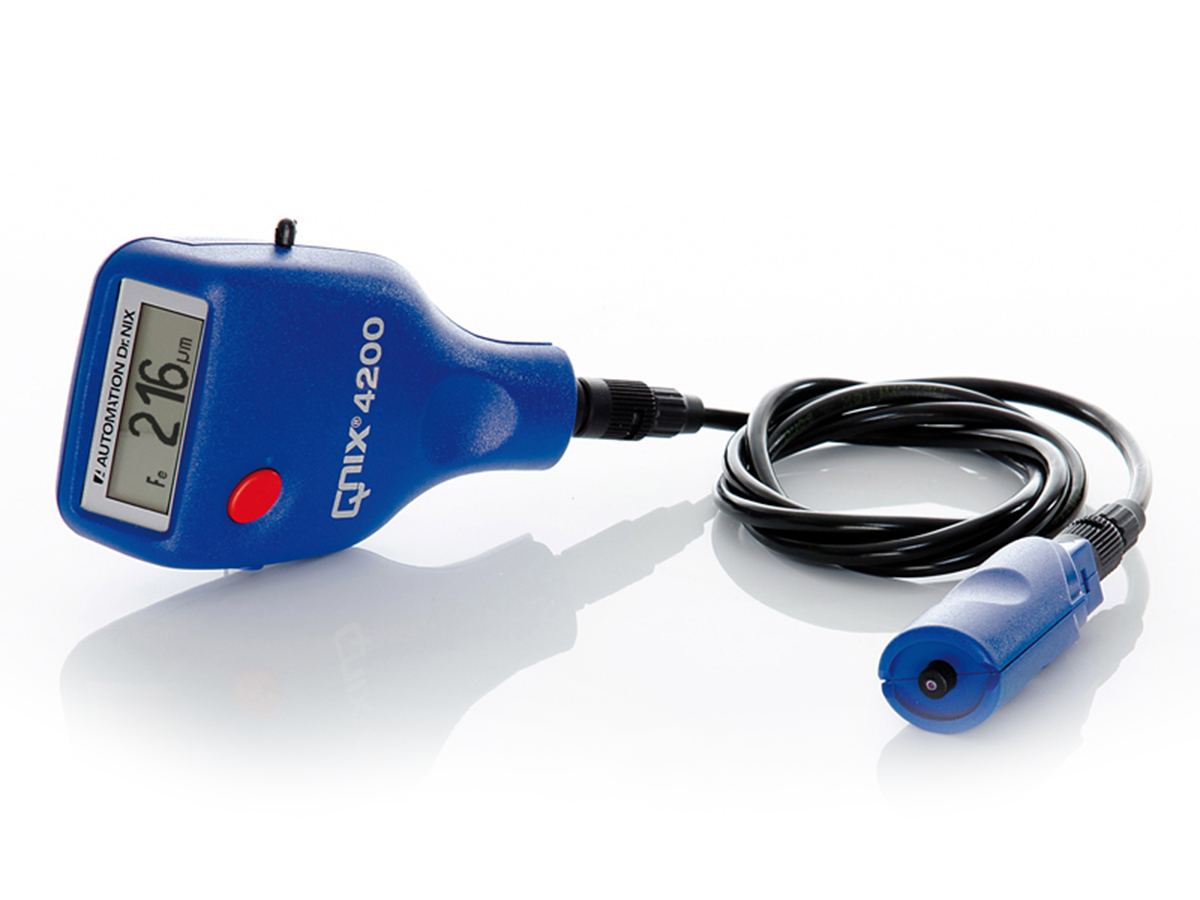

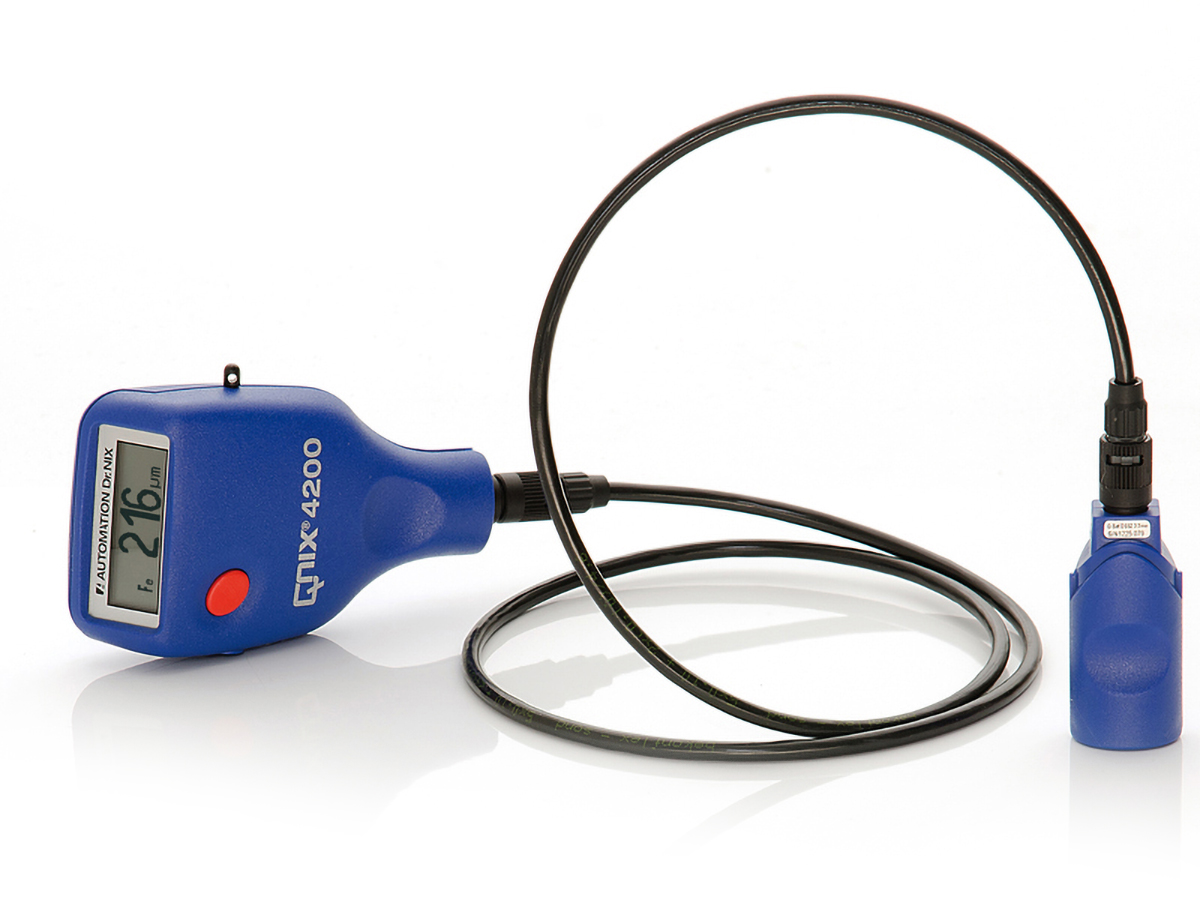

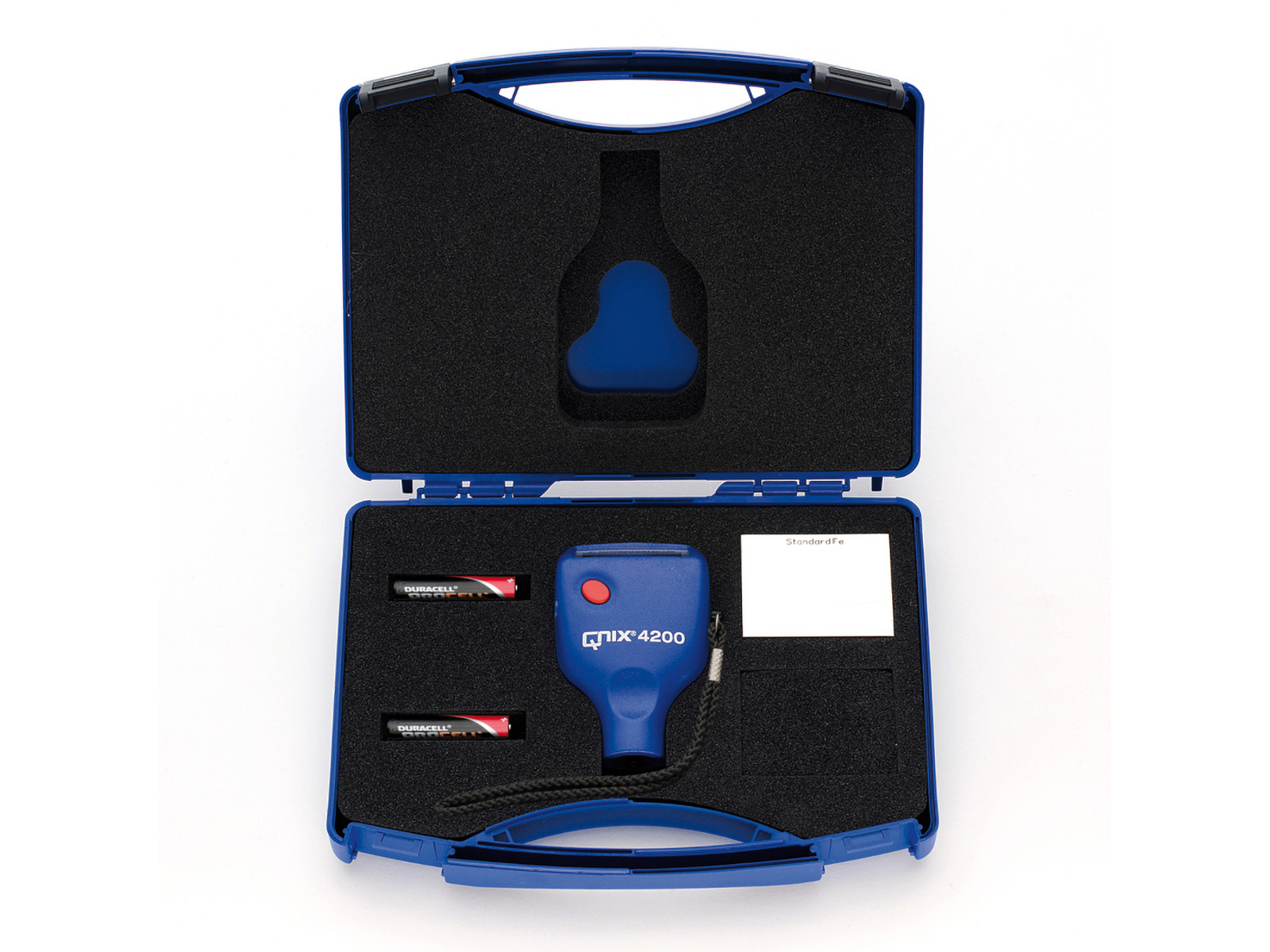

Coating Thickness Gauge QNix 4200 / 4500
Ask for a priceSpecification
-
Measuring range:
QNix 4200:
Fe: 0 - 5000 µm
QNix 4500:
Fe: 0 - 5000 µm
NFe: 0 - 3000 µm -
Resolution:
1 μm up to 999 μm
0.01 mm over 1 mm - Min. surface reqd. for measuring: Ø 25 mm
-
Measuring principle:
Two magnetic measuring principles:
Fe: Magnetic-Flux/Hall Effect ref Fe
NFe: Eddy Current (QNix® 4500 only) - Probe type: integrated or - optional - Cable Probe with 1 m cable
- Power supply: 2 x 1.5 V AA batteries
-
Weight, incl. batteries:
With integrated probe: 105 g
With cable probe: 147 g
Description
Coating Thickness Gauge QNix 4200 / 4500
The 4000 series QNix® coating thickness gauges deliver precise and quick measurement results, are easy to use and extremely robust. Are you looking for a universal coating thickness gauge that has proven itself time and again? Can you forego measured value memory or software-supported evaluation in your area of application?
Then the QNix® 4200 (for measurements on Fe) or the QNix® 4500 (for measurements on Fe and NFe) is the right coating thickness gauge for you.
Reliable measurement results on Fe and NFe metals. Thousands of users around the world have used the coating thickness gauges from the 4000 series for years. As a user you can also benefit from these successful models.
The QNix® 4200 gives you reliable measurement results on steel and iron (Fe). The QNix® 4500 lets you take measurements on steel, iron (Fe) and non-ferrous metals (NFe) like aluminium, zinc, copper and brass.
