Compact Multi-Directional Magnetic Particle Tester, Micro-Flux 300
Specification
- Test piece length: 20 - 300 mm
- Main supply: 3 x 400 V
- Control supply: 24 V CC
- Magnetising current: Alternating current of max. 1000 A effective and 1400 A peak for viewing longitudinal cracks
- Field magnetising: AC magnetizing yoke of max. 10 kAW for viewing transversal cracks
Description
Compact Multi-Directional Magnetic Particle Tester, Micro-Flux 300

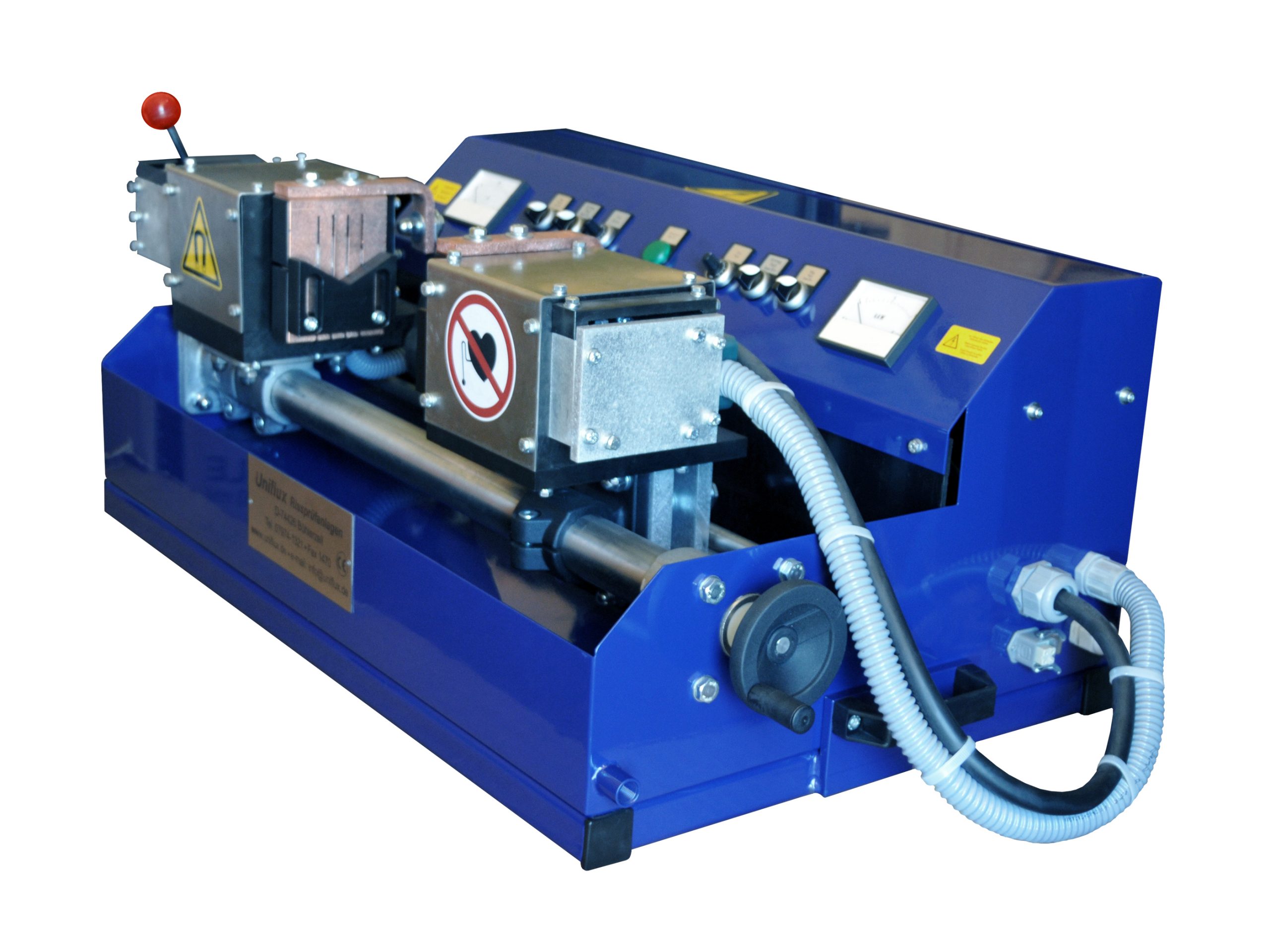

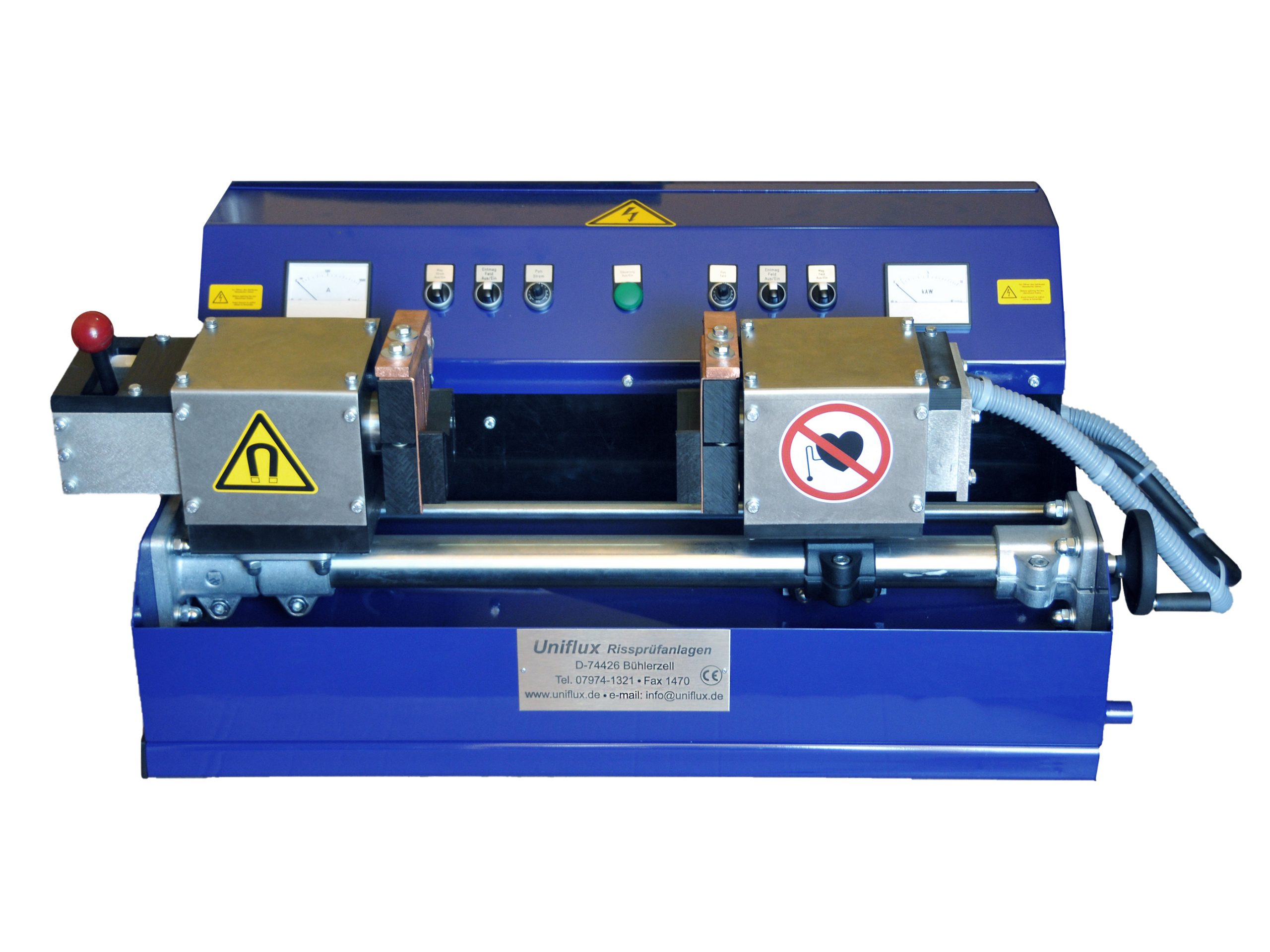

The Microflux 300 (12″) by Uniflux is a compact multi-directional magnetic particle tester for small parts crack detection according to ISO 9934-3. It’s equipped with two AC phase-shifted magnetizing circuits that create a rotating magnetic field for detecting cracks in both the longitudinal and transverse orientations in one operation.
- Features:
- Induction (yoke) to detect radial cracks
- Current flow to detect axial cracks
- Using a central conductor ring‐shaped parts can be inspected
- Each magnetizing circuit is equipped with:
Demagnetization
Infinitely variable intensity control
Digital Current meter - Each magnetization circuit can be switched on or off individually
- Compact design
- Foot switch activation
- Test current Magnetization control of the current and field flow
- Pneumatic clamping of the workpiece
