Measurement of Depths
Specification
- Operating: Plug&Play
- Threads: M2.5 - M18
- Thread gauges: DIN 2282 GO, DIN2284 NOGO
- Plainbores: 2 - 18 mm
- Cylinder plug gauge: DIN 2248 GO, DIN 2249 NOGO
-
Display:
LCD display switchable from 0.01 mm to 0.001 mm resolution*
- Rotating speed: approx. 300 rpm
Downloads
Description

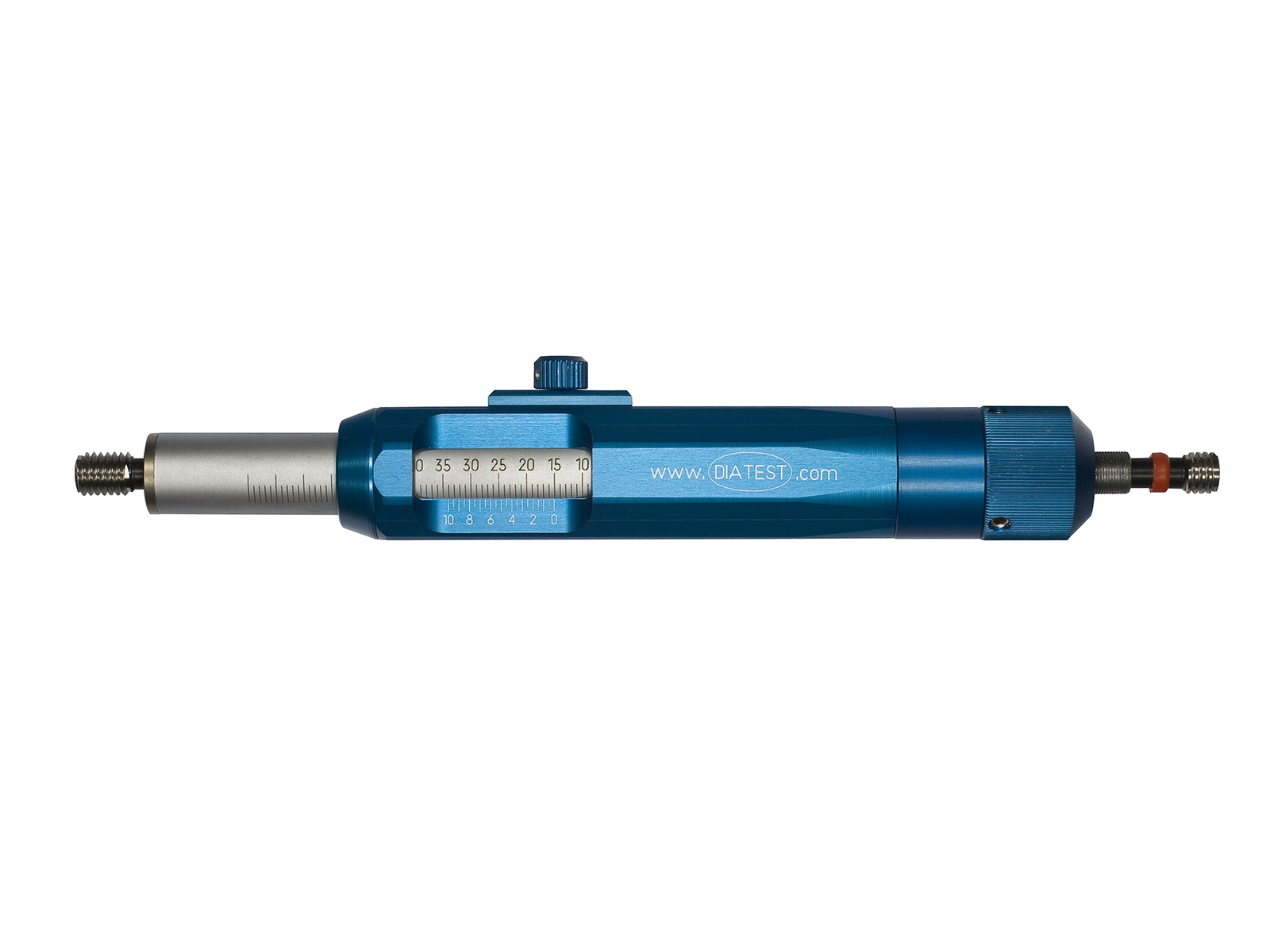

Measurement of Depths
Both solutions measure two values at the same time: both measure the depth, but whereas one measures the inner diameter, the other one detects No-Go gauges in cylinder bores or threads.
Features:
- Plug&Play – easy handling
- Low wear and therefore low maintenance

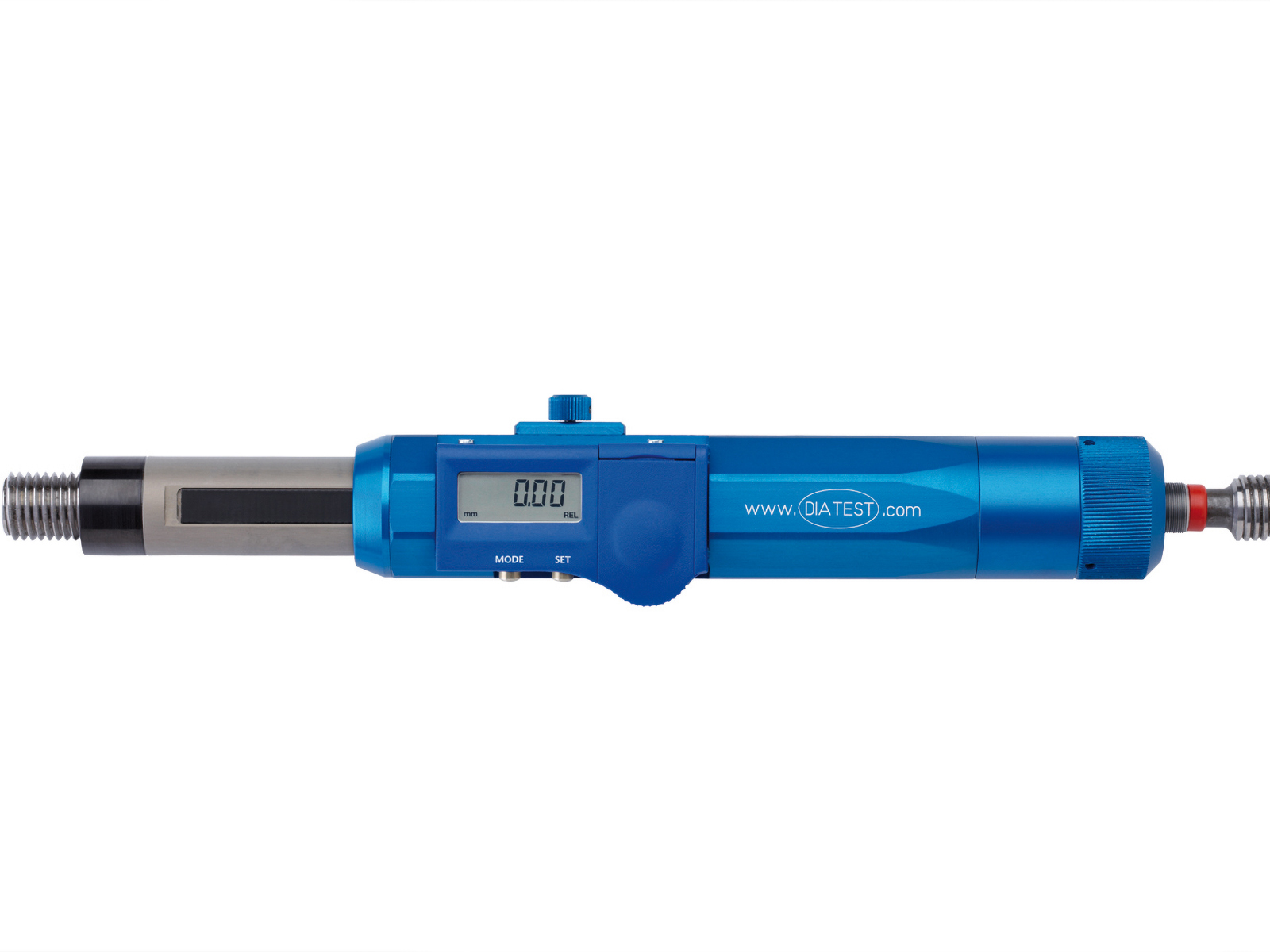

- LCD display switchable from 0.01 mm to 0.001 mm resolution*
- Preset
- Display always remains visible when measuring
- OPTO-RS232 Interface / DIAWIRELESS*
- Display: Standby up to 1 year*
- Thread from M2.5 to M18

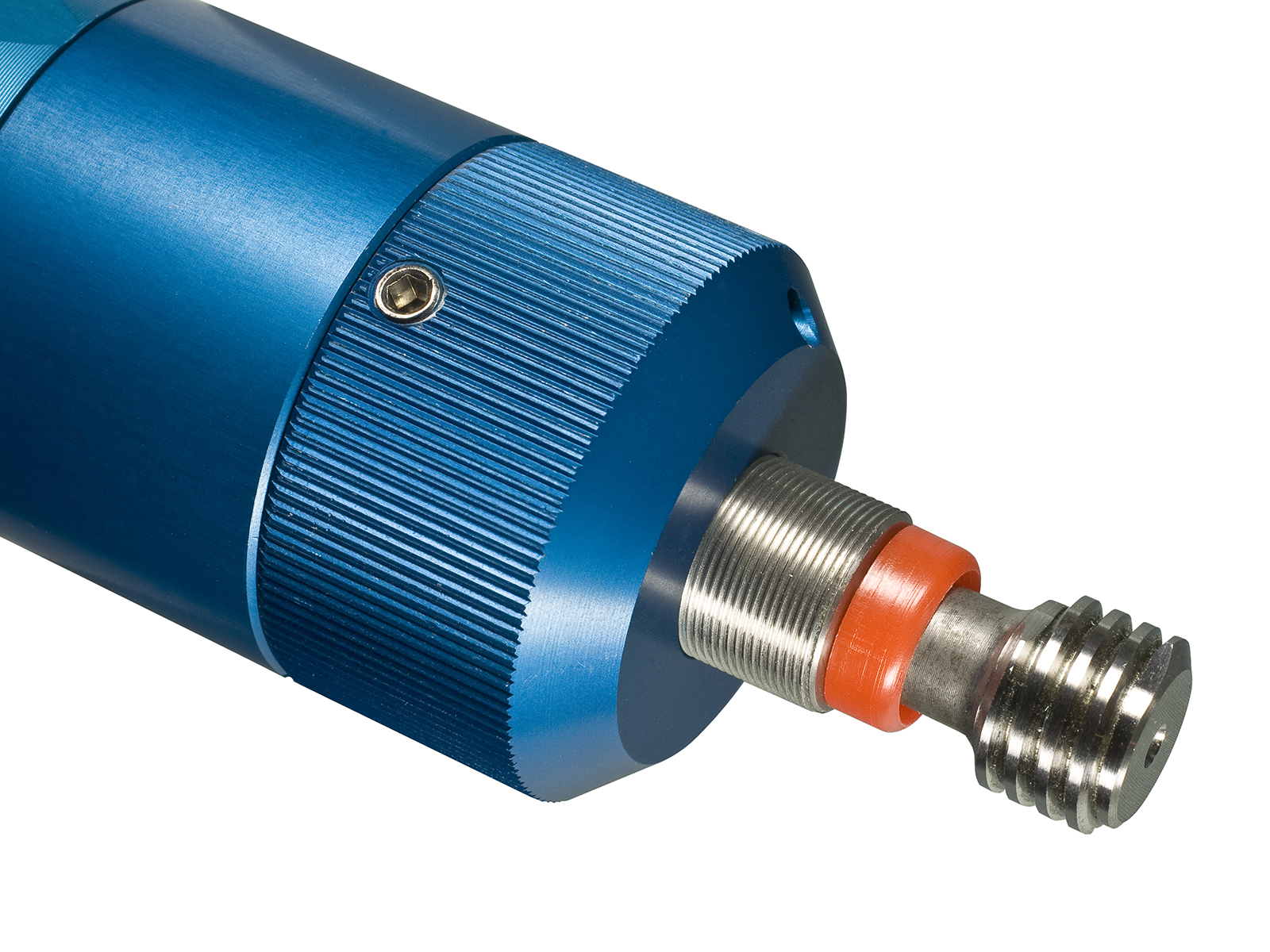

- Thread gauges in gauge steel or hard chrome plated (chrome plated from pitch 1.0), grade 6H (others on request)
- Thread gauges DIN 2282 GO and 2284 NOGO
- Plain bores from 2.0 mm to 18.0 mm as standard
- Cylinder plug gauges hard chrome plated
- Cylinder plug gauges DIN 2248 GO and 2249 NOGO
- Depth scale can be fixed
- Extensive range of accessories: depth stops, dirt grooves, Impact protection, special lengths etc.
- Marking according to customer request
- Certificates for thread and cylinder plug gauges and linearity testing available
- Universal setting and disconnecting tool
- Special TD-Gauge+ on request
