Chamfer Gauges

Chamfer Gauges – indicating measuring instruments for diameter measurement of conical bores, external cones or 45° chamfers.

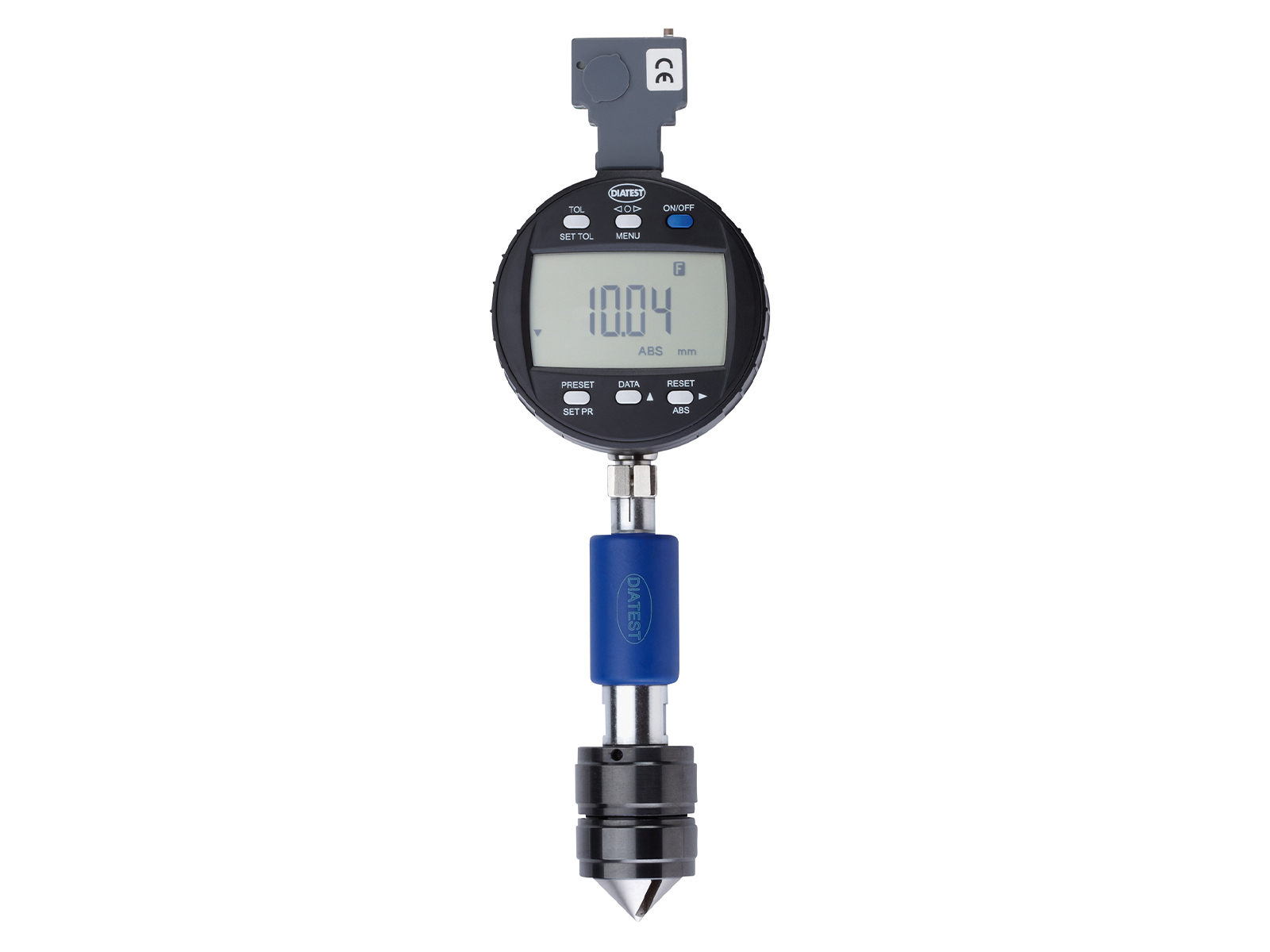

Internal Taper Gauges IKT: measure the largest diameter of a conical bore or a conical groove

• IKT60 for cone < 60° = Measuring range 0.5 to 121 mm, several instruments needed
• IKT90 for cone > 60° and < 90°= Measuring range 0.5 to 120 mm, several instruments needed
• IKT127 for cone > 90° and =< 127° = Measuring range 0.5 to 121 mm, several instruments needed
• Calibration at factory or with setting master.

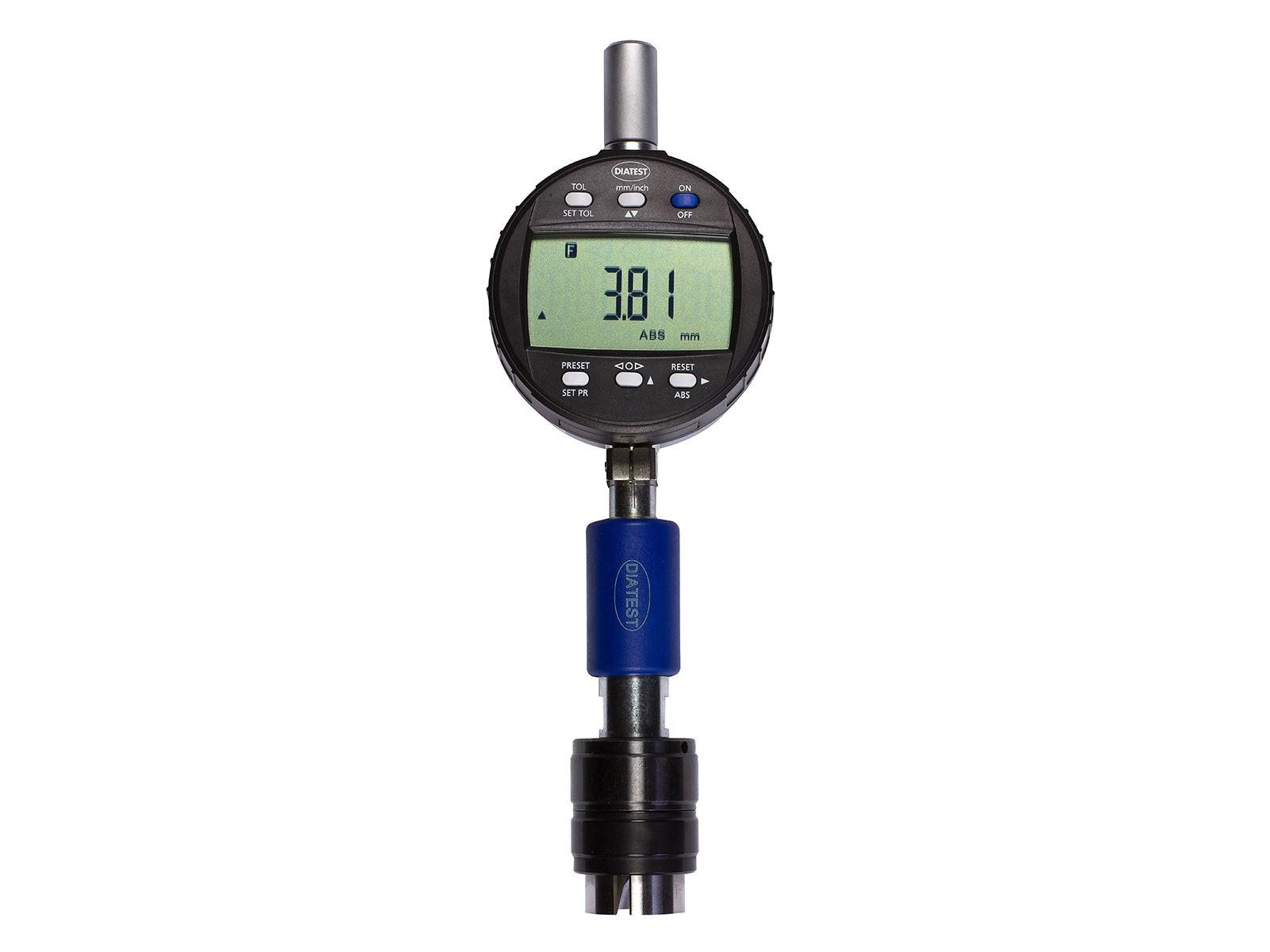

External Taper Gauges AKT: measure the smallest diameter of an external cone.

• AKT60 for cone < 60° = Measuring range 5 to 121 mm, several instruments needed
• AKT90 for cone > 60° and < 90° = Measuring range 5 to 120 mm, several instruments needed
• AKT127 for cone > 90° and <127° = Measuring range 5 to 120 mm, several instruments needed
• Calibration at factory or with setting master.

Chamfer Gauges KT resp. KT-B: measure directly a 45° chamfer on rectangular and cylindrical work pieces, even bores and slots.

• KT: for straight chamfers and external diameters and slots over 16 mm
• KT-B: For bores from Ø28 mm
• Calibration at factory (setting master included for standard KT/KT-B)
• IKT, AKT, KT and KT-B in standard version with shock protected indicator with a scale graduation of 0,01mm.

All gauges can also be equipped with a digital indicator MDU as an option (scale graduation 0.01mm/.0005“). Not only the standard angles but also any other angle is possible. All measured values can be recorded and transferred wireless (DIAWIRELESS) or via cable.

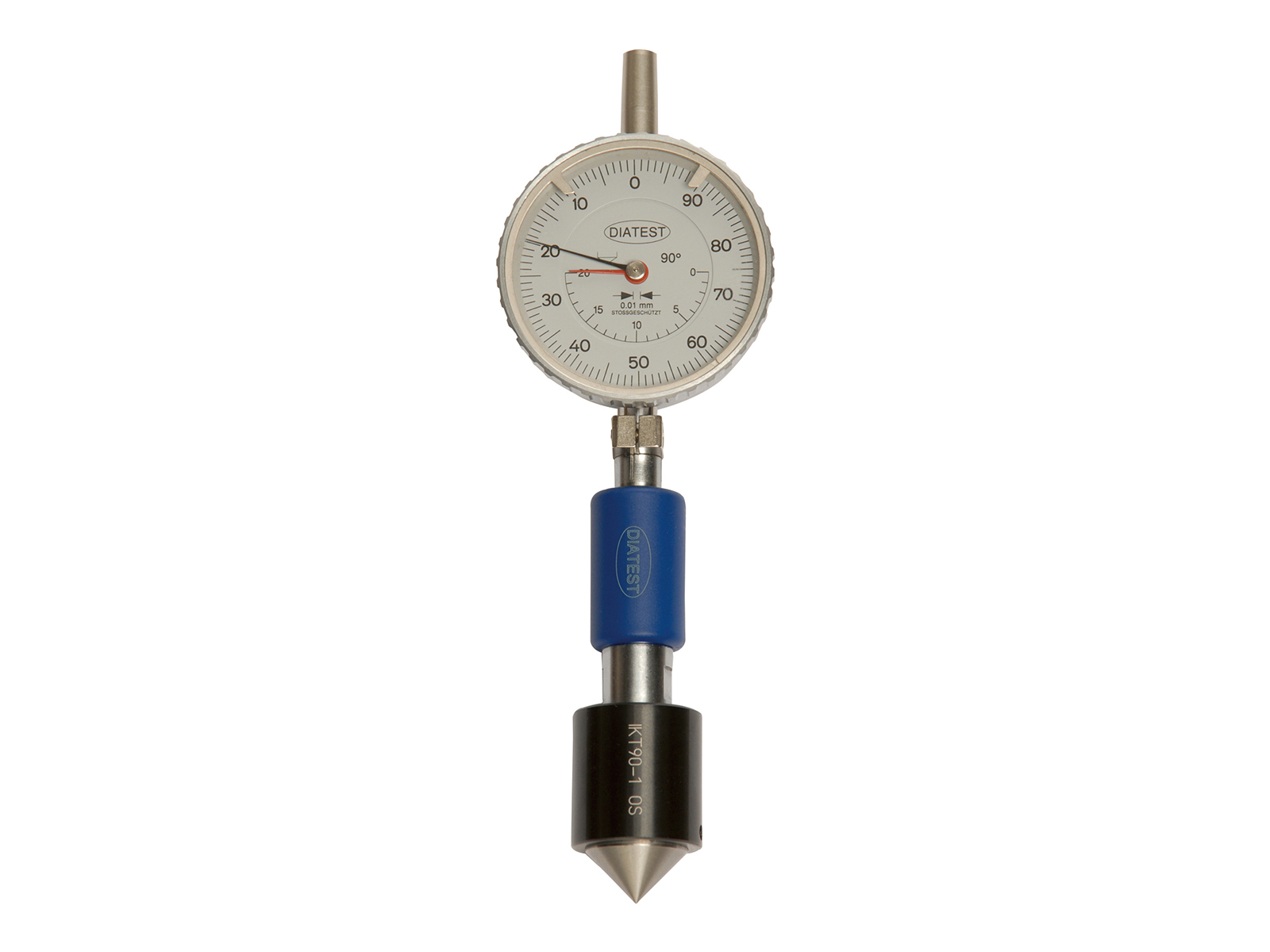

Economical alternative: Some of the IKT can be manufactured without stop bars (IKT-OS). Special designs on request
