Test panel ASME V

Ask for a price

Ask for a price Test panel ASME V

Specification

Nr. of panels: 1
Dimensions: 80 x 50 x 10 mm
Material: Aluminum (2024)

Downloads

Test panel ASME V - Prospect

Description

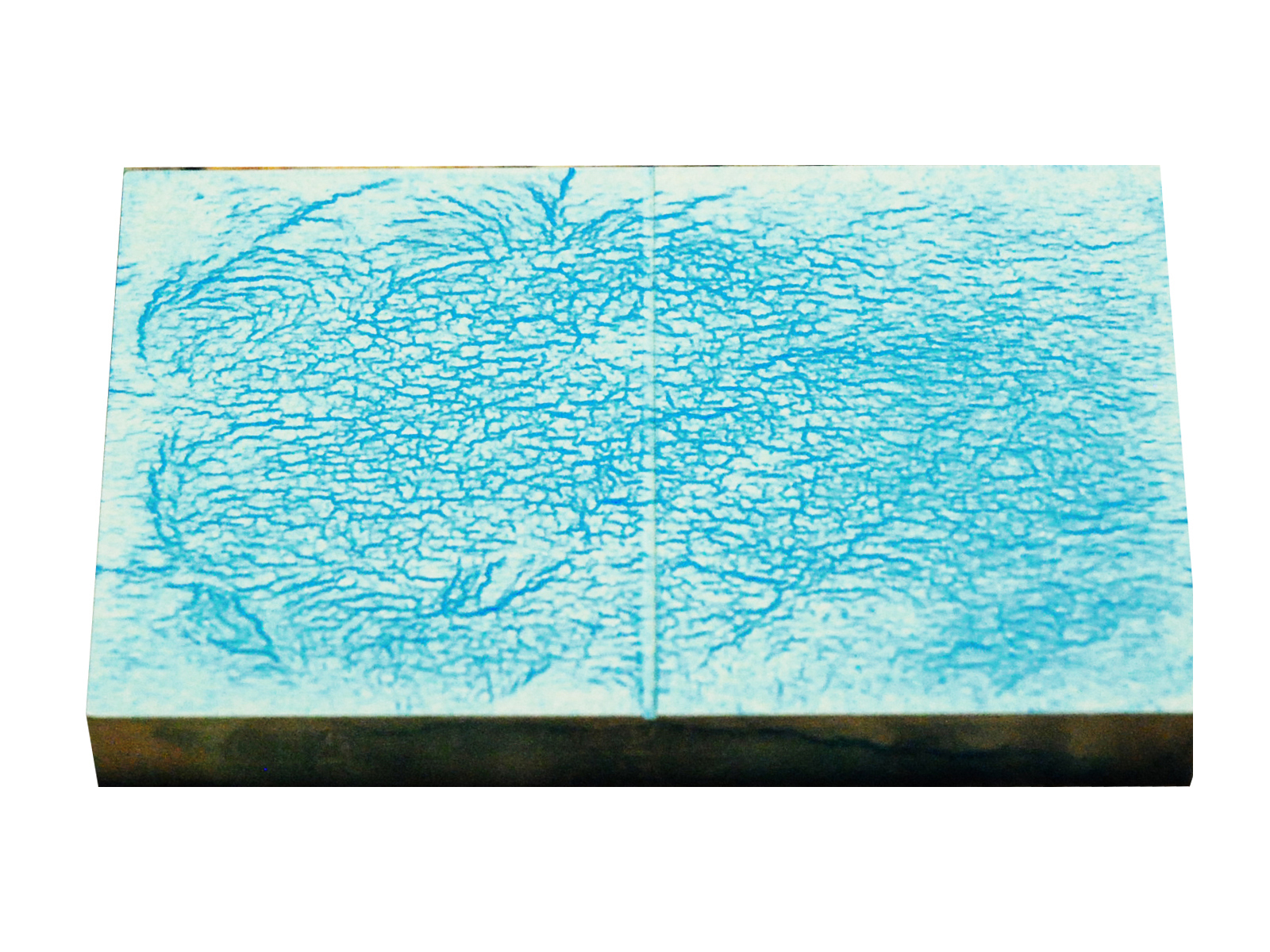

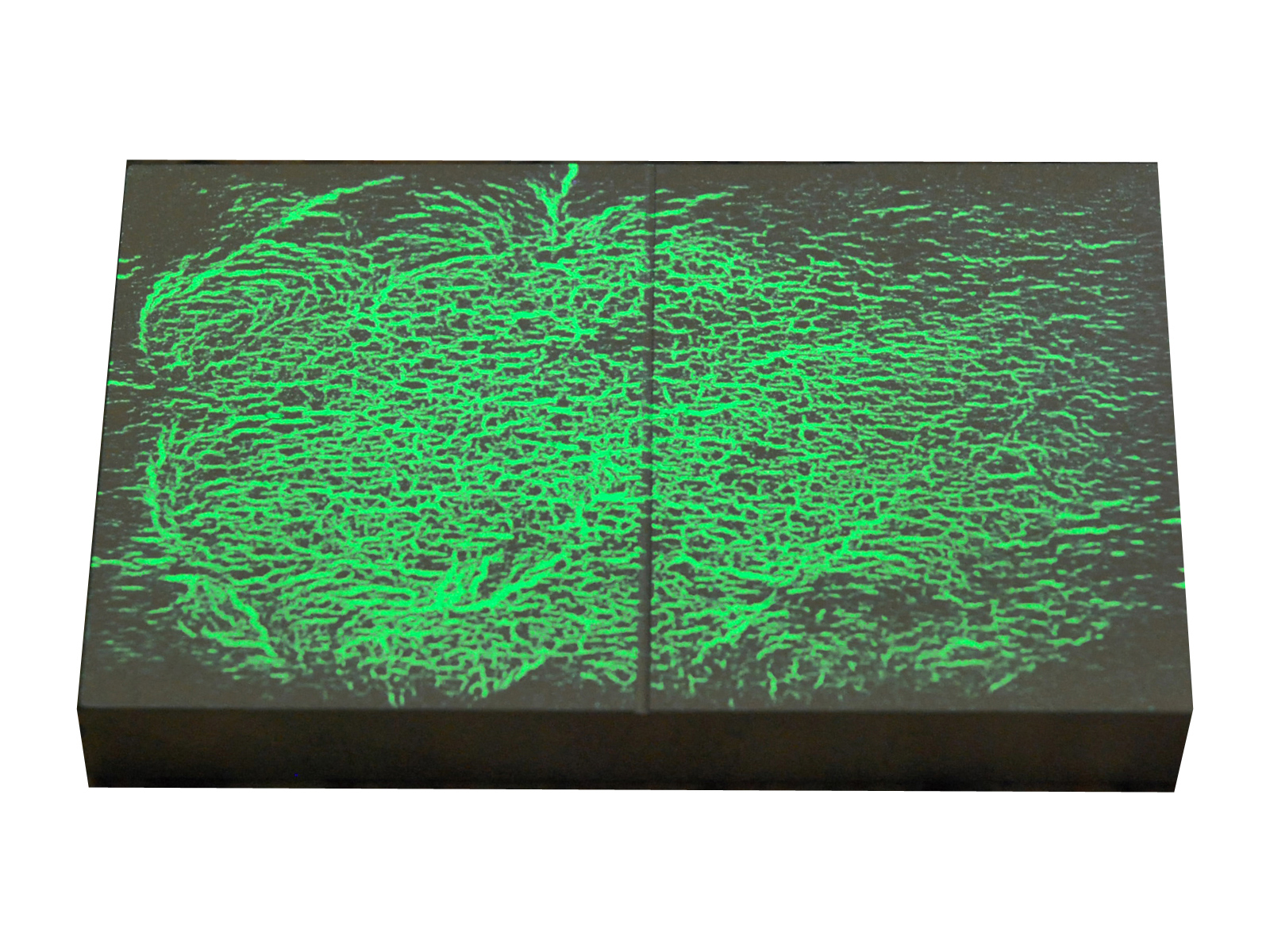

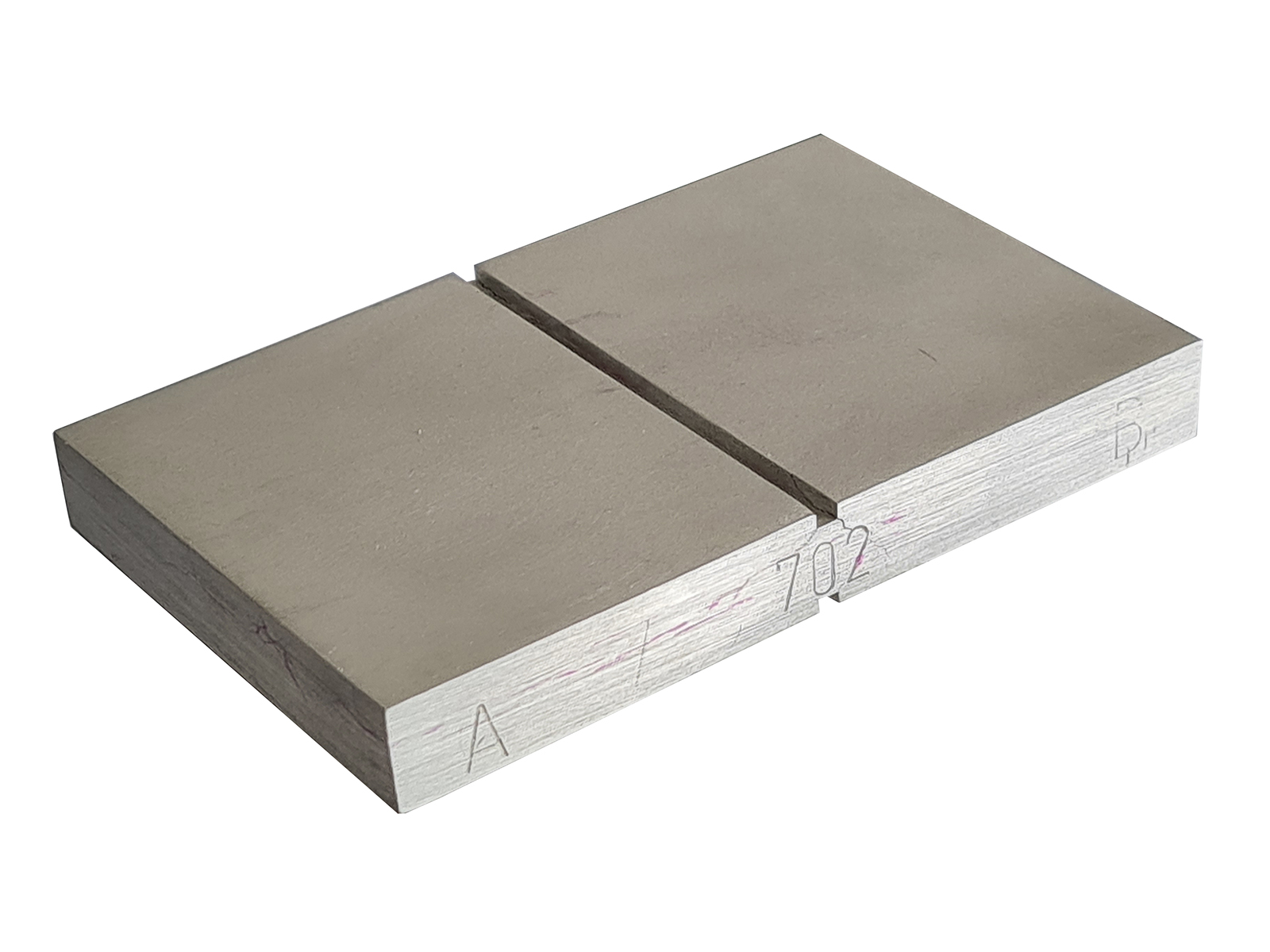

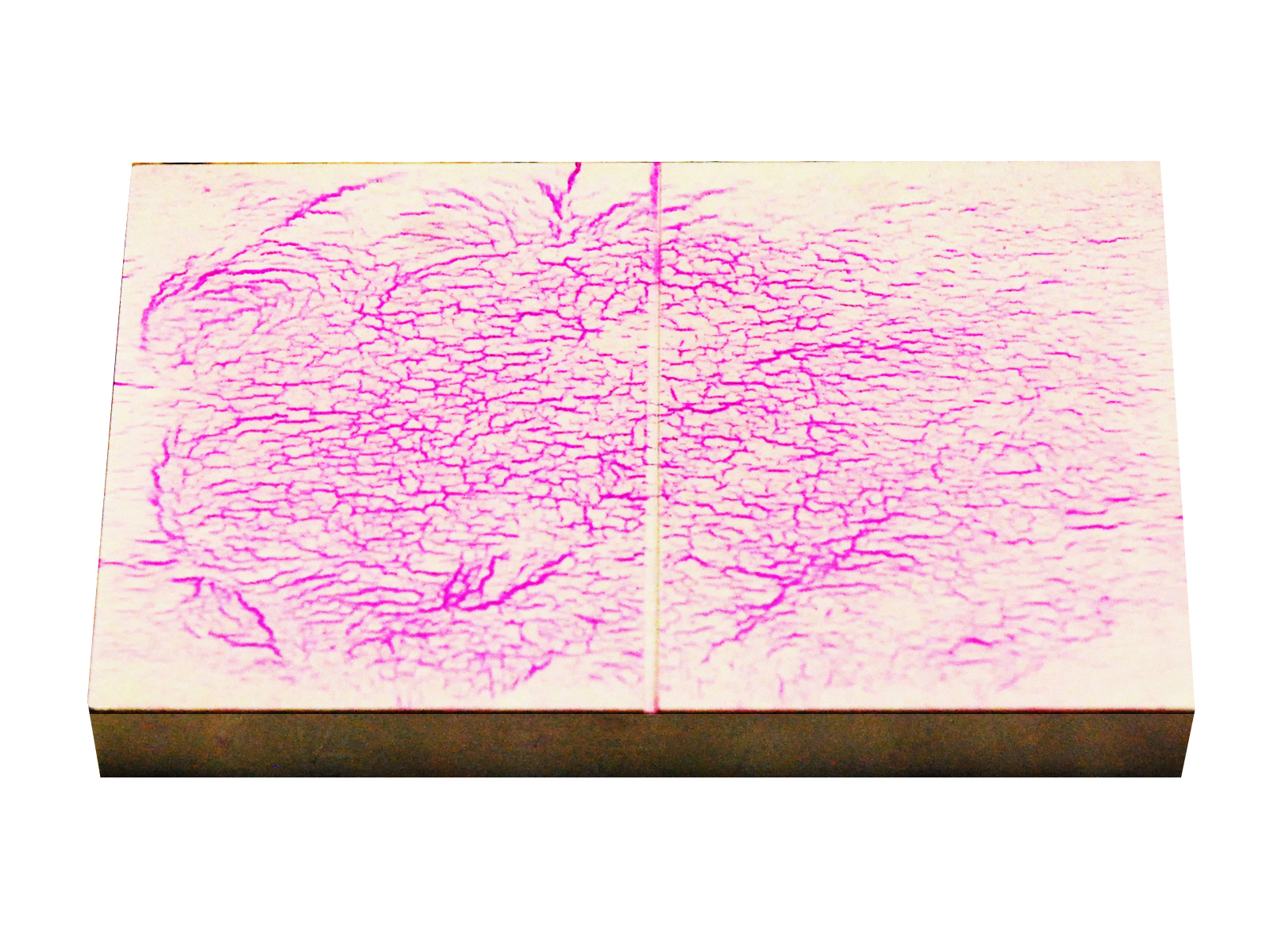

Test panel ASME V – is used for testing of the penetrants indication sensitivity. Due to the division of the test panel into two parts it is possible to compare two different penetrants. The test panel is an aluminum block of 80 х 50 х 10 mm divided by a notch (50 х 2 х 1.5 mm) into two parts. Because of a special thermal treatment the panel surface crack pattern is produced, which is different on the front and rear side of the test panel.
