3D Measuring Arms Explorer series
Ask for a priceSpecification
-
Explorer 5000 - 6 Axis
Measuring range: 5000 mm
Volumetric accuracy: 0.065 mm
Repetability: 0.038 mm -
Explorer 5000 - 7 Axe
Measuring range: 5000 mm
Volumetric accuracy: 0.075 mm
Repetability: 0.050 mm -
Explorer 7000 - 6 Axe
Measuring range: 7000 mm
Volumetric accuracy: 0.080 mm
Repetability: 0.048 mm -
Explorer 7000 - 7 Axe
Measuring range: 7000 mm
Volumetric accuracy: 0.090 mm
Repetability: 0.060 mm -
Explorer 9000 - 6 Axe
Measuring range: 9000 mm
Volumetric accuracy: 0.150 mm
Repetability: 0.075 mm -
Explorer 9000 - 7 Axe
Measuring range: 9000 mm
Volumetric accuracy: 0.170 mm
Repetabilitate: 0.090 mm - Power supply: 100-240 VAC
- Protection class: IP 54
Description

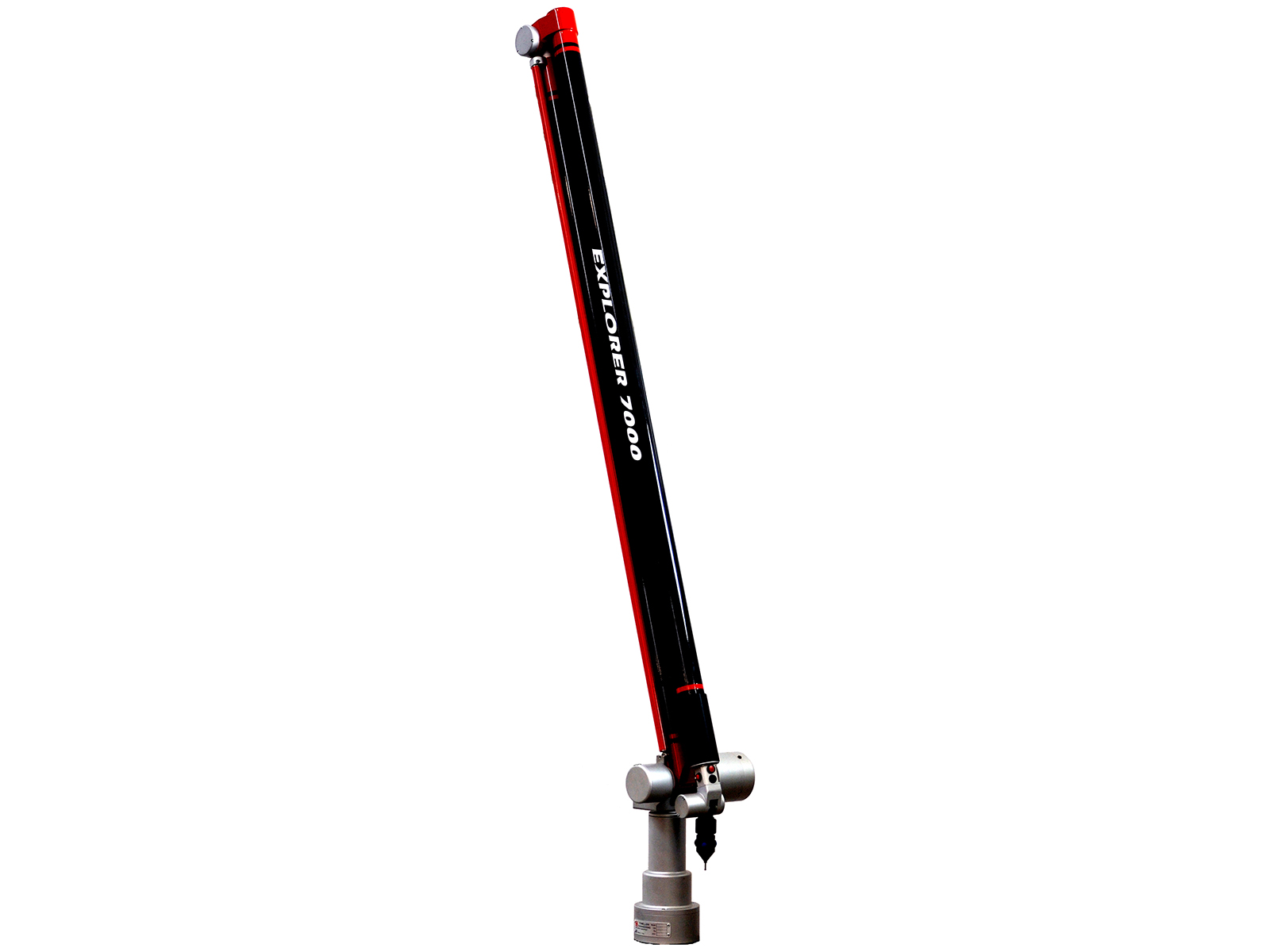

3D Measuring Arms Explorer series – The largest measuring range for a portable arm
WHEN THE NEED IS TO.. EXPLORE

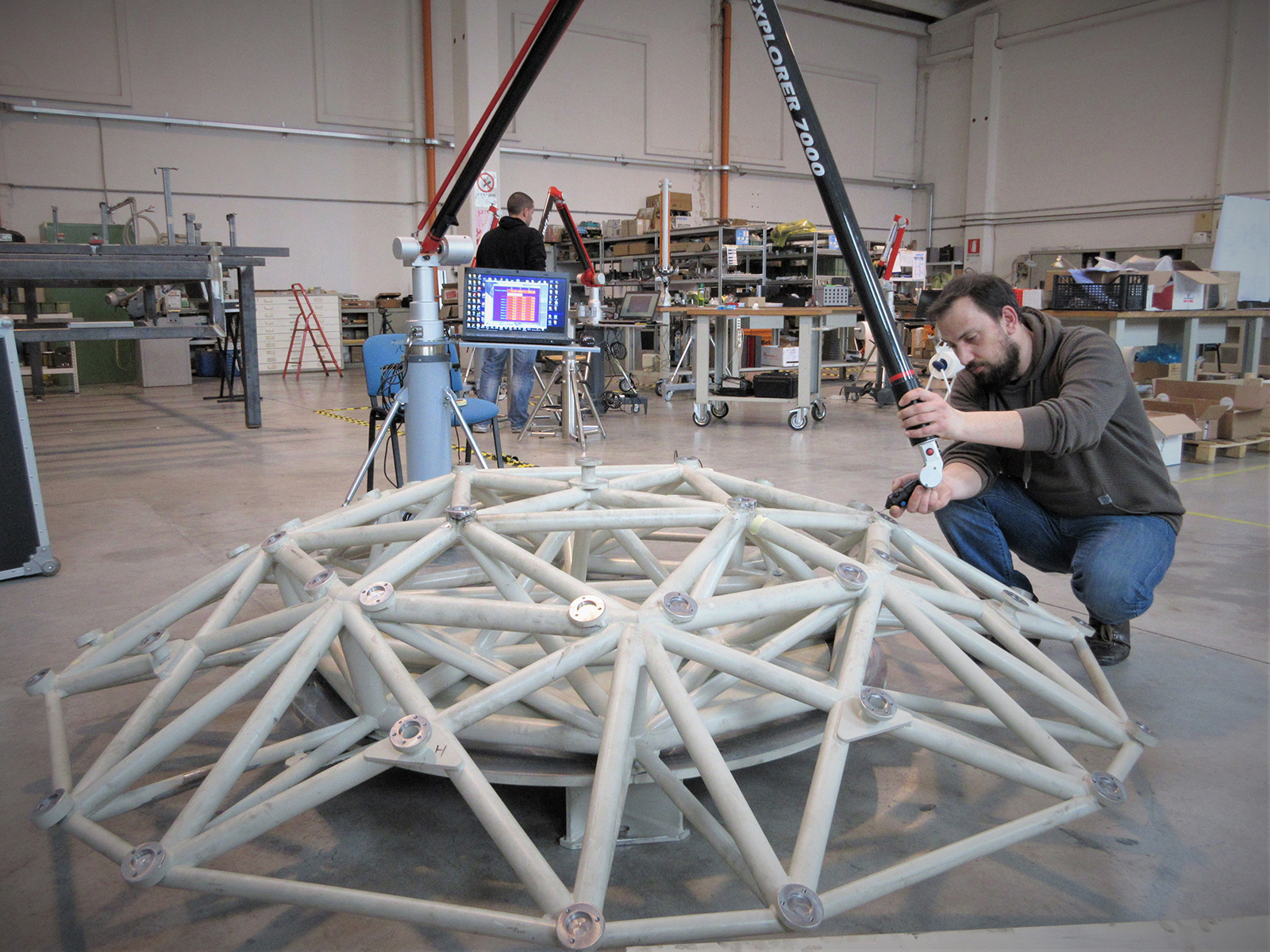

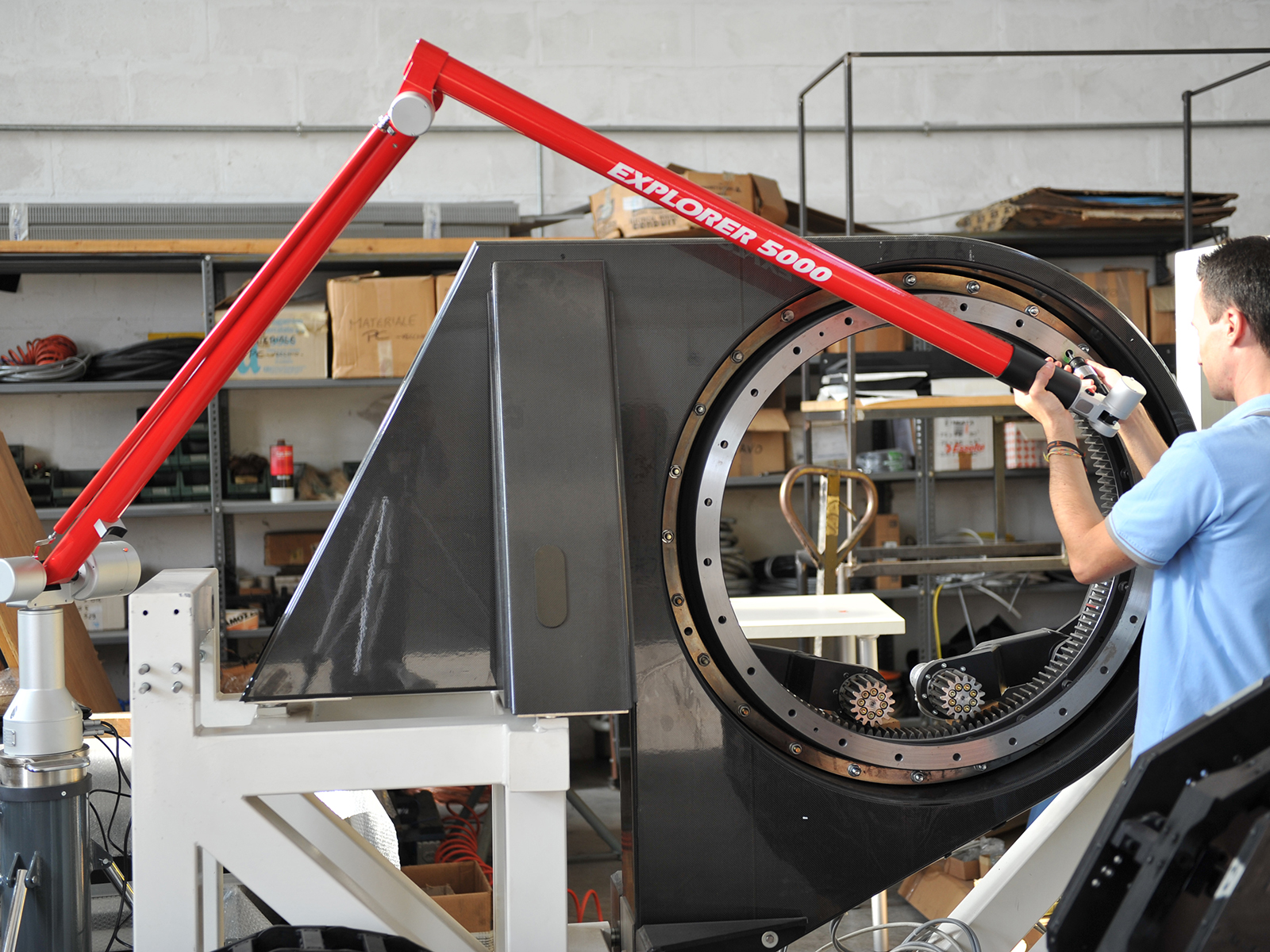

The EXPLORER is available with 5, 7 and 9 m diameter. It is the perfect equipment when you need to “explore” large parts with great flexibility, representing our solution to face the toughest challanges. Every situtation that was previosly impossible now is made possible.
PERFECTLY BALANCED
When the dimensions are important, every aspect becomes critical in obtaining the best results. For the EXPLORER line the balance plays a fundamental role, allowing to the reduce the loads carried by the user during the measurement session. This not only allows a comfortable handling despite the incredible size, it also makes the arm surprisignly accurate.
SAFE AND COMFORTABLE
The EXPLORER line is equipped with a re-dimensioned electromagnetic brake system that allows the operator to lock the arm at the required hight, and to use it safely and comfortably.
COMPATIBLE WITH EVERYTHING

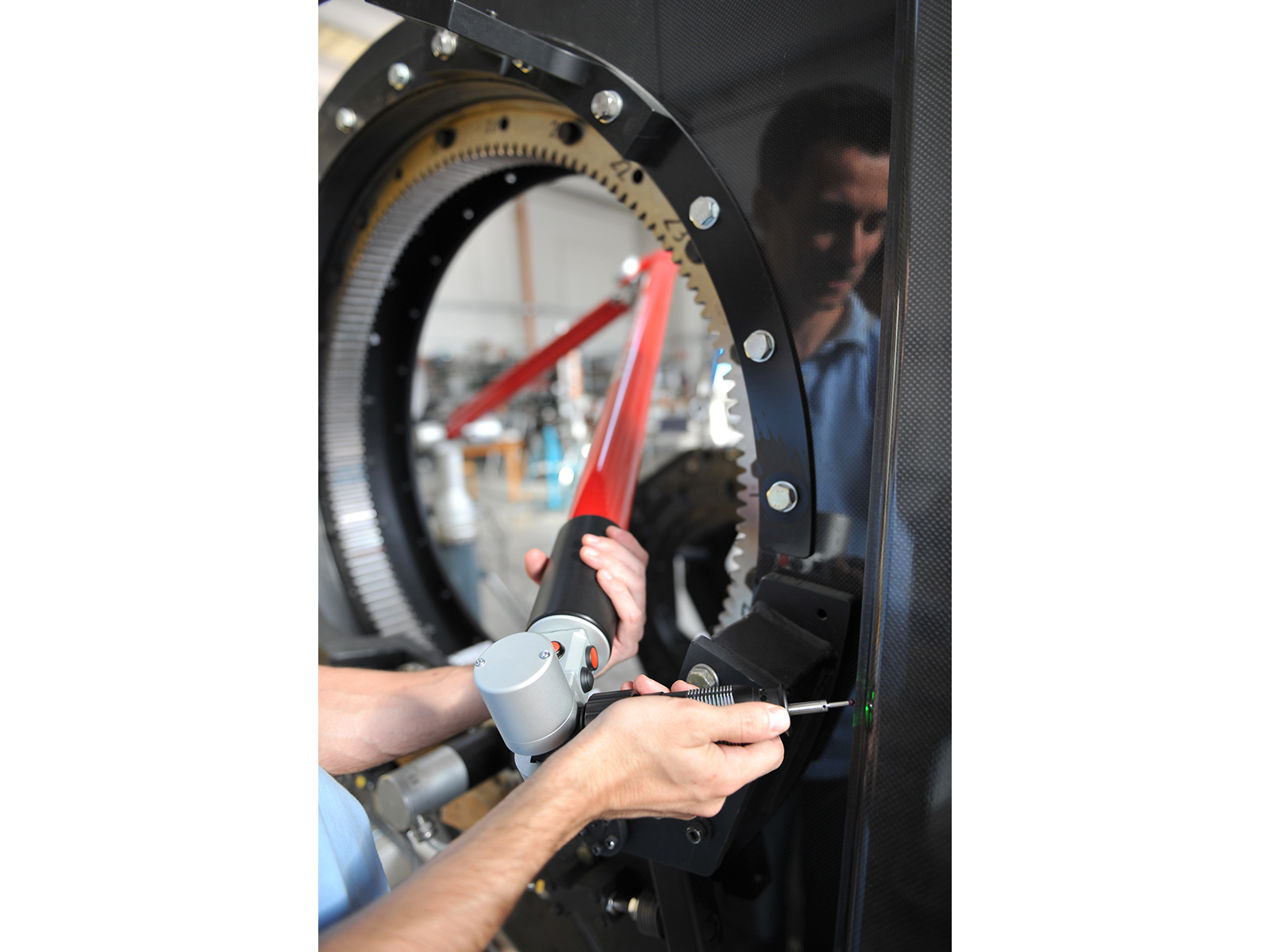

The EXPLORER line is available with any configuration available for the SPACE Plus line. It works perfectly for touch inpection with the probe and, with the 7 axes configuration, it can also work with a scanner for point cloud measurements or reverse engineering.
