3D Pipe Inspection System Space TUBO
Ask for a priceSpecification
-
Tubo 1800
Measuring range: 1800 mm
Volumetric accuracy with forks: 0.056 mm
Repetability: 0.020 mm -
Tubo 2500
Measuring range: 2500 mm
Volumetric accuracy with forks: 0.063 mm
Repetability: 0.028 mm -
Tubo 3200
Measuring range: 3200 mm
Volumetric accuracy with forks: 0.072 mm
Repetability: 0.035 mm -
Tubo 4000
Measuring range: 4000 mm
Volumetric accuracy with forks: 0.099 mm
Repetability: 0.045 mm -
Tubo 5000
Measuring range: 5000 mm
Volumetric accuracy with forks: 0.122 mm
Repetability: 0.060 mm - Max. pipe diameters for different forks: 26; 45 ; 74 ; 142; 190 mm
- Laser class: 3R
- Wavelength: 650 nm
- Power supply: 100-240 VAC
- Protection class: IP 54
Description

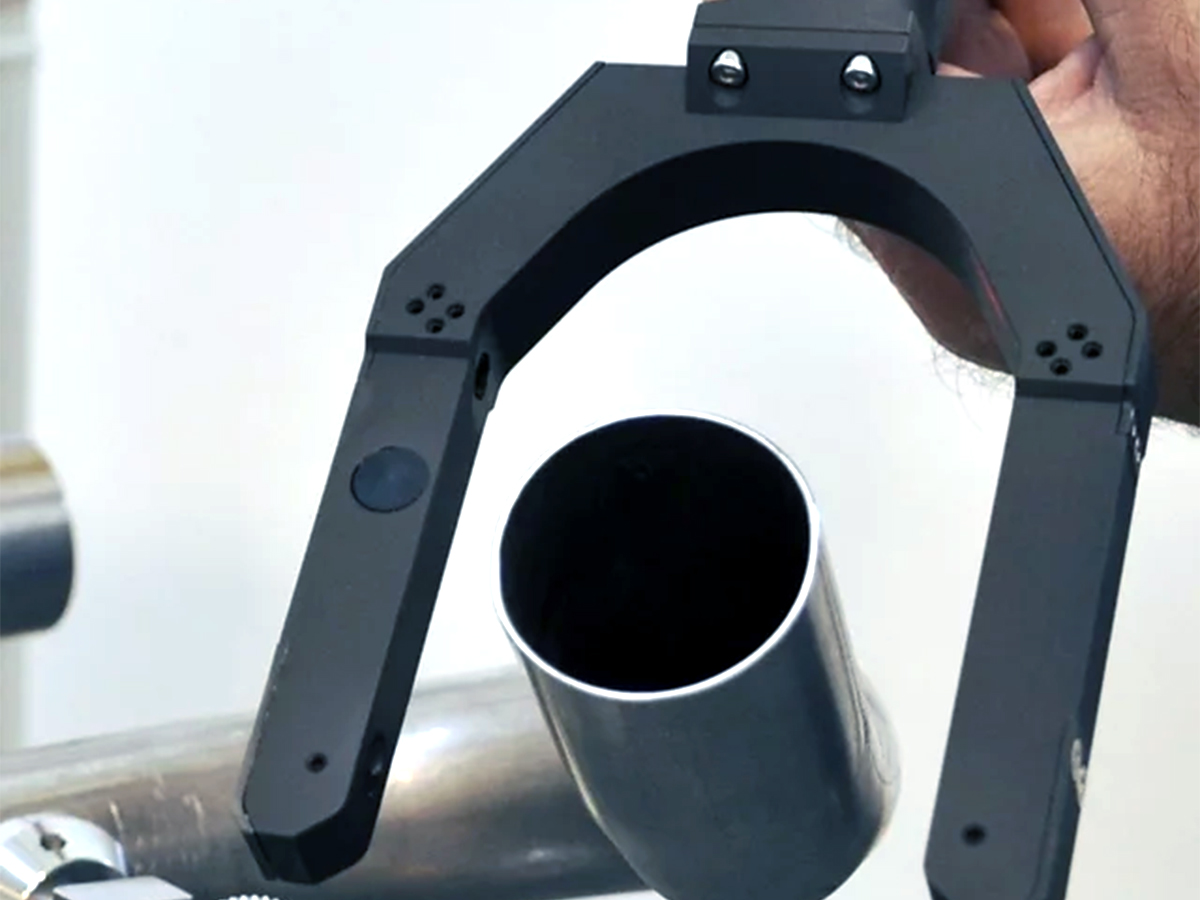

3D Pipe Inspection System Space TUBO – The first pipes measuring system with laser forks. The first in the world measuring system of its kind, evolved through the years to always adapt to the new challanges, the line TUBO represents the most complete solution for pipes inspection.
Based on the SPACE Arm’s design, it’s a portable Articulated Arm ideal for quick and accurate inspections of pipes and any other part within its range. The perfect equipment for pipe inspections with laser fork and a dedicated software.
SPACE Tubo is available in several sizes from 1.8 up to 5 m diameter, in 6 or 7 axes confi guration. The counter-balance system with a double spring also gives the mach teristics of accuracy, lightweight and easy handling.
The Portable Arm unit can be placed on the top of the table, for a comfortable surface where to place the pipes to inspect, with a support or directly on the rigid laminate top surface. I also compatible with our tripod.
