3D Measuring Arms Space Plus series

Ask for a price

Ask for a price 3D Measuring Arms Space Plus series

Specification

Space Plus 1800 - 6 Axis Measuring range: 1800 mm
Volumetric accuracy: 0.020 mm
Repetability: 0.012 mm
Space Plus 1800 - 7 Axis Measuring range: 1800 mm
Volumetric accuracy: 0.027 mm
Repetability: 0.017 mm
Space Plus 2500 - 6 Axe Measuring range: 2500 mm
Volumetric accuracy: 0.026 mm
Repetability: 0.016 mm
Space Plus 2500 - 7 Axe Measuring range: 2500 mm
Volumetric accuracy: 0.034 mm
Repetability: 0.021 mm
Space Plus 3200 - 6 Axe Measuring range: 3200 mm
Volumetric accuracy: 0.036 mm
Repetability: 0.020 mm
Space Plus 3200 - 7 Axe Measuring range: 3200 mm
Volumetric accuracy: 0.045 mm
Repetability: 0.026 mm
Space Plus 4000 - 6 Axe Measuring range: 4000 mm
Volumetric accuracy: 0.046 mm
Repetability: 0.024 mm
Space Plus 4000 - 7 Axe Measuring range: 4000 mm
Volumetric accuracy: 0.056 mm
Repetability: 0.030 mm
Power supply: 100-240 VAC
Protection class: IP 54

Downloads

Description

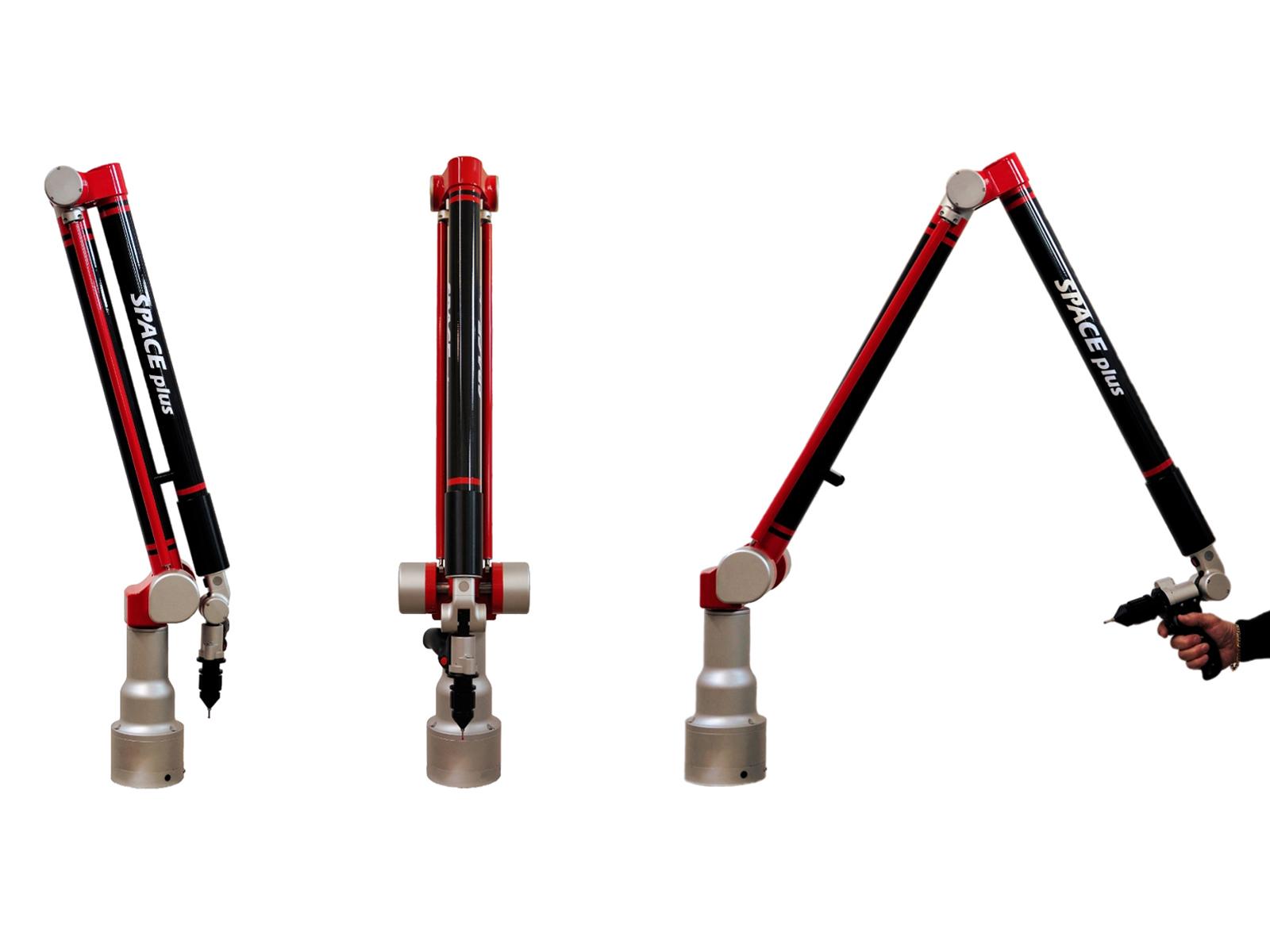

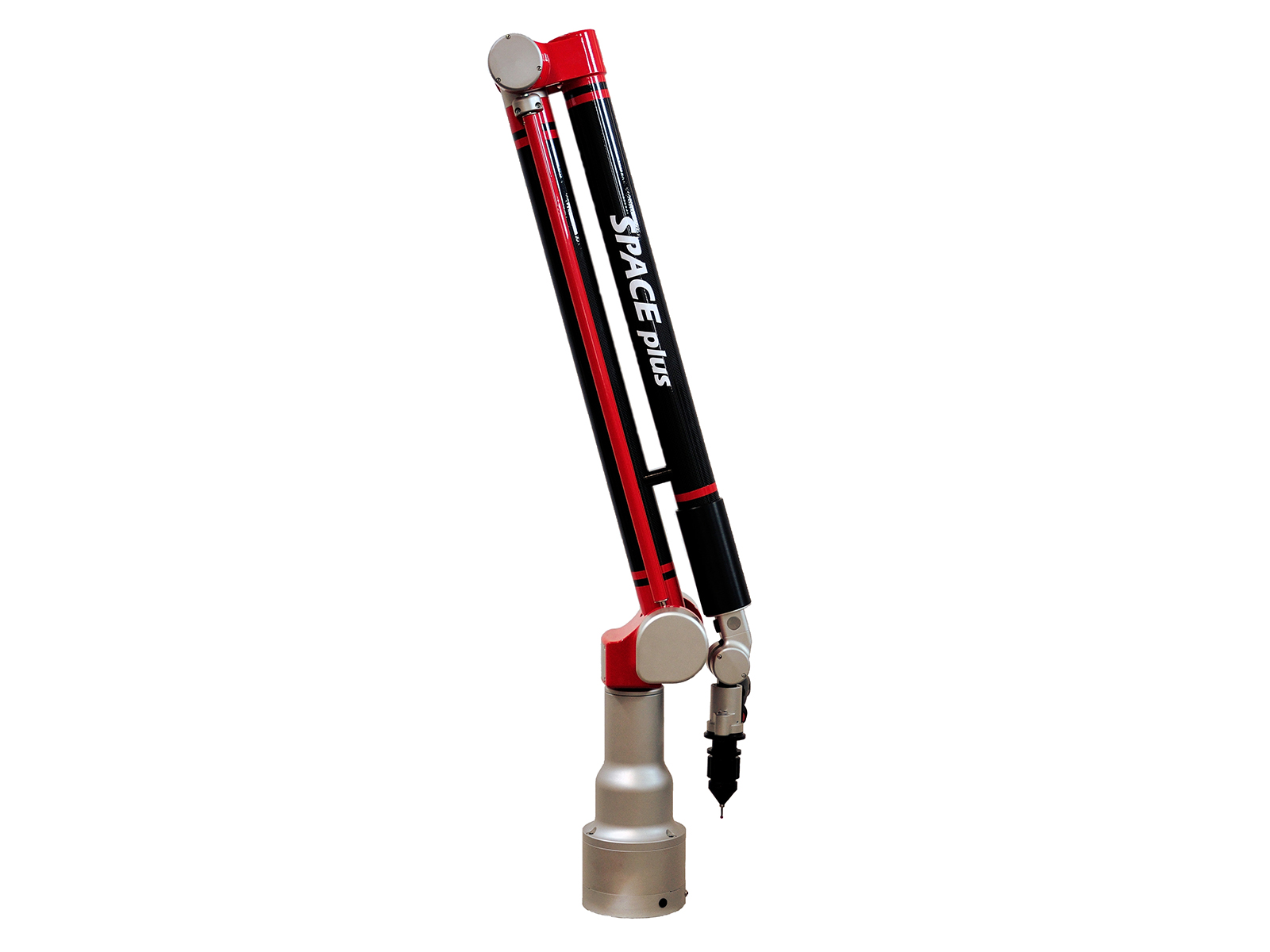

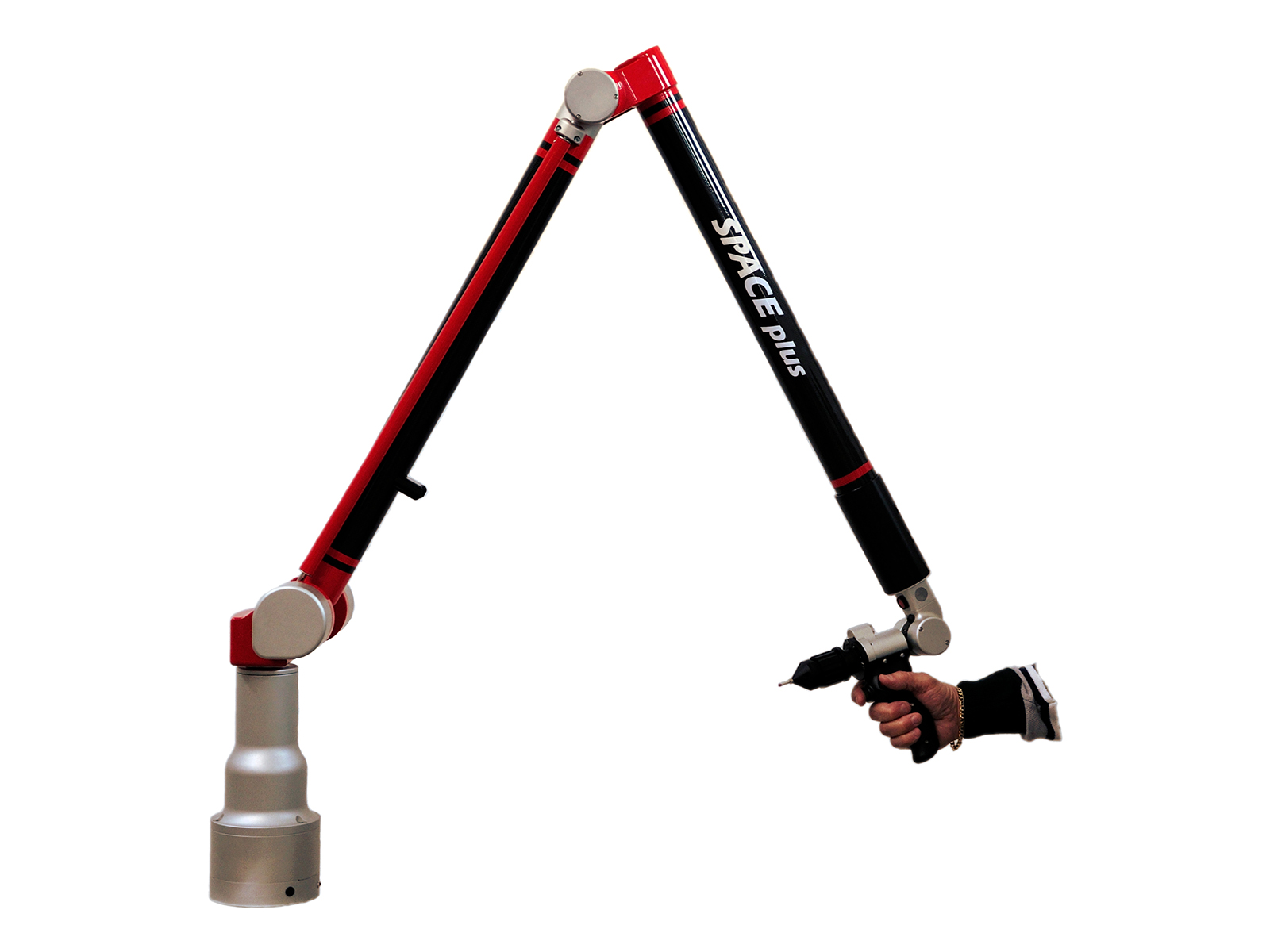

3D Measuring Arms Space Plus series – the most iconic line, renewed

The most accurate portable arm of its kind, from 1.8 up to 4 m diameter and configured with 6 or 7 rotation axes: a large selection to cover any necessity. Since the invention of the Articulated Arms, the SPACE lines represent the brand all over the world, now renewed to give the best usage eperience.

MECHANICALLY BALANCED

The SPACE Plus line is balanced thanks to a couple of mechanical springs, a reliable solution to allow the user to move the instrument without loads. The result is an incredible accuracy, obtained under an very comfortable handling experience.

PERFECT FOR ANY MEASURE

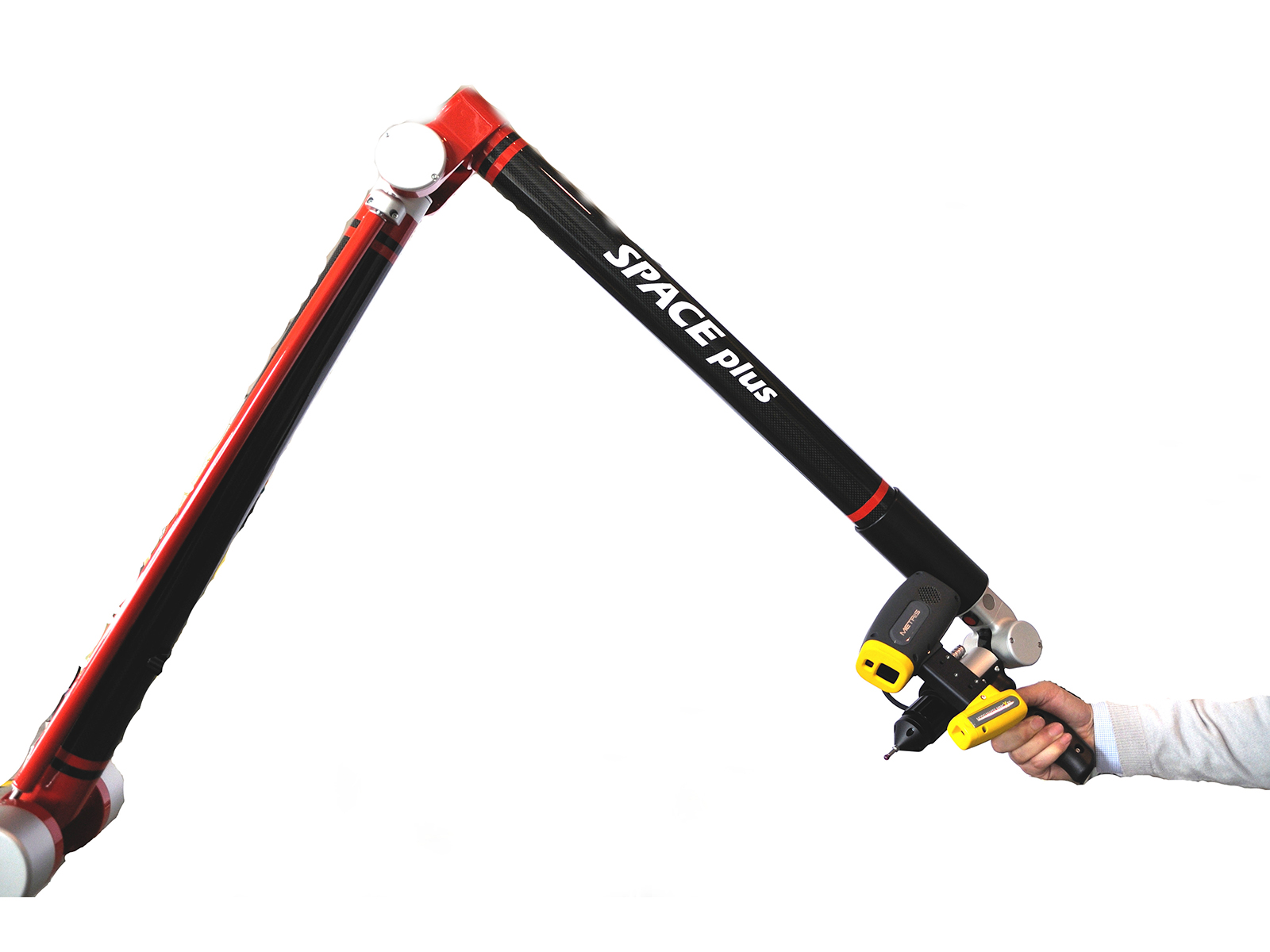

With dimensions from 1.8 up to 4 m diameters, the SPACE Plus covers the majority of the measuring ranges requested by the market. The 6 axes configuration ensure the highest accuracy, while the 7 axes one, combined with the laser scanner, becomes an incredibly powerful setup, capable to satisfy the most demanding requirements.

READY WHEN YOU ARE

Thanks to the new updates on the electronics, the SPACE Plus line is always ready to measure. It automatically recognizes when you take it from its safe position, instanlty unlocking its brake system and re-locking it when you put it back.
